PMI Cartoner Auto Horiz. Glue (Auto)

  Back to All Equipment
  • Manufacturer: PMI
  • Model:
  • Frain Number: 5H3793
  • Category: Cartoner
  • Subcategory: Automatic Glue
  • Condition: Used, in excellent condition
  • Availability: In Stock

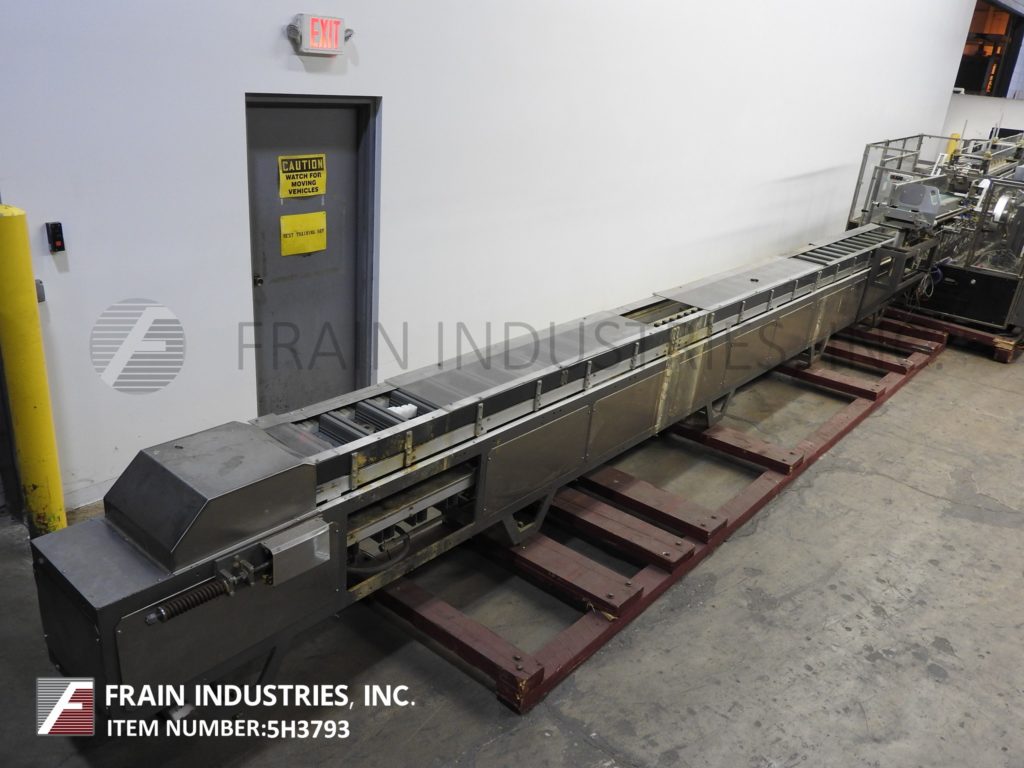

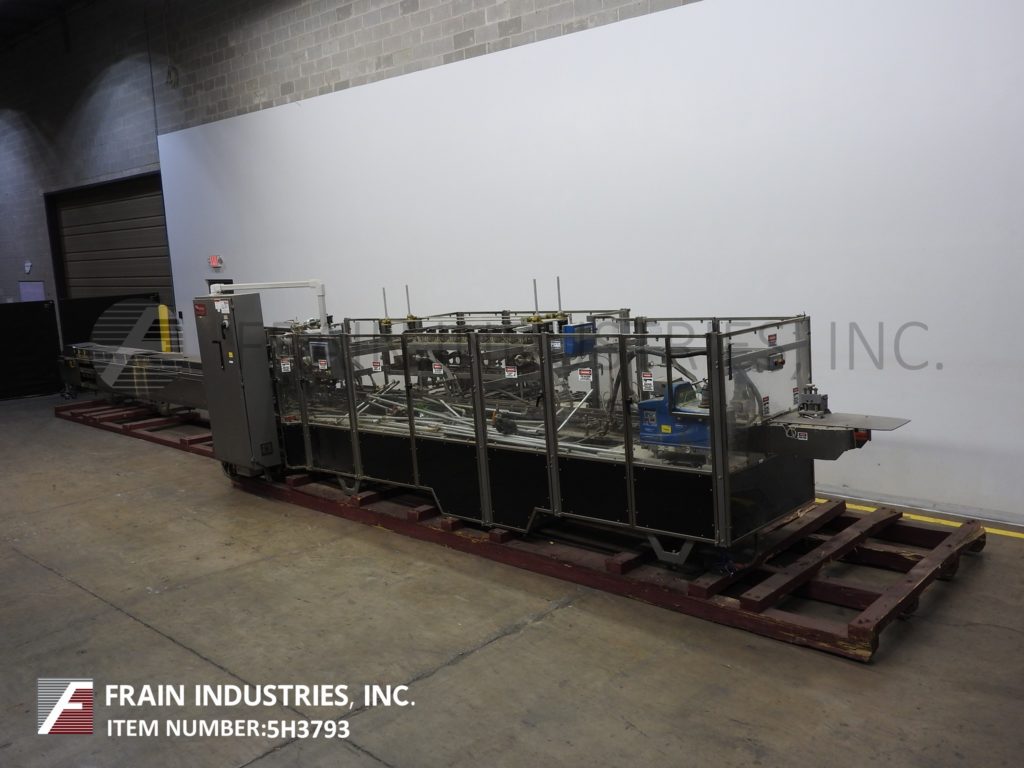

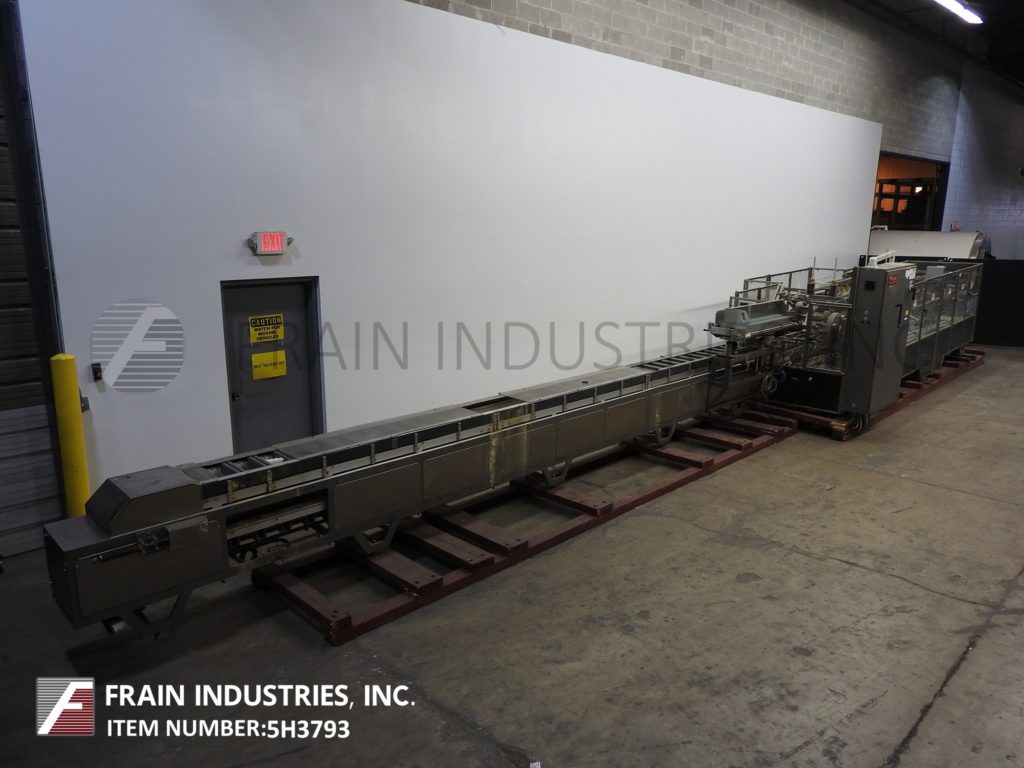

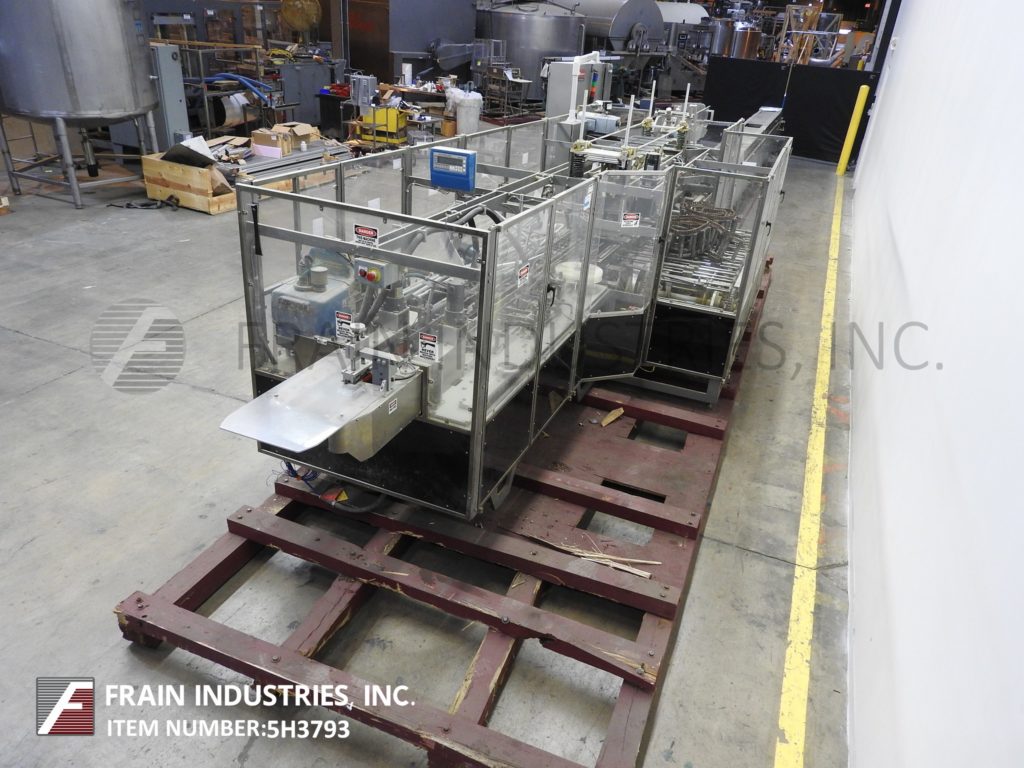

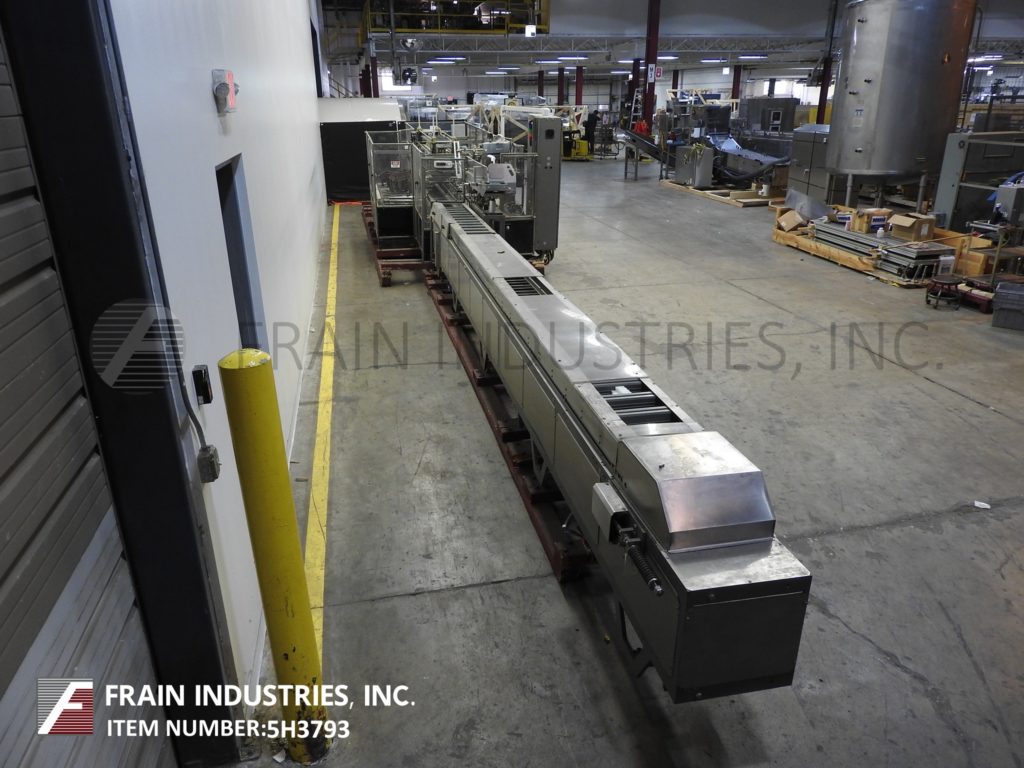

PMI Model automatic, horizontal, continuous motion, hot melt glue cartoner rated from 30 to 300 cartons per minute – depending on materials and application. Carton size range: per application currently set for 5" long x 3-1/2" wide x 11" deep carton. Equipped with 3 chains adjustable, set on 7" centers with 2" wide x 2-1/2" high lugs. 384" long product in feed conveyor with 5" long x 3-1/2" wide x 14" (total) currently using 11" deep fixed product buckets, 70" long, single belt, automatic blank carton magazine with 4 head rotary pick n place, barrel cam loader, overhead product confiner, no product / no carton detector, Nordson ProBlue hot melt glue system, with major and minor flap closers and 36" long side belt compression and discharge conveyor. Control panel has A/B PLC controller and A/B panelview controls with operator interface, start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty welded steel base frame with leveling legs and safety guarding.

OAD: 288" L x 120" W x 82" H Cartoner
384" L x 20" W x 38" H Infeed Conveyor
