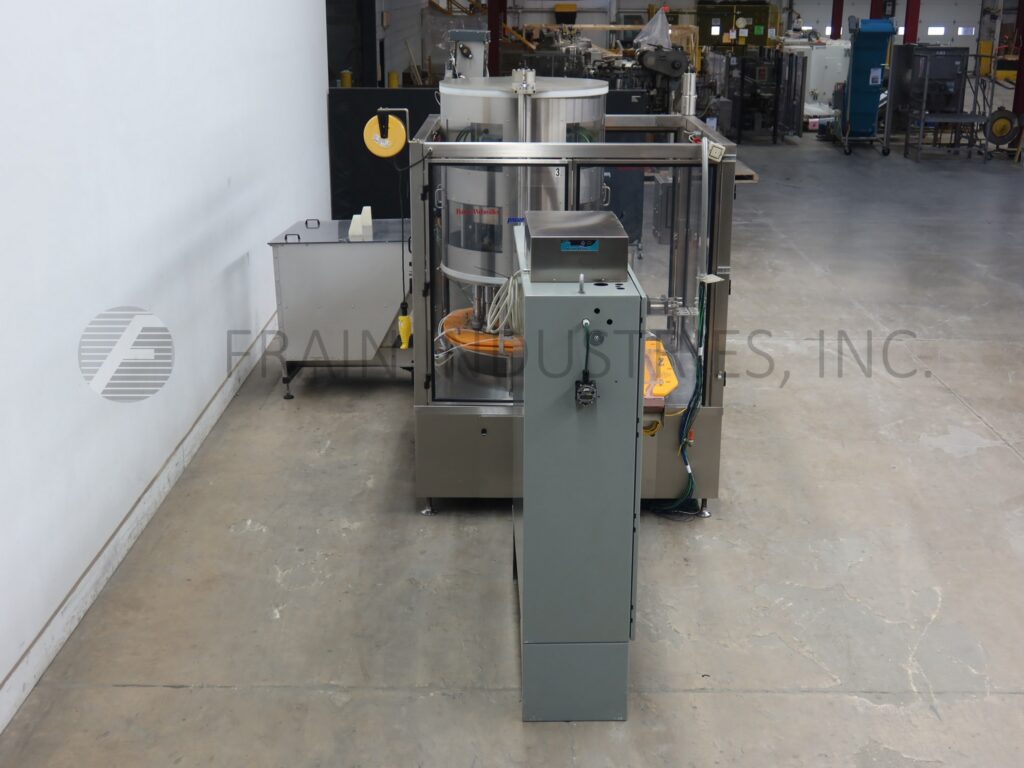

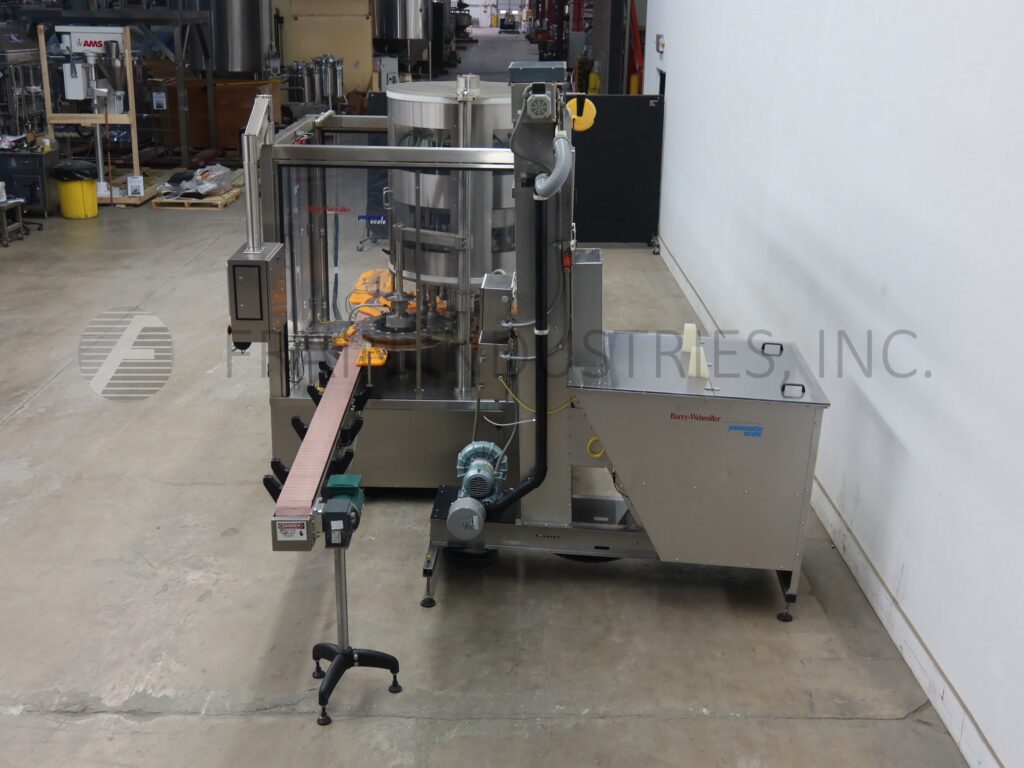

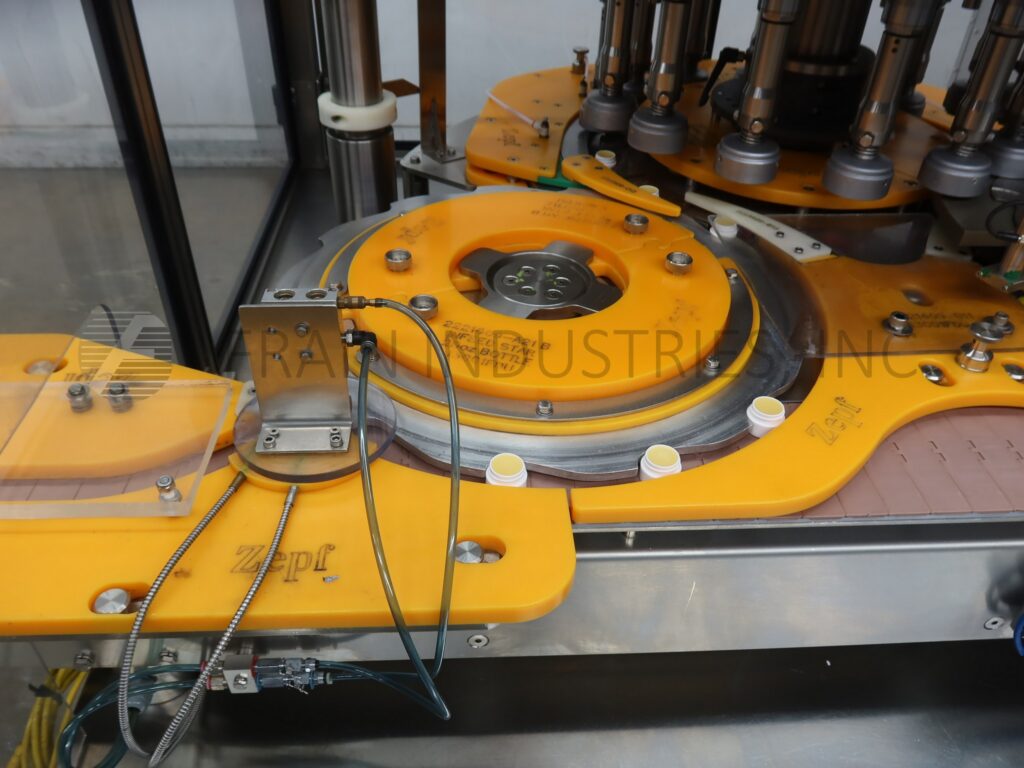

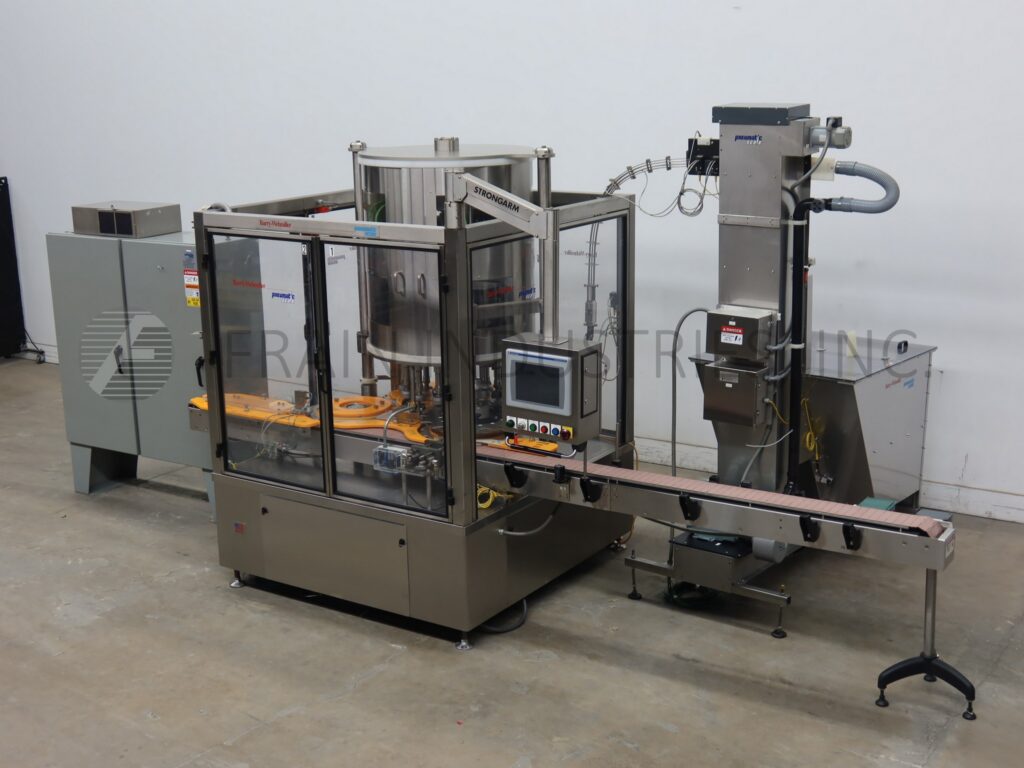

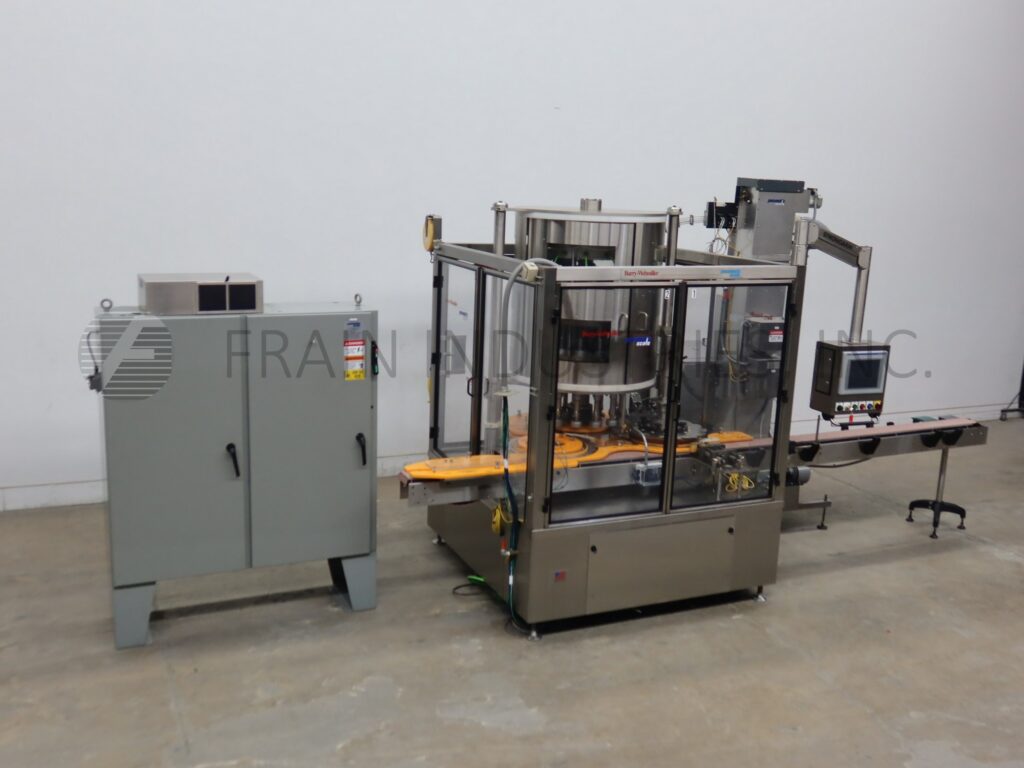

Pneumatic Scale, Model SC600-14, 14 head chuck capper and cap feeder
Back to All EquipmentPneumatic Scale, Model SC600-14, 14 head chuck capper and cap feeder rated up to 350 containers per minute – depending on materials, application and machine configuration. Maximum Cap size: 89mm. Maximum container size: 4¾” diameter. Equipped with 6″ wide x 182″ long through conveyor, 39″ wide x 47″ long x 32″ deep bulk cap hopper, 13¾” wide waterfall sorting belt conveyor with (3/8)” cleats set on 2-1/8″ centers. Control panel has touch screen HMI. Mounted on heavy duty frame with safety guarding and adjustable leveling legs.
OAD:
Capper: 189″ L x 74″ W x 108″H
Waterfall sorter: 76″ L x 41″ W x 108″ H
Electrical cabinet: 61″ L x 22″ W x 83″ H
