Tank Processors 600 GAL

• Model: 600 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Processor

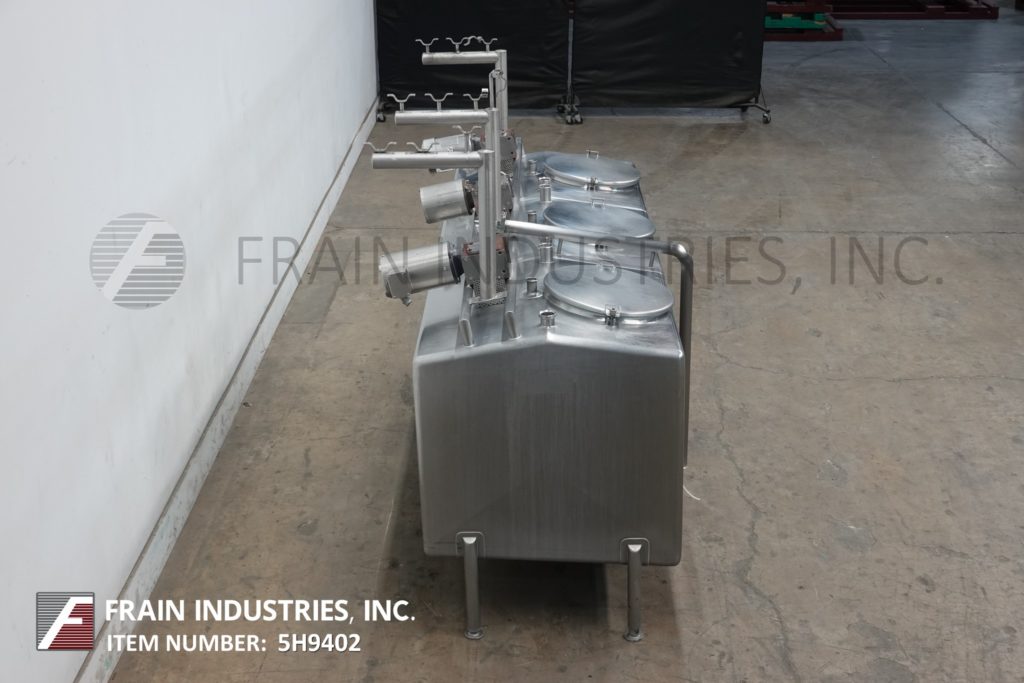

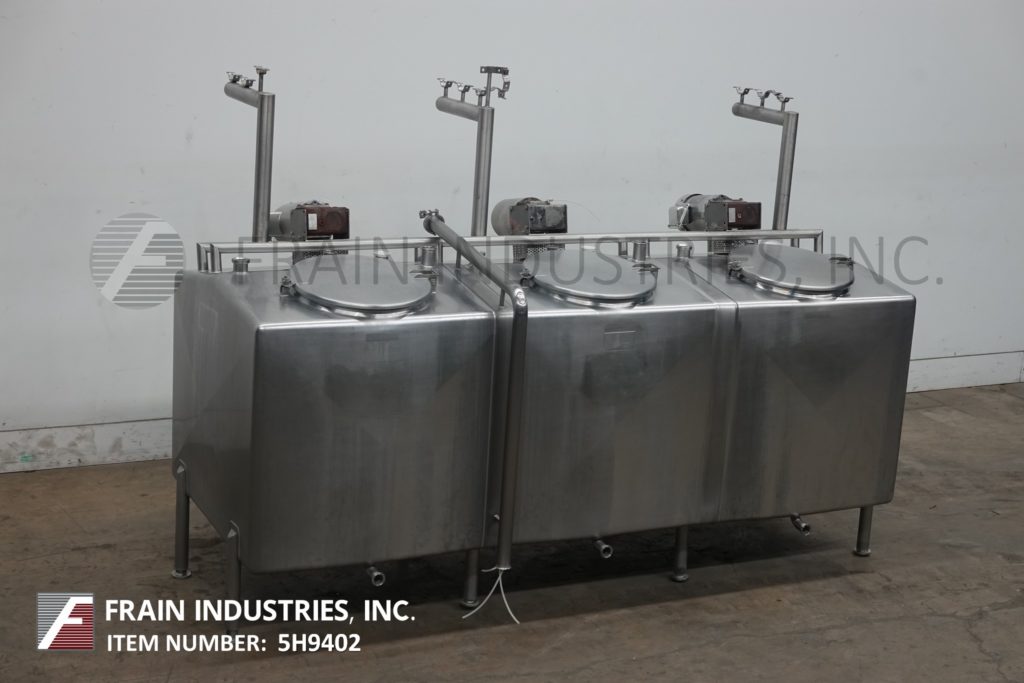

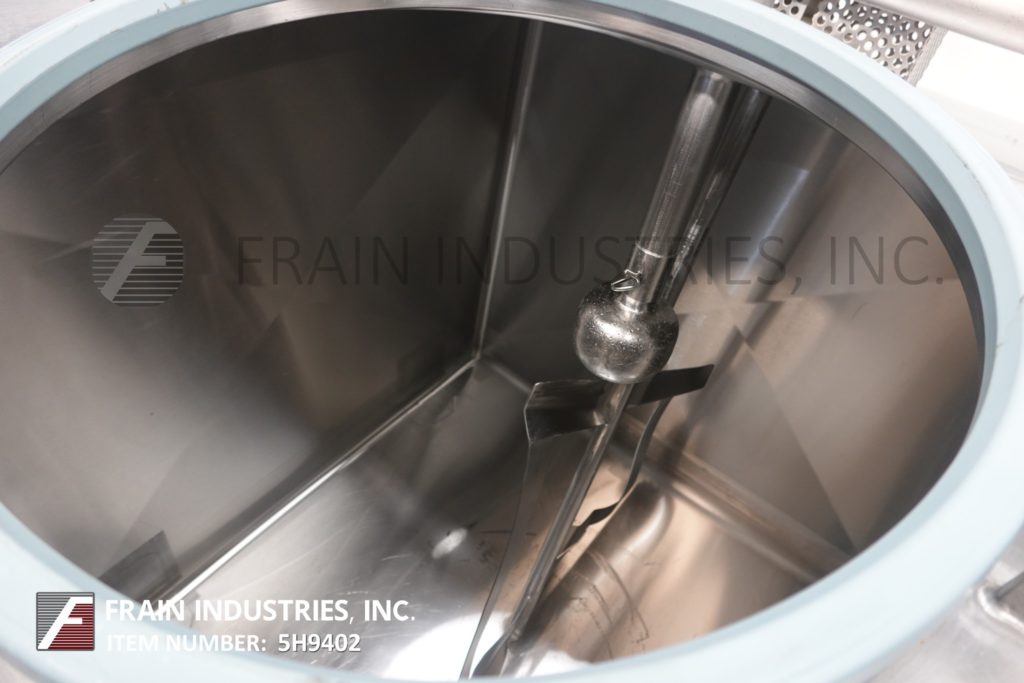

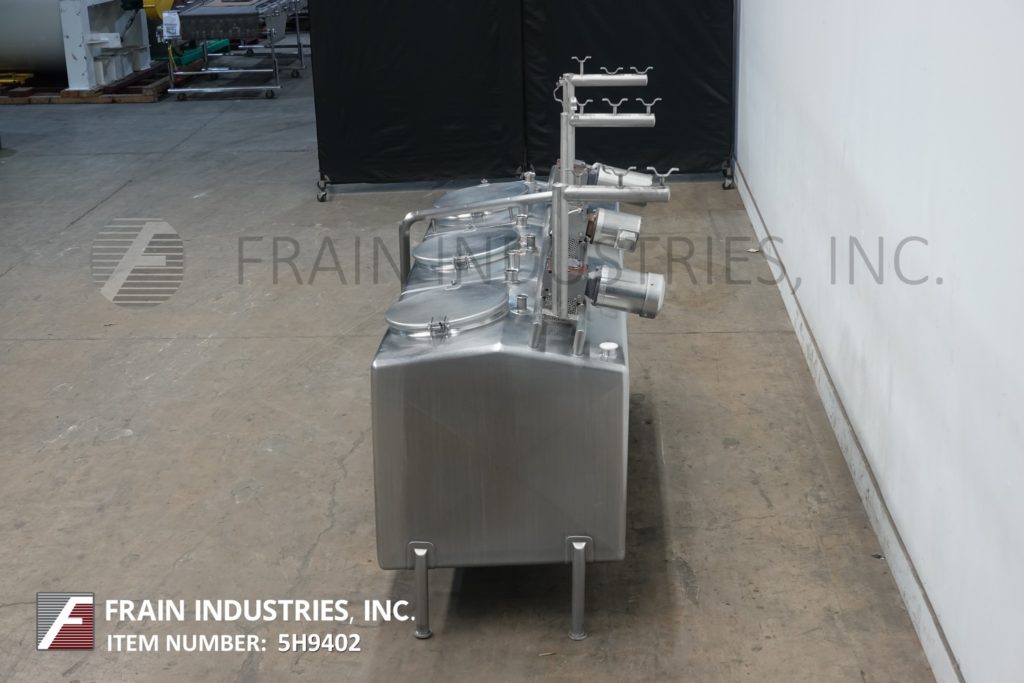

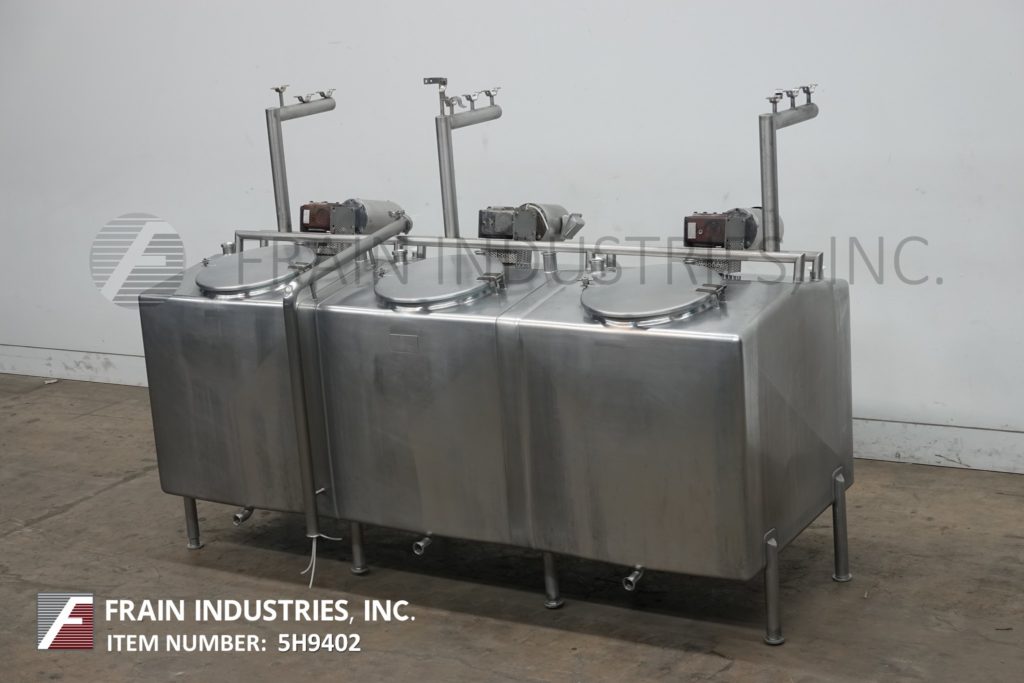

Valley Stainless Inc, Three chamber, 304 stainless steel, 600 gallon flavor tank. Each chamber is 200 gallons with inner dimension of 39" x 37" x 35" Deep. Equipped with lift up cover, 18" manway, prop agitation powered by a 1 hp drive and CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting. Slant bottom has 2" OD / 1½"ID Tri-Clamp side bottom discharge with 9" floor clearance. Mounted on stainless steel legs.
Rectangle construction provides maximum capacity in small floor area.

Top Access (Each Tank)
(1) 2½"OD / 2"ID Seated Bevel
(2) 2½"OD / 2"ID Tri-Clamp

OAD: 110"L x 50"W x 76"H
