Tank SS JKT 2500 GALLON

  Back to All Equipment

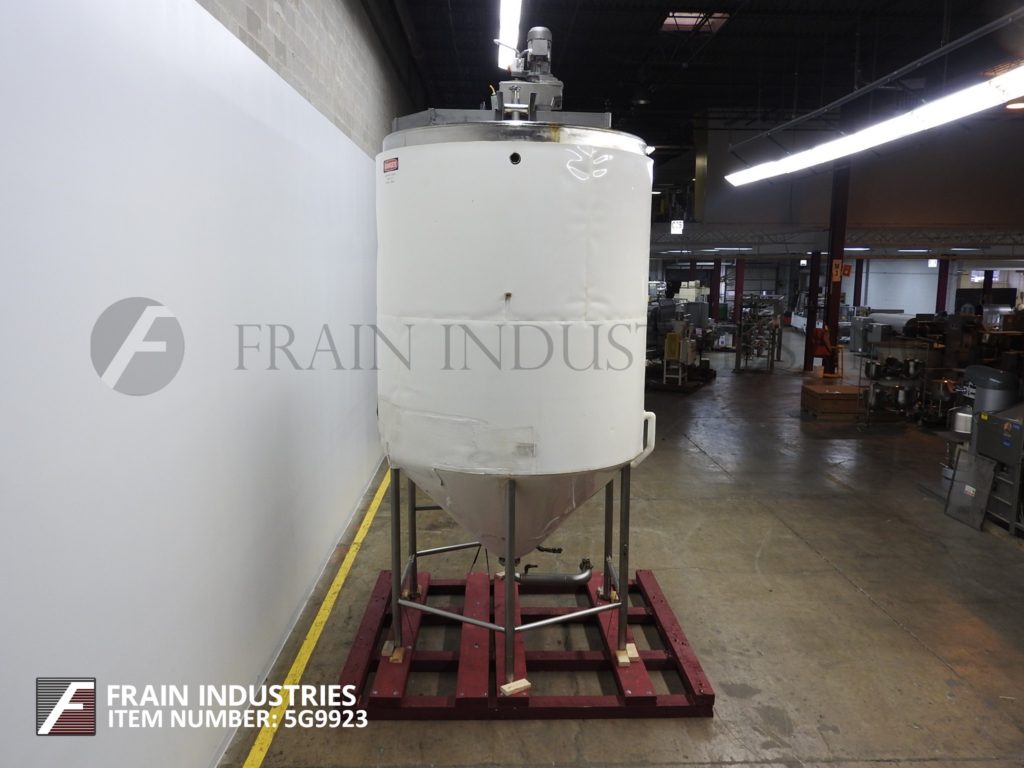

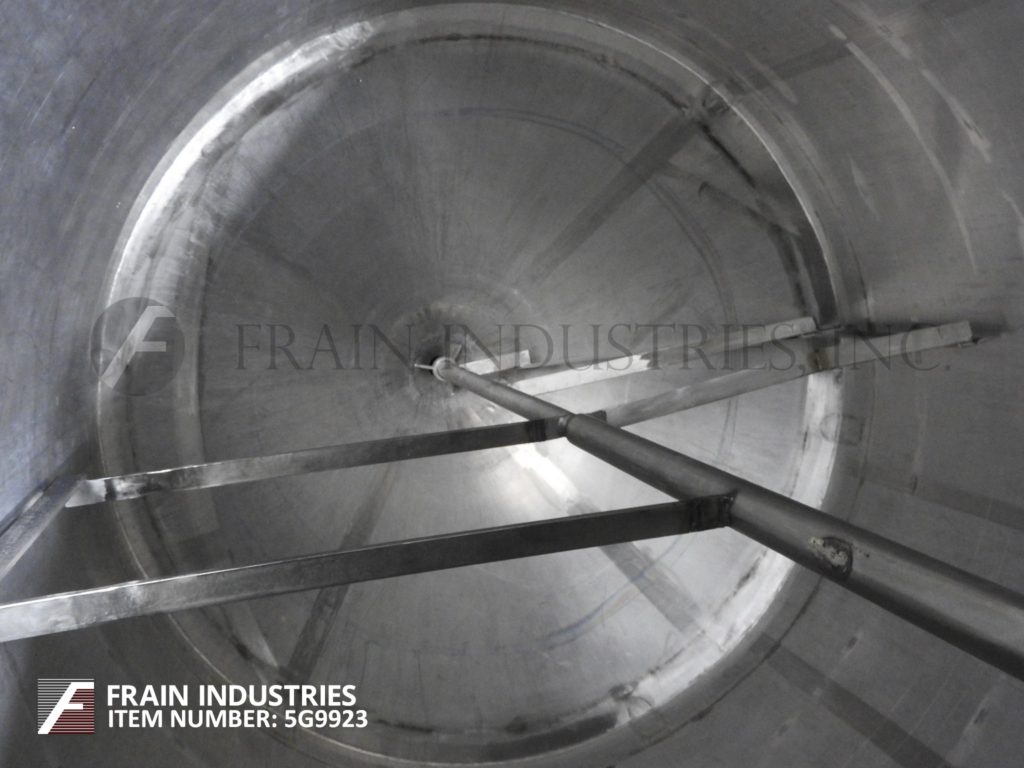

2,500 gallon capacity, 304 stainless steel insulated and low pressure jacketed process tank. Vessel dimensions: 84" diameter x 140" deep with 84" straight wall. Equipped with a dome top 20" x 20" hinged man way, 5 Hp top mounted sweep agitator. Cone bottom and 2½" OD / 2" ID tri-clamp style bottom discharge with jacketed elbow and 15" ground clearance. Mounted on (6) legs.

Top Ports:
(3) 2½"OD / 2"ID Tri-Clamp
(1) 3"OD / 2½"ID Tri-Clamp

Jacket Ports:
(2) 2" NPT

OAD: 93"L x 88"W x 198"H
