Walker Tank Processors PZ

  Back to All Equipment

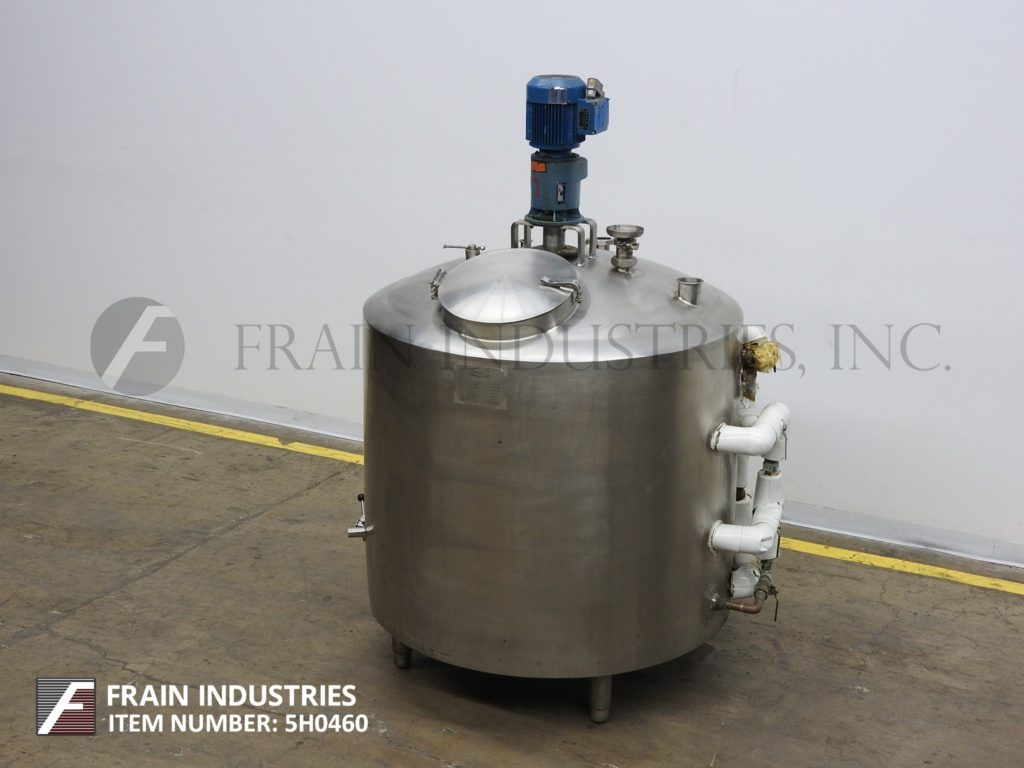

Walker, 200 gallon capacity, 304 stainless steel 3-zone jacketed process tank. Vessel dimensions: 46" with 36" straight wall. Equipped with a dome top, slant bottom, (1) 16" diameter top entry hinged man way, (1) 6" wide adjustable angle baffle, (2) thermowells, .75/.38 Hp top mounted scrape agitator and 2½" OD / 2" ID tri-clamp style bottom side discharge with butterfly valve and 12" ground clearance.

Top Ports:
(1) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp
(1) 2"OD / 1½"ID Tri-Clamp

Jacket Ports:
(6) 1½" NPT

MAWP: 15 PSI @ 250°F (heated)
MAWP: 100 PSI @ 100°F (cooling)

OAD: 60"L x 52"W x 85"H
