Drop Machines

Hartness Case Packer Drop Packer 825

• Manufacturer: Hartness
• Model Number: 825
• Frain Number: R30823

Hartness, Model 825, stainless steel automatic drop case packer. Rated from 10 to 35 cases per minute – depending on materials, application and machine configuration. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1½" to 12" in Height. Equipped with 12" wide x 60" long Delrin product in feed conveyor, 18" wide x 135" long accumulation with adjustable width product dividers, container stops, (2) 3¼" wide x 64" long bottom case in feed conveyors to choke feed thru product drop area with descending product soft drop into the case. Control panel has touch pad controls with digital read out and statis light. Mounted on heavy duty base frame with leveling legs.

OAD: 195"L x 55"W x 95"H

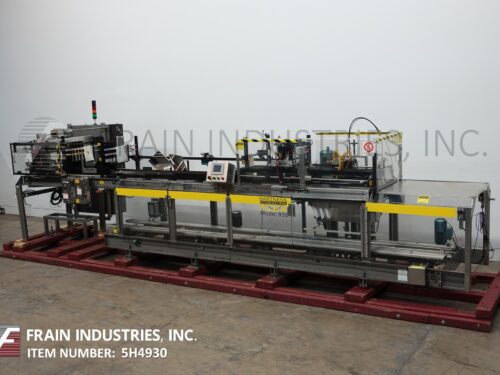

Hartness Case Packer Drop Packer 935

• Manufacturer: Hartness
• Model Number: 935
• Frain Number: 5H4930

Hartness Model 935, automatic, intermittent motion, desending drop, case packer, rated from 5 to 30 cases per minute with number of product per case – depending on materials, application and case pack pattern. Case size range: 7" to 22½" in Length; 5½" to 16½" in Width; 2" to 19" in Height. Container size range: 2oz to 2½ gallons and can handle glass, and plastic round containers of various sizes and shapes (all with proper change parts). Equipped with (2) 9" wide (18" total) x 72" long servo driven product laner in feed conveyors, to (4) 1" wide x 132" long accumulation product conveyors with static dividers and container stops. Has (2) bottom 4" wide x 72" long case in feed conveyors and 72" long (2) chain lugged case indexing conveyors set on 30" centers and 28½" x 28½" descending drop pack section with air bladder container handling the container grid different per application. Control panel has A/B CPU controller and A/B PanelView touch screen display with start, stop, reset, e-stop controls and statis light bar. Mounted on heavy duty base frame interlock safety guarding and leveling legs.

OAD: 300" L x 62" W x 88" H

Hartness Case Packer Drop Packer 835 Hartness Case Packer Drop Packer 835

• Manufacturer: Hartness
• Model Number: 835
• Frain Number: 5H1820

Hartness Model 835, automatic, intermittent motion, drop case packer rated from 5 to 30 cases per minute – depending on materials and application Case size range: 7" to 22½" in Length; 5½" to 16½" in Width; 2" to 20" in Height. Container size range 2oz to 2½ gallons and can handle glass, plastic round containers of various sizes with proper change parts. Equipped with 15" wide x 70" long product in feed conveyor, 18" wide x 132" long accumulation belt with static product dividers and container stops, (2) 3¼" wide x 64" long case infeed conveyors, 145" long (2) chain lugged case indexing conveyor set on 30" centers and 28½" x 28½" ascending case section. Control panel with an AB controller and an AB PanelView 600 touch screen display. Mounted on heavy duty base frame with (10) leveling legs.

OAD: 236"L x 71"W x 102"H

Pearson Case Packer Drop Packer P3103

• Manufacturer: Pearson
• Model Number: P3103
• Frain Number: 5D5444

Automatic, drop packer capable of up to 30 cases per minute. Cases: up to 20"L x (9" – 21")W x up to ??"H. Has servo product laner, 150"L x 20"W tabletop conveyor infeed, pneumatic top bottle hold back, 20"L x 15"W bottle grid, adjustable bottle slide rails, pneumatic product push-down into transfer grid, 2-chain case drive during load, programmable controller, E-stop, status indicator light, and barrier guarding with electrical interlock. Mounted on steel-it painted frame. Last running 4 1/2"W bottles in 2 lanes.

OAD: 205"L x 56"W x 98"H

Meyer Case Packer Drop Packer AKRON1

• Manufacturer: Meyer
• Model Number: AKRON1
• Frain Number: 5C4393

Meyer Model AKRON1, semi automatic, stainless steel, drop case packer rated up to 4 cpm – speeds depending on materials, application and operator dexterity. with a maximun case size of 14" wide x 20"Long x 12" high. Small footprint unit designed to roll up to an existing conveyor where product is choke feed to collation/laner section of packer, pack pattern is established, product is dropped into case through "finger mechanism" and case is automatically discharged. Currently set-up for a 211 can in a 3 x 4 pack pattern. Last running in an areosol can operation.
OAD = 50" L x 44" W x 56" H

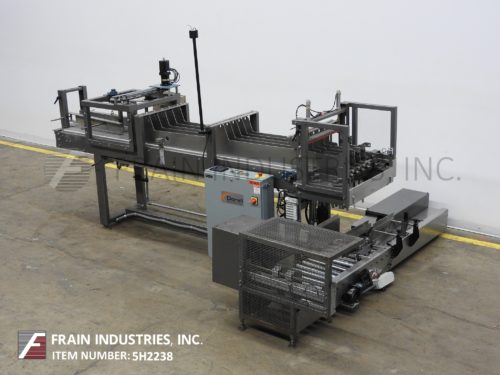

Dorell Case Packer Drop Packer DP100

• Manufacturer: Dorell
• Model Number: DP100
• Frain Number: 5H2238

Dorell, Model DP-100, automatic drop case packer. Rated from 5 to 20 cases per minute with number of containers – depending on materials, application, pack pattern and machine configuration. Case size range: 5" to 18" in Length; 4" to 13" in Width; 5" to 12" in Depth. Equipped with an 18" wide x 115" long top product in feed conveyor with stepper driven 1 to 4 overhead laner, adjustable lane guides, 14" wide x 50" long bottom case conveyor, with ascending product soft lift case pack grid and pneumatic case indexing. Control panel with an AB controller and an AB PanelView Plus 600 touch screen display.

OAD: 154"L x 104"W x 66"H (90"H w/ light stack)

Hartness Case Packer Drop Packer 825AT

• Manufacturer: Hartness
• Model Number: 825AT
• Frain Number: 5E4681

Automatic, soft drop, case packer rated up to 30 cpm – depending on product and materials. Case size rang: 6" to 24" in Length; 6" to 15-1/2" in Width; 1-1/2" to 19" in Height. Equipped with flex link in feed conveyor, product laner and air transfer system container handling. Features AB PLC and soft touch drop with bottom up loading.

OAD: 204" L x 66" W x 100" H

Hartness Case Packer Drop Packer 900

• Manufacturer: Hartness
• Model Number: 900
• Frain Number: 5E7072

Automatic, drop caser packer capable of doing up to 30 cpm depending on application. Has a case size range of: 6"- 24" L x 6"- 16" W x 1 1/2"- 19" H, and (4) 120" L x 1" W plastic chain product infeed conveyors belts, that feeds into 24" L x 24" W grid area, currently set with a 20" L x 8′ W product grid doing a 2 x 3 pattern with air blader,and bottom up case lift. (2) 68" L x 3 1/2" W plastic delron chain empty case conveyors, that feeds into a 68" L x 8" W case choke fed loading grid area.

OAD: 180" L x 48" W x 88" H

Hartness Case Packer Drop Packer 825

• Manufacturer: Hartness
• Model Number: 825
• Frain Number: 5E7480

Automatic drop case packer rated up to 35 cpm – depending on materials and application. Case size range: 6"- 24" in Length; 6"- 16" in Width; 1-1/2"- 19" in Height. Equipped with 132" Long three lane in feed conveyors, container stops and 100" Long lug assist empty case conveyor, and is soft drop product handling and capable handling a wide range of containers from 2 oz’s – 2 1/2 gallons made of glass, plastic, metal and paperboard, both in round / non round configerations.

OAD: 178" L x 56" W x 99" H

Combi America Case Packer Drop Packer CCP/E2500

• Manufacturer: Combi America
• Model Number: CCP/E2500
• Frain Number: 5D7351

Automatic, compact case erector, soft set case packer capable of speeds from 1 to 10 cases per minute – depending on materials and application. Case size range of: 8-1/2" to 20" in Length; 4-3/4" to 13" in Width; 4" to 19-1/2" in Height. Has a (4"W x 120"L) product in feed conveyor. (7"L x 11 1/4"W) product accumulation/collating/packing grid, with back pressure plate to maintain product stability, soft drop product gripper pusher plate, 40"L blank case magazine, 4-cup vacuum pick & place, and hand crank, for case size adjustment. Equipped with Omron Sysmac C20 programmable controller, PRO 15 programming console, E-stops, no case/no product sensor, status indicator light, height adjustable legs, and barrier guarding with electrical interlocks. Designed to pack various round or non-round bottles, cans, and gable top containers in top load applications. Last running 6 F-style bottles into 12 1/2"L x 9"W case.

OAD: 108"L x 80"W x 112"H

Hartness Case Packer Drop Packer 825

• Manufacturer: Hartness
• Model Number: 825
• Frain Number: 5G6380

Hartness Model 825, automatic, drop case packer rated from 10 to 35 cases per minute with number of containers – depending on materials and application. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 6" in Height. Equipped with (3) 6" wide x 140" long Delrin product in feed conveyors with adjustable product lane dividers, container stops, (2) 4" wide x 70" long bottom case in feed conveyors to choke feed thru product drop area with ascending product soft drop grid into the case change part per application. Control panel has touch pad controls with digital read out and statis light. Mounted on heavy duty base frame with leveling legs.

OAD: 192" L x 60" W x 86" H

Hartness Case Packer Drop Packer 900

• Manufacturer: Hartness
• Model Number: 900
• Frain Number: 6R0101

Automatic, drop case packer rated up to 25 cases per minute – depending on materials and application. Case size range: 6" to 24" in Length; 6" to 16" in Width; 1-1/2" to 19" in Height. Equipped with a 72" long by 6" wide in feed extension, a 72" long by 18" wide in feed with a laner for non-round containers, adjustable lane dividers, empty case conveyor, pneumatic case lift for soft drop of heavy containers, variable speed drive, A/B PLC and a touch pad operator interface. Mounted on height adjustable legs. Change parts required to accommodate size range.

OAD: 312"L x 66" W x 96" H
