Pearson, Model GLT-UNI, fully automatic, 2-axis robotic, top pick and place, case or tray loader packer rated up to 200 packages with number cases or trays per minute – depending on materials, application, machine configuration and pack pattern. Erected case or tray size range: 8" to 23" in Length; 6" to 22" in Width; 1" to 14" in Depth and capable of handling flexible, ridgid or semi-ridgid product into any type of case, tray or other shipping containers with proper change parts. Equipped with 16" wide x 226" long empty case conveyor belt, 21" wide x 48" long vacuum belt product infeed, 21" wide x 132" long product indexing belt, 3 head / 2 axis, servo driven pick and place loading section which picks product from the side product conveyors to the empty case or tray conveyor. Control panel has an A/B PLC controller and A/B panel view controls with machine start, reset and e-stop push buttons. Mounted on heavy duty frame with interlock safety guarding and statis light bar.
OAD: 273" L x 82" W x 102" H
Blueprint Automation Model Swing Machine, automatic, single robotic arm, horizontal or vertical load, case packer rated up to 150 bags or cartons per minute with number of cases – depending on materials, application and pack pattern. Case / bag / carton size range: per application. Equipped with 72" long x 12" wide product in feed conveyor, single product pick n place robotic arm, dual product ram arm loaders and loaded case flip up station to 72" long discharge roller conveyor with 15-1/2" long, 2" OD rollers set on 3-1/2" centers with 1-1/2" gaps. Control panel has A/B controller and A/B swing arm touch pad controls with panelview, A/B powerflex vari-speed controllers, e-stops and hand crank adjustable. Mounted on heavy duty steel it base frame with leveling legs and interlock safety guarding.
OAD: 144" L x 172" W x 112" H
Wepackit Machinery Model 350CPSS, automatic, stainless steel, top load, pick n place case packer for corrugate cases, trays and standard dairy cases and is capable of loading (4) cases at a time with number of containers and cases per minute – depending on materials and application. Container size range: 6oz – 5 lbs on variety of dairy containers. Case size range: per application. Equipped with (3) sections of 10" wide plastic delran case in feed, thru machine and discharge conveyor sections with (1) 14" wide section of plastic delran product.
In feed conveyor has dual rotary product indexers to 3 lane product diverters to product loading section with 14" wide pic n place product conveyor and (4) suction cup end-effector product pick and place packing heads to (2) 22" long x 16" wide locator guides for unobstructed product to case entry with product layer pad inserting system and will repeat cycles until cases are completely packed. Control panel has A/B CPU controller with panel view operator interface and A/B Power Flex vari speed controller with Power Flex Touchpad controller and e-stops. Mounted on heavy duty stainless steel base frame with interlock safety door guarding and status light bar. FDA and UL approved.
OAD: 292" L x 93" W x 88" H
Fallas Model L500, automatic, robotic, stainless steel, case packer rated from 0 to 40 robotic picks per minute with number of product – depending on materials, application and pack pattern. Package size: 6" to 14" in Length; 1.5" to 8" in Width; 1" to 3.5" in Height. Case size range: 10" to 24" in Length; 6" to 16" in Width; 4" to 12.5" in Height. Equipped with 96" long x 16" wide product in feed with adjustable guide rails and two smart belt conveyors, 22" long x 6" wide robotic vacuum pick and place with twelve suction cups, 80" long x 16" wide empty case in feed conveyor with adjustable guide rails, 48" long x 14" wide discharge conveyor with adjustable guide rails, interlocking Lexan safety guarding, A/B Panel View, and A/B PLC Mounted on height adjustable legs.
OAD: 150" L x 96" W x 102" H
Goodman / Prototype Model 010SD, automatic, intermittent motion, tray / case packer, hot melt glue sealer rated from 50 to 150 packages or 6 to12 trays / cases per minute – depending materials and application. Cases size range: 10" to 18" in Length; 6" to 12" in Width; 3" to 12" in Height. Equipped with 192" long x 16" wide in feed conveyor, 72" long x 12" wide product conveyor, dual (4) suction cup product placers, Nordson Microset Multiscan (2) gun, hot melt glue system, top flap closers, with compression clamps, and single head ram case discharge. Control panel has A/B CPU with swing arm controller and panel view, interlock saftey guarding and statis light bar.
OAD: 192"L x 72"W x 120"H
Goodman Packaging Model SLS, automatic, intermitten motion, case erector / packer / sealer rated from 20 to 100 packages or 4 to 12 cases per minute, depending on materials and application. Cases size range: 8" – 20" L x 6" – 14" W x 5" – 12" H. Equipped with upstacking product infeed, 26" L x 18" W accumulation area with product ram, 66" L blank case magazine, 4 suction cup pic-n-place, case elevating product load station, layer load station, and top and bottom tape sealer, with a 48" L x 18" W discharge conveyor. Remote control panel with an A/B SLC 5/05 PLC controller with LCD display, push button operator interface, vacuum system, barrier guarding with electrical interlock, status light bar, e-stop, and is mounted on stainless steel and steel-it frame.
OAD: Machine: 212"L x 58"W x 88"H Magazine: 52"L x 77"W x 32"H
Automatic, top load, robotic, case erector, packer, closer capable of up to 30 robot cycles a minute. Has a bag size range of: (6" -14" L) x (1 12" – 8"W) x (1" – 3 1/2"H). case size range of: (10" – 22"L) x (6" – 14"W) x (4" – 11"H). Equipped with case diverter/upender, (2) lane case infeed, horizontal accumulation, robotic vacuum pick & place arm. Case infeed parallel to case travel, skid plate below case during loading, bombay doors to hold top flaps open during loading, 46"L powered case outfeed conveyor with top closing mechanism. 42"L 3-chain blank case magazine, chain driven pusher, and 2-cup vacuum pick & place, with articulated 3rd cup to erect case. 1-lane/2-lane carton diverter alternates feeding one lane of product or other, has rubber rope conveyor in/outfeed. Allen Bradley PLC controls, AC servor motor drive controller, push button control panel with LED display mounted on gantry arm, E-stop, status indicator light, vacuum pump, and barrier guarding with electrical interlocks.
OAD: 92"L x 102"W x 94"H
Goodman, automatic, intermitten motion, case or tray erector / packer / sealer rated from 3 to 12 cases or trays per minute – depending on materials and application. Case size range: 15" to 21" in Length x 10-1/2" to 17" in Width x Height per application. Trays size range: 5" to 26" in Length x up to 4 1/4" in Width x 9" to 19" in Depth. Equipped with 66" long blank case magazine, upstacking, carton infeed, 26" horizontal and 18" vertical accumulation sections, case elevating product load station, top and bottom tape sealers. Control panel has push button operator interface with LCD display, drive controllers, E-stop, Piab vacuum system, Siko quick changeover gauges, barrier guarding with electrical interlock and status indicator lights. Mounted on stainless steel and steel-it frame with height adjustable legs.
Automatic, top load, robotic, case erector/packer, rated 5 to 30 robotic cycles per minute, or 2 to 14 cases per minute – depending on materials and application. Package size range: 6" -14" in Length; 1-1/2" to 8" in Width; 1" to 3-1/2" in Height.. Case size range: 10" to 22" in Length; 6" to 14" in Width; 4" to 11" in Height. Equipped with a 44" L x 36" W blank case magazine, recipicating suction cup case erector, 90" L x 14" W canvass product belt in feed conveyor, robotic vacuum pick & place product stacking, and product load arm. CPC PLC touch pad control panel with LED display mounted on gantry arm, E-stop, status indicator light, vacuum pump, and barrier guarding.
Automatic, intermittent motion, S/S, case erector / packer / sealer, H/M, capable of speeds up to 150 ppm, or 12 cpm depending on application. All S/S contruction, cases size range of : 8" – 20" L x 6" – 14" W x 5" – 12" H, with a 65" L x 16" W blank case magazine, and two station (2) suction cup vacuum pick & place, case opener, bottom flap closers, and tamp compression station. Pnuematic side case clamp’s move case’s thru pack section to top seal section. Has 108" L x 10" W plastic flex-link product infeed conveyor, two (4) suction cup packing heads, top flap closers, with compression clamps, and a single head ram case discharge.Nordson all S/S Microset Multiscan (4) gun H/M glue system, with Auqa Guard, electrical panel, has a A/B SLC 5/05 controller, with panel view, interlock barrier saftey guarding, and statis light bar.
OAD: 240" L x 132" W x 120" H

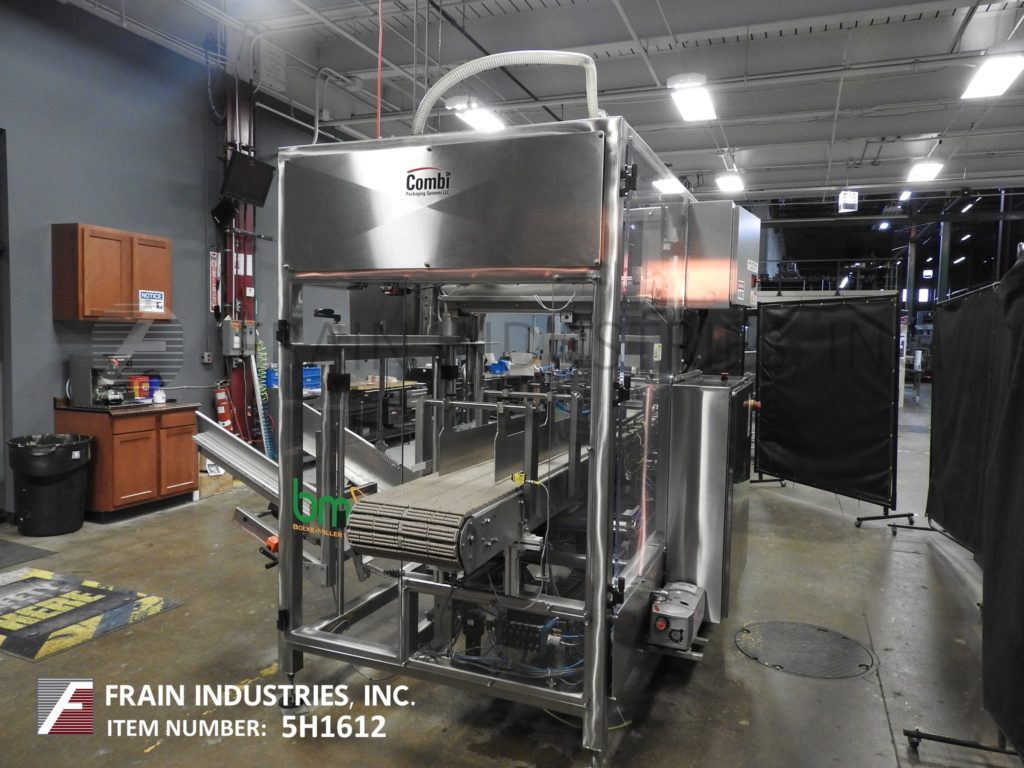

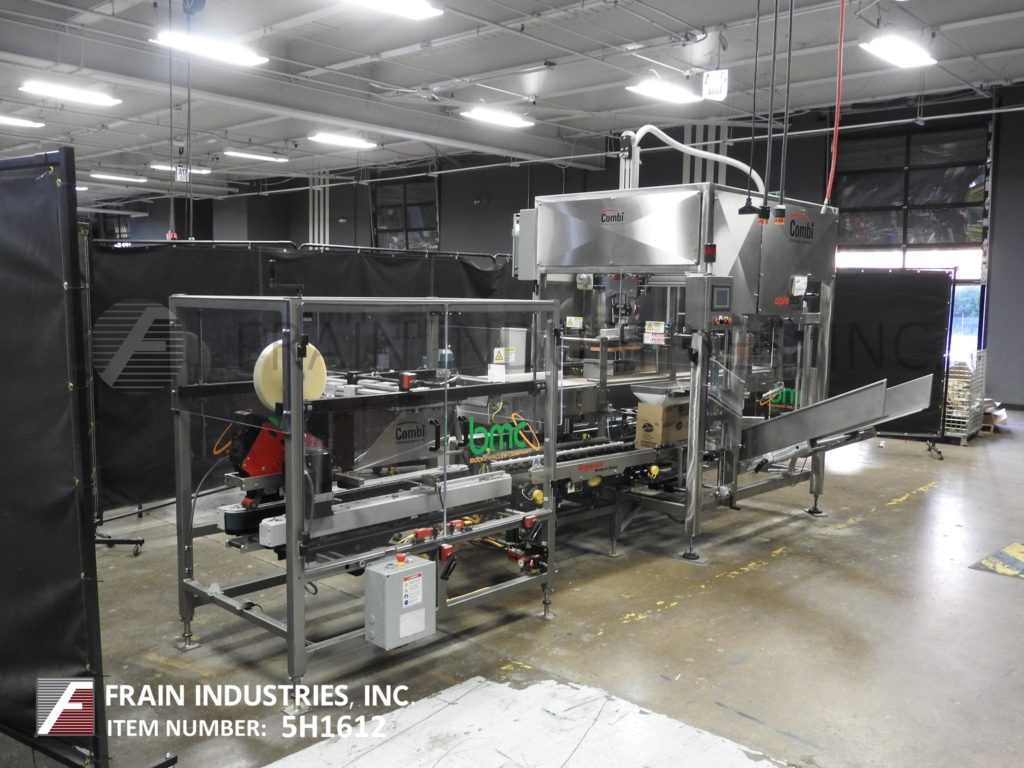

Combi America Model Alpha Pack, automatic, left handed, stainless steel, case erector / multi axis pic n place, case packer rated from 8 to 20 picks or 2 to 8 cases per minute – depending on materials, application and configuration. Case size range: 8" to 24" in Length; 6" to 16" in Width; 5" to 16" in Height. and is capable of packing single or multiple layers. Equipped with 44" long blank case magazine, suction cup pic-n-place, minor and major flap closers, with 46" long x 8" wide rubber belt case conveyor with pusher bar, 128" long x 15" wide slip torque product conveyor running parallel to (2) head multi-axis servo driven pick n place system, with interlock Lexan safety guarding. Control panel has controller and Alphapack operator touchpad interface controller with conveyor speed controller, start, stop, e-stop push button controls and statis light bar. Mounted on heavy duty welded tubular steel base frame. Capable of top loading cartons, cans, bottles, bags and other products with proper change parts.
OAD: 128"L x 76" W x 108" H
