Frain Industries has many wraparound case packers and other end of line packaging equipment in stock and ready to set up for your application.  Frain has several options for wraparound case packing depending on your specific application, case size, collation, speed, and line integration requirements. Additionally wraparound case packers come in continuous or intermittent motion and can be automatic or semi-automatic.

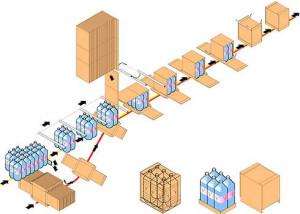

Wraparound case packers offer a significant material cost savings over traditional RSC (regular slotted case) case packers. Â Traditional RSC’s have redundant flaps and a case size that is larger than required to fit the contents. Wraparound case packing machines eliminate the number of corrugate overlaps required while provide a strong case for palletizing and distribution.
Contact Frain Industries to discuss your application requirements with one of our engineers. Â We can design a complete solution depending on your wraparound case packing requirements.

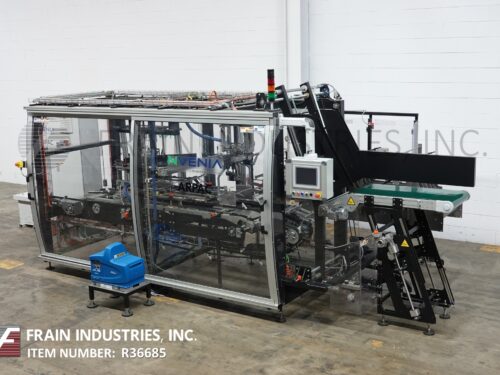

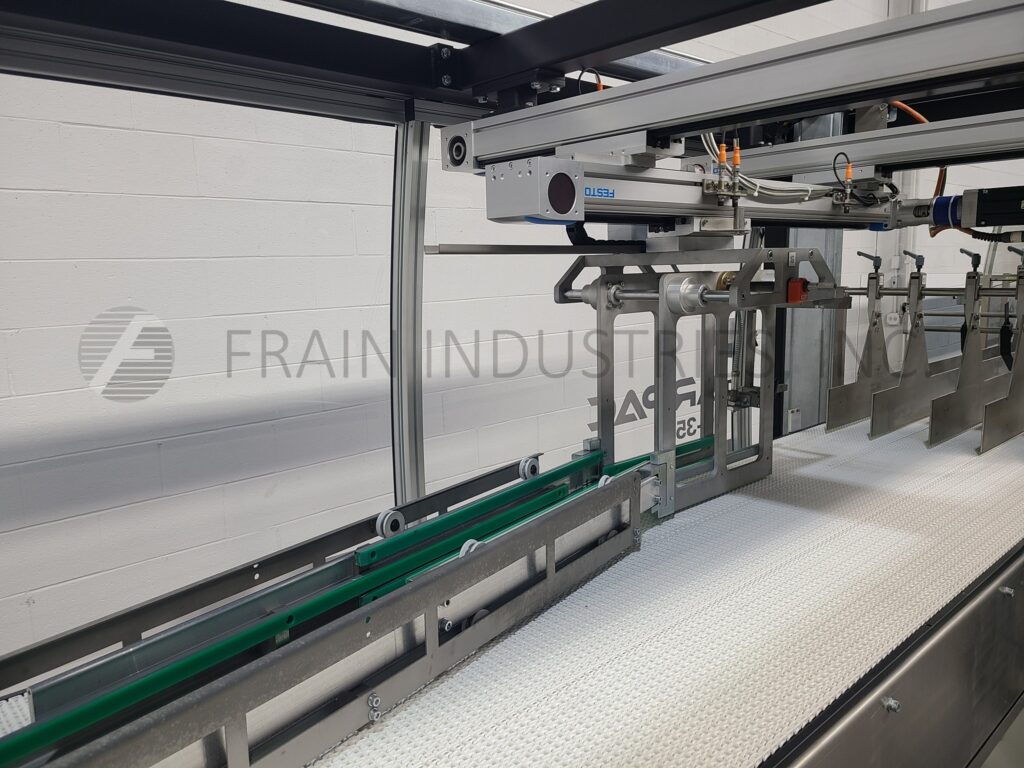

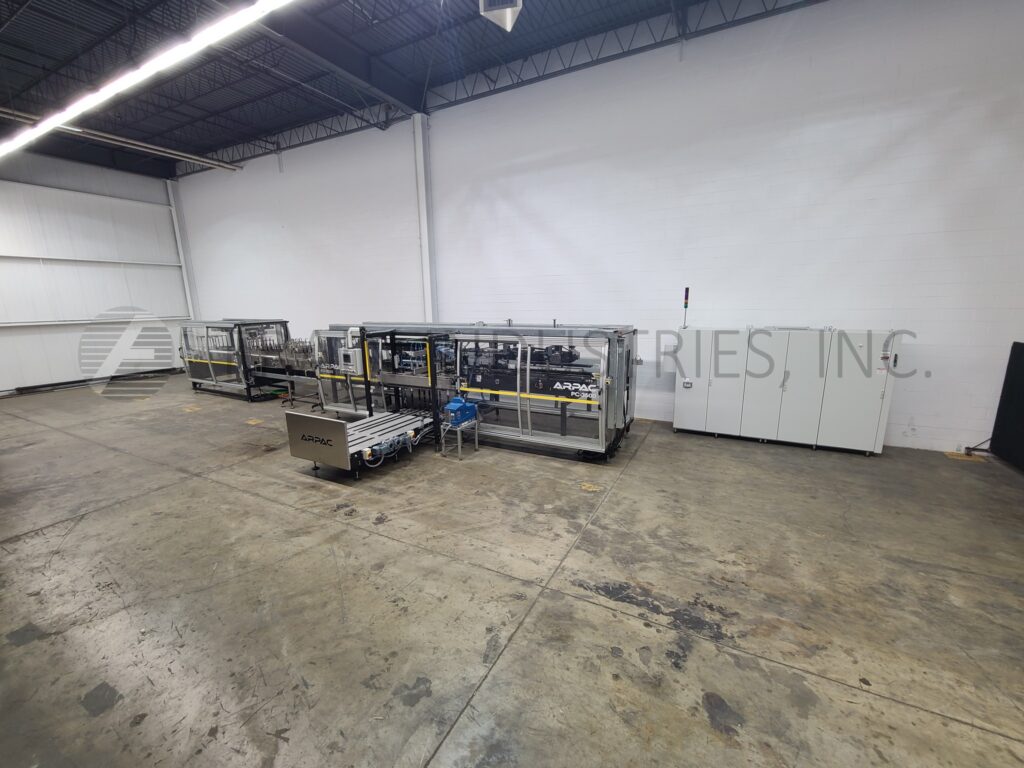

Arpac Model PC2000, Automatic, intermittent motion, 5-axis servo driven, wrap-around case or tray packer rated up to 20 cases per minute with number of product – depending on materials and application. Case size range: 3.2" to 15.3" in Length x 7.7 to 23.2" in Width x 4.7" to 14.7" in Height with manufacturers joint inside or outside. Equipped with 26" wide x 96" long product in feed laner conveyor and has 20" wide x 50" long automatic blank case magazine, side recipacating pick and place, (4) chains adjustable with single load bar, servo drives and Nordson ProBlue hot melt glue system, flap closers and wrap over case station. Control panel has A/B PLC and on board A/B touch screen HMI controller, Seko gauges with e-stop. Mounted on heavy duty frame with interlock safety door guarding. Capable of handling metal or paper cans, glass and plastic jars and bottles with proper change parts. Collates the product loads into a case or tray and seals them with hot-melt glue.
OAD: 215"L x 94"W x 106"H 40" L x 18" W x 80" H – Control Panel

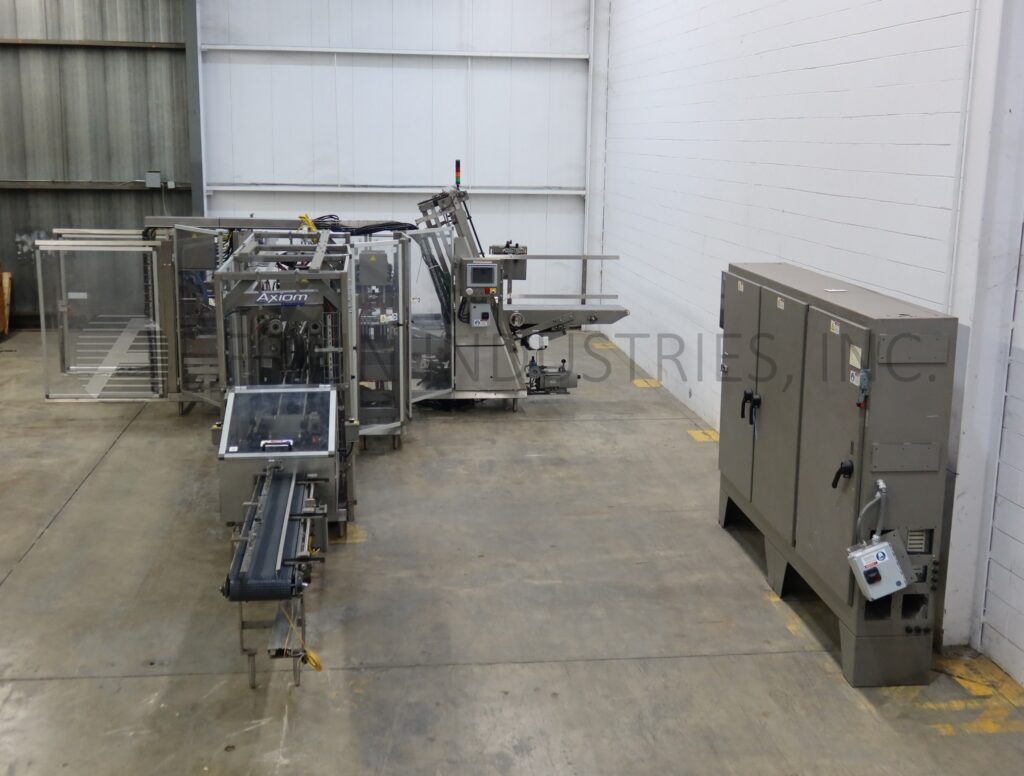

Douglas Model AXIOM, Automatic, inline, servo driven, intermittent motion, wrap around case or tray packer rated from 5 to 45 cases or trays per minute with number of product – depending on materials, application and pack pattern. Capable of packing cartons, bottles, cans, jars, jugs and more with proper change parts. Product and case size range: per application. Equipped with (4) chains adjustable set on 24" centers with 4" wide x 4" high lugs, servo driven product in feed conveyor with laner and has automatic blank case magazine, with recipicating pick n place, Nordson hot melt glue unit with pattern controller and wrap over station, Seko adjustment gauges and side belt compression discharge. Control panel has A/B controller with touch pad controls and panel view with e-stop. Mounted on heavy duty cold rolled steel powder coated frame with interlock safety guarding.
OAD: 212" L x 84" W x 72" H
Douglas Model AXIOM, Automatic, inline, servo driven, intermittent motion, wrap around case or tray packer rated from 5 to 45 cases or trays per minute with number of product – depending on materials, application and pack pattern. Accurately packs cartons, bottles, cans, jars, jugs and more with proper change parts. Case or tray size range: per application. Equipped with (4) chains adjustable set on 15" centers with 2" high lugs. 17½" wide x 198" long servo driven product in feed conveyor with lane dividers, (4) belt adjustable product bucket conveyor set on 15" centers and product pick n place loader. 90" long automatic blank case magazine, with suction cup reciprocating pick n place and case flap traps, Nordson hot glue pot, minor flap tuckers with wrap over station, Seko gauges and is hand wheel adjustable, with side belt case or tray compression discharge. Remote control panel has A/B controller with touch screen HMI. Mounted on heavy duty stainless steel tubular frame with safety guarding.
OAD: 561"L x 95"W x 85"H
Hartness Model CM/HTW 50-600, Automatic, continous motion, servo, wrap-around case packer rated from up to 60 cycles per minute with number of product and cases – depending on materials and application. Product and case size range depending on project and proper change parts. Equipped with 6" wide x 100" long product in feed conveyor, 36" wide x 144" long laner conveyor, 35" wide x 148" long extended automatic blank case magazine, with bottom up blank case feed conveyor, product collation section with single load bar, servo drives controlled by a multi-axle system and (4) chains adjustable system with electro magnetic clutches used to adjust length. (6) head Nordson hot melt glue system, flap closers and wrap over case station. Remote control panel has A/B PLC and on board A/B touch screen HMI controller with e-stop, Seko gauges interlock safety guarding doors, M4000 light safety curtain and status light bar. Mounted on heavy duty frame.
OAD: 378" L x 113" W x 90" H (Case Packer) 84" L x 22" W x 83" H (Control Cabinet)
Automatic, S/S, wrap around case packer rated from 5 to 15 cpm – depending on materials, application and machine configuration. Case size range: 5" to 18" in Length; 5" to 14" in Width; 5" to 24" in Depth. Equipped with 4-chain lug system, set-on 21" centers with 5" H lugs, powered blank case magazine, recipicating case pic-n-place, product infeed laner,top squaring and product accumulation section with pneumatic load pusher ram, lugged top case, wrap flap assist compression section, Nordson glue system, dual side discharge conveyor, AB PLC, PLS and interlocked barrier guarding.
OAD: 102" L x 58" W x 78" H LanerOAD: 228" L x 98" W x 110" H Caser
Automatic, S/S, wrap around, H/M, case packer is capable of speeds up to 5 cpm – depending on application. 4 chain adjustable unit is set on 21" centers, with 2" W x 6" H lugs and a case size range of: 5" – 18" L x 5" – 14" W x 5" – 24 "D, has 48" L x 40" W x 60" H powered, blank case magazine, with 3 suction cup recipicating case pic-n-place, 14′ L x 9" W product infeed conveyor with downstacker, pneumatic pusher load ram, and a 55" L lugged top case, wrap flap assist compression section, Nordson (5) gun H/M system and a dual 30" L x 5" H side roller discharge conveyor, and a pnuematic, single arm, case discharge ram, A/B controller with 6000 series PLS touch pad controller and digital readout, with interlocked barrier guarding.
OAD: 264" L x 80" W x 123" H
TAD Packaging Model FS24WAG, Automatic, intermittent motion, wrap-around case packer rated 5 to 30 caes per minute – depending on materials and application. Case size range: 6" to 18" in Length; 5" to 12" in Width; 7" to 22" in Depth. Equipped with 52" long blank tray magazine capable of holding 300 cartons, (4) suction cup recipricating pic-n-place, and vacuum system, (4) chain lugged conveyor set on 24" centers with 3" high x 3-3/4" wide lugs, single head product loader, wrap over case station, hot melt glue system, with 20" long compression section. A/B PLC controller with statis light bar. Mounted frame with interlocked Lexan safety guarding and height adjustable legs.
OAD: 177" L x 81" W x 95" H
Massman Model 5A52.5R, Wrap around case packer, hot melt glue sealer rated up to 42 cases per minute – depending on materials and application Case size range: 4" to 5-1/2" in Length; 4-3/4" to 5" in Width; 9" to 10-1/2 in Depth. Equipped with (2) chain in feed conveyor set on 28" centers, with 3" Wide x 5" High lugs, (2) chain powered blank case magazine, vacuum cup recipicating pic-n-place, with single arm Z style collation and product loading ram head with top squaring device, Nordson hot melt glue system with pattern controller, wrap closing and side compression section with vacuum system and roller discharge conveyor with statis light bars. Control panel has A/B CPU with panel view and e-stop. Mounted on heavy duty frame with interlock safety guarding.
OAD: 129" L x 84" W x 96" H
Automatic, all S/S wraparound case erector, packer, sealer capable of speeds up to 12cpm, depending on application. Case size range of: 9 1/2" -24" L x 9" x 17" W x 4"-12" H, and has 60" L x 48" W flat blank carton magazine, recipricating suction cup pic-n-place, top flap closer, right to left 108" L x 4" W plastic flex-link product infeed conveyor, single arm product loader, Nordson AG30 Microsert H/M glue system with aqua guard, A/B PLC , Nematron touch pad screen controller, Marsh coder, interlocking safety guarding.
OAD: 108" L x 204" W (with infeed) 72" W (without infeed) x 88" H
Automatic, all stainless steel wraparound case erector, packer, sealer rated from 5 to 12 cases per minute – depending on materials and application. Case size range: 9-1/2" to 24" in Length; 9" to 17" in Width; 4" to12" in Height. Equipped with 60" long x 48" wide flat blank carton magazine, recipricating suction cup pic-n-place, top flap closer, right to left 108" long x 4" wide plastic flex-link product infeed conveyor, single arm product loader, Nordson AG30 Microsert hot melt glue system with aquaguard, A/B PLC , Nematron touch pad screen controller, Marsh coder, interlocking safety guarding.
TAD Packaging Model 127WA, automatic intermittent motion, servo, wrap around case packer rated from 10 to 30 cases per minute – depending on materials and application. Case size range: 6" to 18" in Length; 5" to 12" in Width; 7" to 20" in Depth. Equipped with 60" long blank case magazine, reciprocating vacuum pick and place, 96" long four chain adjustable carrier system with 4" long lugs set on 24" centers, 108" long x 9.5" wide product infeed conveyor, product collation area, pneumatic ram loading pusher, Hot melt glue system, case squaring and closing station, 144" long x 6" wide Delrin belt discharge conveyor, ___ PLC, A/B Panel View, and interlocking Lexan safety guarding.
OAD:

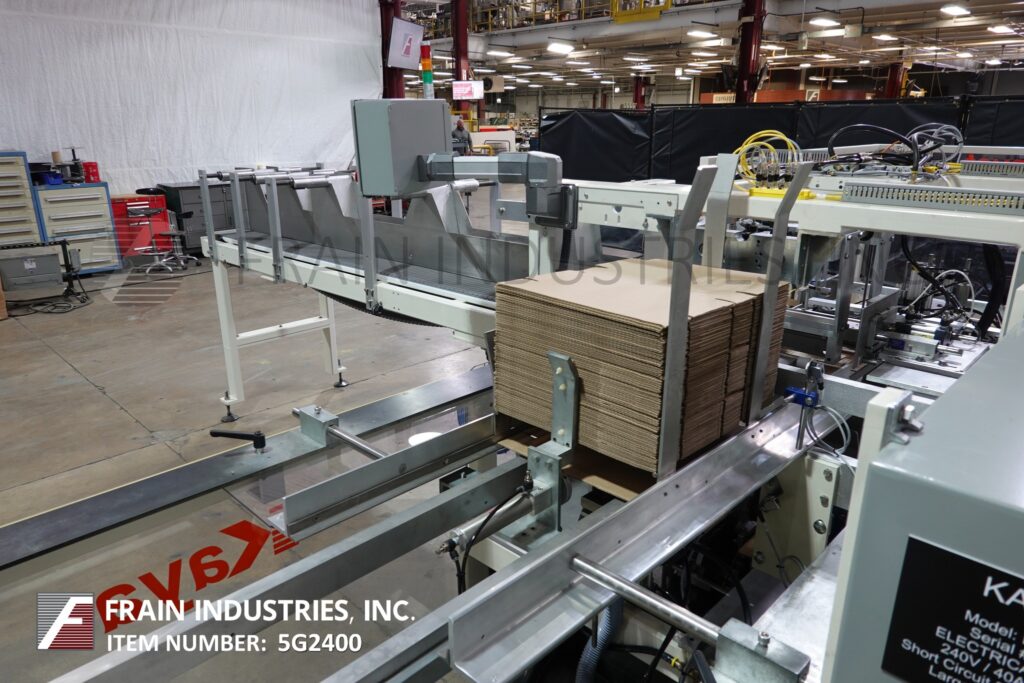

Kayat Model PTF28RH, Automatic, wraparound case packer with number of cases and product per minute – depending on materials and application. Case size range: 8" to 13" in Length; 8" to 22" in Width; 4" to 13" in Height; Lift and pitch (Height) up to 16". Equipped with product conveyor, lane divider, blank case magazine, recipicating suction cup pick and place, Nordson hot melt glue system, major and minor flap closers, Lexan guarding and central lube system. Control panel has A/B PLC controller, with PLS 5000 Electro Cam controls and A/B VFD with statis light. Mounted on heavy duty frame with leveling legs.
OAD: 189" L x 64" W x 94" H
With Product In Feed Conveyor, Width increases to 168"
