Are you looking for centrifuge equipment? Let Frain help you you’re your packaging or processing project! Centrifuge equipment is generally used in the separation of material due to differences in their specific gravity. A centrifuge machine uses centrifugal force to separate immiscible liquids from suspended solids.Centrifuge equipment uses this differential specific gravity to facilitate the separation. A centrifuge machine can be either of two types – vertical bowl or horizontal pusher. These centrifuge systems are usually continuous in operation. Batch centrifuge machines are also used to separate different materials using very high gravitational forces that are developed with this type of process equipment.

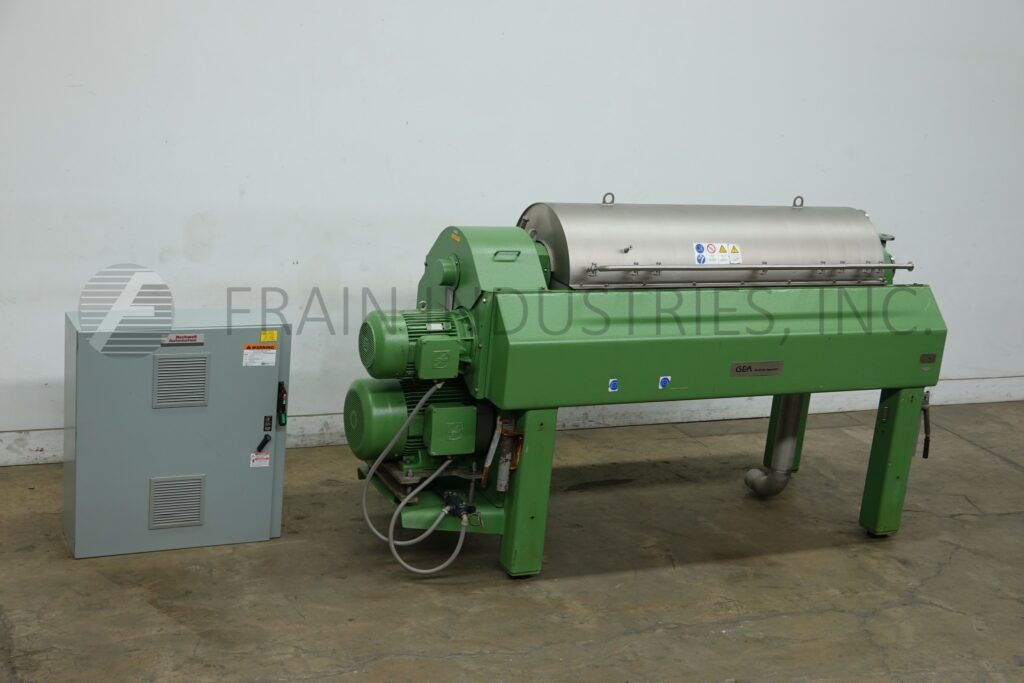

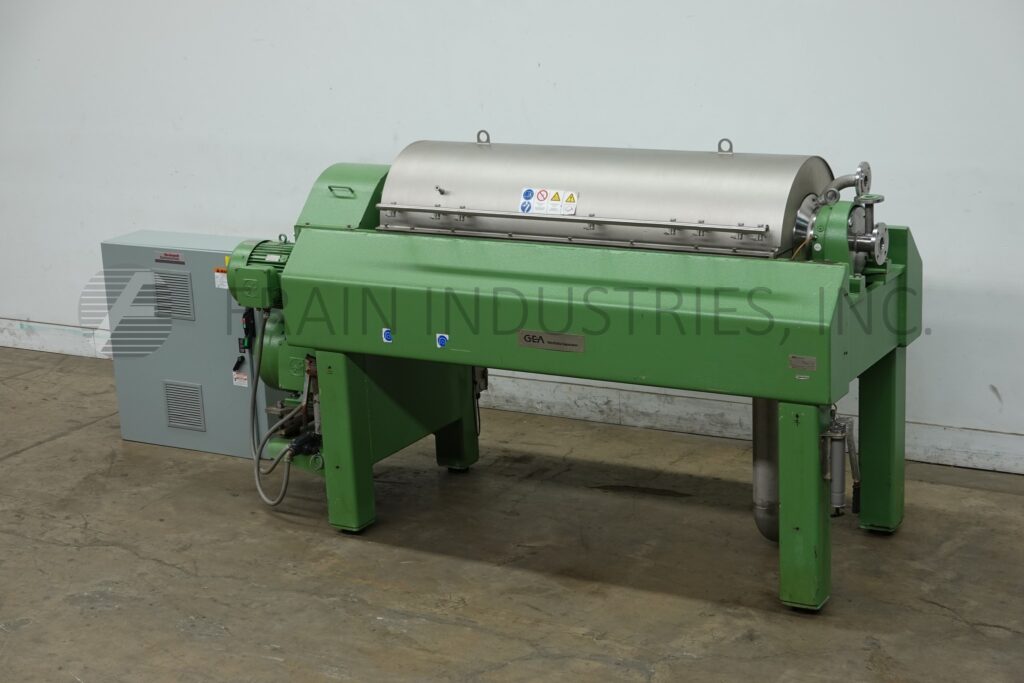

GES Westfalia Model CC 450-01-32, Solid bowl, 3000 rpm, clarifying and drying decanter style centrifuge rated up to 250 gallons per minute – depending on materials, application and machine configuration. All stainless steel sanitary wetted parts. Solid bowl decanter centrifuge with solids G/CC of 2.0 Maximum and bowl speed of 3000 rpm, with welded hard facing with flip up cover and lined solids discharge ports, liquid plate dams, 30 Hp main and 11 Hp secondary motor drives. Remote control panel has A/B Powerflex vari speed controllers. Mounted on heavy duty (4) leg frame.
OAD: __" L x __" W x __" H
Glatt Model WST15C, stainless steel, thru the wall design, (3) sections fluid bed dryer, with 15kg, 33lb, 15 litres batch working capacites and up to 1300 cfm with 160,000 BTU and volumes of product per hour – depending on materials and application. Equipped with 18" OD x 52" long stainless steel top expansion chamber with 24" OD top flanged thru the ceiling port and 12" OD flanged horizontal top side relief port with butterfly exhaust valve and 5-1/2" OD flanged 3" ID sight port and (2) 5" OD flanged covered ports with 19" long x 14" wide side see thru access door and 40 Kg maximum weight hand crank column lift. 18" OD x 18" deep middle section drying bowl with 5-1/2" OD flanged, 3" ID sight port and (4) leg cart with casters. 18" OD x 18" long bottom dump lower transition discharge section with 12" OD flanged horizontal bottom side air inlet port.and 1" OD bottom drain. 32" long x 29" wide x 96" high inlet air plenum cabinet recieving from above mounted climate control air handling system with pre-screen, dehumitifier, pre-heater, humdifier, final heater and HEPA filters to fluid bed dryer. Control panel with inlet air temperature and volume set point controller with timers, air, filter bowl and manual shaker switches with main control, fan and exhaust controls, AP product bowl, air filter and air prep unit megnehelic water gauges with chart recorder. Remote air handling and fan system for quieter, cleaner, safe running operation. Mounted on stainless steel frame with casters and leveling legs.
OAD: 70" L x 42" W x 104" H
Sharples Model P5000 Super D-Canter, stainless steel, continous motion centrifuge, for clarification of liquids, also classification, concentration / thickening and dewatering of solids with gallons per minute and pounds of product per hour – depending on materials and application. 316 stainless steel (product contact areas). Centrifugal force of 3180 x gravity force. Maximum bowl speed up to 3,000 rpm. and can handle a wide range of solid particules from 6mm OD to a few microns and a slurry from 0.5% to 65% w/w. Equipped with 42" OD x 80" long chamber with 11" OD opening x 42" long single screw product conveying system with slurry in feed and liquid / solid discharge ports, replaceable wear liners, liquid plate dams, base casing, feed pipes, vibration isolators, lube system and safety guards. 100 Hp main drive and 40 Hp Eddy current back drive. Remote control panel has an A/B PLC with touch pad controller has condensation and vari-speed drive controls with e-stop. Mounted on heavy duty stainless steel bolt down base frame with operator access ladder and platform.
OAD: __" L x __" W x __" H

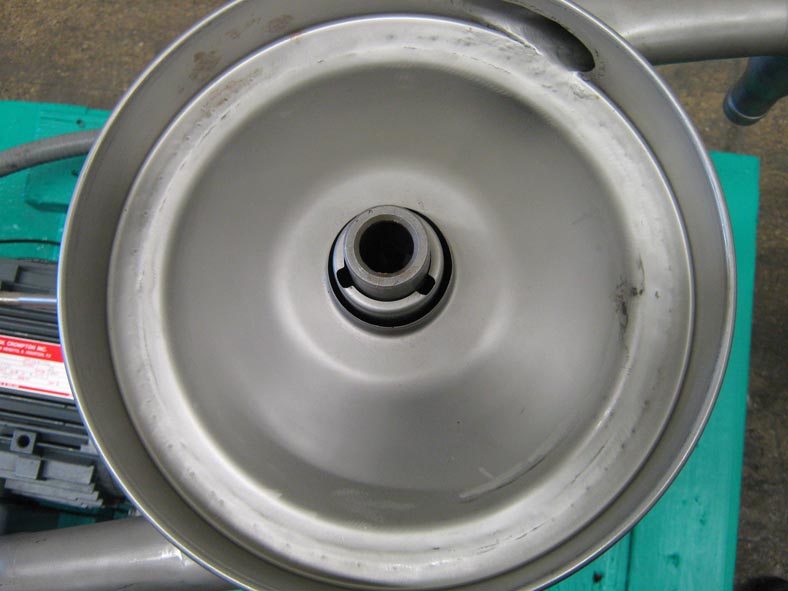

Alfa Laval Model WSB purifier, is a continuous, solid retaining centrifuge, separator capable of doing up to 900 liters or 225 gallons of product per hour – depending on materials and application. Machine is set up to separate two liquid phases with the solids remaining inside the bottom of the bowl. Equipped with three 10-1/4" ID by 2" H separation discs with a top 1-1/2" OD and a 1" ID threaded light and heavy product intakes ports, and 3/4" OD product separation outlet, each disc, this design of disc stack is the heart of the separator, and the centrifugal force separates the fluid / particles both are then discharged through separate outlets.
OAD: 22" L x 22" W x 30" H

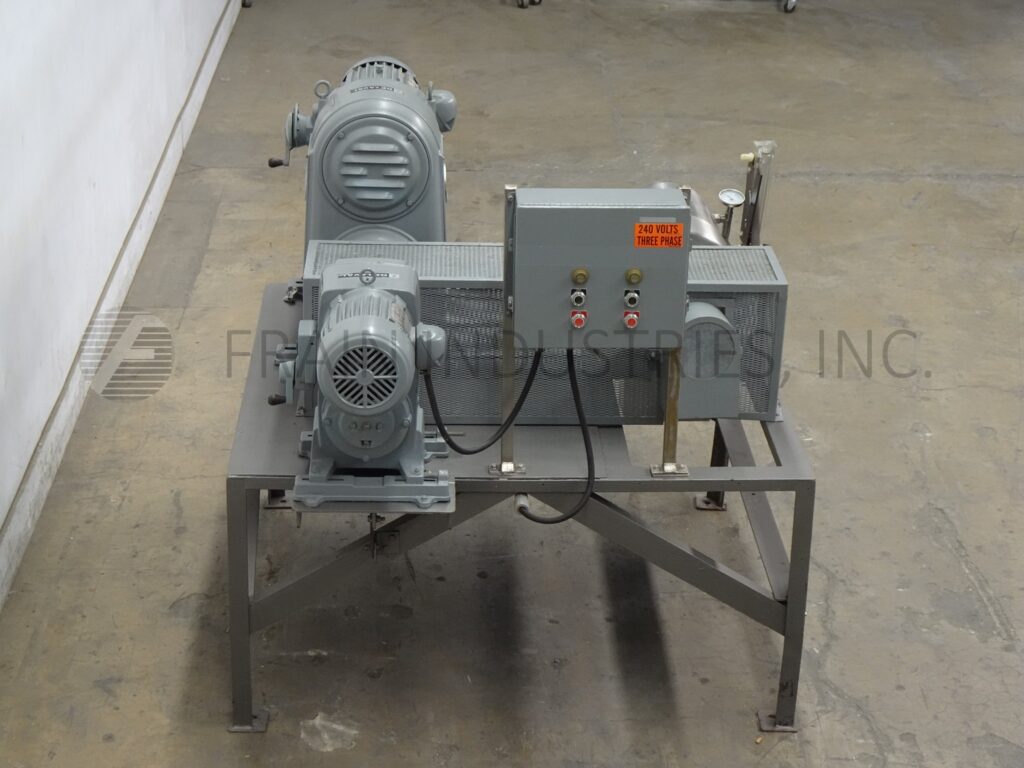

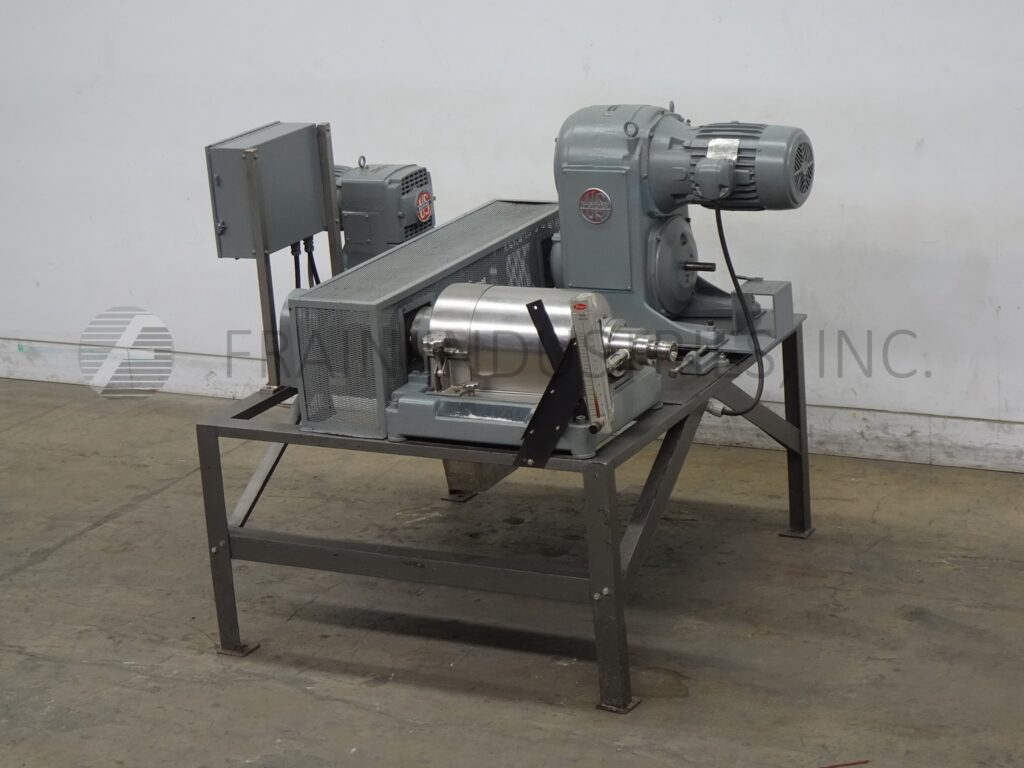

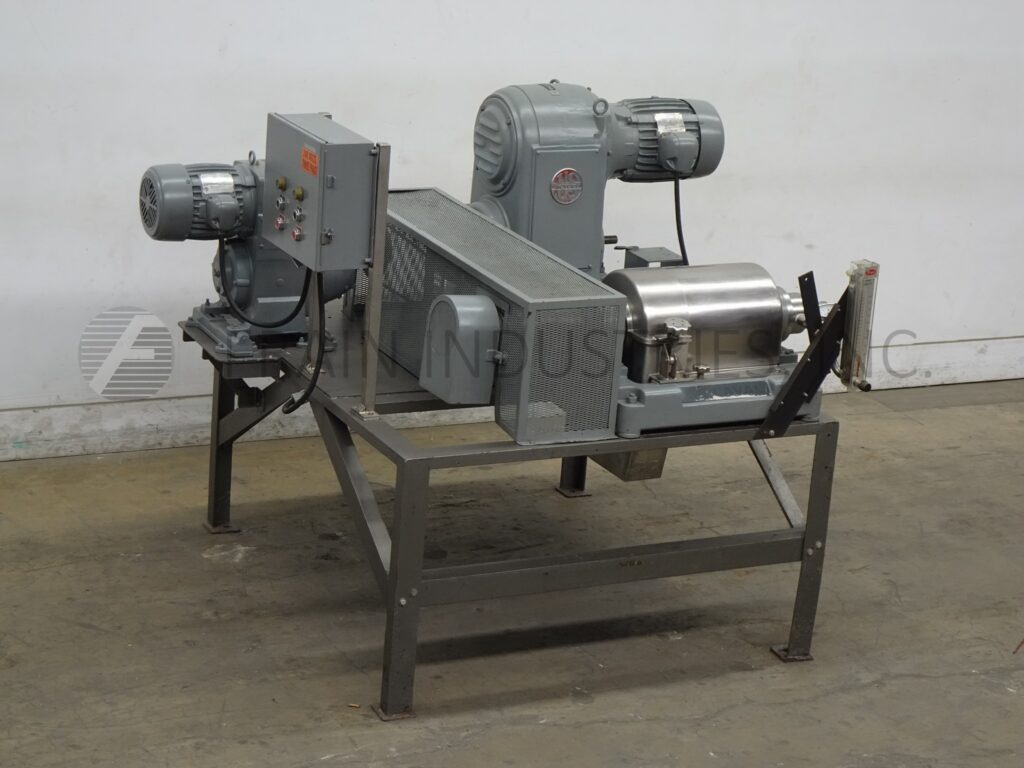

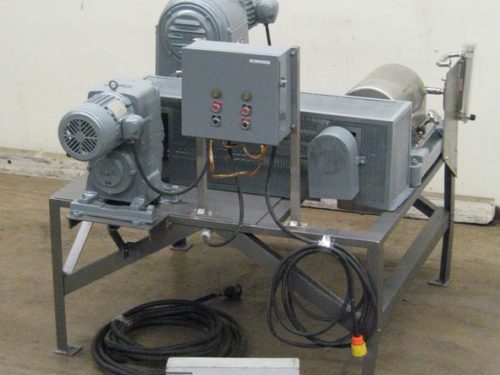

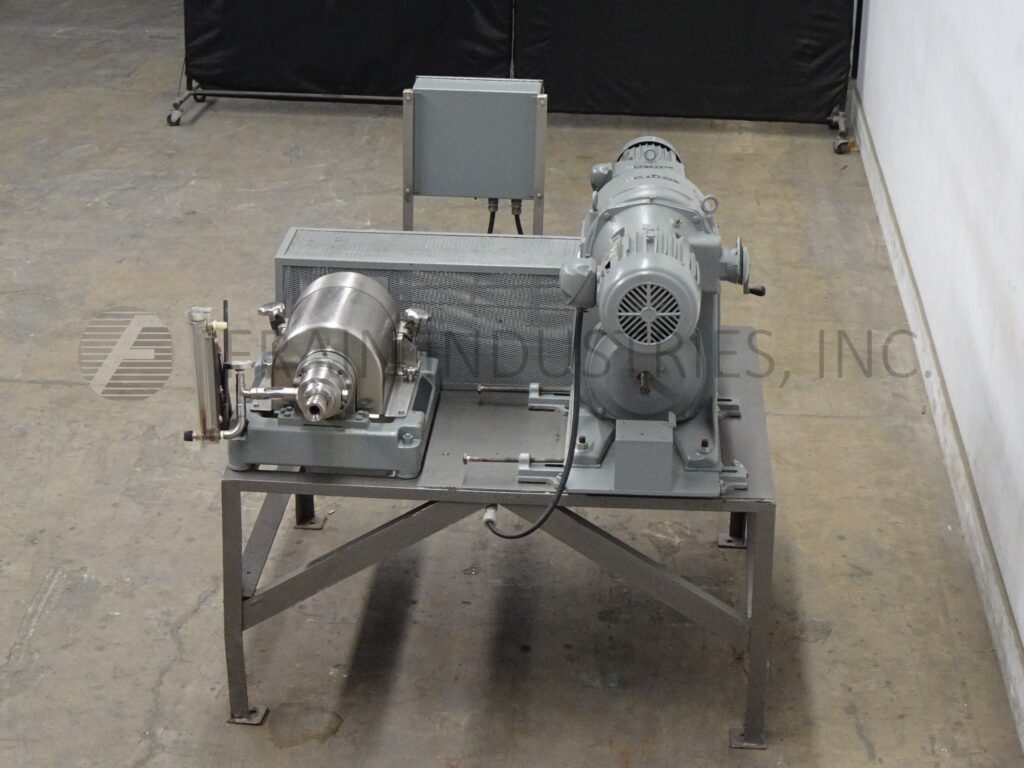

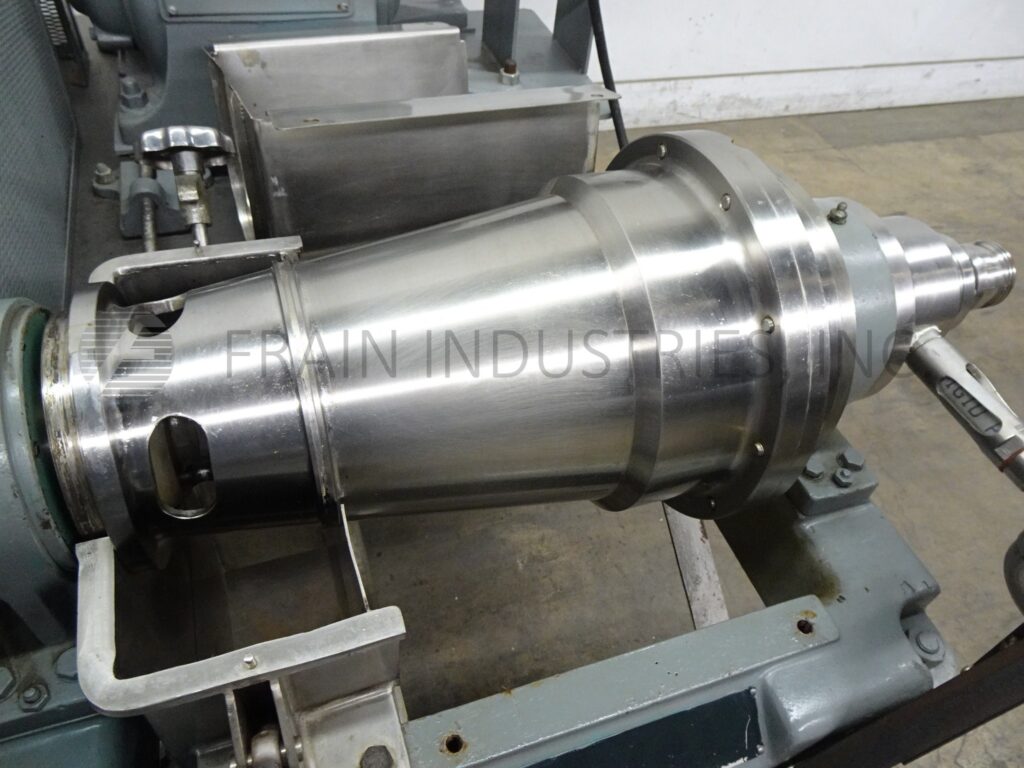

Horizontal, solid bowl, decanter centrifuge rated up to 60 gph – depending on materials, application and machine configuration. All stainless steel sanitary wetted parts, 6" Diameter by 12" L bowl, pitched inner product scroll with flip up bolt down cover, 2-1/4" OD, 2" threaded ID front product feed port, 4900 rpm bowl speed, 7.5 Hp v-belt main drive, and 2 Hp variable speed back drive both with safety guarding, control panel. Mounted on a 54" long by 60" wide by 30" high base frame.
OAD: 60" L x 72" W x 62" H
