Filler Paste Quad is a four head piston paste filler which fills four containers at a time with a paster. The quad paste filler draws paste into four pistons (usually from a hopper) as the pistons draws back. When the pistons push forward, a rotary drum valve rotates and pushes the paste down through the filling nozzles and into the containers. Volume of fill can be adjusted by changing the length of the piston stroke.

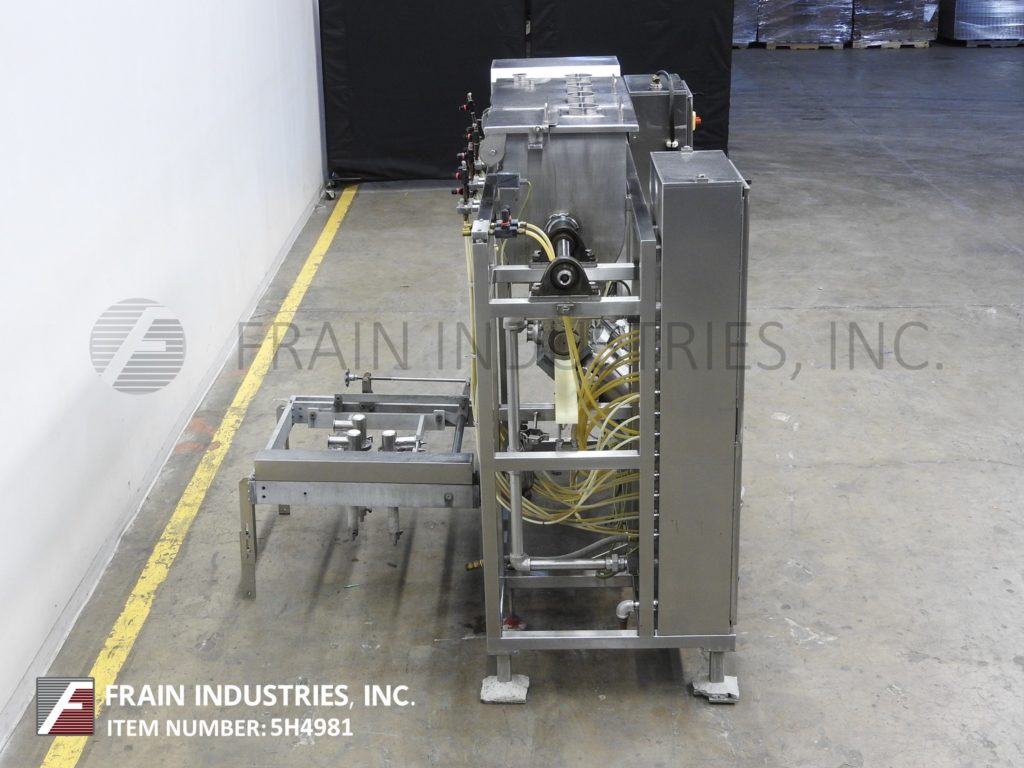

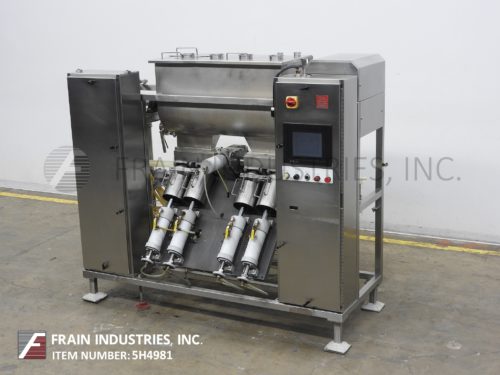

Raque, Model PF25-4, automatic, stainless steel, 4 head piston filler with BL60 paddle agitated hopper. Rated from 10 to 60 cycles per minute with number of containers – depending on materials and application. Fill size range: 10oz to 178oz. Container size range: up to 1.5 gallon with proper change parts. Equipped with 43" long x 18" wide x 24" deep stainless steel product hopper with paddle agitator and top cover. (4) 6½" ID x 10" long stainless steel air assist pistons and (4) 2½" OD positive cut off nozzles. Control panel has A/B controller with touch screen HMI. Mounted on stainless steel (4) leg base frame.
OAD: 95"L x 36"W x 80"H

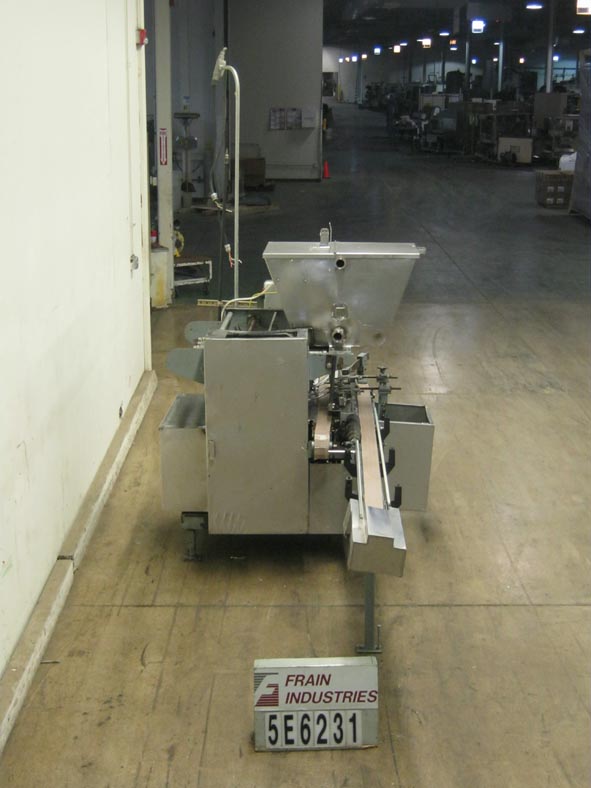

Automatic, intermittent motion 4 piston in-line filler. Equiped with 3-1/4" wide x 87" long conveyor, pneumatic indexing system, four (4 oz) pistons with 1/4" nozzles and 18 gallon hopper. Stainless steel contact parts. Speed dependant on material, application and machine configuration.
OAD 54"L x 92"W x74"H

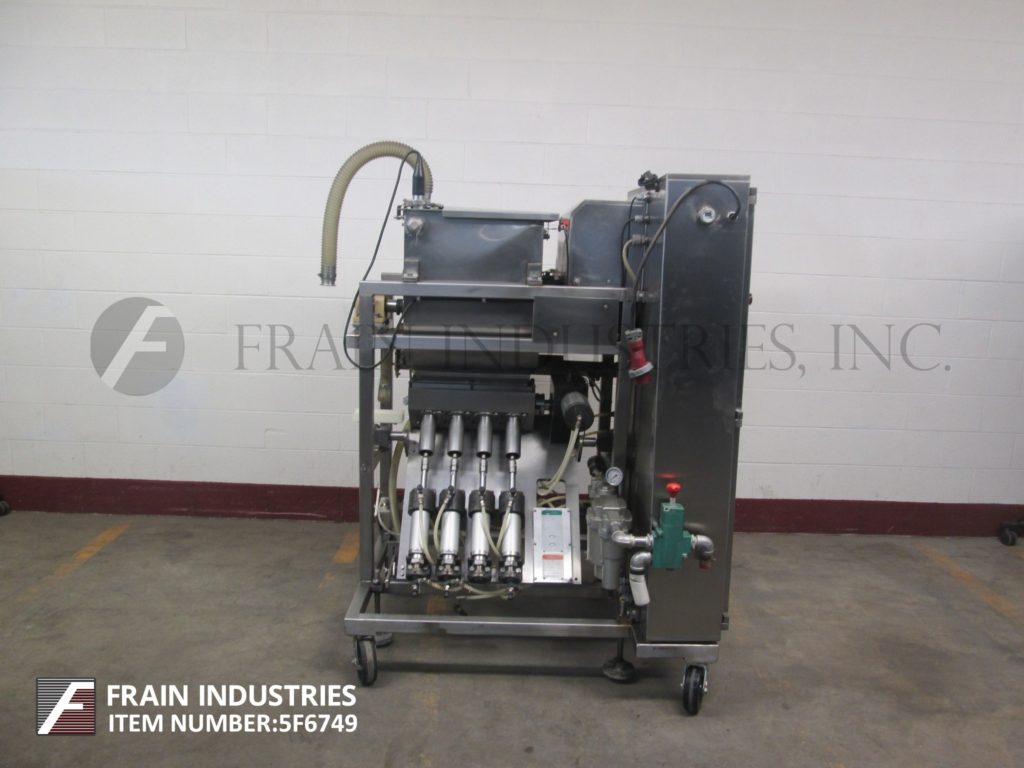

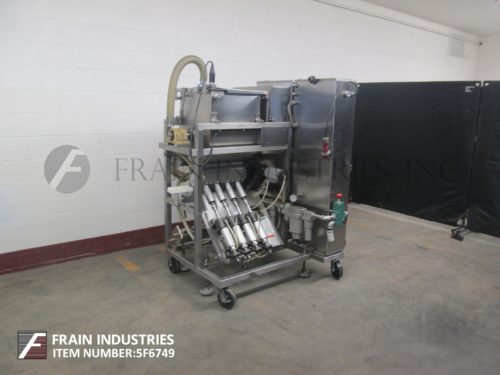

Raque Model PF2.5-4, automatic, stainless steel, 4 head piston filler. Size range: 0.1oz to 62 oz with proper change parts, Equipped with 20" long x 20" wide x 24" deep stainless steel product hopper with paddle agitator and top cover. (4) 2" ID x 6" long stainless steel air assist pistons. Raque Model DL200 depositor with (4) 1-1/2" Diameter nozzles on 3" centers, Allen Bradley controller. Mounted on stainless steel base frame with casters. Speed dependant on materials, application and machine configuration.
Raque Model DL200 Depositor, Cup Holding Plates mounted on Conveyor System
OAD: 53" L x 44" W x 72" H 4 Head Piston Filler
MRM Elgin, Model Quad Filler, Automatic four head inline piston filler. Capable of speeds up to 80 CPM. Unit has a max container width of ___" and a max height of ___". Intermittent motion filler is currently equipped with (4) ___" diameter pistons for a fill range from ___ oz to ___ oz, on 4" centers. Can run up to ___oz fill w/correct change parts. Has ___" diameter fill nozzles, and has a ___" long indexing conveyor with (4) ___" W lanes.
OAD: ___"L x ___"W x ___"H
Inline, 4 head piston filler rated 5 to 15 cycles per minute – depending on materials, application and machine configuration. Fill range: up to 32oz. (Currently equipped with four 22 oz pistons.) Equipped with 3-1/4" conveyor, worm screw product indexing, bottom up fill, no container / no fill. All stainless steel contact parts. Change parts required to accommodate range.
OAD: 108" L x 55" W x 72" H
