Filler Paste Twin is a two head piston paste filler which fills four containers at a time with paster. Twin paste fillers draw paste into two pistons (usually from a hopper) as the pistons draws back.
When the pistons push forward, a rotary drum valve rotates and pushes the paste down through the filling nozzles and into the containers. Volume of fill can be adjusted by changing the length of the piston stroke.
REB, semi-automatic, stainless steel, dual head piston filler and depositor with number of containers per minute / hour – depending on materials, application and operator dexterity. Rated to 128 oz per piston. (with proper change parts). Equipped with 16" ID x 20" deep stainless steel product hopper, (2) 5" ID x 16" long (128oz) pistons and (2) 2"OD / 1½"ID Tri-clamp discharge connections. Mounted on stainless steel drip pan base.
OAD: 80" L x 45" W x 50" H

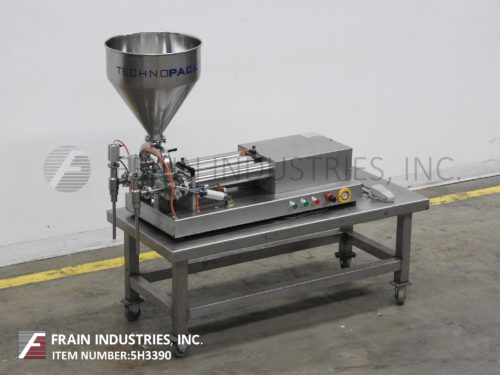

Techopack Corporation, semi-automatic, stainless steel, twin head, table top, piston filler with amount of product per hour – depending on materials, application and operator dexterity. All 316 stainless steel food grade contact parts. Fill range: 6.76oz to 33.81oz each piston and able to fill low to high density liquids 0 to 10,000cp with proper change parts. Fill accuracy + / – 1% volume. Equipped with 16" ID x 18" Deep conical 9.25 gallon stainless steel product hopper, (2) 3" OD x 17" Long stainless steel pistons with 1/2" OD positive cut off no drip nozzles and adjustable volumetric piston system with numertic display. Start, stop, reset buttons, operator semi-auto and continous selector switch, air pressure guage and foot pedal. Mounted on 40" long x 19" wide stainless steel base.
OAD: 40" L x 19" W x 32" H

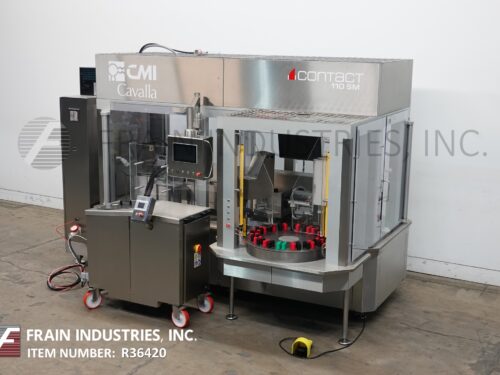

CMI Industries, Model Contact 110 SM, lipstick filling machine. Rated from 15 to 20 pieces per min. Equipped with 48" long mould pre-heat tunnel, (2) head peristaltic pump hot filler with diving nozzles and 16" diameter x 17" deep agitated supply hopper, top heat station, 103" long (3) zone chiller, 34" diameter rotary puck station, (4) head stick demould / load station and (4) head stick twist-to-close station. Control panel with Siemens controller and touch screen HMI.
OAD: 160"L x 90"W x 104"H (Filler) 48"L x 31"W x 52"H (Supply Hopper)

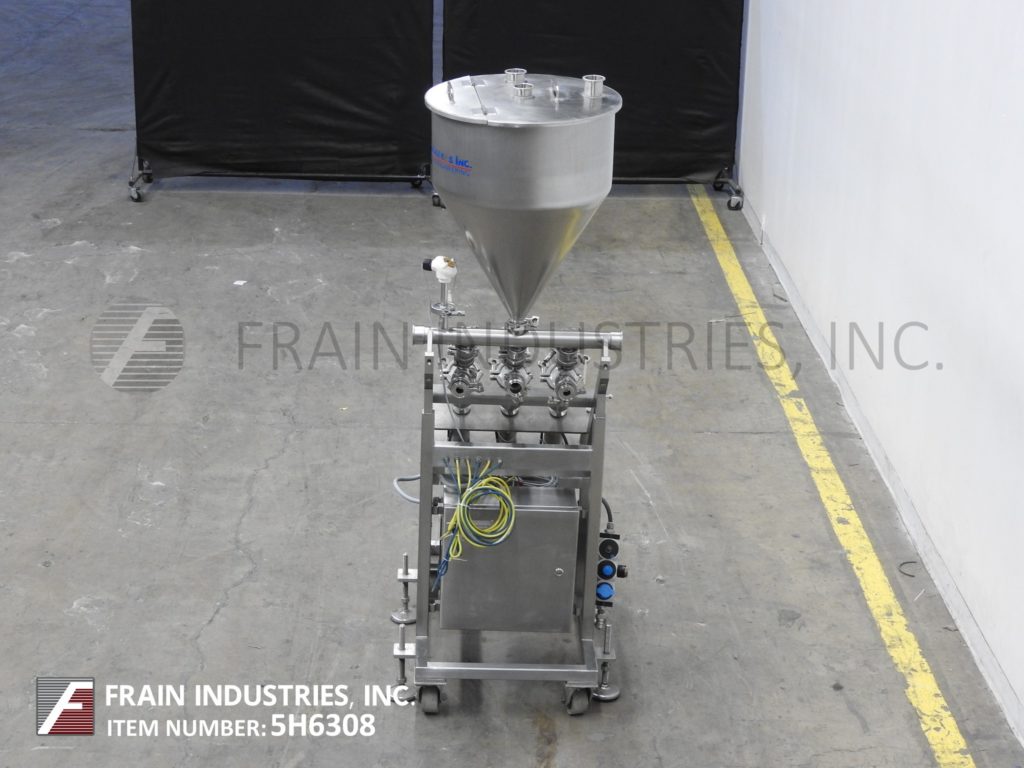

Orics, Model VFND1603, automatic, stainless steel, 3 head piston filler with hopper. Rated from 5 to 30 cycles per minute with number of containers – depending on materials and application. Fill size range: 1 oz to 20 oz (per piston). Equipped with 18" diameter x 27" deep stainless steel product hopper with top cover. (3) 3" ID x 6" long stainless steel air assist pistons and (3) 2"OD / 1½"ID Triclamp discharge connections. Mounted on stainless steel (4) leveling leg frame with casters.
OAD: 36"L x 30"W x 75"H
Volumetric Techologies Model 1090, 2 head, automatic, stainless steel, piston filler / depositer. Equipped with 21" long x 18" wide x 21" deep stainless steel product hopper, currently set with two 1-1/2" ID x 8" long, 12 ounce stainless steel pistons. Touch pad controller with digital read out and start / e-stop buttons. Pneumatic operated pistons. Mounted on H style stainless steel base frame with casters. USDA and FDA approved materials, gentle on shear sensitive products with the ability to handle large particulates and quick tool free changeover.Number of containers per minute dependant on materials, application and machine configuration.
OAD: 48" L x 32" W x 67" H
Automatic two head piston filler rated 10 to 40 containers per minute – depending on materials and application. Equipped with 23" diameter 22" deep stainless steel product hopper, two 4" ID (64 oz) pistons, two 1/2" fill nozzles set on 5" centers, and dual 80" long lugged chain feed conveyors set on 5" centers.
OAD: 80" L x 45" W x 76" H
Twin piston filler, rated 5 to 30 strokes per minute – depending on materials and application. Equipped with 28" diameter 34" deep product hopper and cover, twin 4" ID (45oz) pistons and two nozzles fittings set on 7" centers. Mounted on locking casters.
OAD: 60" L x 36" W x 73" H
Twin S/S piston filler with 7 cuft hopper. Equipped with two 12 oz (7" long x 2-1/2" diameter) pistons with 1-1/2" diameter diving nozzles. Mounted on casters.
OAD: 48"L x 40"W x 74"H
Twin Piston Filler S/S 316 with Hopper at 4 cuft (30 gal) Unit is mounted on casters.Dual traveling heads for continous with diving nozzles and positive cutoff.
OAD: 92"L x 48"W x 58"H
Twin piston, S/S, filler capable of speeds 10 to 60 cpm (depending on application), min/max fill rane of 3 oz – 16 oz, with an accuracy of +/- 0.1%. Unit has a 4 ft³ (30 gal) S/S bulk product hopper, (2) 3" ID x 4"L pistons, and a height adjustable column with hydraulic jack assist for a 41"H – 46"H discharge. Mounted on a common base frame with (4) legs and casters.
OAD: 80"L x 48"W x 72"H
Twin piston, S/S, filler capable of speeds up to 60 cpm (depending on application), min/max fill range of 3 oz – 16 oz, with an accuracy of +/- 0.1%. Unit has an 8 ft³, S/S, slanting bulk product hopper measuring 38"L x 26"W x 36"D, (2) 3" ID x 4"L pistons, and a height adjustable column with hydraulic jack assist for a 41"H – 46"H discharge. Mounted on a common base frame with (4) legs and casters.
OAD: 48" L x 44" W x 74" H

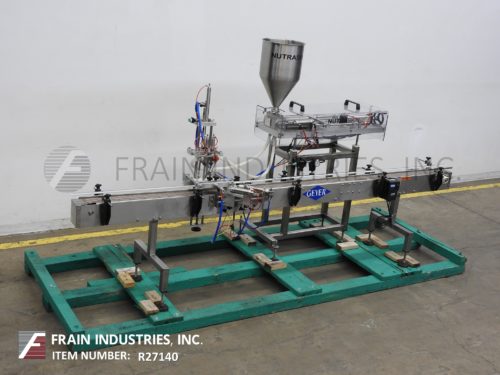

Geyer, Model Fillmaster 5000, stainless steel, dual piston filler / depositor. Rated from 4oz to 36oz fills each piston at speeds from 10 to 40 containers per minute with volume and number of products per minute – depending on materials, application and machine configuration. Equipped with 20" diameter x 21" deep 12 gallon stainless steel product hopper, two 36oz pistons with1" OD positive cut-off diving nozzles and a 4½" wide x 144" long stainless steel Delrin variable speed conveyor with pneumatic indexing. Mounted on stainless steel base frame.
OAD: 144"L x 72"W x 73"H
