Geyer 6 head inline piston filler rated from of 10 to 90 containers per minute – depending on materials and application. Currently equipped with 32 oz. pistons and 30 gallon hopper with low product sensor, timing screw, 8′ long x 4-1/2" wide in feed conveyor with cam operated right angle transfer, walking beam type index system, bottom up fill, and Plexiglas guarding.
OAD: 117"(L) x 92"(W) x 68"(H)

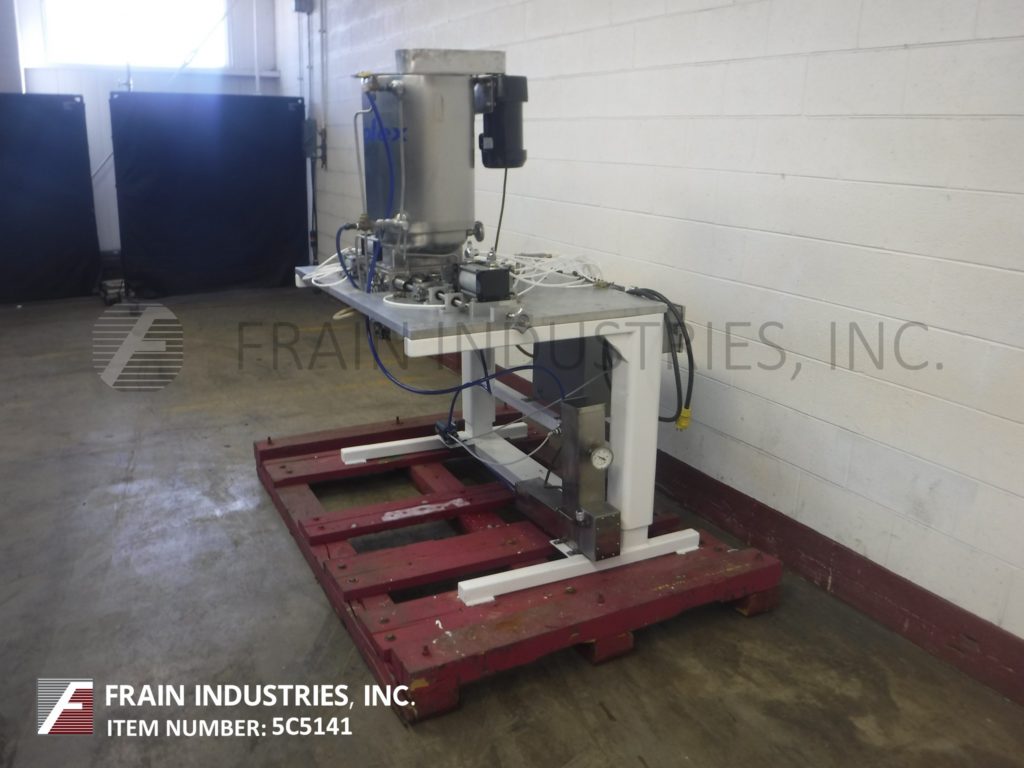

Ten (10) head stainless steel paste filler /depositor with jacketed 10 gallon scrape agitated hopper. Machine currently set with (10) 1 3/8” 5 oz max fill pistons.(Up to a 10 oz max fill with proper pistons change parts). Hopper capable of temperatures up to 200 deg. F. and is equipped with temperature gauge. Pistons are pneumatically actuated for fill deposit. Additional feature includes a self contained heating system that maintains a constant temperature throughout jacket, piston block and fill nozzles. Unit was last filling a heated cheese product while mounted over a Multivac Thermo former. Filler is mounted on an adjustable steel base with rolling locking casters. OAD: 51”(L) x 54”(W) x 72”(H)

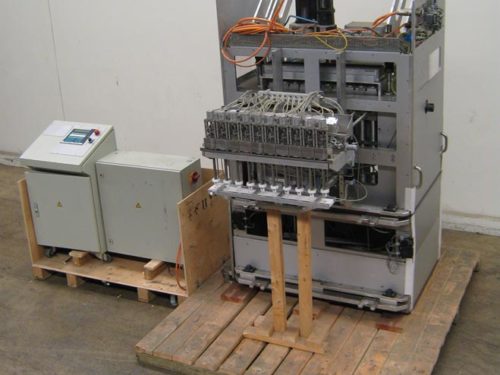

Automatic 10 Hd, S/S servo driven inline piston filler with positive cutoff nozzles measuring 1"W x 8"L. Unit has (10) 10 oz pistons measuring 2"Diam x 8"L with 6" stroke, & a container centering neck guide sitting at 42H".Unit is driven by (2) Indramat Servo Drives. Last running bottom up fill application.
OAD: 52"L x 64"W x 96"H
MRM Elgin Model Versa filler, automatic, stainless steel, 6-head, rotary time / pressure filler. Rated from 20 to 90 containers per minute – depending on materials, application and machine configuration. Container size range: 1" to 14" in height; 1" to 5½" in diameter. Equipped with a 132" long x 4½" wide stainless steel table top conveyor, starwheel infeed and discharge, (11/16)" OD nozzles set on 5¾" centers and a (1/8) hp positive displacement supply pump. Control panel with push button start / stop controls, variable speed dial and volume control dial. Mounted on a painted base.
OAD: 135"L x 40"W x 65"H
MBC Food Machine Corp., Model STF-3C, servo tray filler. Rated from 1 to 45 cycles per minute – depending on materials, application and machine configuration. Equipped with a 12" x 16" x 21" hopper, 6 column positive displacement gear pumps. Control panel includes an AB PLC and AB Panelview Plus 700 touch screen display. Mounted on casters to roll over existing conveyor.
OAD: 66"L x 42"W x 70"H
