Filler Paste Single is a single head machine which fills containers with paste. Single paste fillers draw paste into a piston (usually from a hopper) as the piston draws back. When the piston pushes forward, a rotary drum valve rotates and pushes the paste down through the filling nozzle and into the container. Volume of fill can be adjusted by changing the length of the piston stroke. Single paste fillers can be either automatic or semi-automatic.
Ambrose Model 920, automatic 1 gal pail filler and lidder with number of pails per minute – depending on materials and application. Equipped with pail conveyor which feeds stacks of pails to denesting station where pails are picked up and indexed automatically to fill conveyor. Pails fed to bottom up fill spout, lids are fed automatically, then pails are conveyed to lid tamp down station. Includes approx. 7′ long pail feed conveyor and 10′ long fill-lid-tamp down conveyor. Mounted on heavy duty base frame.Designed for use on heavy paste products such as; caulking, glues and adhesives.
Semi-automatic positive displacement filler/depositor able to dispense viscous materials 1 to 30 cpm – depending on product and operator. Complete re-circulating system consisting of a 1 cu ft S/S heated & agitated hopper, heated hoses, Moyno style product pump and dispensing head. Product is continually heated and pumped through the system. Equipped with digital temperature control and individual variable speed controls for pump & agitator. AOD = 48" L x 25" W x 59" H

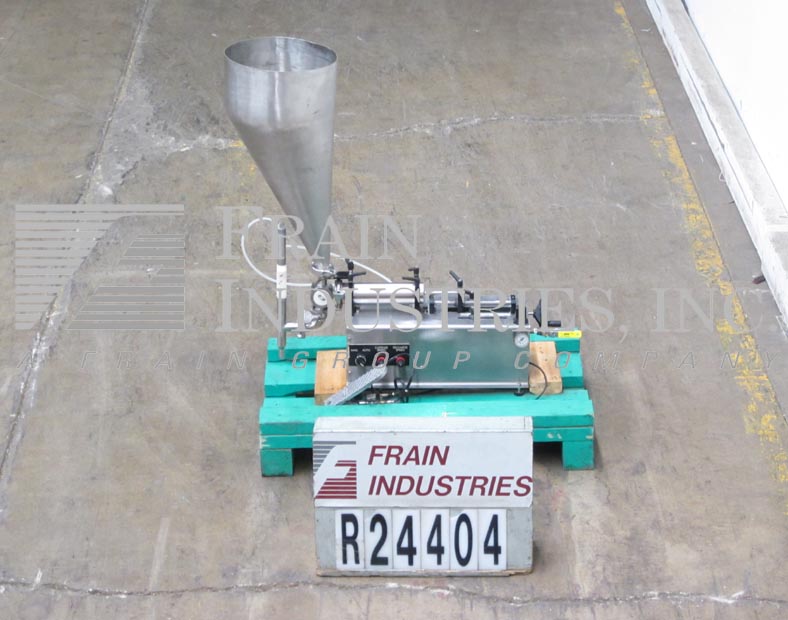

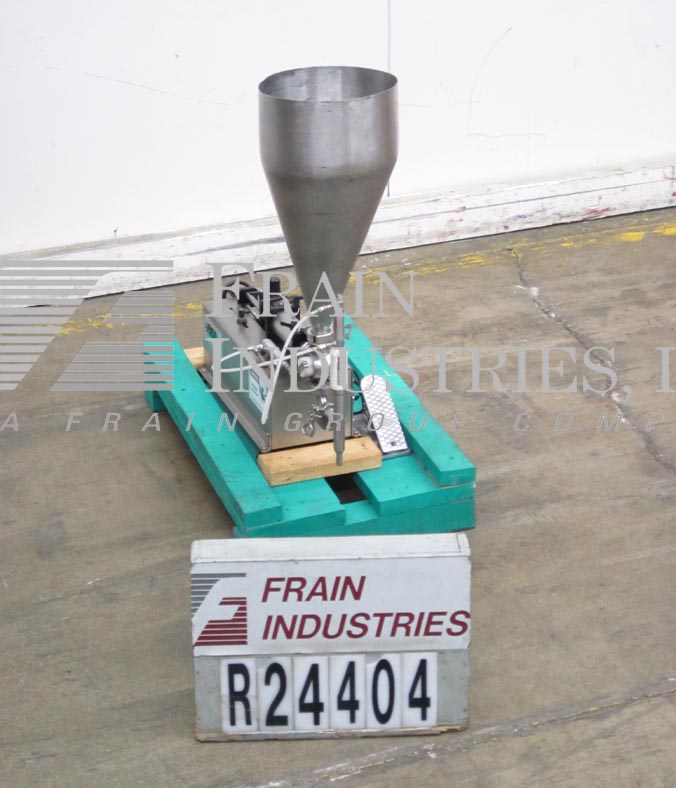

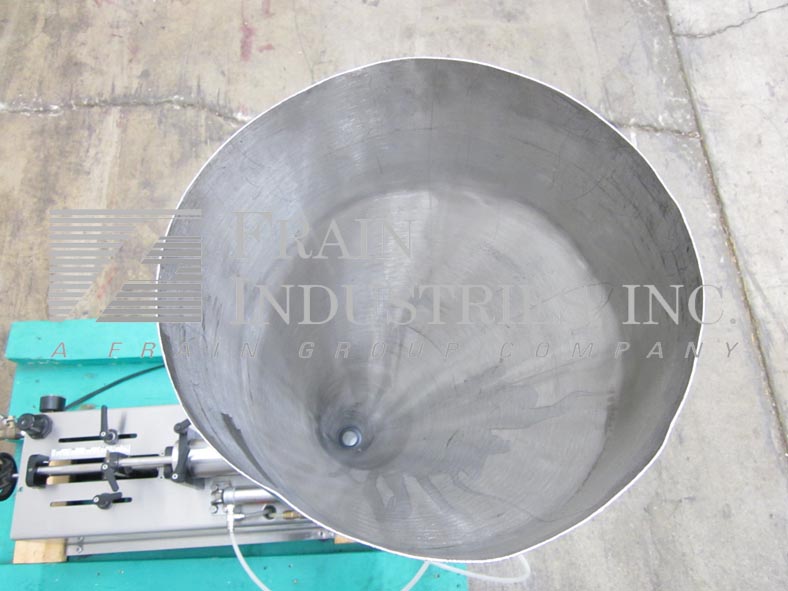

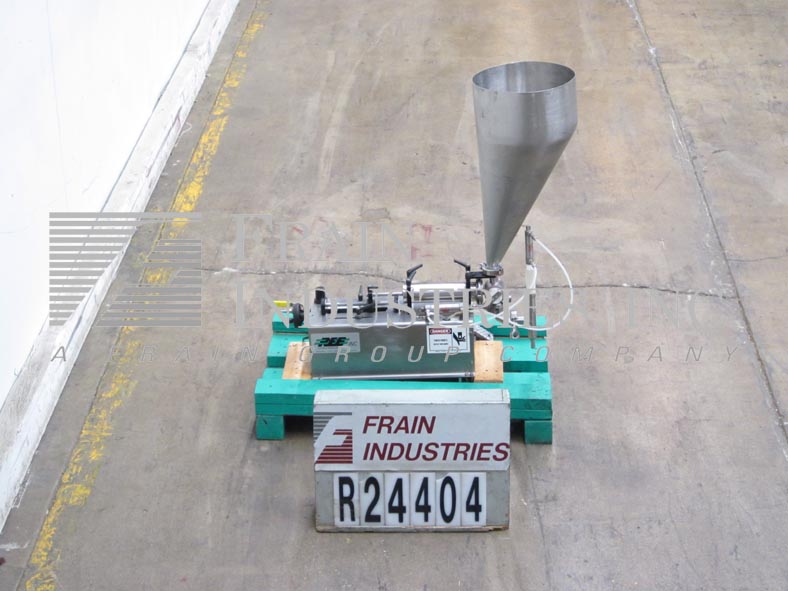

Volumetric Technologies, semi-automatic, 316 stainless steel, single head, table top piston filler. Fill range: .03 oz to 16 oz. with proper change parts. Fill accuracy +/- .25 of 1% volume. Equipped with conical 5 gallon product hopper, 1½" ID piston (0.5 to 9.75 oz range), ½"ID positive cut off nozzle, adjustment with gauge, fill speed adjustment, toggle switch activation and foot pedal control.
OAD: 34"L x 15"W x 32"H

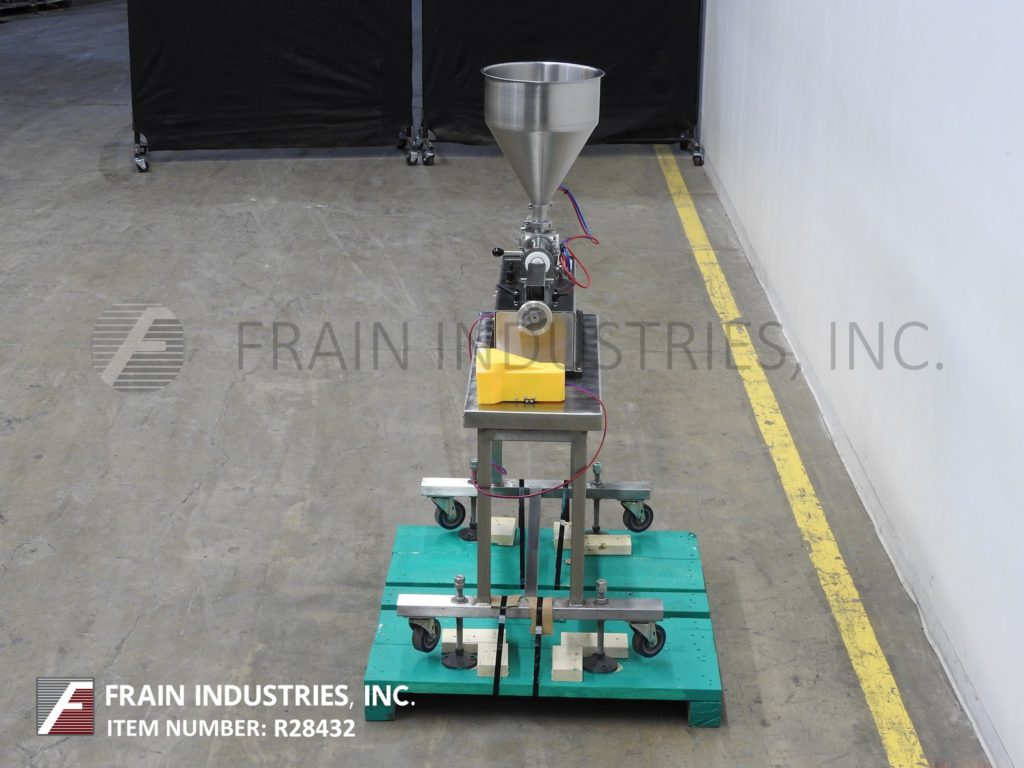

Semi-automatic, table top, stainless steel, single head piston filler capable of fills from 0.5 – 8.5 oz – depending on materials and application. Equipped with a 2" diameter x 9" long piston, positive shut off drip free nozzle, and a foot pedal switch. Mounted on a stainless steel frame.
OAD: 24" L x 12" W x 18"H
