Tube and Shell Machines
Used Tube and Shell Equipment
Frain Industries can help you with your tube and shell heat exchanger project no matter how big or small your heat exchanger needs. Tube in shell heat exchangers have a single or multiple tube for carrying products. These tubes are contained within a shell, which contains the heating or cooling media.
Tube and Shell Equipment In Stock
- Manufacturer: Allegheny Bradford
- Model Number: U-TUBE
- Frain Number: 5G0295
Allegheny Bradford U-tube dual application heat exchanger. Equipped with six 1/2" diameter 304 stainless steel U-tubes (200" long) giving 13ft² heat exchange area within an 8" diameter 304 stainless steel jacket, 1-1/2" diameter sanitary tube inlet and outlet, 1" threaded jacket inlet with ball valve, 100psi jacket pressure relief valve with threaded 1" outlet, 1" diameter threaded outlet with a ball valve discharging 10" below the jacket, MAWP of 150psi at 350°F and MDMT of -20°F at 150psi.
Rated to 2162000 BTU per hour.
OAD: 110"L x 11"W x 24"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Chromalox
- Model Number: MICROTHERM
- Frain Number: 5F6639
Chromalox Model Micro Therm CMX250-18, compact, circulating water temperature controller with flow rates from 10 to 30 gallons per minute – depending on application. Operating temperatures from 50 to 250 deg f. and is equipped with standard 3.8 sq ft heat exchanger with closed loop cooling. 1-1/4" diameter NPT process connections and 1/2" diameter NPT drain supply. Chromalox Model 2104 temperature and process controller with dual display of setpoint and process temperatures and dual pressure guages, monitoring both to and from process pressures, 3/4 Hp pump with start / stop controls, cabinet style design and is mounted on casters.
OAD: 25" L x 15" W x 29" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Cemline Corp
- Model Number: 1248ASP
- Frain Number: 5H0978

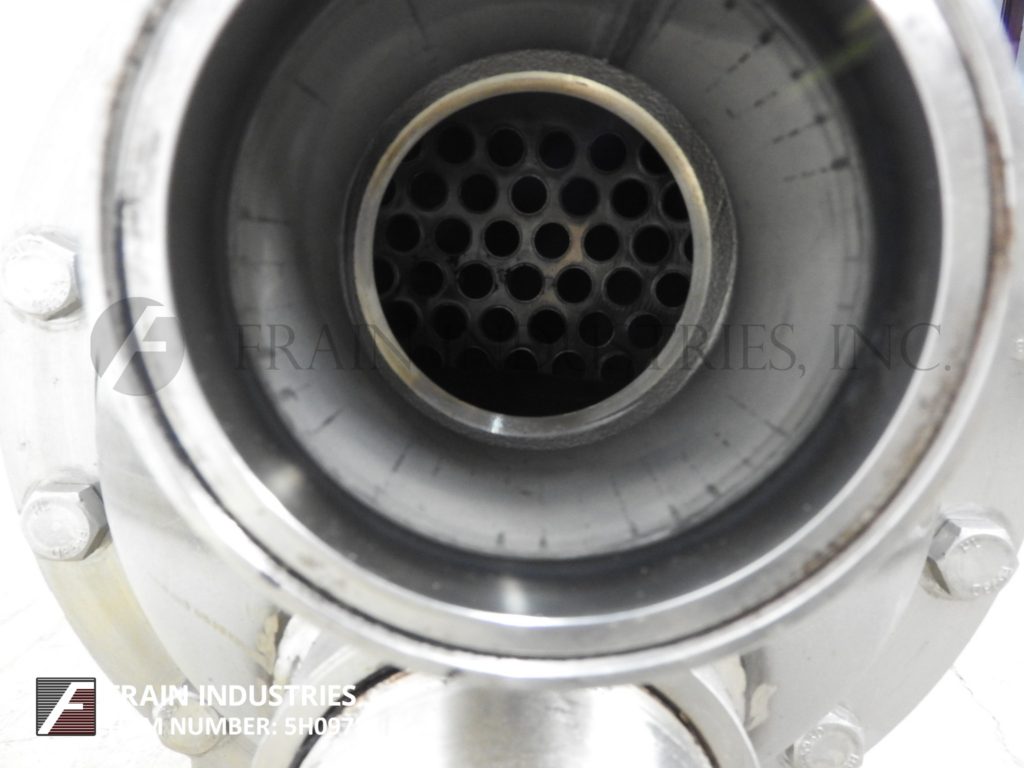

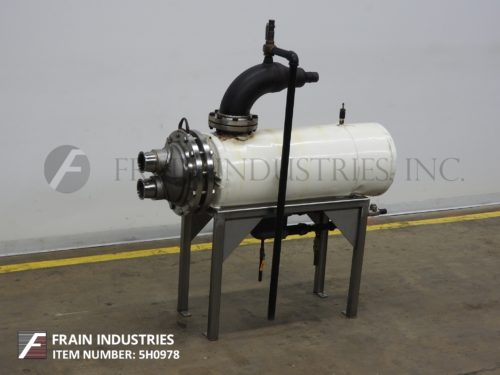

Cemline, Model 1248A-SP, tube in shell heat exchanger. Equipped with (2) 2" NPT media inlet / outlets, pressure relief valve and (2) 4¾" OD / 4" ID Tri-clamp style product inlet / outlets.
MAWP: 150 psi @ 375°F (Tubes)
OAD: 62"L x 20"W x 70"HGet a Free Quote Call: 630-629-9900
- Model Number:
- Frain Number: 5G7873
All stainless steell, tube in shell heat exchanger. Shell measures 12" OD and tubes measure 9" OD x 50" Long. Equipped with (2) 2" OD / 1½" ID Tri-Clamp style media inlet / outlets and (4) 2" OD / 1½" ID product inlet / outlets.
OAD: 55"L x 20"W x 30"HGet a Free Quote Call: 630-629-9900
- Manufacturer: Bell & Gossett
- Model Number: 1-1/4 BB 7- 3/8 BF
- Frain Number: 5E6153
Carbon steel shell and tube heat exchanger, featuring a MAWP of 150 psi @ 375 degress for both shell and tube. Unit has capacity of 13 gpm and features a 2 hp pump.
National Board #478823.
OAD: 116" L x 46" W x 72" HGet a Free Quote Call: 630-629-9900
- Manufacturer: Bell & Gossett
- Model Number: 526004024001SU422
- Frain Number: 5C9574A
Tube and shell water heater rated to 150psi @ 375F and -20F @ 150psi, and shell rated to 150psi @ 375F and -20F @ 150psi. Features (2) 1-1/4" diameter product intake/oulet, a 3/4" diameter intake/outlet for media, and a 1-3/4" diameter intake/outlet for media. Equipped with two Trerice thermometers, (2) Trerice pressure guages, a Trerice compound guage, and a Bell Gossett inline air separator. Powered by a Baldor 1/3hp motor. Mounted on a mild steel frame.
OAD: 60"L x 32"W x 72"HGet a Free Quote Call: 630-629-9900
