Heat exchangers come in a wide range of sizes. They can be plate heat exchangers, tubular heat exchangers designed for heating and cooling viscous products. Compact and heavy-duty plate heat exchangers offer improved heat transfer, lower plate inventory requirements and a wide range of sizes. Scraped surface heat exchangers can be employed in continuous, closed processing: cooking, cooling, mixing, gelling, heating, slush freezing, crystallizing, plasticizing and aseptic processes.The Shell and Tube (u-tube) is one of the most common type of heat exchanger. It contains a number of parallel utubes inside a shell. Shell Tube heat exchangers are used when a process requires large amounts of fluid to be heated or cooled. Due to their design, shell tube heat exchangers offer a large heat transfer area and provide high heat transfer efficiency.
Alfa Laval, Model Contherm 6×11, vertical, scrape surface heat exchanger system with (6) 80" long stainless steel tubes, (4) for heating and (2) for cooling with amount of product per hour each tube – depending on materials and application. All stainless steel contact parts. Equipped with 10½ ft² of heat transfer area each heating tube with a working temperature range of -30°F to 300°F, has top mounted 10 HP motor drives and 3½"OD / 3" ID product inlet and outlet ports each cylinder. Main top mounted control panel with individual controllers for each tube has motor, speed and temperature start, stop controls with readout and also CIP system controller with start, stop and e-stop controls. Each mounted on individual stainless steel stands. Product enters cylinders through the lower ports and flows upwards through the cylinders simultaneously and media travels in a countercurrent flow through the narrow channel and the rotating scraper blades remove product from cylinder wall to ensure uniform heat transfer to the product and is ideal for food products as well as other applications.
Product Chamber: MAWP: 300 psi @ 300°F MDMT: -30°F @ 300 psi
Media Chamber: MAWP: 250 psi @ 300°F MDMT: -30°F @ 250 psi
Nat’l Brd: 287
OAD: 120"L x 40"W x 240"H

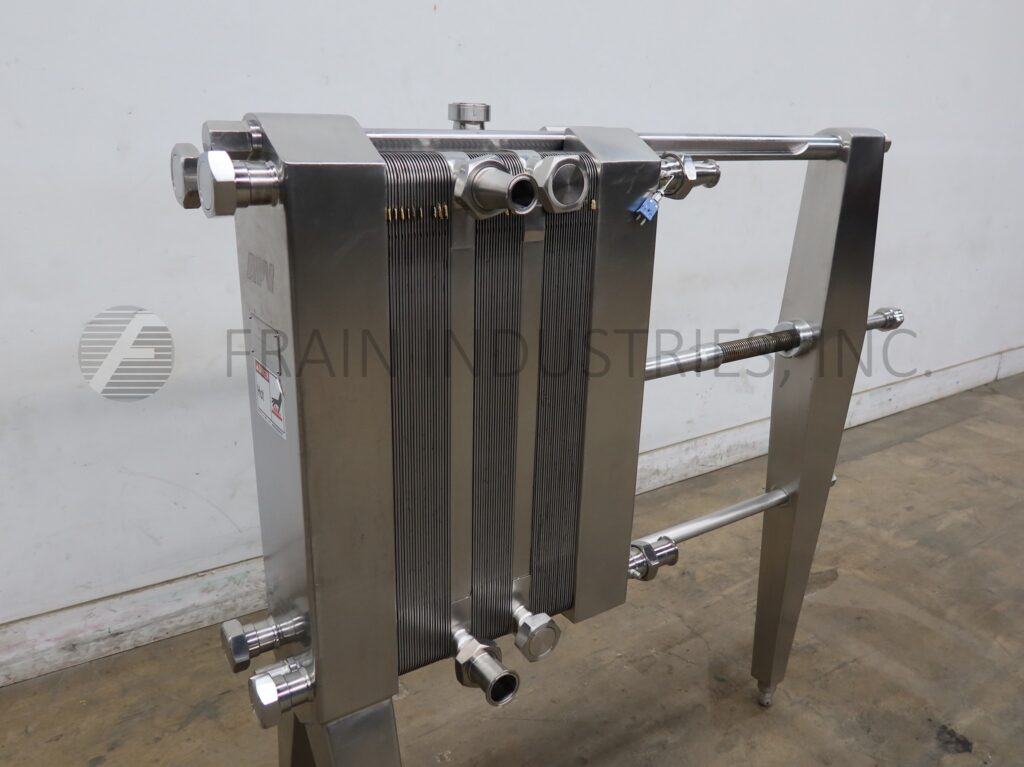

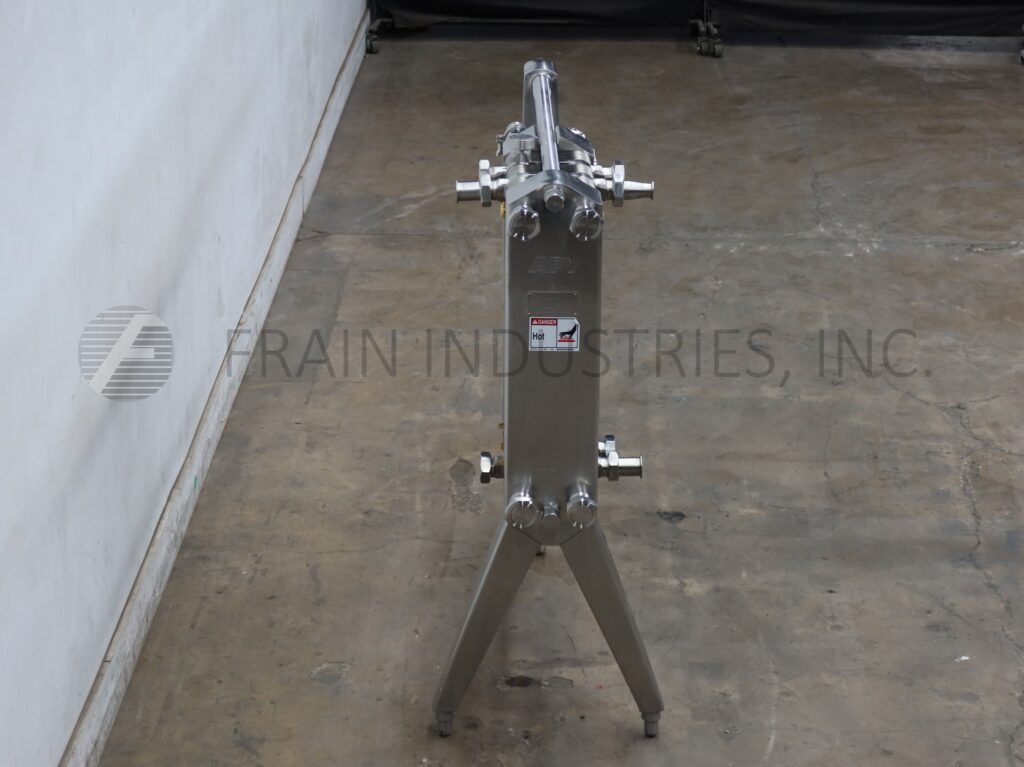

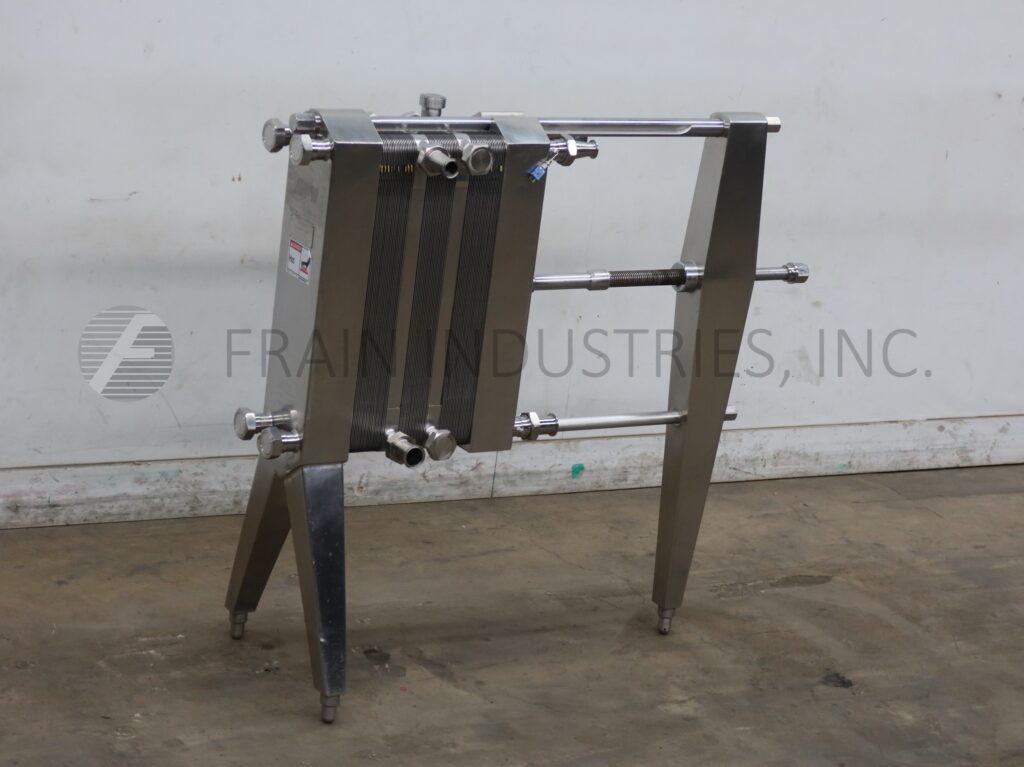

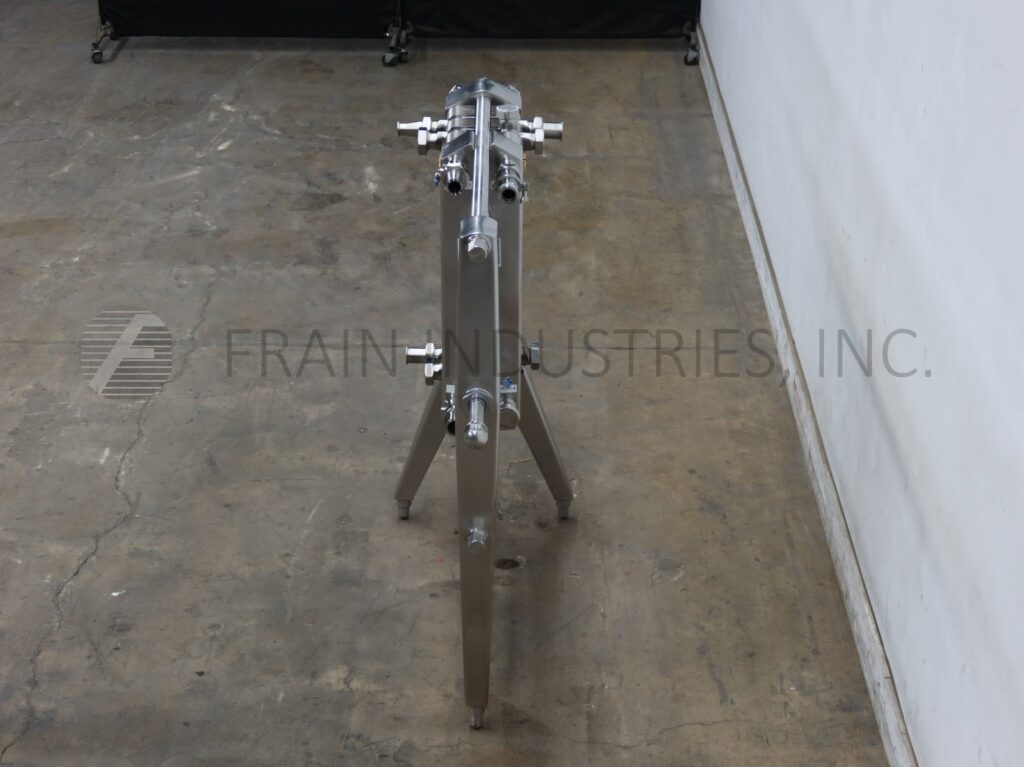

Plate and frame, S/S, heat exchanger. Has 80 plates measuring (14"W x 48"L). Equipped with (4) 3" OD triclover product ports and (8) 3" OD threaded media ports.
OAD: 42"L x 32"W x 64"H
SPX, Cherry Burrell, Waukesha, Model 6 x 72, 316 stainless steel contact parts, horizontal, scrape surface heat exchanger with pounds of product per hour – depending on materials and application. Equipped with 6" OD x 72" long stainless steel product chamber with (9.0 ft²) of heat transfer area and is capable of heating and cooling products with viscosities in 1,000,000 centipoises range. (1) 3-1/2" OD front, (2) 3-3/4" OD media and (1) 3" OD jacket ports, with 10 Hp motor drive. Mounted on heavy duty (4) leg base frame. CIP able.
Shell: MAWP: 600 psi @ 400°F MDMT: -20°F @ 600 psiJacket: MAWP: 250 psi @ 400°F MDMT: -20°F @ 250 psi
OAD: 120" L x 24" W x 54" H
APV, Model CMTNT-C-14-25-154, tube in tube HTST system. Equipped with 2¾" OD x 2020" long (50 gallon) tube in tube heat exchanger with 3½"OD / 3"ID Tri-clamp style product and 3½"OD / 3" ID heating media connections. 5¾" OD x 3148" long (350 gallon) stainless steel holding tube. 10" OD x 24" long tube in shell heat exchange with (2) 3½"OD / 3"ID tri-clamp connections. APV, Model W 25/75, stainless steel centrifugal pump with a 4¾"OD / 3¾"ID suction infeed, 3½"OD / 3"ID Tri-clamp discharge and 5 Hp motor.
MAWP: 200 psi (Product Side)MAWP: 150 psi (Media Side)
OAD: 270" L x 60" W x 185" H
APV Crepaco Model 1HD-620, single head scraped surface heat exchanger designed for heating and cooling of viscous products with or without some particulates and the amount of product per hour – depending on materials and application. Equipped (1) 6" diameter x 20" long tube, has 2 Square feet production surface with 316 stainless steel contact parts designed to meet 3A sanitary requirements. Standard rotary abrasive resistant chrome oxide static seal. Control panel has production guages with speed dial power on, start, stop and jog push buttons. Last ran cooling media.
Votator, Model 1C312L, stainless steel, continuous scrape surface heat exchanger. Equipped with 12" long x 3" ID product cylinder, (2) scraper blades, ¾ ft² of heat transfer area, (2) ½" NPT product connections and (2) ¾" NPT media connections. Powered by a 2 hp drive with a variable speed gearbox.
OAD: 51"L x 15"W x 36"H
Stainless steel, plate and frame heat exchanger with 299.70 ft² of heat transfer area. Equipped with 118 plates. Plate dimensions: 35" Long x 15" Wide x 0.60 mm Thick. Surface area per plate: 2.54 ft². Maximum plate capacity: 119 plates. Pressure rating: up to 232 psig. Temperature rating: up to 230° F. Connections: Two 4-5/8" OD / 3-3/4" ID Tri-Clover Inlets, Two 4-5/8" OD / 3-3/4" ID Tri-Clover Outlets. Mounted on a stainless steel frame with leveling legs.
OAD: 51"L x 20"W x 48"H
S/S scrape surface, 4" Diameter by 60" Tall vertical heat exchanger rated at 75 psi. Equipped with one cooling media inlet/outlet at 35mm ID and 50mm OD, a product inlet at 35mm ID and 50mm OD and a product outlet at 72mm ID and 90mm OD. Rates dependant on materials, application and machine configuration.
OAD: 20"L x 30"W x 76"H
Tube in tube, hair pin style, heat exchanger. Has (10) 22 foot long hair pinned sections (8) dual lower tube sections, and (2) upper single tube sections, 50mm outside, and 25mm inside tube dimensions, with all sanitary fittings. Smooth tube construction has no cracks, no cavities, no tangential contact points, no gasket, or "O" ring sealing. Designed for heating, cooling, and pasteurization of products with high viscosity, that can contain particulates up to 8mm, and is mounted on a common base stand.
OAD: 264" L x 34" W x 93" H
Alfa Laval, Model Contherm 6 x 3, stainless steel column mounted scrape surface heat exchanger with pounds of product per hour – depending on materials and application. Equipped with vertical mounting post, hydraulic tube lift, 6" diameter x 28" long stainless steel product chamber (3 ft²) of heat transfer area, stainless steel scraper blades powered by a 7½ hp drive, (2) 2½" OD / 2"ID tri-clamp style sanitary product connections and (2) 2" NPT media connections.
Nat’l Brd: 1460
Product Chamber: MAWP: 300 psi @ 338°F MDMT: -30°F @ 300 psiMedia Chamber: MAWP: 250 psi @ 338°F MDMT: -30°F @ 250 psi
OAD: 40"L x 20"W x 140"H
Alfa Laval, Model 6 x 9 Contherm, Vertical, (3) concentered, scrape surface heat exchanger system has (3) 72" x 9" stainless steel tubes, with amount of product per hour each tube – depending on materials and application. Equipped with 9 ft² of heat transfer area each tube, working temperature range of -30 to +300 Deg F, with top mounted motor drives and 2-1/2"OD / 1-3/4" ID product inlet and outlet ports each cylinder. Main top mounted control panel with individual controllers for each tube has motor, speed and temperature start, stop controls with readout and CIP system controller with start, stop and e-stop controls. Each mounted on individual pedistal style stainless steel stands. Product enters the cylinder through the lower port and flows upwards through cylinder simultaneously and media travels in a countercurrent flow through the narrow channel and rotating blades remove product from cylinder wall to ensure uniform heat transfer to the product and is ideal for food products as well as other applications.
Product Chamber: MAWP: 300 psi @ 300°FMedia Chamber: MAWP: 250 psi @ 300°, MDMT: -30°F @ 100 psi
OAD: 80" L x 72" W x 209" H
Complete, 25 to 100 gallon per minute, HTST pasteurizing system. Equipped with a Chester Jensen, Model M466F, (2) zone (233) plate heat exchanger with 1085 ft² heat exchange surface area; (43) first zone, (190) second zone. Stainless steel 50 gallon holding tube. Schlueter, 150 gallon, stainless steel tank with level detection. Chem Tek, 226 gallon, stainless steel tank with bottom side mounted prop agitation. Waukesha, Model 130, positive displacement pump powered by a 10 hp drive. (2) Tri-Clover centrifugal pumps powered by 5 Hp drives and (1) centrifugal pump powered by 10 Hp drive. Neptune Meter, valves and controls panel with an AB PLC, AVG EZ series touch panel, Anderson chart recorder and push button system power on with E-stop.
