APV / SPX Heat Transfer Heat Exch Tube in Tube CMTNTC1425154

  Back to All Equipment

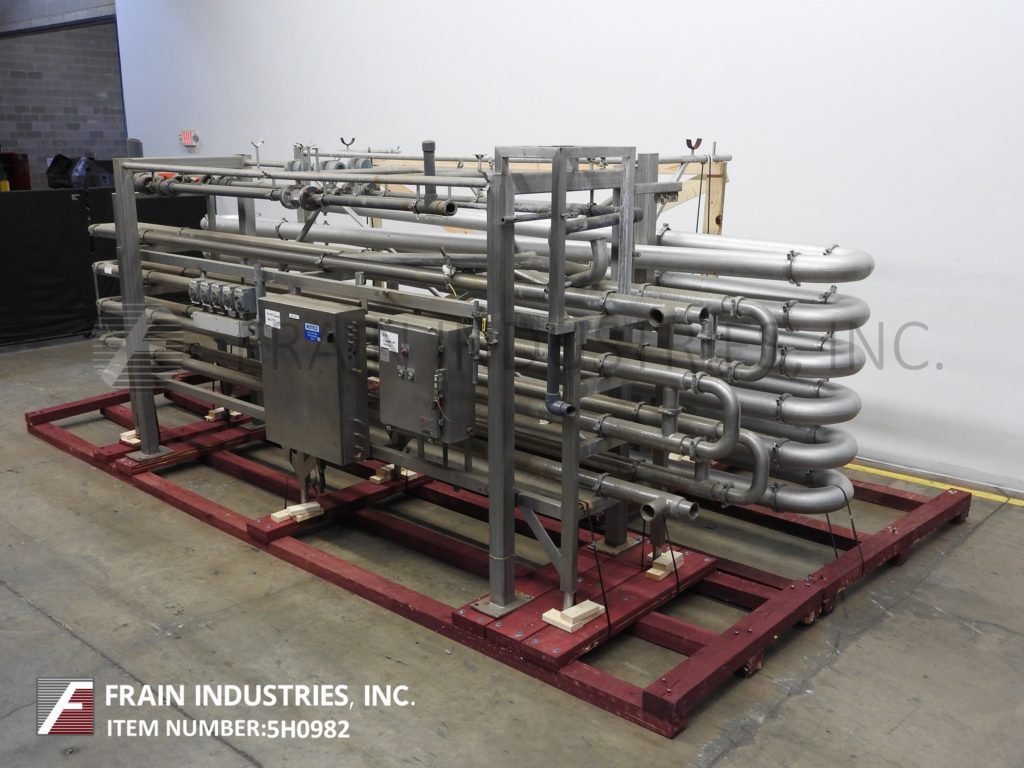

APV, Model CMTNT-C-14-25-154, tube in tube HTST system. Equipped with 2¾" OD x 2020" long (50 gallon) tube in tube heat exchanger with 3½"OD / 3"ID Tri-clamp style product and 3½"OD / 3" ID heating media connections. 5¾" OD x 3148" long (350 gallon) stainless steel holding tube. 10" OD x 24" long tube in shell heat exchange with (2) 3½"OD / 3"ID tri-clamp connections. APV, Model W 25/75, stainless steel centrifugal pump with a 4¾"OD / 3¾"ID suction infeed, 3½"OD / 3"ID Tri-clamp discharge and 5 Hp motor.

MAWP: 200 psi (Product Side)
MAWP: 150 psi (Media Side)

OAD: 270" L x 60" W x 185" H
