Johnson Controls Inc Heat Exch Plate LZW400

• Manufacturer: Johnson Controls Inc
• Model: LZW400
• Category: Heat Exchanger
• Subcategory: Plate

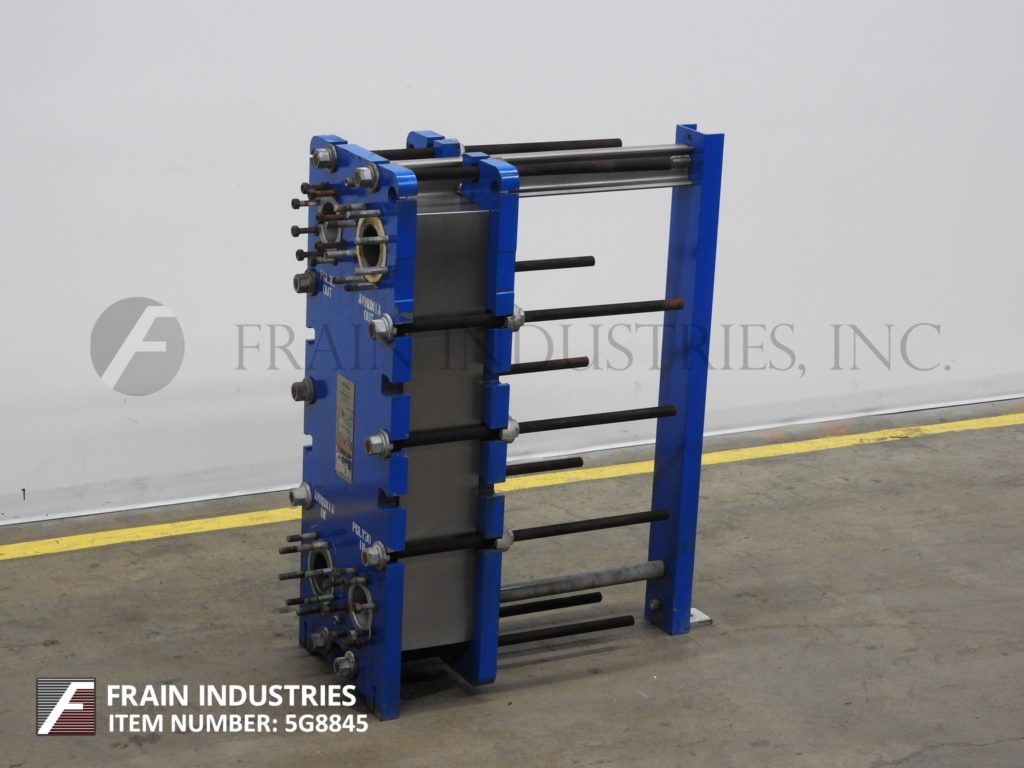

Frick, Model LZW-400, plate and frame heat exchanger. Approx 352 total ft² heat transfer area with a flow rate of 100 to 800 gallons per minute – depending on materials, application and machine configuration. Equipped with (65) plates 46" in Length; 17" in Width; in (1) zone. (4) 4" ID / flanged transfer ports.

Chamber 1:
MAWP: 150 PSI @ 150°F
MDMT: -20°F @ 150 PSI

Chamber 2:
MAWP: 250 PSI @ 150°F
MDMT: -20°F @ 250 PSI

Nat’l Brd: 13079

OAD: 46"L x 22"W x 57"H
