Scrape surface or swept surface heat exchanger designed for thicker products. Scrape surface heat exchangers have a rotating shape with attached scrapes inside the product barrel rotates to scrape product off the barrel walls to provide more consistent heat exchange. The barrel is surround by a jacket, which contains heat exchange media for either heating or cooling the product.
304 S/S, scrape surface heat exchanger with 7.8 sq. ft. of heat transfer area rated to 250psi @ 100F. Dual jacketed (jackets on both the inner and outer walls) design for cooling with direct expansion refrigerant, chilled water, or water / glycol mixture. Has 5/8" wide product annulus, 7" diameter x 40" high chamber, pump recirculated refrigeration system, Fischer actuator, insulated recirculation tubing, No. 4 sanitary finish on contact parts, automatic temperature controller, Moore valve service transducer, and variable speed rotor.
OAD: 44"L x 39"W x 95"H
Atmospheric continuous scrape surface heat exchanger is constructed of stainless steel with a sanitary design. Unit can concentrate 4000 pounds of caramel syrup per hour with a heat transfer area of approximately 150 sq ft. The tubular sanitary design of the evaporator allows for high working pressures in both jackets allowing for more production in less time. Widely used for syrups, caramel, cereal coatings, candies, salad dressings and sauces. Jacket pressure rating: 120 psi. National Board: 138989
OAD: 84" (L) x 60" (W) x 120" (H)
Alfa Laval, Model Contherm 6×11, vertical, scrape surface heat exchanger system with (4) 80" long stainless steel tubes with amount of product per hour each tube – depending on materials and application. All stainless steel contact parts. Equipped with 10½ ft² of heat transfer area each heating tube, top mounted 10 HP motor drives and 3½"OD / 3" ID product inlet and outlet ports each cylinder.
Product Chamber: MAWP: 300 psi @ 300°F MDMT: -30°F @ 300 psi
Media Chamber: MAWP: 250 psi @ 300°F MDMT: -30°F @ 250 psi
Nat’l Brd: 285 / 286 / 287 / 288
OAD: 120"L x 40"W x 240"H
SPX, Cherry Burrell, Waukesha, Model 6 x 72, 316 stainless steel contact parts, horizontal, scrape surface heat exchanger with pounds of product per hour – depending on materials and application. Equipped with 6" OD x 72" long stainless steel product chamber with (9.0 ft²) of heat transfer area and is capable of heating and cooling products with viscosities in 1,000,000 centipoises range. (1) 3-1/2" OD front, (2) 3-3/4" OD media and (1) 3" OD jacket ports, with 10 Hp motor drive. Mounted on heavy duty (4) leg base frame. CIP able.
Shell: MAWP: 600 psi @ 400°F MDMT: -20°F @ 600 psiJacket: MAWP: 250 psi @ 400°F MDMT: -20°F @ 250 psi
OAD: 120" L x 24" W x 54" H
Alfa Laval, Model Contherm 6 x 3, stainless steel column mounted scrape surface heat exchanger with pounds of product per hour – depending on materials and application. Equipped with vertical mounting post, hydraulic tube lift, 6" diameter x 28" long stainless steel product chamber (3 ft²) of heat transfer area, stainless steel scraper blades powered by a 7½ hp drive, (2) 2½" OD / 2"ID tri-clamp style sanitary product connections and (2) 2" NPT media connections.
Nat’l Brd: 1460
Product Chamber: MAWP: 300 psi @ 338°F MDMT: -30°F @ 300 psiMedia Chamber: MAWP: 250 psi @ 338°F MDMT: -30°F @ 250 psi
OAD: 40"L x 20"W x 140"H
Alfa Laval, Model 6 x 9 Contherm, Vertical, (3) concentered, scrape surface heat exchanger system has (3) 72" x 9" stainless steel tubes, with amount of product per hour each tube – depending on materials and application. Equipped with 9 ft² of heat transfer area each tube, working temperature range of -30 to +300 Deg F, with top mounted motor drives and 2-1/2"OD / 1-3/4" ID product inlet and outlet ports each cylinder. Main top mounted control panel with individual controllers for each tube has motor, speed and temperature start, stop controls with readout and CIP system controller with start, stop and e-stop controls. Each mounted on individual pedistal style stainless steel stands. Product enters the cylinder through the lower port and flows upwards through cylinder simultaneously and media travels in a countercurrent flow through the narrow channel and rotating blades remove product from cylinder wall to ensure uniform heat transfer to the product and is ideal for food products as well as other applications.
Product Chamber: MAWP: 300 psi @ 300°FMedia Chamber: MAWP: 250 psi @ 300°, MDMT: -30°F @ 100 psi
OAD: 80" L x 72" W x 209" H
Votator, A and B unit Shortening system components.Upper unit: Ammonia jacketed, 6 x 72 Votator 2 with a Chrome Nickel tube, 4.5" shaft with rotary joint, Celcon blades, una/Neoprene Elastomers, Carbon vs Chrome Oxide Seals, and a 20Hp 350RPM gear motor. Equipped with stainless steel frame, (1) 12" diameter x 70" long product chamber powered by a 20 Hp drive with (1) 2½" NPT and (1) 1½" NPT media ports and (1) 2½"OD / 2"ID I-line and (1) 2"OD / 1½"ID I-line jacket ports.
Product Chamber: MAWP: 600 psi @ 400°F MDMT: -20°F @ 600 psiMedia Chamber: MAWP: 250 psi @ 400°F MDMT: -20°F @ 250 psi
Lower unit:Pin Mill 13" x 45.75" jacketed with 7.5hp, 127 rpm gearmotor. (1) 14" diameter x 45" long stainless steel frame powered by a 7½ Hp drive with (2) 2½"OD / 2"ID I-line product ports. gearmotor
Product Chamber: MAWP: 600 psi @ 100°F MDMT: -20°F @ 600 psi
OAD: 120"L x 28"W x 63"H

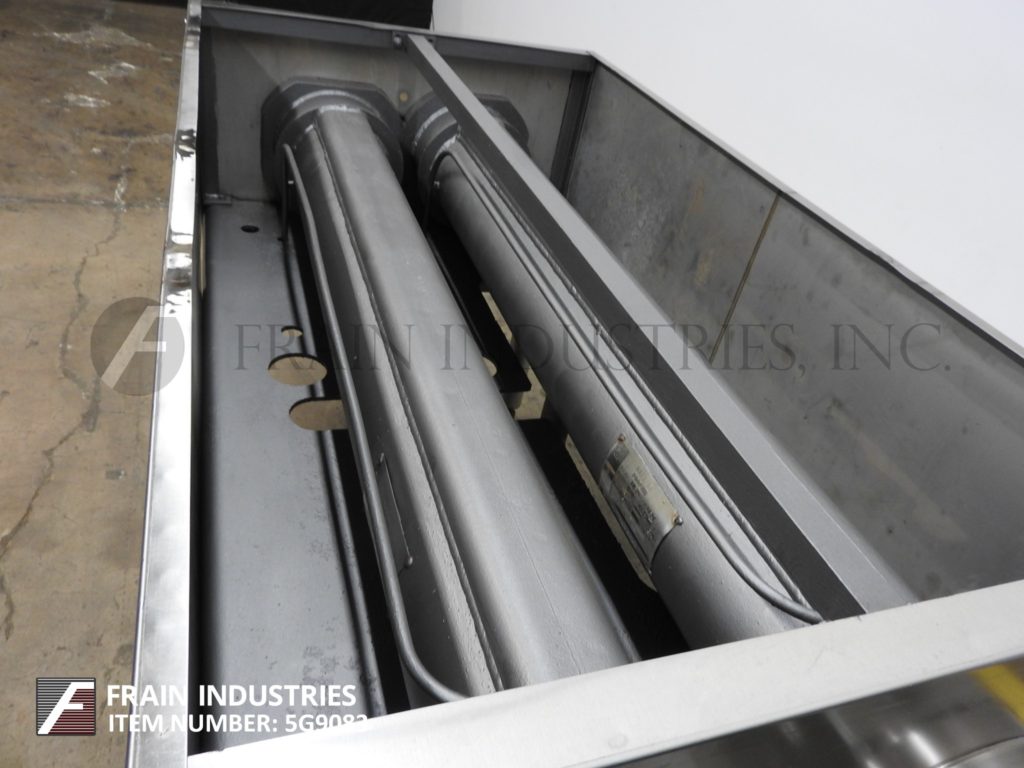

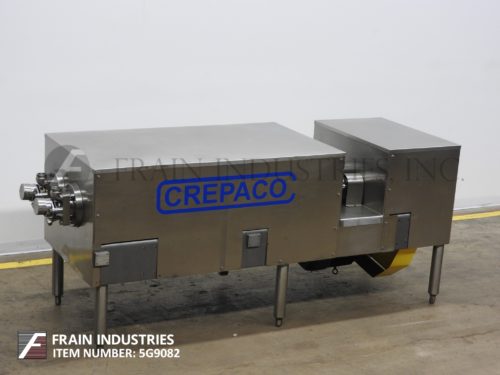

Crepaco, Model HD, stainless steel, continuous, double cylinder, scrape surface heat exchanger. Rated from 100 to 5,000 gallons of product per hour – depending on materials, application and machine configuration. Each cylinder is steam jacketed and rated to MAWP 150 Psi @ 350° F with 70" long x 6" ID product cylinder each,with (4) scraper blades, 9 ft² of heat transfer area, 2½"OD / 2"ID threaded product connections and 1" NPT media connections Both Cylinders powered by a common 15 Hp motor drive. Mounted on (6) leg heavy duty frame.
Tube S/N # 6250, 6252
OAD: 112" L x 38" W x 46" H

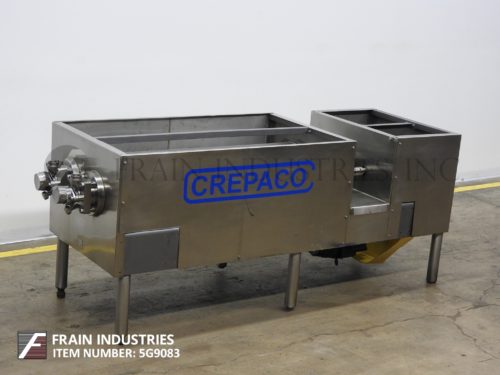

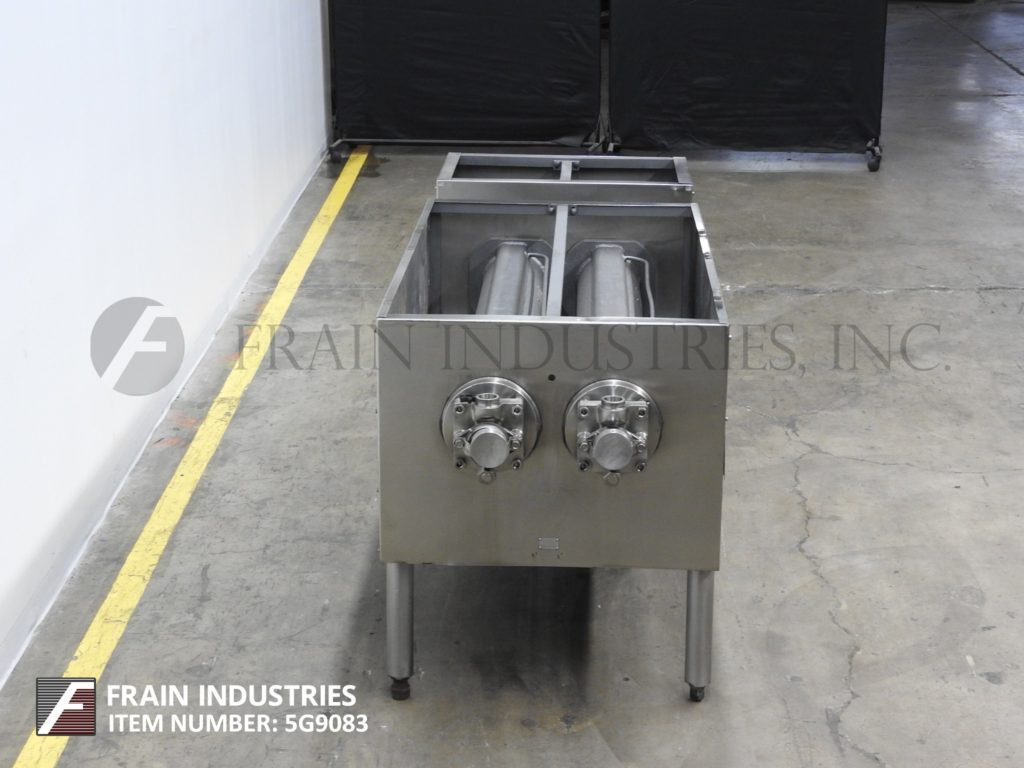

Crepaco, Model HD, stainless steel, continuous, double cylinder, scrape surface heat exchanger. Rated from 100 to 5,000 gallons of product per hour – depending on materials, application and machine configuration. Each cylinder is jacketed and rated to MAWP 150 Psi @ 350° F with 70" long x 6" ID product cylinder each,with (4) scraper blades, 9 ft² of heat transfer area, 2½"OD / 2"ID threaded product connections and 1" NPT media connections Both Cylinders powered by a common 15 Hp motor drive. Mounted on (6) leg heavy duty frame.
Nat’l Brd: 2775 / 2776Tube S/N # 5676, 5679
Alfa Laval, Model Contherm 6 x 9, stainless steel vertical, scrape surface heat exchanger with lbs of product per hour – depending on materials and application. Equipped with vertical mounting post, hydraulic tube lift, 6" diameter x 72" long stainless steel product chamber (9 ft²) of heat transfer area, stainless steel scraper blades powered by a 7½ hp drive, (2) 2½" OD / 2"ID tri-clamp style sanitary product connections and (2) 2" NPT media connections.
Product Chamber: MAWP: 300 psi @ 300°FMedia Chamber: MAWP: 250 psi @ 300°F MDMT: -30°F @ 100 psi
OAD: 42"L x 16"W x 138"H
