Double Motion Machines

Lee Kettle Double Motion 100 NEM

• Manufacturer: Lee
• Model Number: 100 NEM
• Frain Number: R29290

Lee, Model 100 NEM, 100 gallon capacity, 316 stainless steel, double motion (scrape & prop) kettle. Vessel dimensions: 36" diameter x 30" deep with a 14" straight wall. Equipped with lift off covers with safety shut-off, bridge mounted 3 HP scrape and 1 HP prop agitator, flush mounted sensor and 2½" OD / 2" ID Tri-Clamp style bottom discharge with ball valve and 15" ground clearance.

Jacket Ports:
(4) 1" NPT

Nat’l Brd: 11162
MAWP: 90 PSI @ 332°F
MDMT: -20°F @ 90 PSI

OAD: 48"L x 50"W x 91"H (Kettle)

Lee Kettle Double Motion 500D9MT

• Manufacturer: Lee
• Model Number: 500D9MT
• Frain Number: R28840

Lee Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle. Vessel dimensions: 62" ID x 51" in Depth. Equipped with variable speed bridge mounted scrape surface and counter rotation tilt out agitation, dual flip top covers, 1/2 Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 1-3/4" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Dish bottom with 3-1/2" OD / 3" ID sanitary center bottom discharge has flush-bottom ball valve with 19" floor clearance. Mounted on (3) stainless steel legs. Pounds / gallons of product per hour dependant on materials and application.

OAD: 108" L x 75" W x 90" H

Lee Kettle Double Motion 300LD9MT

• Manufacturer: Lee
• Model Number: 300LD9MT
• Frain Number: 5H3385

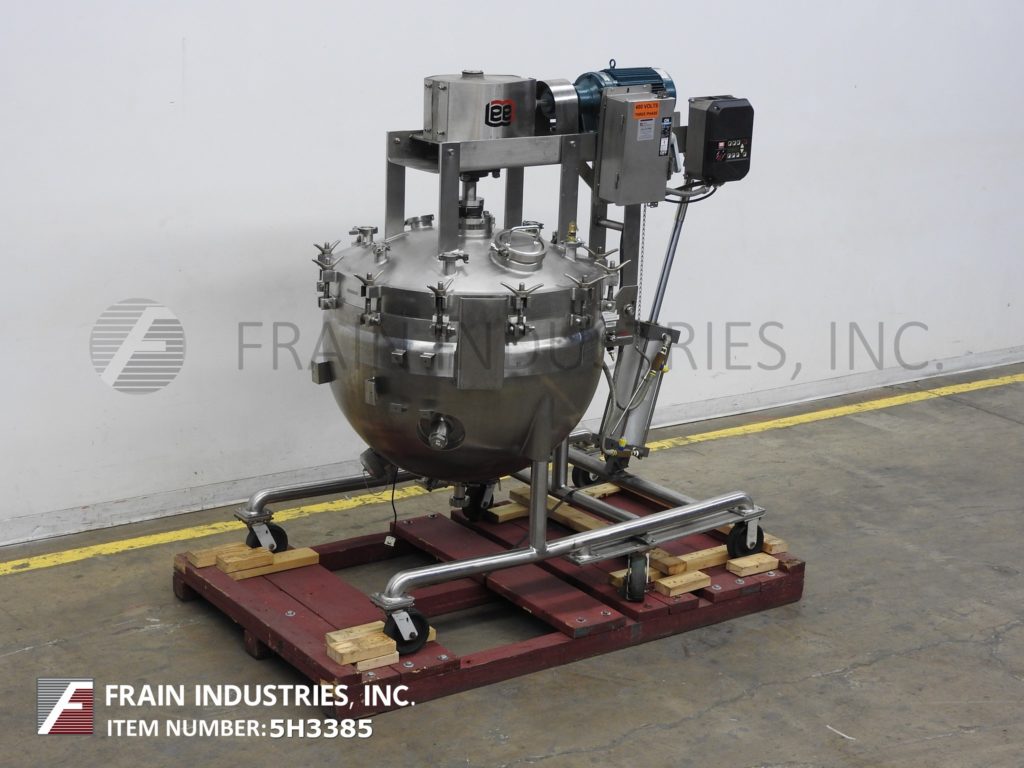

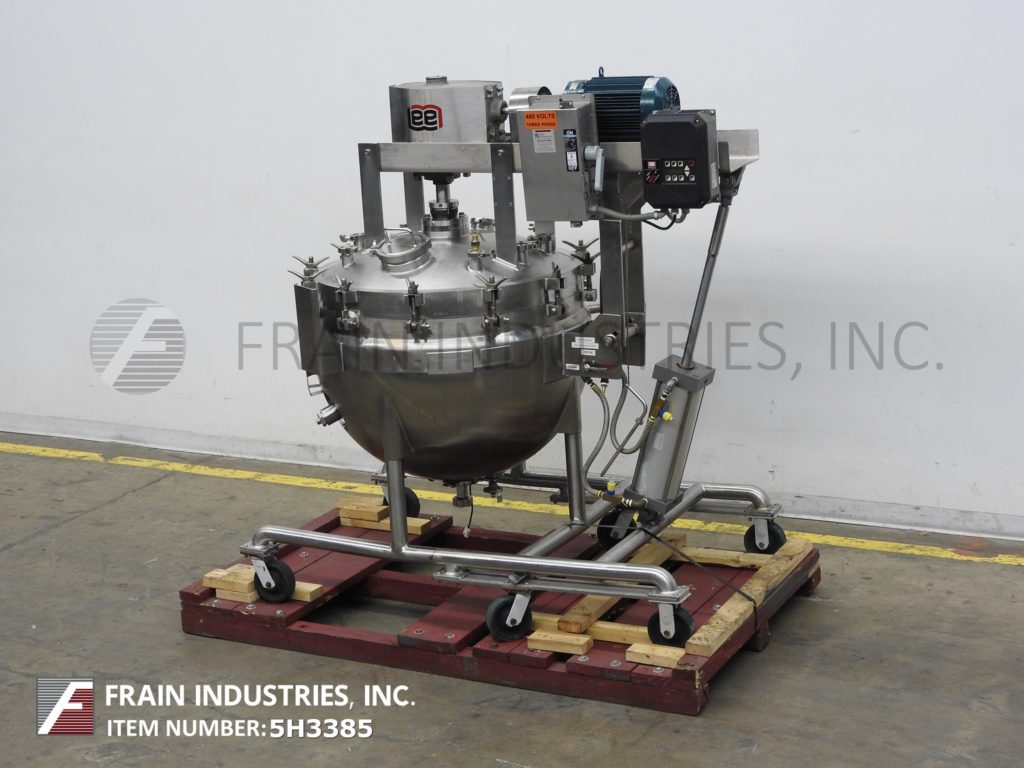

Lee, Model 300LD9MT, 300 Liter, 75 gallon, stainless steel, dual motion, scrape surface tilt agitation, internal vacuum rated and 1/2 steam jacketed kettle. Vessel dimensions of: 32" in Diameter; 34" in Depth. Equipped with heavy duty, bolt down cover, top mounted, tilt scrape surface agitation with 5 Hp motor drive and A/C inverter has touchpad controls with readout and main on / off switch. Dish bottom with 2"OD / 1½"ID Tri-Clamp center bottom discharge has 14" floor clearence and bottom flush mount RTD temperature sensor. Mounted on stainless steel base frame with casters.
UL Rated

Jacket Access:
(2) 1" NPT

Top Access:
(7) 2"OD / 1½"ID Tri-Clamp
(1) 3½"OD / 3"ID Tri-Clamp
(1) 7" OD Sight Port

Nat’l Brd: 5605
MAWP: 100 PSI @ 338° F (jacket)
MDMT: -20°F @ 100 PSI (jacket)

MAWP: 60/FV PSI @ 308° F (vessel)
MDMT: -20°F @ 60/FV PSI (vessel)

OAD: 69" L x 48" W x 72" H

Lee Kettle Double Motion 500D9MT

• Manufacturer: Lee
• Model Number: 500D9MT
• Frain Number: R28290

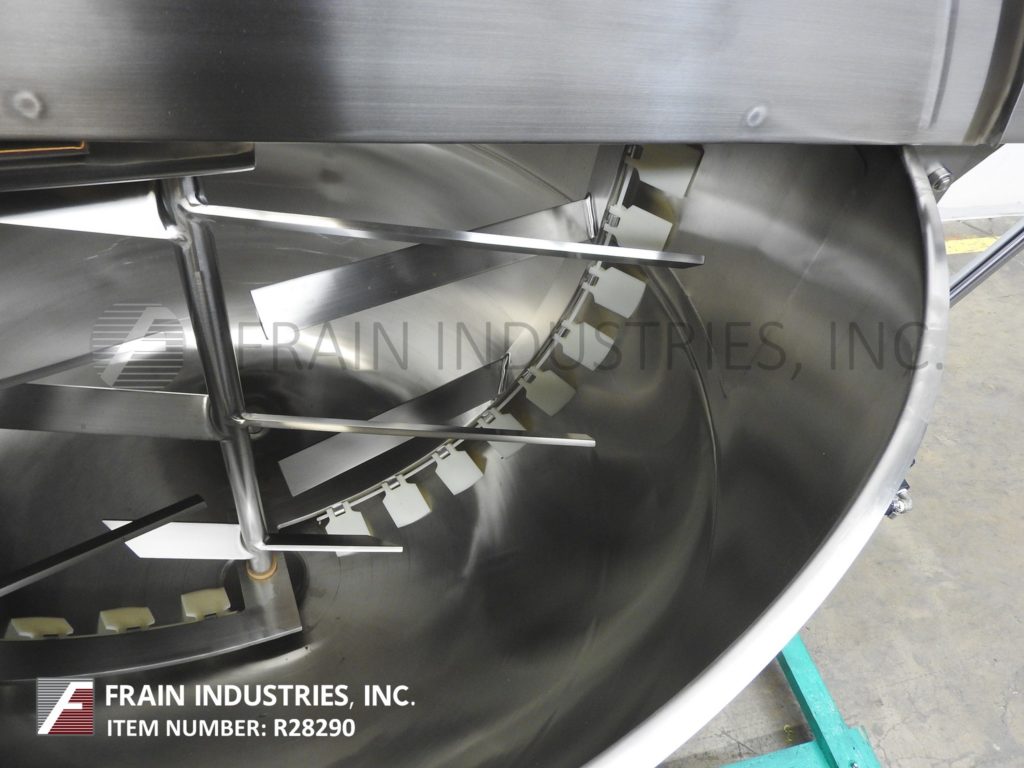

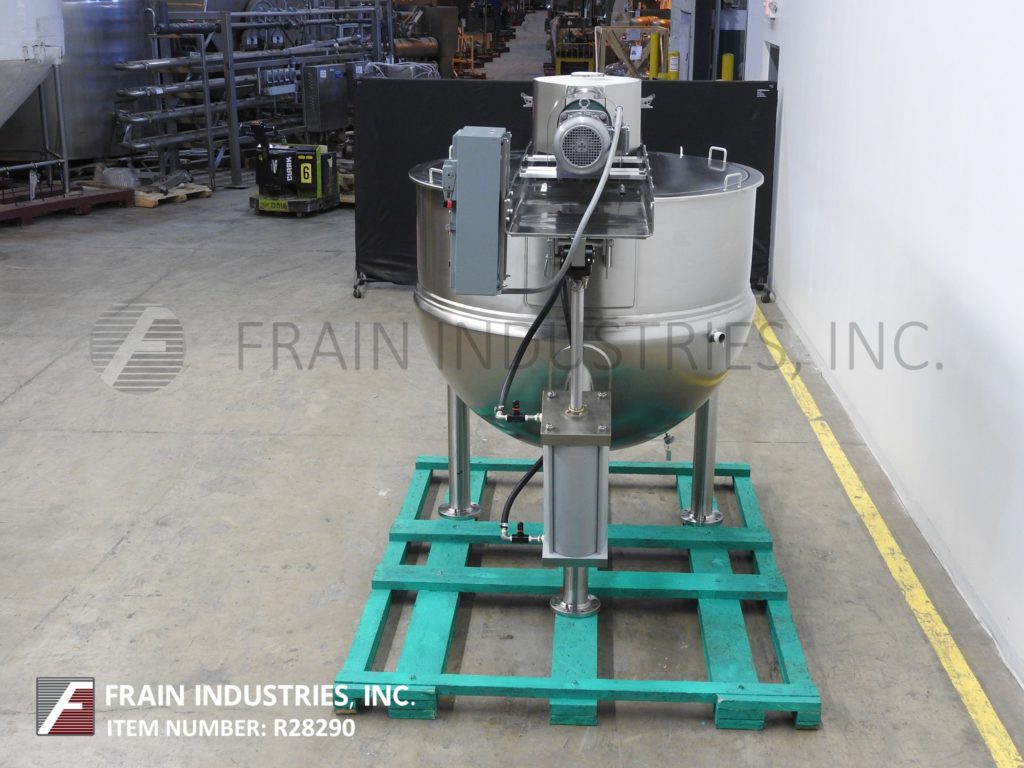

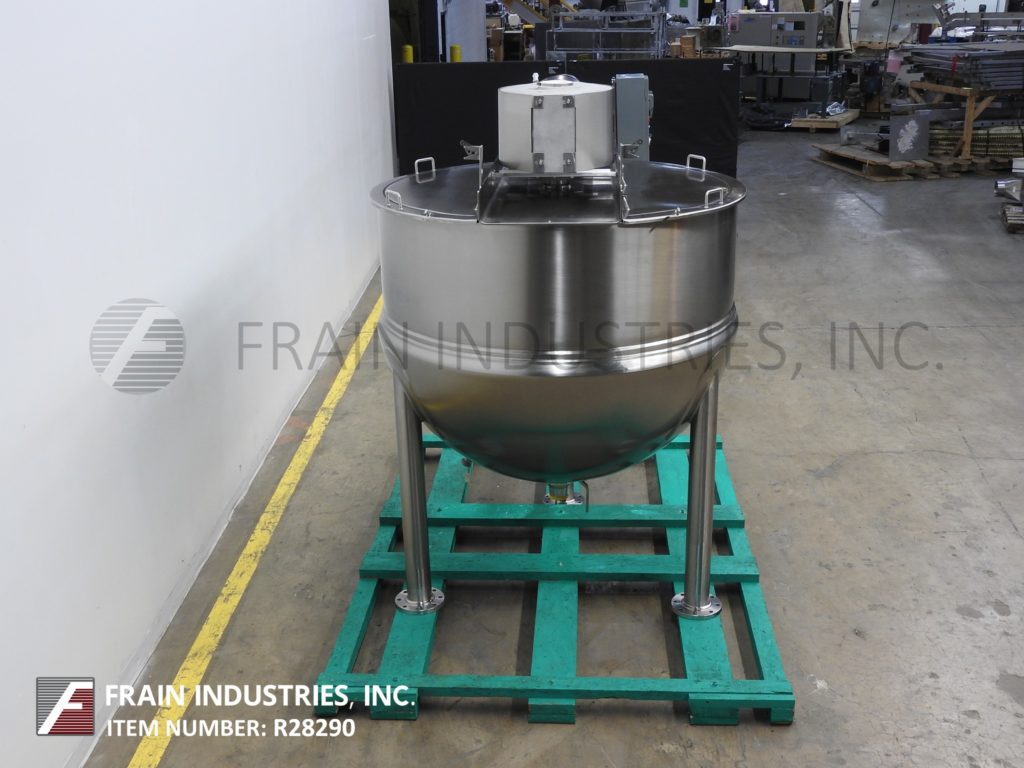

Lee Model 500D9MT, 500 gallon, 316 stainless steel interior, 304 stainless steel external, double motion, scrape surface, jacketed kettle with pounds of product per hour – depending on materials and application. Vessel dimensions: 62" ID x 51" in Depth. Equipped with bridge mounted scrape surface & conter rotation tilt out agitation, dual flip top covers, 2" OD sanitary center bottom discharge with flush-bottom ball valve. Jacket, with MAWP of 90 psi @ 322 Deg F and MDMT of -20 Deg F @ 90 psi with (2) 2" OD 1-1/2" ID side and bottom threaded jacket in / outlet ports. Mounted on (3) stainless steel legs

OAD: 96" L x 68" W x 93" H

Lee Kettle Double Motion 350GAL

• Manufacturer: Lee
• Model Number: 350GAL
• Frain Number: 5H2440

Lee, 350 gallon capacity, stainless steel, jacketed double motion kettle. Vessel dimensions: 54" diameter x 48" deep with a 20" straight wall. Equipped with lift up covers , 2 Hp bridge mounted scrape agitator with variable speed gearbox and 2½" OD / 2" ID seated bevel style bottom discharge valve with 90° elbow and 13½" ground clearance.

Jacket Ports:
(1) 2" NPT
(1) 1½" NPT
(2) 1" NPT

MAWP: 40 PSI @ 288°F

OAD: 84"L x 57"W x 96"H

Lee Kettle Double Motion 300-D9MT

• Manufacturer: Lee
• Model Number: 300-D9MT
• Frain Number: R28713

Lee Model 300-D9MT, 300 gallon, 316 stainless steel interior, 304 stainless steel exterior, 1/2 jacketed kettle with gallons of product per hour – depending on materials and application. Equipped with 44" OD x 44" Deep mixing bowl, dual flip top covers, bridge mounted scrape surface pnuematic tilt out agitation, with (1) 4-5/8" OD and (2) 2" OD sanitary top ports. 1/2 jacket with MAWP of 90 psi @ 332 Deg F and MDMT -20 Deg F @ 90 psi with (2) 2-1/2" ID threaded jacket inlet / outlet ports. Dish bottom has 5" OD center bottom discharge with bottom ball valve and 21" ground clearance. Mounted on (3) stainless steel tubular legs. National Board # 8633 and UL Rated.

OAD: 80" L x 58" W x 83" H

Groen Kettle Double Motion 40 GAL

• Manufacturer: Groen
• Model Number: 40 GAL
• Frain Number: R28340

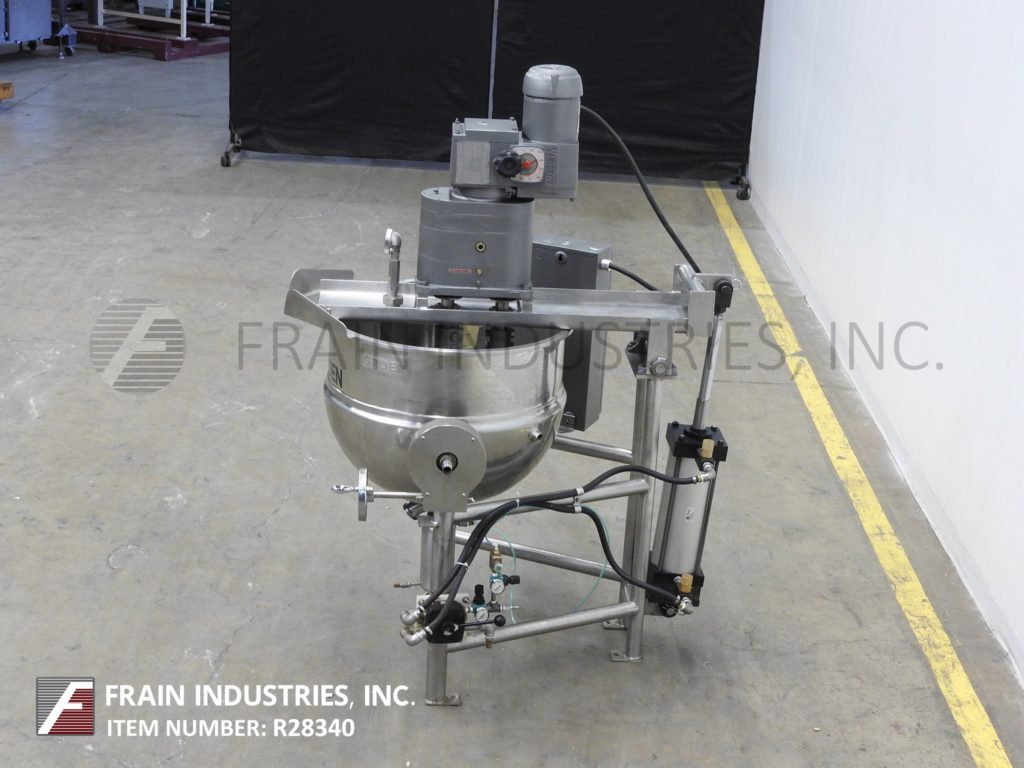

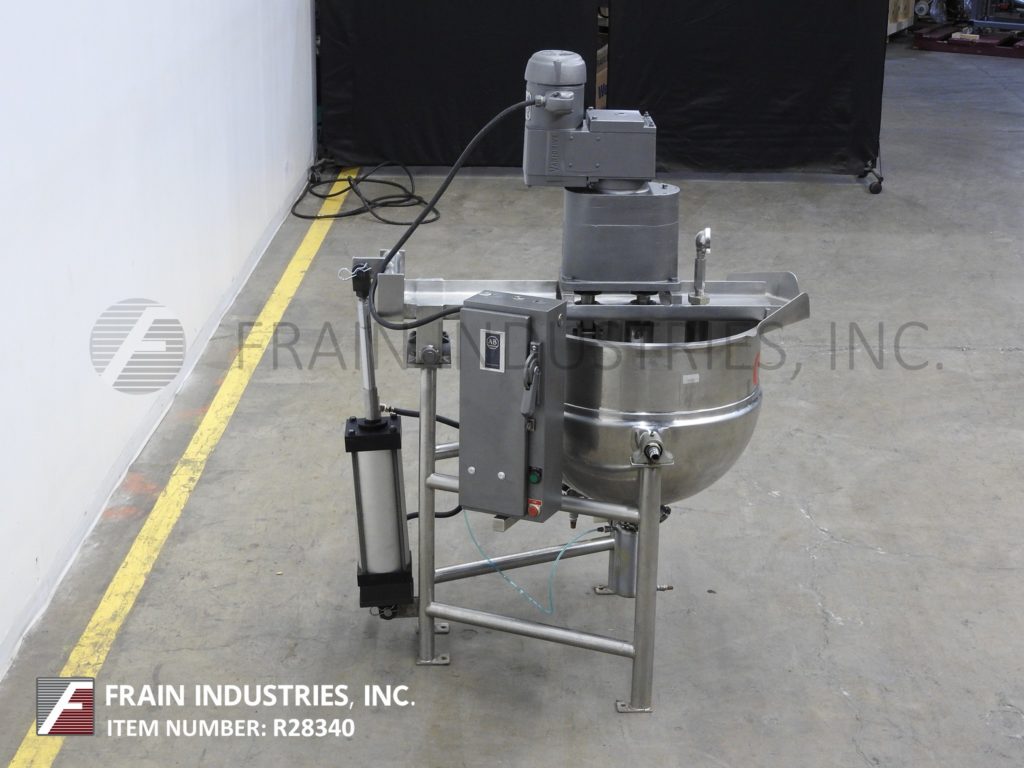

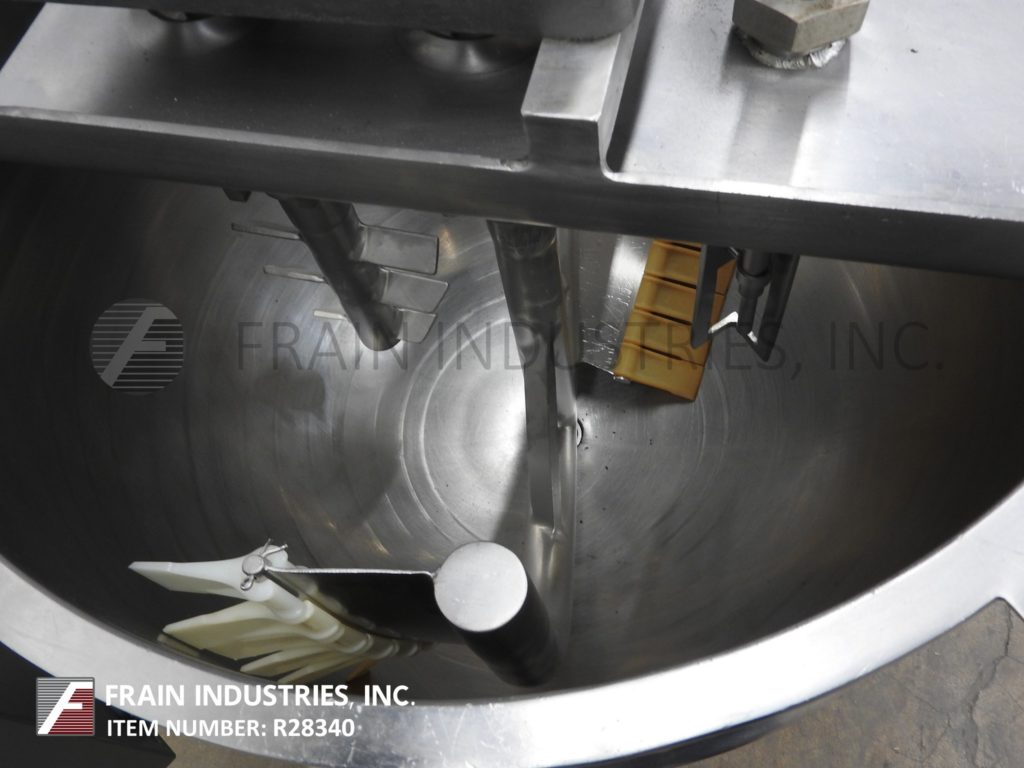

Groen, 40 gallon, 316 stainless steel jacketed kettle. Vessel Dimensions: 28" diameter x 21" deep with a 10" straight wall. Equipped with a tilt out bridge mounted, variable speed scrape agitator and Christmas tree agitator powered by a single 1½ Hp drive with a variable speed gear box, temperature probe and 2½" OD / 2"ID tri-clamp style discharge with pneumatic flush mount valve and 12" ground clearance. Mounted on (3) tubular leg frame with manual kettle tilting discharge.

Jacket Fittings:
(3) ¾" NPT
(1) ½" NPT

MAWP: 125 PSI @ 353° F
Nat’l Brd: 45287

OAD: 56"L x 43"W x 72"H

Lee Kettle Double Motion 3D9MT

• Manufacturer: Lee
• Model Number: 3D9MT
• Frain Number: R26104

Lee Model 3D9MT, 3 gallon, 316 stainless steel, jacketed, dual motion, scrape surface mixing kettle. Vessel dimensions: 9-/12" in Diameter; 10" in Depth. Equipped with bridge mounted, tilt out dual motion scrape surface agitation, 1/2 jacketed rated at MAWP of 90 psi @ 332°F. (2) 1" OD jacket inlet/ outlets. 1-1/2" OD center bottom discharge with 12" floor clearance and mounted on (3) stainless steel legs on base platform with water and steam in / out insulated piping with pressure gauges. National Board # 4475

OAD: 48" L x 38" W x 60" H

Lee Kettle Double Motion 20D9MS

• Manufacturer: Lee
• Model Number: 20D9MS
• Frain Number: R25771

Lee, model 20D9MS, 20 gallon, jacketed 304 stainless steel kettle. Bowl dimmensions: 21" diameter x 18"deep. Pressure rating: 50 psi @ 300° F. Equipped with bridge mounted variable speed double motion scrape agitation, Lexan covers, temperature probe, 1-1/2" jacket inlet / outlets, and a 2" OD Tri-Clover center bottom discharge with 12" ground clearance. Mounted on a stainless steel platform with casters.

OAD: 52" L x 28" W x 58" H

Lee Kettle Double Motion 10D9MT

• Manufacturer: Lee
• Model Number: 10D9MT
• Frain Number: R24650

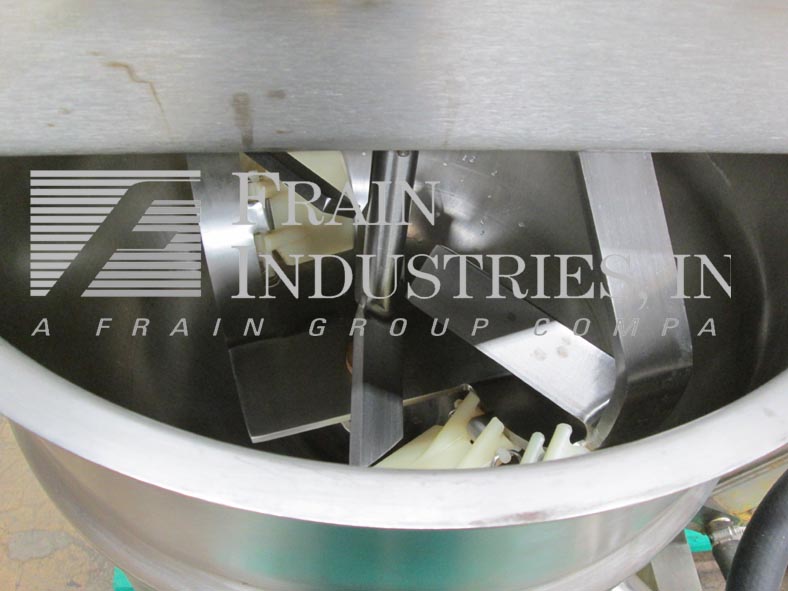

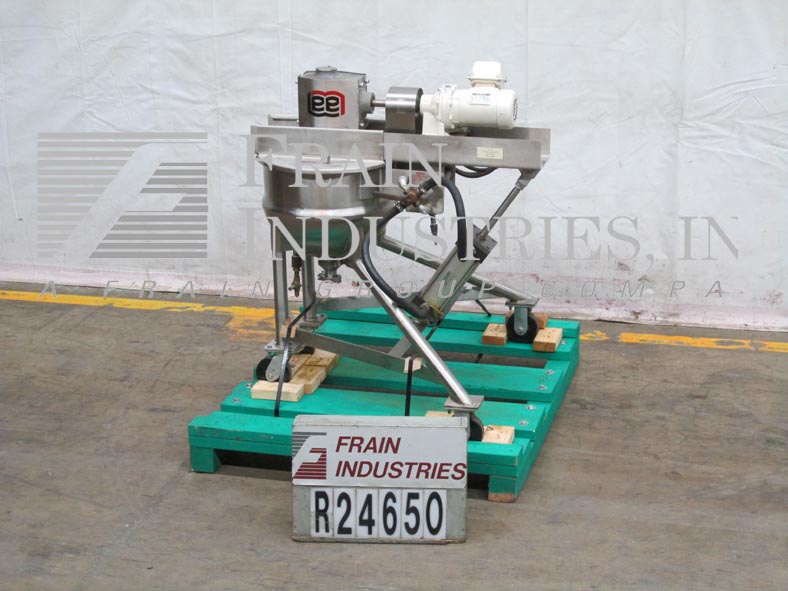

10 gallon, 316 stainless steel, jacketed, dual motion, scrape surface kettle. Vessel dimensions: 18" in Diameter; 14" in Depth; 7" straight wall. MAWP: 90 psi @ 322°F. Equipped with a scrape agitator, removable top covers, 1" OD jacket inlet, 1" OD jacket outlet , and a 2" OD center bottom discharge with 15" of floor clearance. Mounted on a steel frame with locking casters.

OAD: 40" L x 46" W x 44" H
