Sleever Machines

American Film & Machinery Labeler Sleever LX350SS

• Manufacturer: American Film & Machinery
• Model Number: LX350SS
• Frain Number: R34051

American Film & Machinery, Model LX-350SS and WSN-300, Automatic, stainless steel, tamper evident shrink neck bander or sleeve label applicator with stainless steel steam shrink tunnel. Rated from 50 to 350 container per minute – depending on materials, application and machine configuration. Layflat: 50mm to 240mm. Sleeve height: 40mm to 300mm. Film thickness: 0.035mm to 0.07mm. Equipped with 32" worm screw bottle indexing, dual roll splice station, forming tube, registration and knife film cut off. Control panel with AB PLC and touch screen HMI.
Model WSN-300 stainless steel, 4 zone and 4 tier steam shrink tunnel. Equipped with 4" wide x 11½" high total aperature x 118" long chamber with multiple steam zones and adjustable manifold with direct steam heat.

OAD: 64" L x 55" W x 130" H Sleever
105" L x 30" W x 80" H Splice Station
118" L x 36" W x 72" H Shrink Tunnel
480" L x 20" W x 32" H Conveyor

Axon Labeler Sleever EZ130HS

• Manufacturer: Axon
• Model Number: EZ130HS
• Frain Number: R35782

Axon, Model EZ-130, Automatic, self contained ThermoFlow tamper evident shrink neck bander or sleeve label applicator with shrink tunnel rated from 30 to 150 containers per minute – depending on materials, application and machine configuration. Layflat: 18mm to 130mm. Film thickness: 40 to 70 microns (1.5 to 3 mil). Maximum container size 6" OD x 12" tall. Equipped with 12′ long container conveyor with photo eyes for machine activation, low roll sensor, knife film cut off, stepper drive film feed system, vertical perf and tamp, self contained UL certified 30kw 10psi boiler with condensate collection and water consuption of 11gallons per hour. Film specs: up to 16" OD roll. Touch pad controller with LED display. Mounted on height adjustable stainless steel frame.

Shrink tunnel has 13" high x 5½" wide aperature with steam generator. System mounted above 6" wide x 216" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.

OAD: 216" L x 65" W x 84" H

Axon Labeler Sleever EZ130

• Manufacturer: Axon
• Model Number: EZ130
• Frain Number: R35220

Axon, Model EZ-130, Automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel rated from 30 to 150 containers per minute – depending on materials, application and machine configuration. shrink bander sleeve label applicator equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 18mm to 130mm. Container diameter: 10mm to 79mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core. Control panel with touch screen HMI controller with safety door gaurding and e-stop. Mounted on heavy duty frame.

Shrink tunnel has 12" high x 7½" wide aperature x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.

OAD: 178" L x 55" W x 83" H

Sleeve Seal Labeler Sleever SSL100

• Manufacturer: Sleeve Seal
• Model Number: SSL100
• Frain Number: R36000

Sleeve Seal, Model SSL-100, Automatic sleever labeler. Rated from 10 to 100 sleeves per minute – depending on materials, application and machine configuration. Bottle size range: 25mm to 125mm in diameter. Label length: 25mm to 250mm in height. Equipped with 20" OD label reel and touch screen HMI.

OAD: 76"L x 42"W x 80"H

Axon Labeler Sleever EZ200

• Manufacturer: Axon
• Model Number: EZ200
• Frain Number: R34910

Axon, Model EZ-200 automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel rated from 30 to 120 containers per minute – depending on materials, application and machine configuration. Neck bander equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 56mm to 200mm. Container diameter: 35mm to 124mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core Control panel with touch screen HMI controller with safety door gaurding and e-stop. Mounted on heavy duty frame.

Shrink tunnel has 12" high x 7½" wide aperature x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel tabel top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.

OAD: 178"L x 55"W x 83"H

Axon Labeler Sleever EZ130

• Manufacturer: Axon
• Model Number: EZ130
• Frain Number: R34040

Axon, Model EZ-130 automatic, tamper evident shrink neck bander or sleeve label applicator with Model EZ-48 shrink tunnel. Neck bander equipped with photo eyes for machine activation, film registration, stepper drive film feed system, tamp band pusher, guillotine style cutter with durable and dependable (2) blade cutting system. Layflat: 18mm to 130mm. Container diameter: 10mm to 79mm. Film thickness 40 to 70 microns. Film specs: up to 15" OD roll on 4-7/8" OD core Control panel with touch screen HMI controller with safety door guarding and e-stop. Mounted on heavy duty frame.

Shrink tunnel has 12" high x 7½" wide aperture x 48" long chamber, digital heat controls and pneumatic tunnel lift. System mounted above 6" wide x 176" long stainless steel table top belt conveyor with spacing wheel and variable speed control. Mounted on (4) leg frame.

Speed dependent on materials, application and machine configuration.

OAD: 178"L x 55"W x 83"H

Styrotech Labeler Sleever 1550

• Manufacturer: Styrotech
• Model Number: 1550
• Frain Number: R33240

Styrotech, Model ST1550, automatic, stretch sleever. Rated from 10 to 30 containers per minute – depending on materials and application. Capable of handling a wide range of container types, shapes and sizes including large jugs and bottles from 8oz to 2½ gallons and has a container size range of 2¼" to 9½" OD x up to 6½" wide x 13½" high and layflat film size from 3" to 15" and label sizes up to 9¼" in width all with proper change parts. Film type and specs: Polyethlene, 2.0 to 3.0 ml with 10% stretch and no container / no label sensor. Control panel has A/B controller with touch screen HMI. Mounted on heavy duty frame with interlocking safety guarding and 4½" wide x 120" long delrin conveyor.

OAD: 120"L x 63"W x 78"H

Styrotech Labeler Sleever 2650 RTL

• Manufacturer: Styrotech
• Model Number: 2650 RTL
• Frain Number: R33430

Styrotech, Model ST2650, automatic, servo driven, stretch sleever, rated from 10 to 60 containers per minute – depending on materials and application. Capable of handling a wide range of container types, shapes and sizes including large jugs and bottles from 8oz to 2½ gallons and has a container size range of 2¼" to 9½" OD x up to 6½" wide x 13½" high and layflat film size from 3" to 15" and label sizes up to 9¼" in width all with proper change parts. Film type and specs: Polyethlene, 2.0 to 3.0 ml with 10% stretch and no container / no label sensor. Control panel has A/B controller with A/B panelview and A/B servos, push button controls for master start / stop, cycle start / stop and has control dial for run / jog settings. Mounted on heavy duty frame with interlocking safety guarding and 4½" wide x 120" long delrin conveyor.

OAD: 120"L x 63"W x 78"H

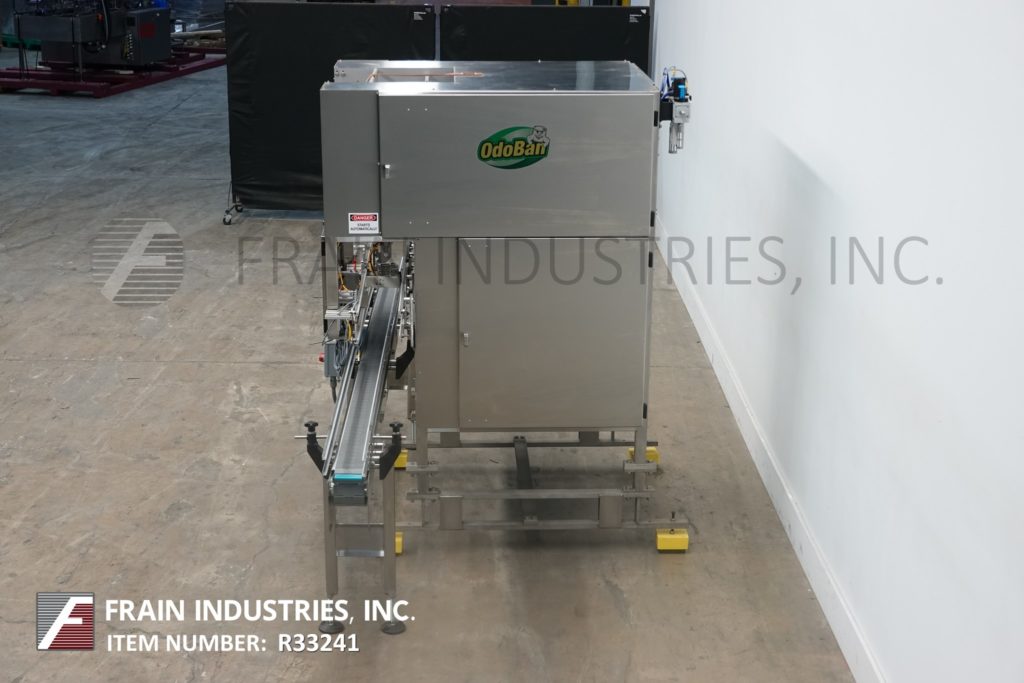

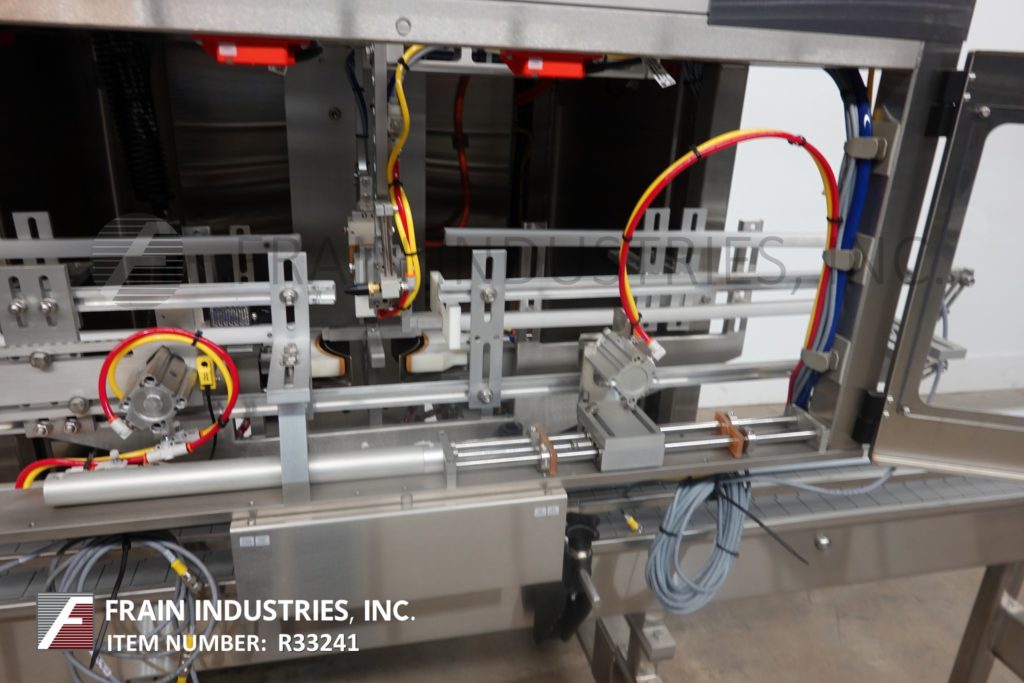

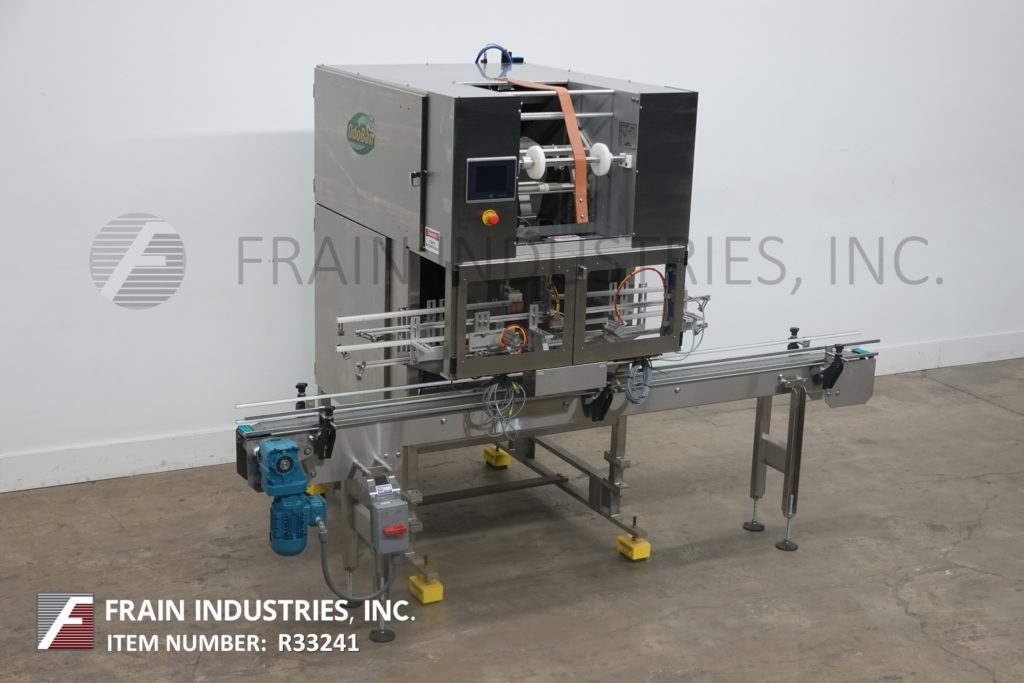

Styrotech Labeler Sleever 2650 LTR

• Manufacturer: Styrotech
• Model Number: 2650 LTR
• Frain Number: R33241

Styrotech, Model ST2650, automatic, servo driven, stretch sleever, Capable of handling a wide range of container types, shapes and sizes including large jugs and bottles from 8oz to 2½ gallons, Container size range: 2¼" to 9½" in Diameter; up to 6½" in Width; up to 13½" high and layflat film size from 3" to 15" and label sizes up to 9¼" in width all with proper change parts. Film type and specs: Polyethlene, 2.0 to 3.0 ml with 10% stretch and no container / no label sensor. Control panel has A/B controller with A/B panelview and A/B servos, push button controls for master start / stop, cycle start / stop and has control dial for run / jog settings. Mounted on heavy duty frame with interlocking safety guarding and 4½" wide x 120" long delrin conveyor. Speed dependent on materials, application and machine configuration.

OAD: 120"L x 63"W x 78"H
