Cherry Burrell Machines


Cherry Burrell Machines In Stock

Cherry Burrell Tank SS Single Wall 3600GAL

Cherry Burrell, 3600 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 84" diameter x 140" straight wall. Equipped with a dome top, dish bottom, 20" x 16" side manway with bolt down cover, prop agitation powered by a 2 hp drive, 9" wide fixed baffle, thermowell, pressure sensor, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting and 7½"OD / 5¾"ID I-Line style bottom discharge with butterfly valve and 28" ground clearance.

Top Access:
(1) 6½"OD / 5¾"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

OAD: 94"L x 88"W x 230"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall 3600GAL

Cherry Burrell, 3600 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 84" diameter x 140" straight wall. Equipped with a dome top, dish bottom, 20" x 16" side manway with bolt down cover, Paddle agitation powered by a 2 hp drive, 9" wide fixed baffle, thermowell, pressure sensor, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting and 7½"OD / 5¾"ID I-Line style bottom discharge with butterfly valve and 28" ground clearance.

Top Access:
(1) 6½"OD / 5¾"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

OAD: 94"L x 88"W x 230"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall 3600GAL

Cherry Burrell, 3600 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 84" diameter x 140" straight wall. Equipped with a dome top, dish bottom, 20" x 16" side manway with bolt down cover, Paddle agitation powered by a 2 hp drive, 9" wide fixed baffle, thermowell, pressure sensor, CIP spray ball supplied by a 2"OD / 1½"ID Tri-Clamp fitting and 7½"OD / 5¾"ID I-Line style bottom discharge with butterfly valve and 28" ground clearance.

Top Access:
(1) 6½"OD / 5¾"ID Tri-Clamp
(2) 3½"OD / 3"ID Tri-Clamp
(2) 2½"OD / 2"ID Tri-Clamp

OAD: 94"L x 88"W x 230"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall 6000GAL

Cherry Burrell, 6000 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 110" diameter x 144" straight wall. Equipped with dome top, dish bottom, 20" x 16" side manway with bolt down cover, Paddle agitation powered by 2 Hp drive, thermowell, pressure sensor, CIP spray ball supplied by 2" OD / 1½" ID Tri-Clamp fitting and 2½" OD / 2" ID Tri-clamp style bottom discharge with pneumatic ball valve with 28" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp

OAD: 120"L x 115"W x 230"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall 6000GAL

Cherry Burrell, 6000 Gallon, 304 stainless steel, single wall mixing tank. Vessel Dimensions: 110" diameter x 144" straight wall. Equipped with dome top, dish bottom, 20" x 16" side manway with bolt down cover, Paddle agitation powered by 2 Hp drive, thermowell, pressure sensor, CIP spray ball supplied by 2" OD / 1½" ID Tri-Clamp fitting and 2½" OD / 2" ID Tri-clamp style bottom discharge with pneumatic ball valve with 28" ground clearance.

Top Access:
(1) 3½"OD / 3"ID Tri-Clamp
(3) 2½"OD / 2"ID Tri-Clamp

OAD: 120"L x 115"W x 230"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall 1500 GALLON

  • Manufacturer: Cherry Burrell
  • Model Number: 1500 GALLON
  • Frain Number: 5F6684

1500 Gallon, 304 stainless steel, single wall mixing tank. Dimensions: 86" ID; 60" Straight wall. Dome top with 24" ID man way and flip top cover, bridge mounted side and bottom sweep surface agitator with stationary baffle, (4) 2-1/2" OD, 1-3/4" ID top sanitary ports. Cone bottom with 3-1/2" OD, 2-3/4" ID sanitary center bottom discharge with 22" floor clearance and mounted on (6) stainless steel legs.

OAD: 92" L x 92" W x 154" H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall CH

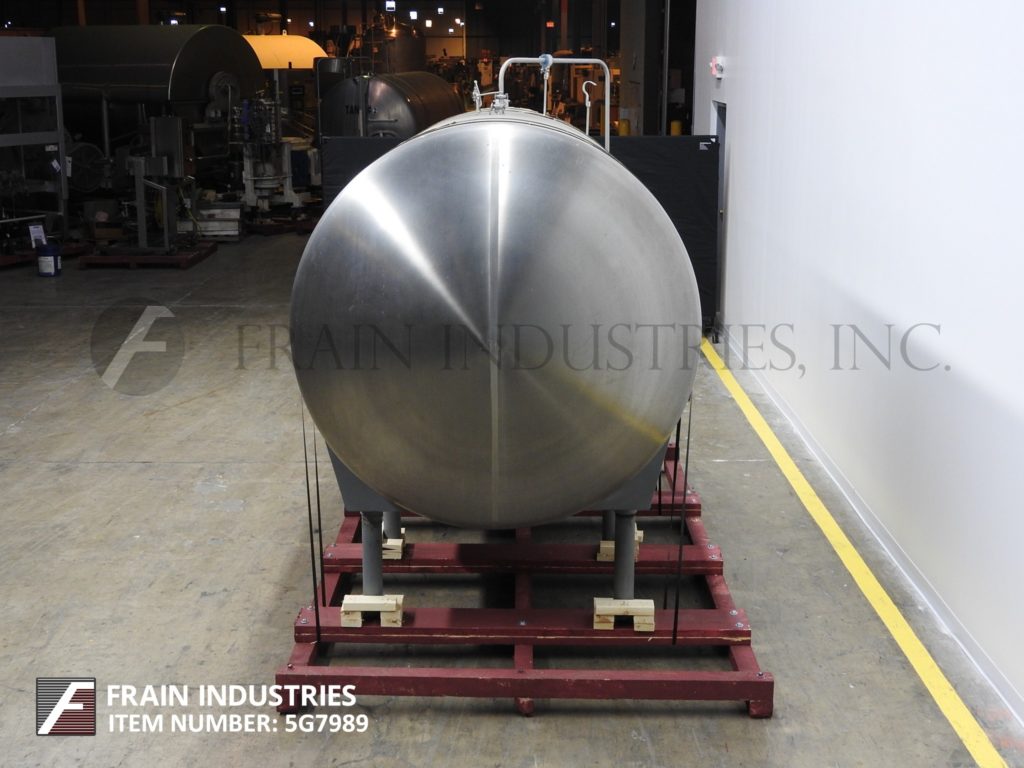

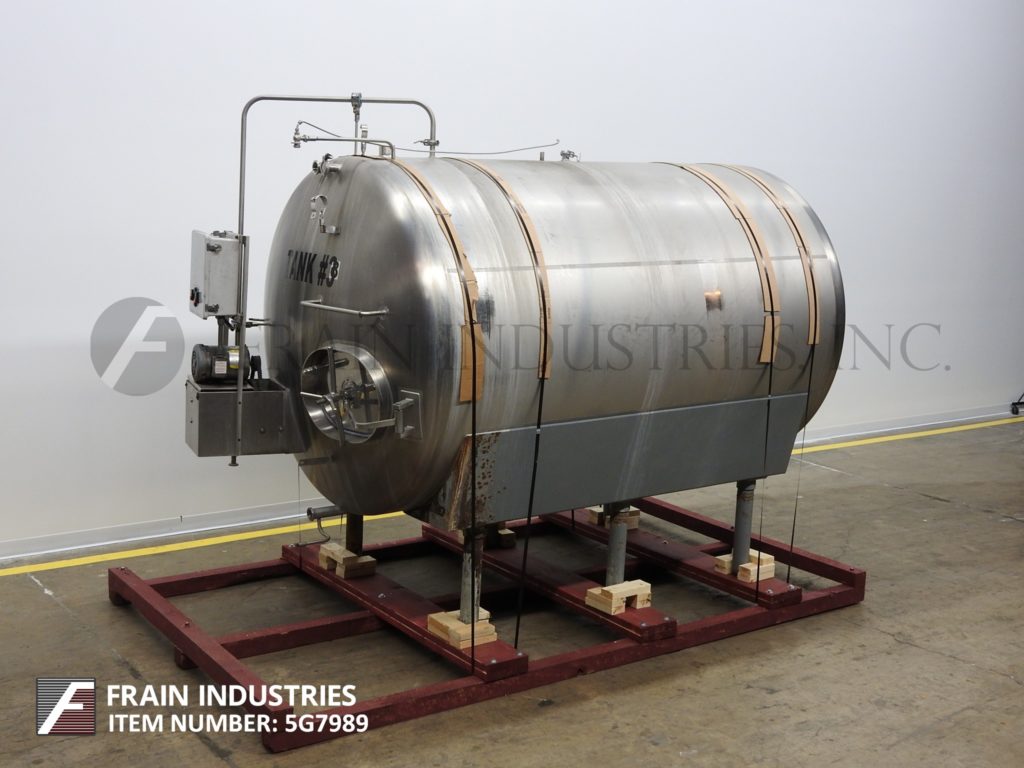

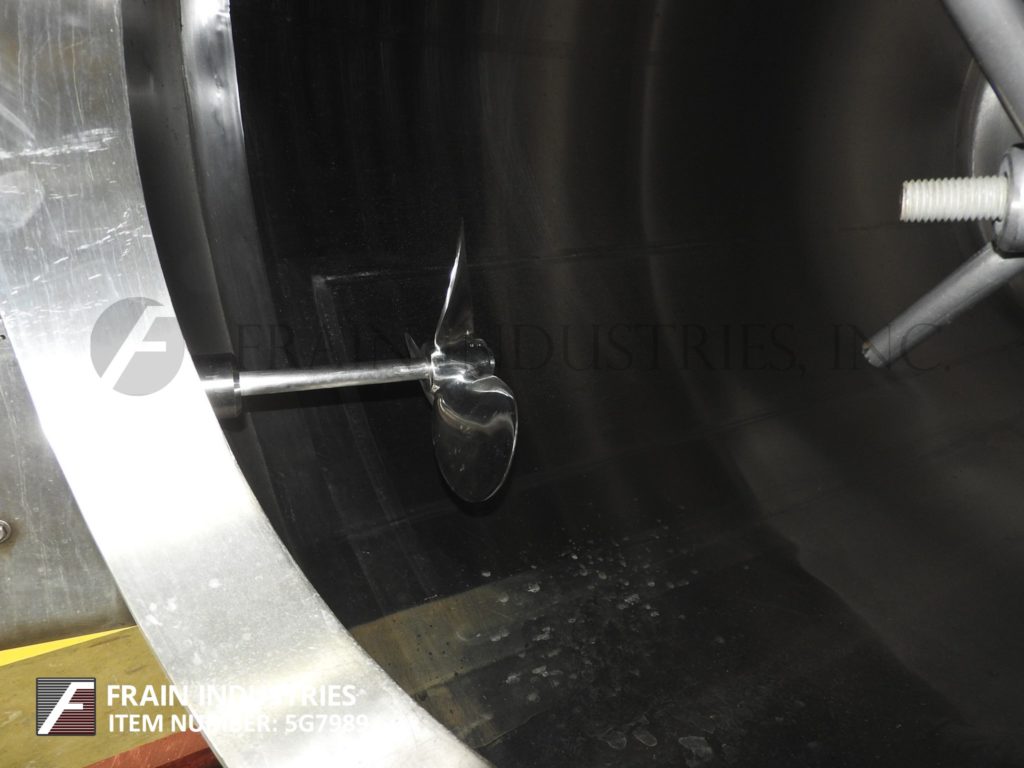

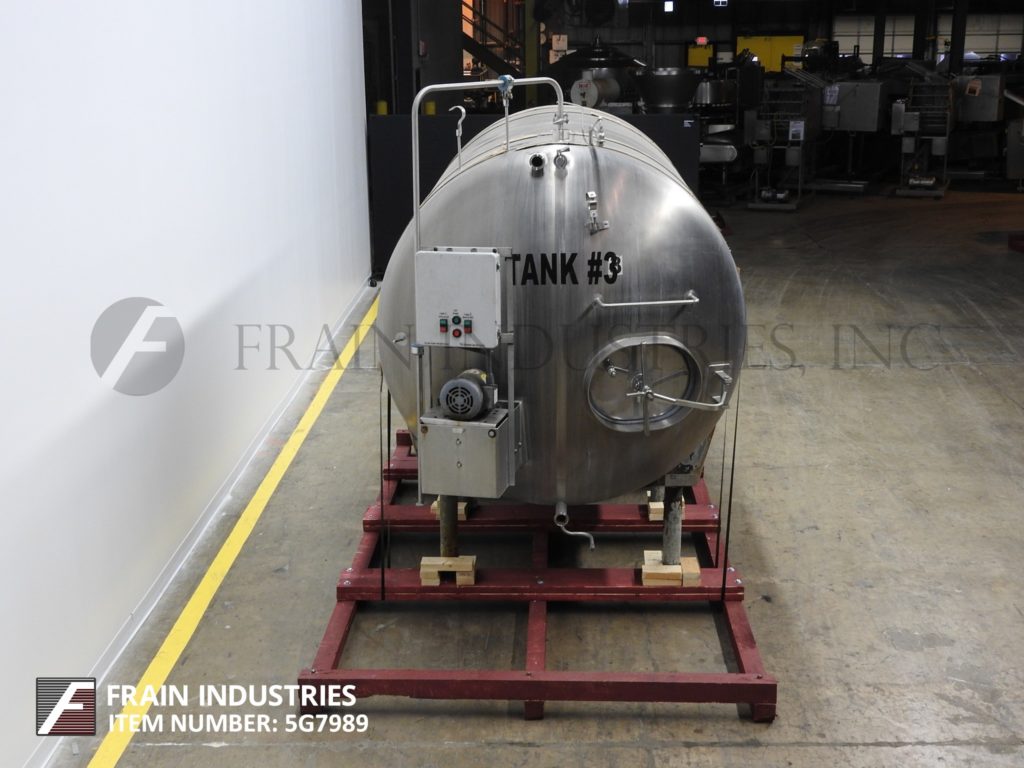

Cherry Burrell, 1500 gallon, 304 stainless steel horizontal tank. Vessel Dimensions: 66" diameter x 100" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, 1½ Hp bottom front mounted 15" diameter prop style mixer, (1) CIP spray ball and a 2½" OD/2" ID Tri-clamp style discharge fitting with 19" ground clearance. Mounted on (4) leg tubular legs.

Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1"ID Tri-clamp
(1) 3" OD Open Vent

Front Ports:
(1) 3"OD / 2½"ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp

OAD: 135"L x 66"W x 107"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall CH

Cherry Burrell, 1500 gallon, 304 stainless steel horizontal tank. Vessel Dimensions: 72" diameter x 80" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, 12" diameter top man way with lift up cover, 2 Hp bottom front mounted 15" diameter prop style mixer, (2) CIP spray balls, (1) thermowell and a 2½" OD/2" ID Tri-clamp style discharge fitting with 16" ground clearance. Mounted on (4) leg tubular legs.

Top Ports:
(3) 2"OD / 1½"ID Tri-clamp
(1) 2½"OD / 2"ID Tri-clamp
(1) 3"OD Open Vent

Front Ports:
(1) 8"OD / 6" ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp

OAD: 115"L x 72"W x 96"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS Single Wall CH

Cherry Burrell, 1500 gallon, 304 stainless steel horizontal tank. Vessel Dimensions: 66" diameter x 100" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, front level detection sight tube, 1½ Hp bottom front mounted 15" diameter prop style mixer, (1) CIP spray ball and a 2½" OD/2" ID Tri-clamp style discharge fitting with 19" ground clearance. Mounted on (4) leg tubular legs.

Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1"ID Tri-clamp
(1) 3" OD Open Vent

Front Ports:
(1) 3"OD / 2½"ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp

OAD: 135"L x 66"W x 107"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank SS JKT 1200 GAL

Cherry Burrell,1200 gallon capacity, 316 stainless steel jacketed and insulated tank. Vessel dimensions: 66" diameter x 80" deep with cone style bottom. Equipped with 18" diameter manway, with bolt down cover, (2) thermowells, (2) 4" diameter sight glasses, 2" OD / 1½" ID Tri-clamp connection for CIP spray ball and shell & tube heat exchange product feed with a 11" OD 8-bolt flange. Unit mounted on (4) legs with a 4¾" OD / 4" ID Tri-clamp style bottom discharge with 24" ground clearance.

Top Ports:
(1) 3½"OD / 3" ID Tri-Clamp
(1) 2½"OD / 2" ID Tri-Clamp
(2) 2"OD / 1½" ID Tri-Clamp

Side Ports:
(1) 3½"OD / 3" ID Tri-Clamp

Jacket Ports:
(4) 1¼" NPT

MAWP: 15 psi @ 350°F (vessel)
MDMT: -20°F @ 15 psi (vessel)
MAWP: 100 psi @ 350°F (Jacket)
MDMT: -20°F @ 100 psi (Jacket)
MAWP: 150 psi @ 300°F (heat exchange)
MDMT: 32°F @ 150 psi (heat exchange)
Nat’l Brd: 3845 (Tank)
Nat’l Brd: 5425 (heat exchange)

OAD: 86"L x 72"W x 150"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Tank Processors 250 GALLON

  • Manufacturer: Cherry Burrell
  • Model Number: 250 GALLON
  • Frain Number: 5G5813

Cherry Burrell, 250 gallon capacity, 304 stainless steel jacketed and insulated process tank. Vessel dimensions: 48" diameter x 32" deep. Equipped with 3 zone jacket, thermowell, lift up covers, slant bottom, 2 Hp top mounted scrape agitator, 3½ Hp 6" diameter prop agitator, and 3½" OD / 3" ID tri-clamp style bottom side discharge with butterfly valve and 19" ground clearance.

Top Ports:
(3) 3" open vents
(2) 2½" open vents

Jacket Ports:
(6) 1¼" NPT

MWP: 150 PSI @ 350°F
MDMT: -20°F @ 150 PSI

OAD: 62"L x 60"W x 82"H

Get a Free Quote Call: 630-629-9900

Cherry Burrell Mixer Liquid Liquefier 200GAL

Cherry Burrell 200 gallon, 304 stainless steel, high shear, single wall liquefier with gallons of product per hour – depending on materials and application. Chamber dimmensions: 40" in Length; 40" in Width; 32" straight wall; 16" sloped cone bottom. Equipped with 24" ID manway with flip top, bolt down cover and (1) 3", (2) 2-1/2" and (1) 2" OD sanitary top ports, spray ball and (1) 2-1/2" OD sanitary side bottom port. Cone bottom with 14" OD high shear 6 hole / 3 wing impeller and has 2" OD sanitary center bottom discharge port with 19" floor clearence, control box with start / stop push bottons. Mounted on stainless steel tubular base frame.

OAD: 72" L x 40" W x 71" H

Get a Free Quote Call: 630-629-9900
