Cherry Burrell Tank SS Single Wall FH

  Back to All Equipment

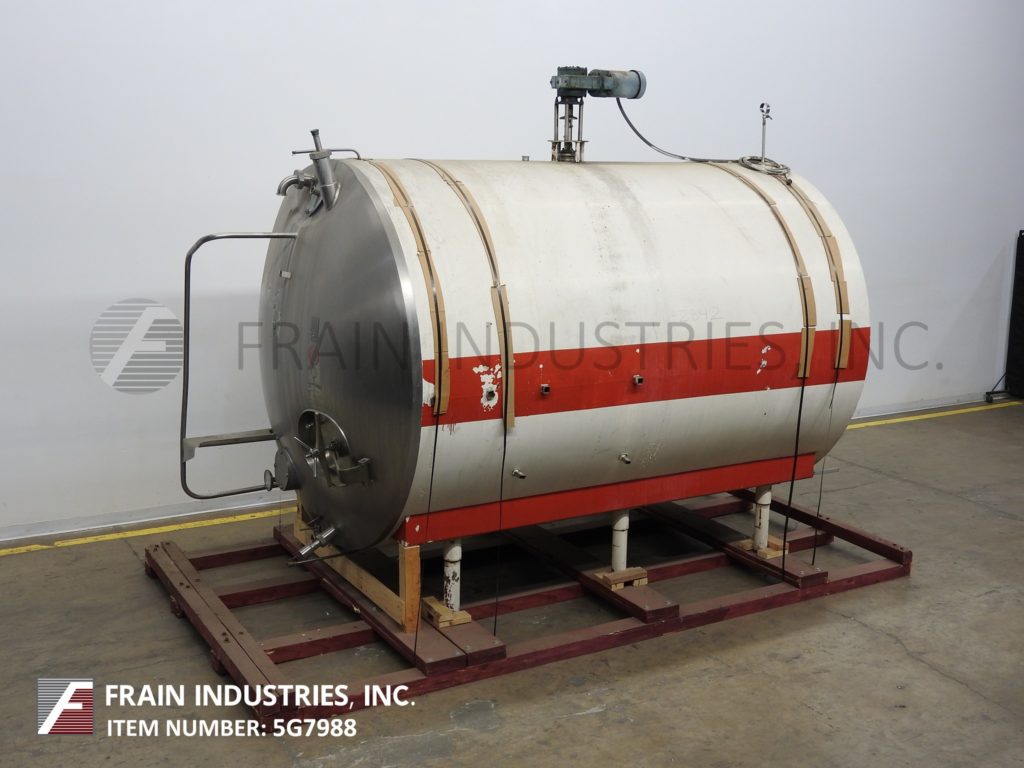

Cherry Burrell, 2800 gallon, 304 stainless steel insulated horizontal tank. Vessel Dimensions: 84" diameter x120" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, 1½ Hp top mounted 21" wide paddle style mixer, (2) CIP spray balls, (1) thermowell, (1) diaphragm pressure sensor and a 2½" OD/2" ID Tri-clamp style butterfly valve discharge fitting with 10½" ground clearance. Mounted on (6) tubular legs.

Top Ports:
(1) 2"OD / 1½"ID Tri-clamp
(1) ½" NPT

Front Ports:
(1) 2½"OD/2"ID Tri-clamp
(1) 2"OD/1½"ID Tri-clamp
(1) 1" NPT

OAD: 170"L x 90"W x 123"H
