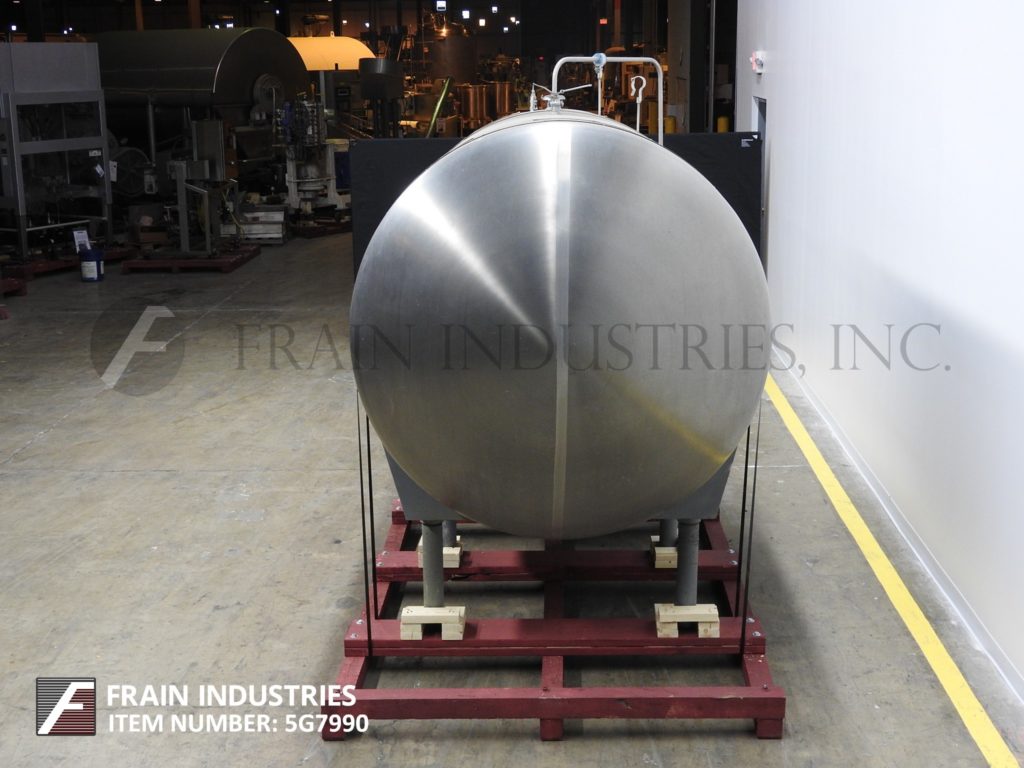

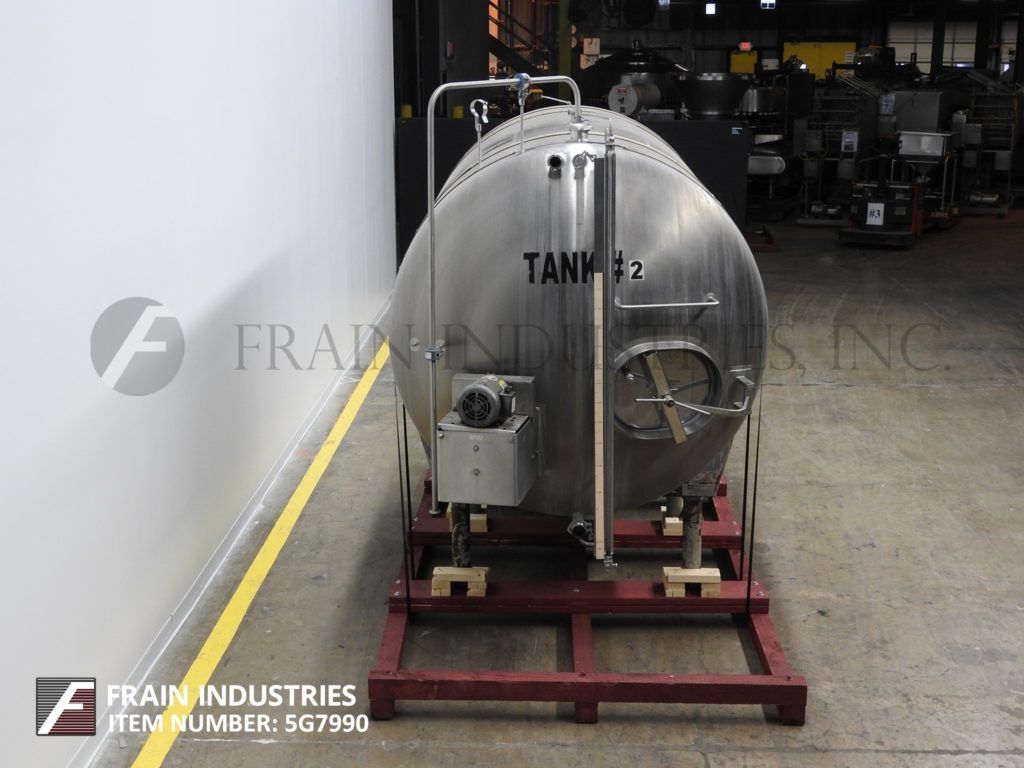

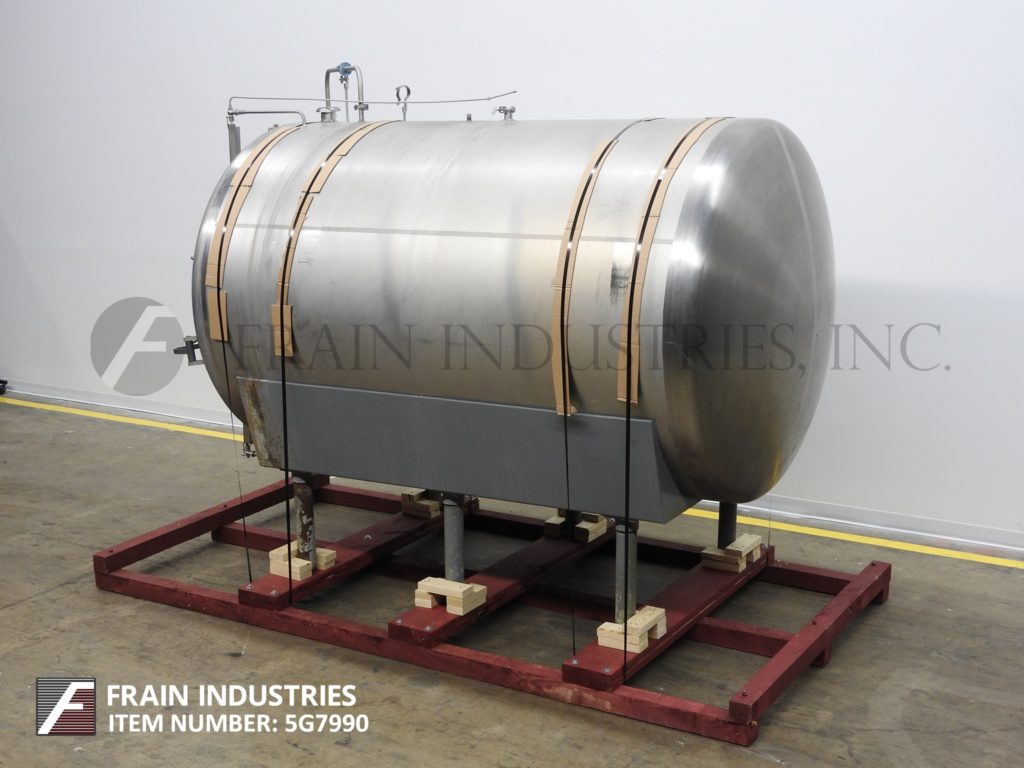

Cherry Burrell, 1500 gallon, 304 stainless steel horizontal tank. Vessel Dimensions: 66" diameter x 100" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, front level detection sight tube, 1½ Hp bottom front mounted 15" diameter prop style mixer, (1) CIP spray ball and a 2½" OD/2" ID Tri-clamp style discharge fitting with 19" ground clearance. Mounted on (4) leg tubular legs.

Top Ports:
(1) 2½"OD / 2"ID Tri-clamp
(1) 2"OD / 1"ID Tri-clamp
(1) 3" OD Open Vent

Front Ports:
(1) 3"OD / 2½"ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp

OAD: 135"L x 66"W x 107"H
