Cherry Burrell Tank SS Single Wall CH

  Back to All Equipment

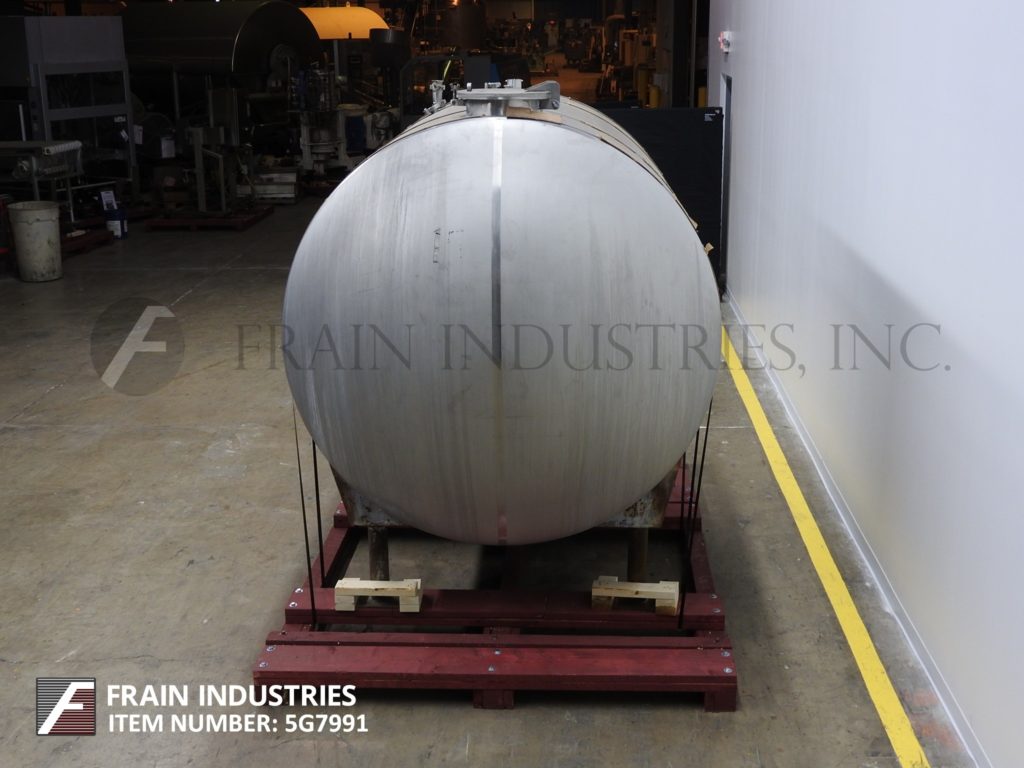

Cherry Burrell, 1500 gallon, 304 stainless steel horizontal tank. Vessel Dimensions: 72" diameter x 80" straight wall with dish ends. Equipped with a 20" x 16" front end man way with flip open cover, 12" diameter top man way with lift up cover, 2 Hp bottom front mounted 15" diameter prop style mixer, (2) CIP spray balls, (1) thermowell and a 2½" OD/2" ID Tri-clamp style discharge fitting with 16" ground clearance. Mounted on (4) leg tubular legs.

Top Ports:
(3) 2"OD / 1½"ID Tri-clamp
(1) 2½"OD / 2"ID Tri-clamp
(1) 3"OD Open Vent

Front Ports:
(1) 8"OD / 6" ID Tri-clamp
(1) 2"OD / 1½"ID Tri-clamp

OAD: 115"L x 72"W x 96"H
