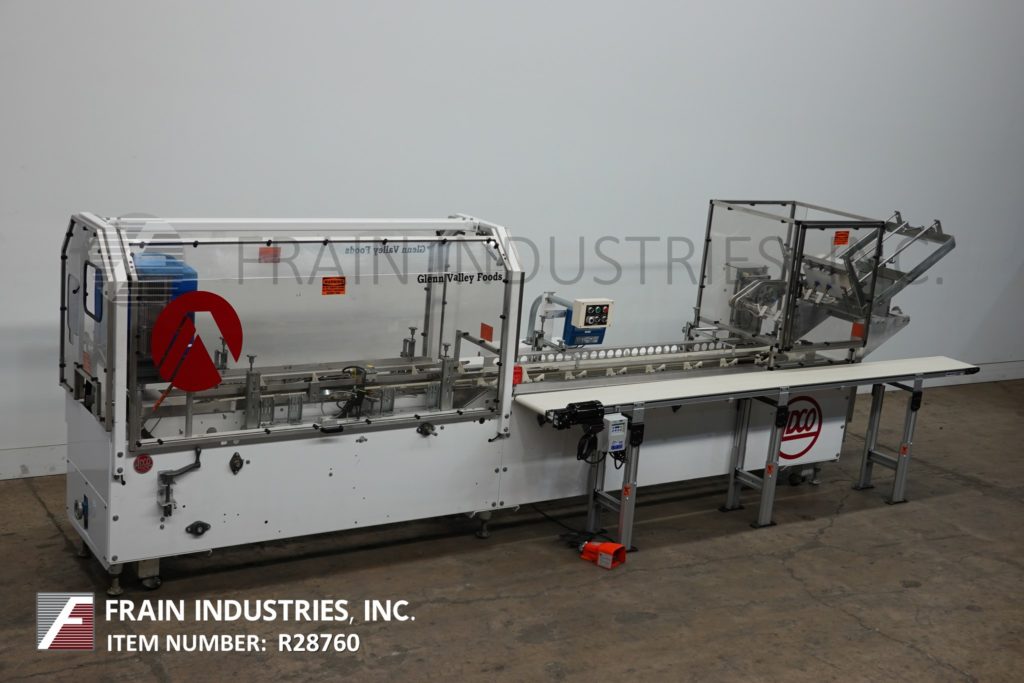

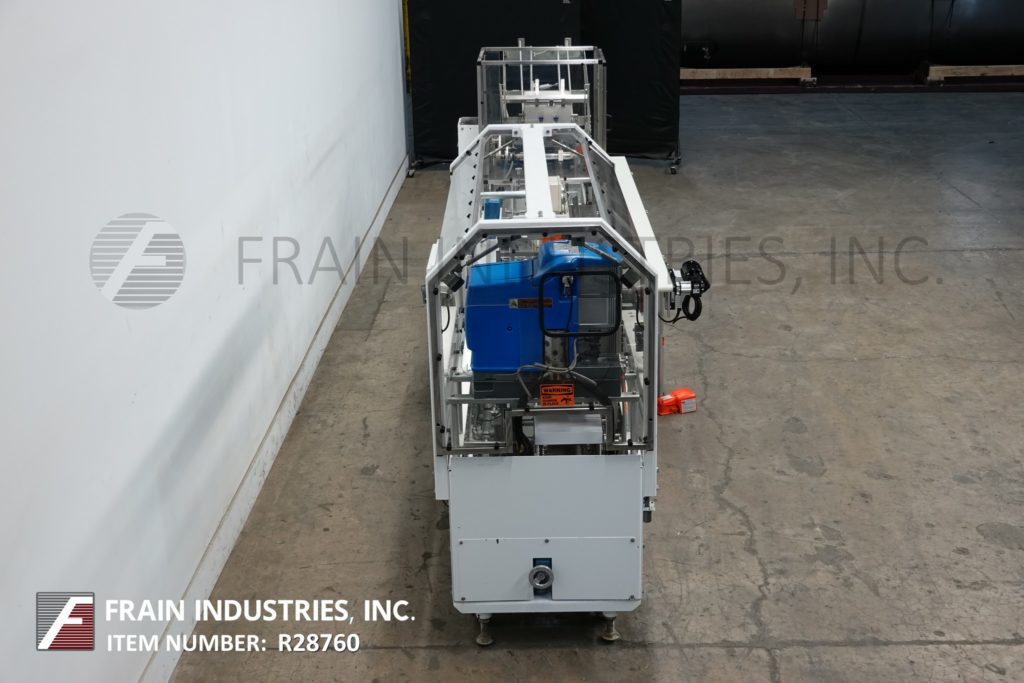

Photo of Adco Cartoner Semi Horiz. Glue (Semi) 15D105125EC

Adco Cartoner Semi Horiz. Glue (Semi) 15D105125EC

  Back to All Equipment

Adco, Model 15D105125EC, semi automatic, horizontal, hot melt glue cartoner rated from 25 to 125 cartons per minute – depending on materials, application and operator dexterity. Carton size range:1.5" to 9" in Length; 3/4" to 4" in Width; 4" to 12" in Depth. Equipped with (4) chains adjustable set on 12" centers, with 2-1/2" wide x 3-1/2" high lugs, 36" long blank carton magazine, with (2) head rotary vacuum pick n place, 84" long product hand load area, Nordson 2 gun hot melt glue system with major and minor flap closers and interlock flip-up safety guarding. Control panel has controller with start, stop, e-stop push buttons, on / off switches for glue, vacuum and controls with conveyor and speed control dials with self contained vacuum system and foot pedal jog. Mounted on a heavy duty base frame with leveling legs.

Emboss Coder Available at Additional Cost

OAD: 256" L x 48" W x 74" H
