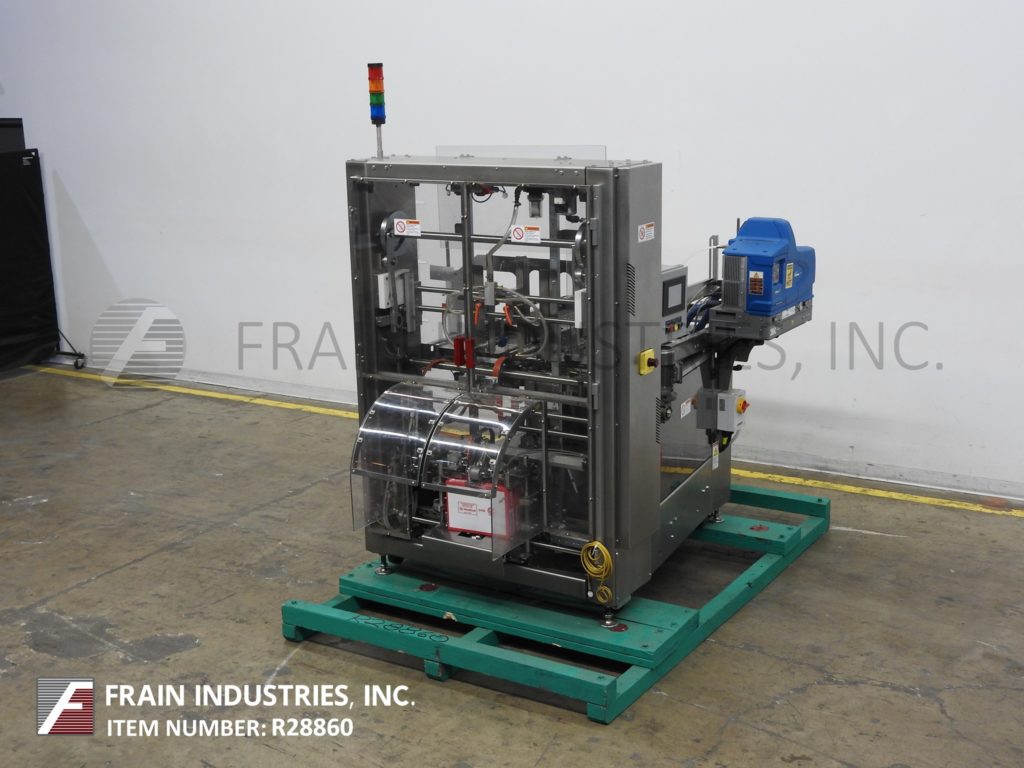

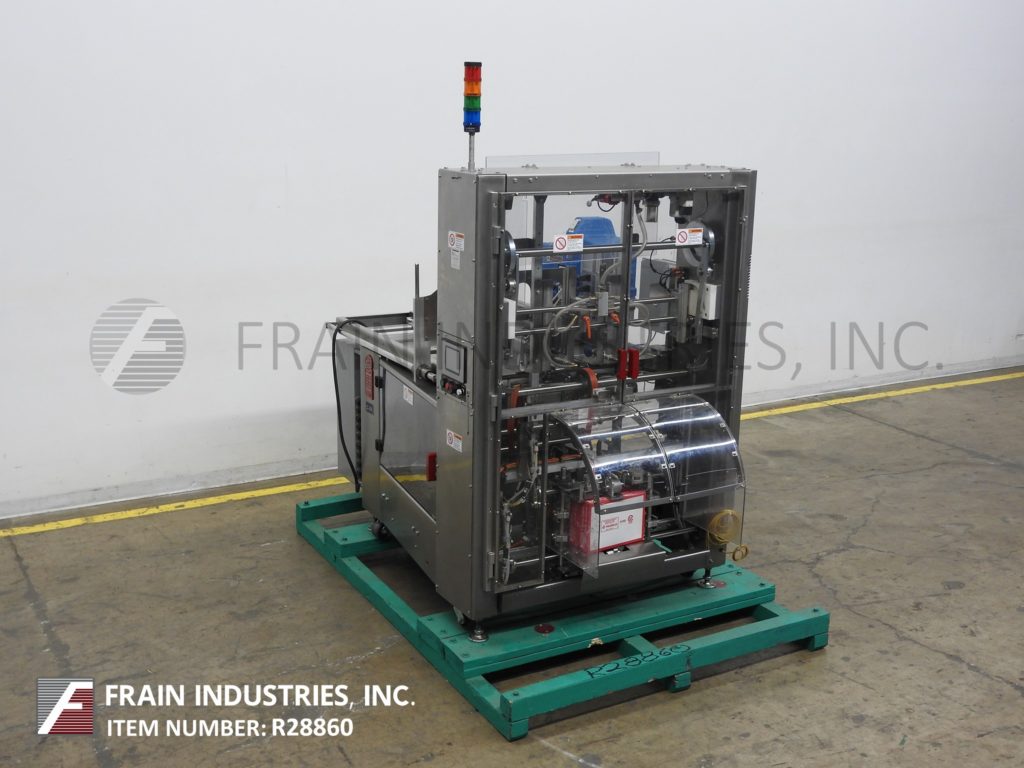

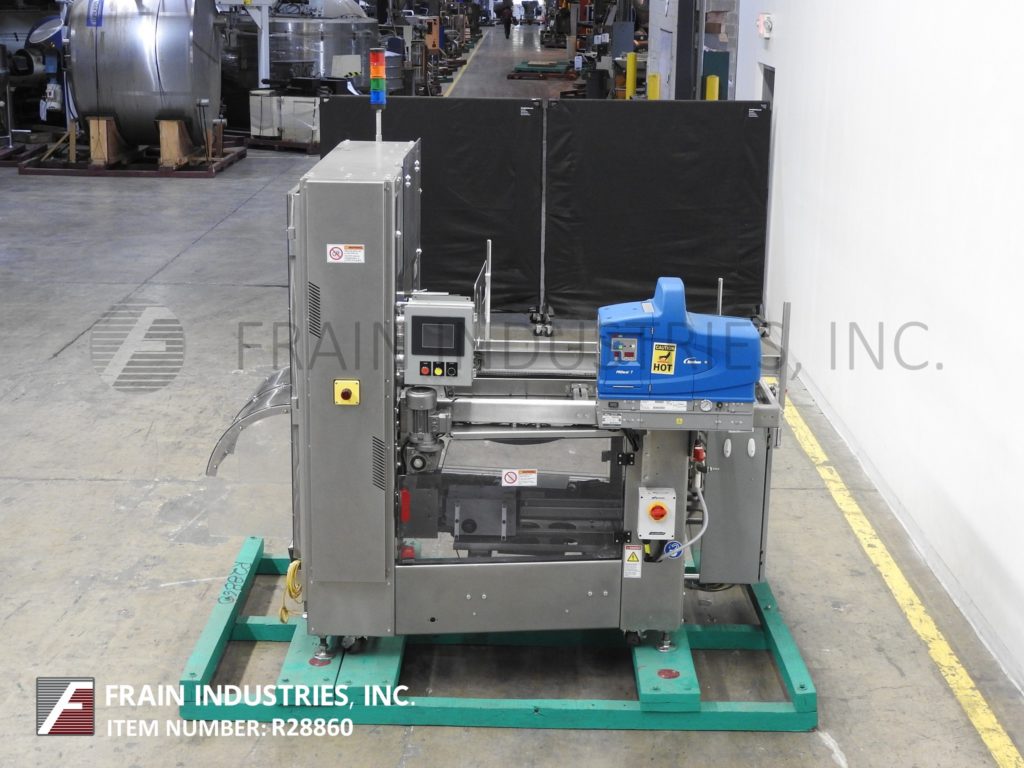

Photo of Adco Case Set-Up, Tray Tray Glue CTF-470V

Adco Case Set-Up, Tray Tray Glue CTF-470V

  Back to All Equipment
  • Manufacturer: Adco
  • Model: CTF-470V
  • Frain Number: R28860
  • Category: Case Set-Up (Tray)
  • Subcategory: Tray Glue
  • Condition: Used, in excellent condition
  • Availability: In Stock

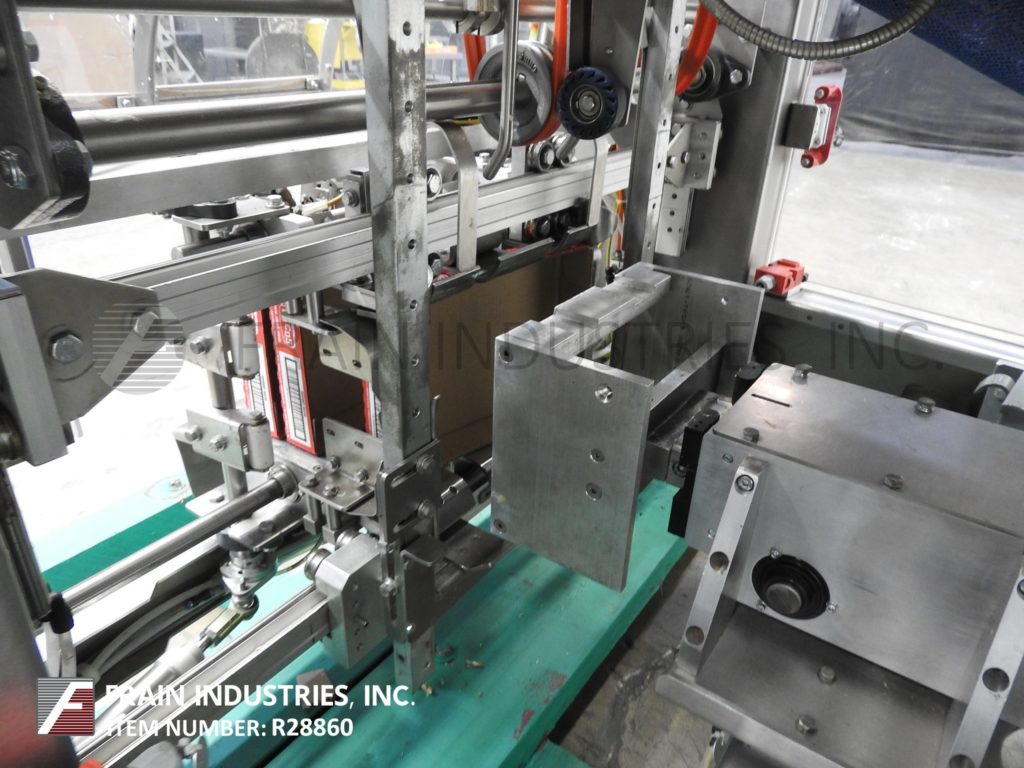

Adco Model CTF-470V, compact, automatic, stainless steel, single head, hot melt glue, tray former, rated from 10 to 50 cycles per minute with number of tray – depending on materials and application. Tray size range: 8-1/4" to 25-3/4" in Length; 7" to 18" in Width; 1-1/2" to 8" in Height. Flat blank size range: 16-1/4" to 36" in Length; 15" to 26" in Width. Equipped with 60" long (2) chain, automatic blank tray magazine, reciprocating (4) suction cup vacuum pic-n-place, dual belt blank tray assist, single arm forming mandrel, with adjustable stroke, Nordson ProBlue hot melt glue unit and vacuum systems. Control panel has A/B PLC, with A/B touch pad controller and panel view with start, reset, stop, e-stop push button controls, (4) color statis light and interlock safety doors. Mounted on stainless steel base frame with locking casters and (4) height adjustable leveling legs.

OAD: 100" L x 60" W x 93" H
