Case Set-Up (Tray) Machines

Used Case Set-Up (Tray) Equipment

A case set-up (Tray) is designed to form a tray from a pre-scored carton blank. The erected tray is kept together using either glue or the tray??s own flaps tucked into one another. Trays are used for packaging groups of cans and other containers for shipment and distribution. Trays have solid bottoms and flaps that are folded up and fastened to form the sides. The sides are frequently but not necessarily lower than the height of the containers. Loaded trays are frequently over wrapped with a stretch or shrink film to hold the individual containers or products in place and provide protection. Trays can be received from the converter as knocked down blanks and a tray former in or near the packaging line can form the trays. A tray set-up machine or tray former forms a tray from scored paperboard, chipboard, or corrugated that is folded flat, called a blank. The tray sides are sealed either by using glue or by tucking portions of the flaps, called tucks, into other tray flaps. Tray formers form trays based on the size of the tooling that is in the machine. The male portion of the tooling pushes the flat blank through the female portion of the tooling to form the tray. Tooling needs to be changed on a tray former to accommodate different size trays. (Some newer tray formers have tooling that is adjustable for trays sizes within a set size range.) Tray formers can be used to form many different kinds of trays including hooded trays or hooded cartons, six-corner trays, and laminated corner trays.

Contact Us

Related Categories

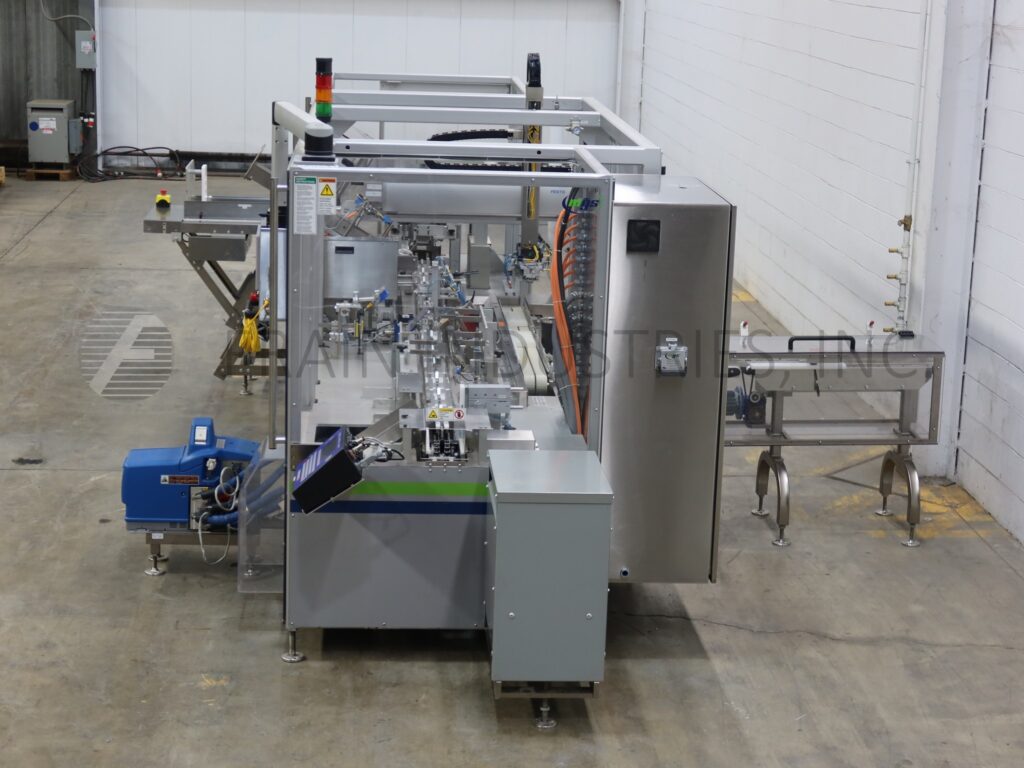

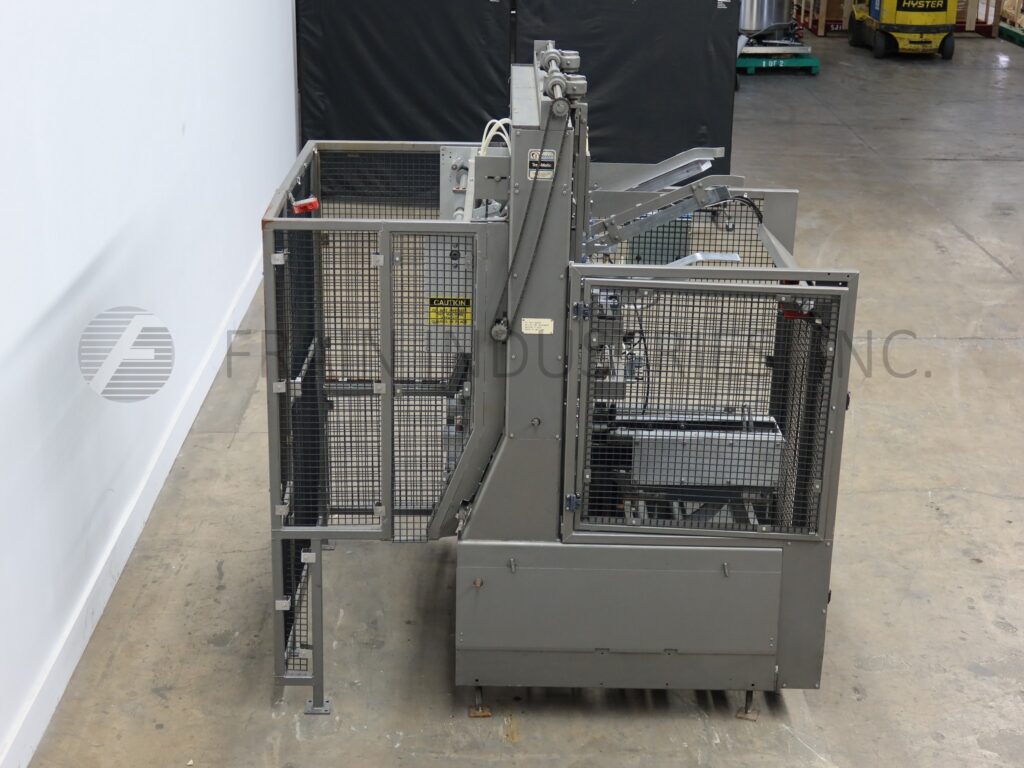

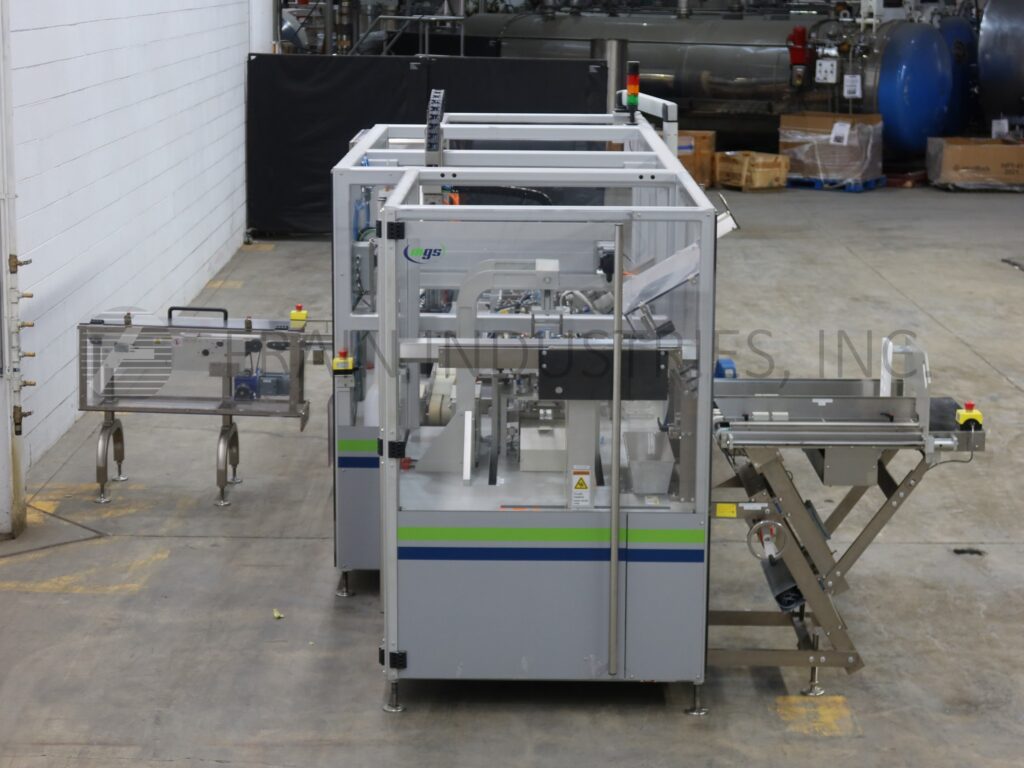

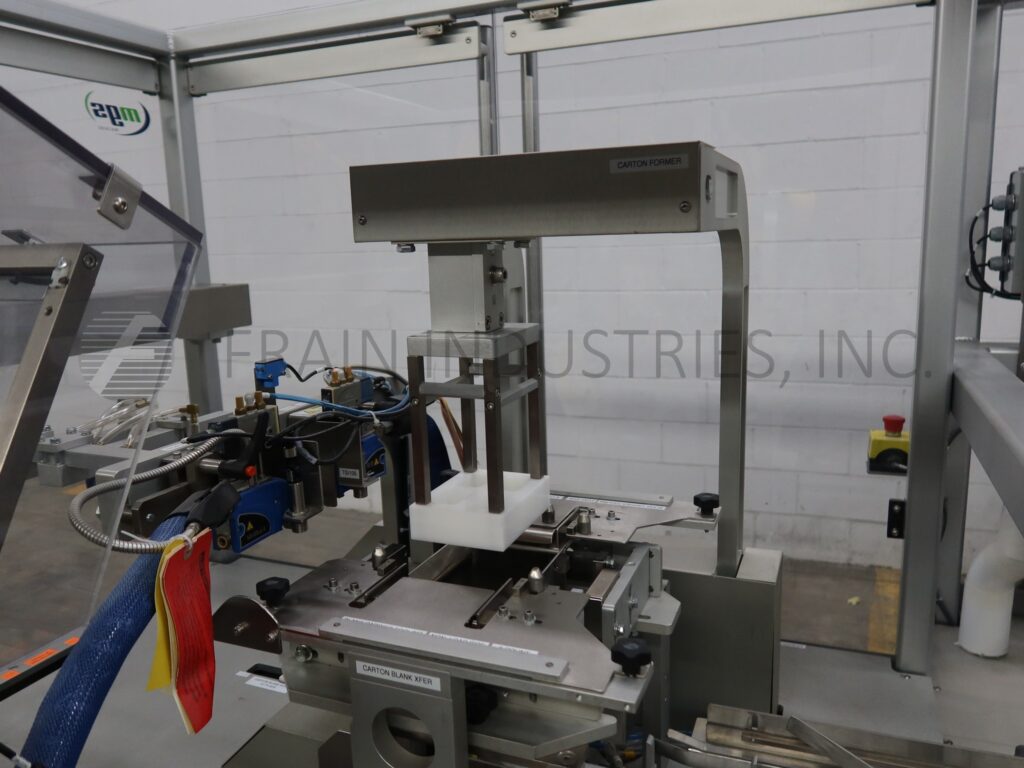

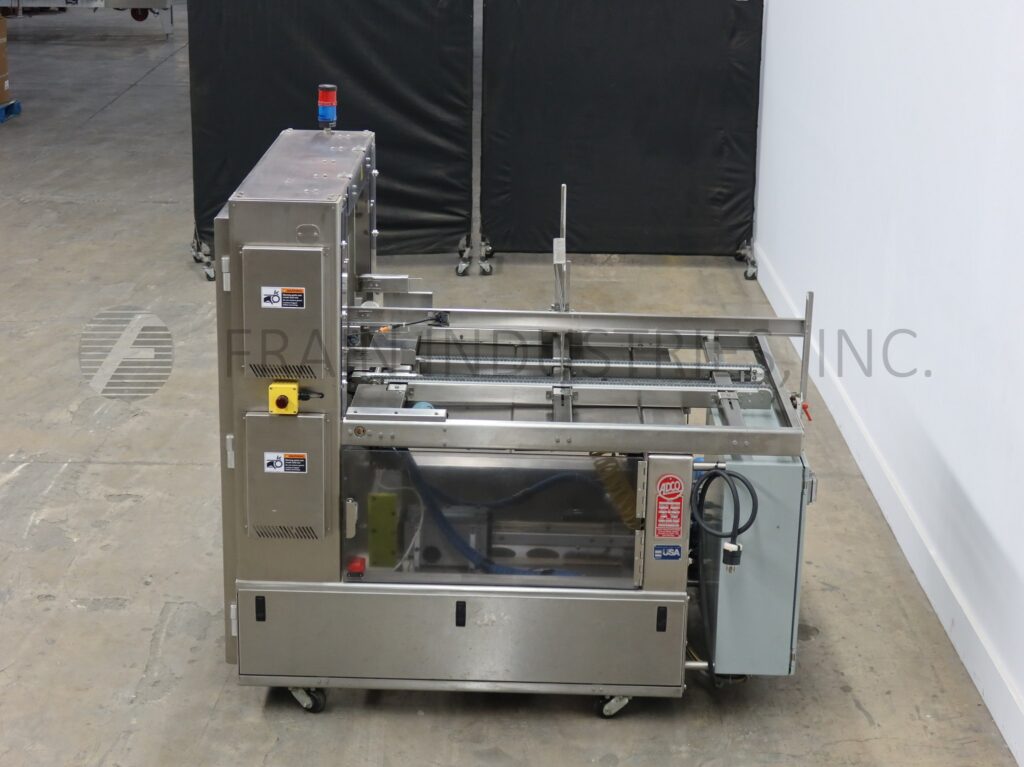

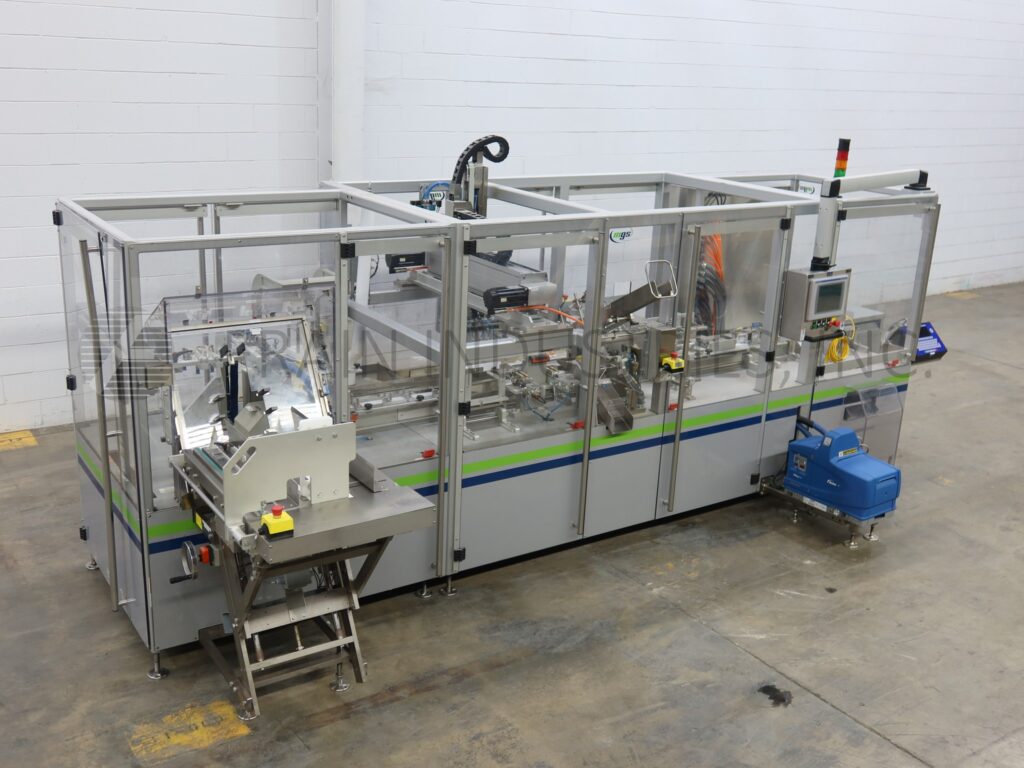

Case Set-Up (Tray) Equipment In Stock

Wexxar Case Set-Up, Tray Tray Glue TF-200S

  • Manufacturer: Wexxar
  • Model Number: TF-200S
  • Frain Number: R37120

Wexxar Model IPAK TF-200S, Automatic, 4-corner servo, tray former, hot melt glue sealer with number of trays per minute – depending on materials and application. Tray size range: per application and is capable of forming different type trays with proper change parts. Equipped with blank tray magazine, and has blank size of 32¾" x 32¾", (4) suction cup vacuum reciprocating pick and place and tray feed bar with bottom tray stop, single mandrel ram head with Nordson Model 14 Liberty hot melt glue system. Control panel has A/B PLC controller with etherNer/IP and Siemens Simatic HMI touch screen interface with readout, reset and e-stop push buttons with 132" long x 36" wide tray discharge conveyor. Mounted on heavy duty frame with safety door guarding.

OAD: 225"L x 87"W x 137"H

Get a Free Quote Call: 630-629-9900

Adco Manufacturing Inc Case Set-Up, Tray Tray Glue AFCH-25-2-SS

  • Manufacturer: Adco
  • Model Number: AFCH-25-2-SS
  • Frain Number: 5J0373

Adco, Model AFCH-25-2-SS, Automatic, stainless steel, dual head, tray former. Rated up to 35 cycles per minute with number of trays – depending on materials and application. Tray size range: 3" to 15" in Length; 3" to 10" in Width, ¾" to 4½" in Depth each head. Capable of handling flat blank sizes up to 17" in Length and 20" in Width. Equipped with dual blank tray magazines, dual vacuum suction cup recipicating pick-in-place, mechanical tray forming heads, Nordson hot melt glue unit and on board vacuum system. Control panel has A/B Micrologix controller with vacuum, glue, speed control switches and start, stop, e-stop push buttons with statis light. Mounted on heavy duty stainless steel frame with leveling legs and interlock safety guarding.

OAD: 88" L x 97" W x 98" H

Get a Free Quote Call: 630-629-9900

Adco Manufacturing Inc Case Set-Up, Tray Tray Glue AFCX-35-2-EC

  • Manufacturer: Adco
  • Model Number: AFCX-35-2-EC
  • Frain Number: 5J0381

Adco, Model AFCX-35-2-EC, Automatic, stainless steel, dual head, tray former. Rated up to 35 cycles per minute with number of trays – depending on materials and application. Tray size range: 3" to 17" in Length; 3" to 16 in Width; ¾" to 4½" in Height each head. Equipped with 70" long (1) chain lugged tray conveyor set on 22" centers and has 1½" long x 2" high lugs, dual 24" long blank tray magazines, dual vacuum suction cup recipicating pick-in-place, mechanical forming plungers, no tray / no form photo eyes with Nordson hot melt glue unit and has an on board vacuum system. Control panel has A/B Micrologix controller with run, jog, carton pick, head select, glue guns and speed control dials with drive start, stop and e-stop push buttons with statis light. Mounted on stainless steel frame with leveling legs and interlock safety guarding.

OAD: 80" L x 96" W x 94" H

Get a Free Quote Call: 630-629-9900

Combi America Case Packer TFS Combi America Case Packer TFS Delkor Case Set-Up, Tray Tray Glue TFS

  • Manufacturer: Delkor
  • Model Number: TFS
  • Frain Number: 5J0100

Combi America, Model 2EZXLHS, Ergopack case erector / manual pack station / case top sealer. Case size range: 8" to 24" in Length; 6" to 20" in Width; 5" to 18" in Height. Equipped with 48" long blank case magazine, suction cup reciprocating pick and place, minor and major flap closers, 2" tape head, 12" wide x 220" long product conveyor with 80" long bi-directional accumulation and packing station running parallel to 16" wide x 96" long case conveyor. Top case taper equipped with minor flap closer, major flap plows, 3" wide dual side gripper belts, 2" top / bottom tape heads, Siko gages and interlocking Lexan safety guarding. Rated up to 15 cases per minute – depending on materials, application, machine configuration and operator dexterity.

OAD: 310"L x 118"W x 70"H

Get a Free Quote Call: 630-629-9900

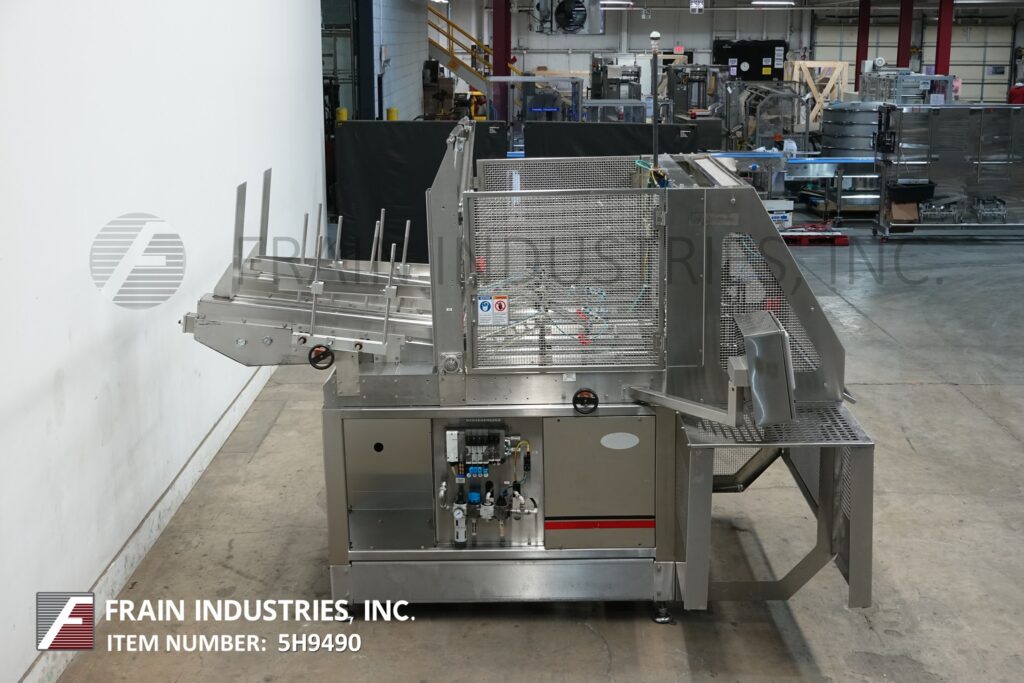

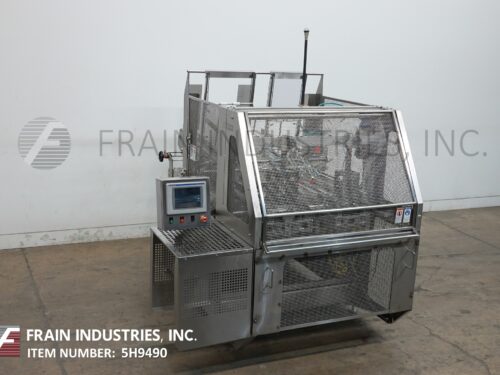

Delkor Case Set-Up, Tray Tray Tuck TFS

  • Manufacturer: Delkor
  • Model Number: TFS
  • Frain Number: 5H9490

Delkor, Model TFS, Automatic, stainless steel, (2) head, tray former. Rated from 10 to 55 cycles per minute with number of trays per minute – depending on materials, application and machine configuration. Welded stainless steel construction. Maximum Blank Size: 30" in Length; 50" in Width. Equipped with (2) 48" long powered blank tray magazines, (2) suction cup vacuum recipicating pick-in-place, (2) mechanical tray forming heads with cage style lift-up access safety door guarding. Control panel has A/B PLC and panelview controller with start, stop, e-stop push button controls and statis light. Mounted on stainless steel frame.

OAD: 112" L x 72" W x 86" H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck SRWD

  • Manufacturer: Kliklock
  • Model Number: SRWD
  • Frain Number: 5H9512

Kliklock, Model SRWD, Automatic, stainless steel, dual head, tray former. Rated from 20 to 60 strokes per minute each head with number of trays – depending on materials and application. Tray size range: 5" to 16¾" in Length; 4" to 10" in Width; 7/8" to 4" in Depth with proper change parts. Equipped with dual 16" long blank tray magazines, suction cup reciprocating pic n place, dual head ram with minor flap and major flap folding plows, Lexon hooded seal area with lift-up access door, 96" long lugged chain tray transfer conveyor set on 17" centers thru machine. Control panel has start, stop and e-stop push button controls. Mounted on heavy duty stainless steel base frame with casters and height adjustable legs.

OAD: 101"L x 70"W x 88"H

Get a Free Quote Call: 630-629-9900

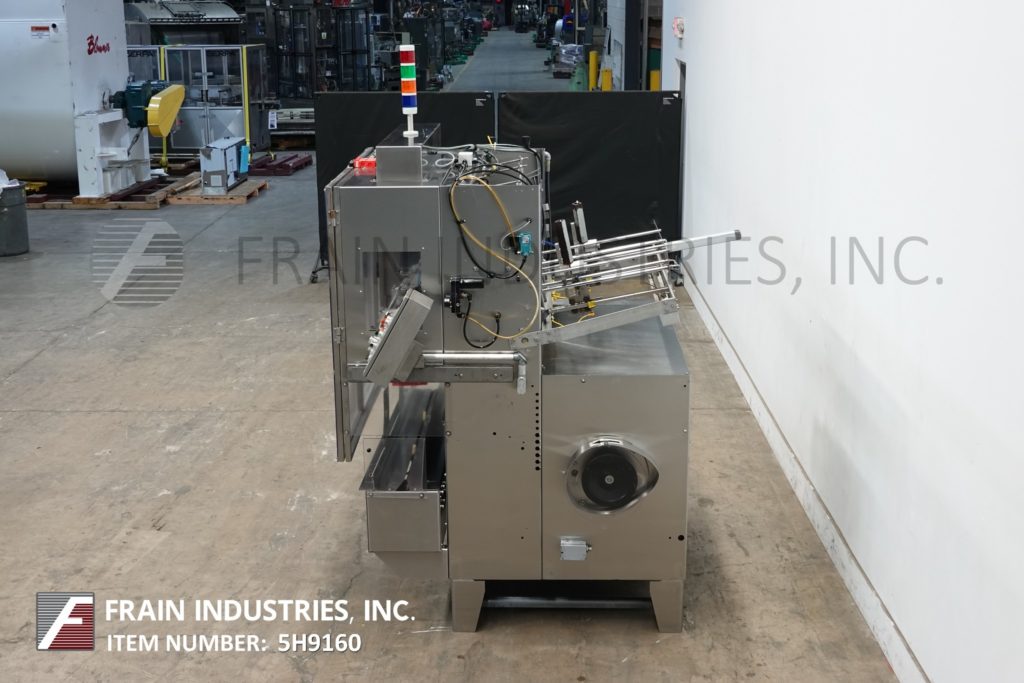

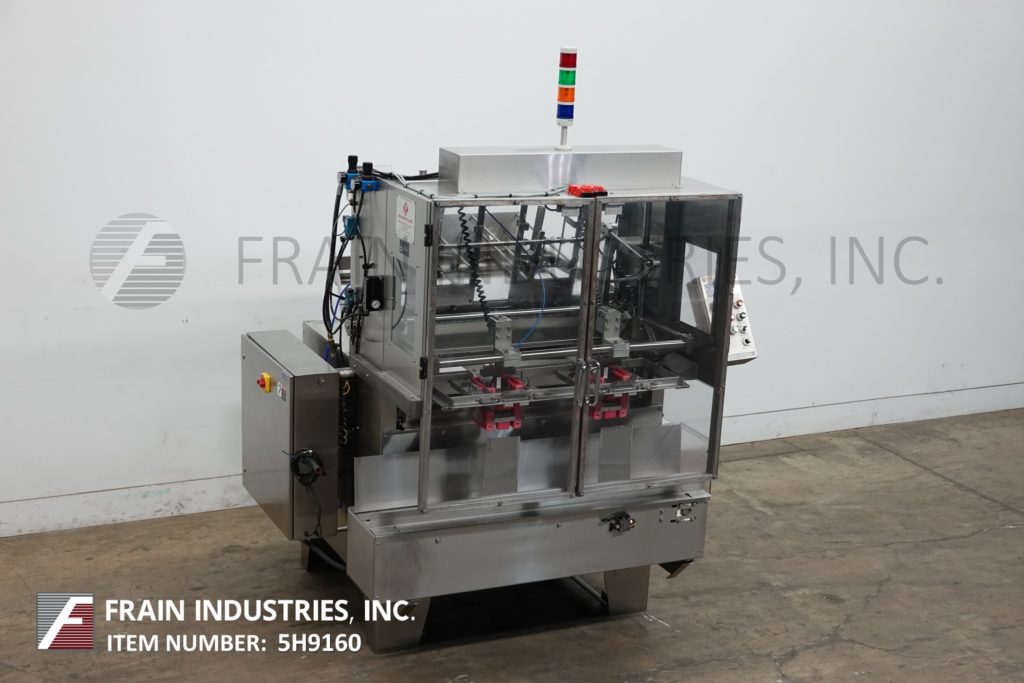

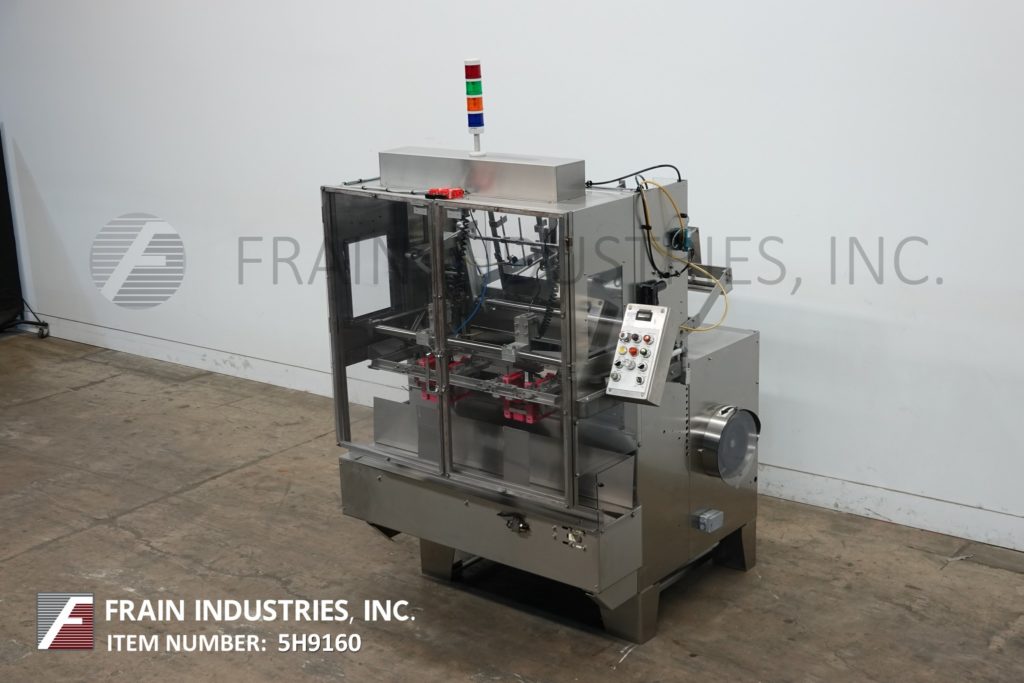

Bradman Lake Case Set-Up, Tray Tray Tuck HS2-60

  • Manufacturer: Bradman Lake
  • Model Number: HS2-60
  • Frain Number: 5H9160

Bradman Lake Model H2S-60, Automatic, (2) head stainless steel tray former. Rated to 60 cycles per minute each head with number of trays – depending on materials, application and machine configuration. Blank tray size up to 20.8" in Length; 40" in Width; 3/4" to 6.6" in Height. Equipped with (2) blank tray magazines, with suction cup vacuum reciprocating pick-in-places, (2) mechanical 6" x 6" tray forming heads and seal area with Lexan interlock safety doors. Control panel with has left and right feed on / off switches, speed control dial and power on and e-stop push buttons with strokes per minute readout. Mounted on stainless steel frame with height adjustable leveling legs.

OAD: 80" L x 64" W x 80" H

Get a Free Quote Call: 630-629-9900

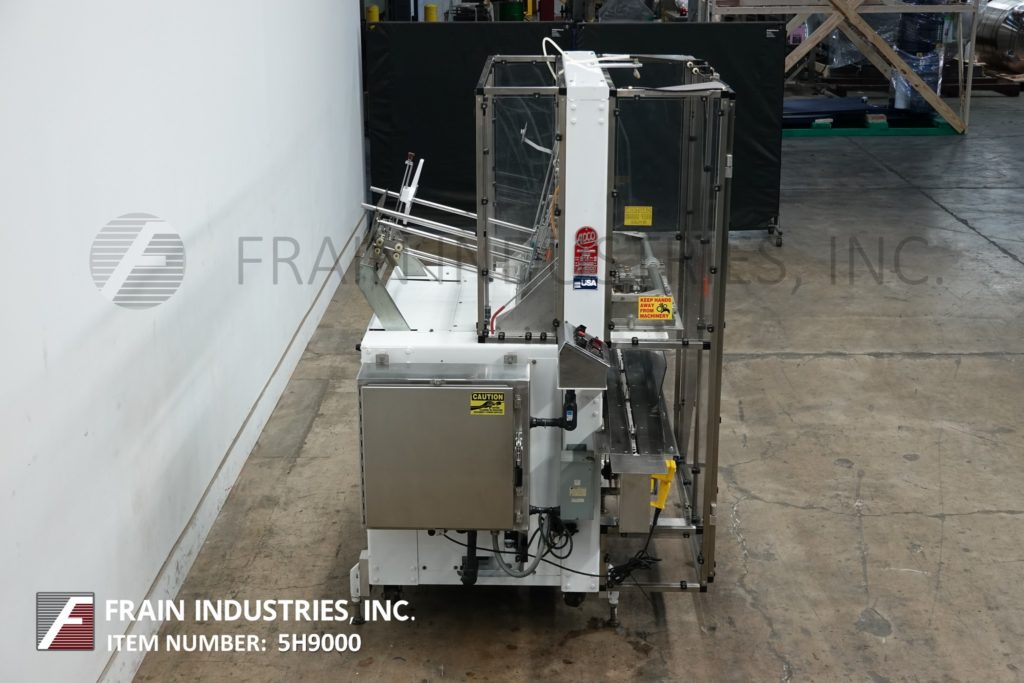

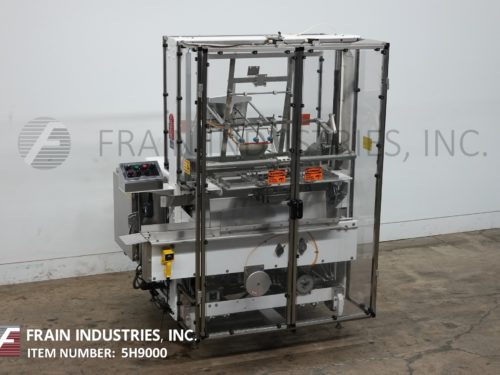

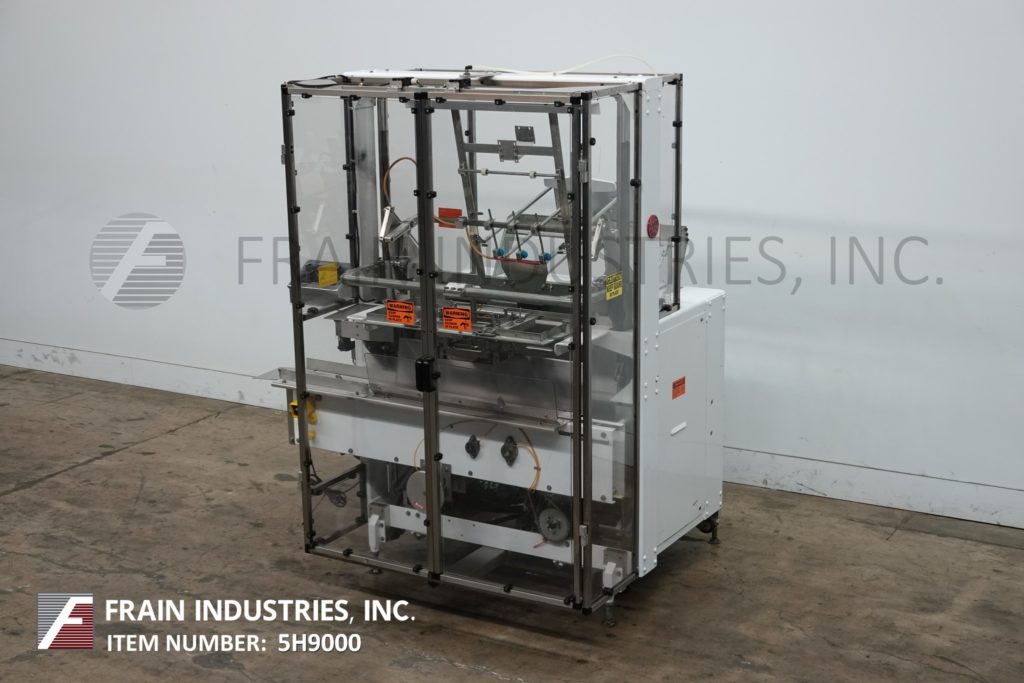

PMC Capper Pump placer AFH-40-EC PMC Capper Pump placer AFH-40-EC Adco Manufacturing Inc Case Set-Up, Tray Tray Tuck AFH-40-EC

  • Manufacturer: Adco
  • Model Number: AFH-40-EC
  • Frain Number: 5H9000

PMC, Model XRC1200,12 head, rotary, finger pump inserter and capper rated from 30 to 180 containers per minute – depending on materials and application Equipped with 3¼" Wide delrin in feed conveyor, star wheel in feed and discharge, 15" OD cap indexer and inserter. Mounted on heavy duty frame with height adjustable legs and safety door guarding.

OAD: 75"L x 55"W x 88"H

Get a Free Quote Call: 630-629-9900

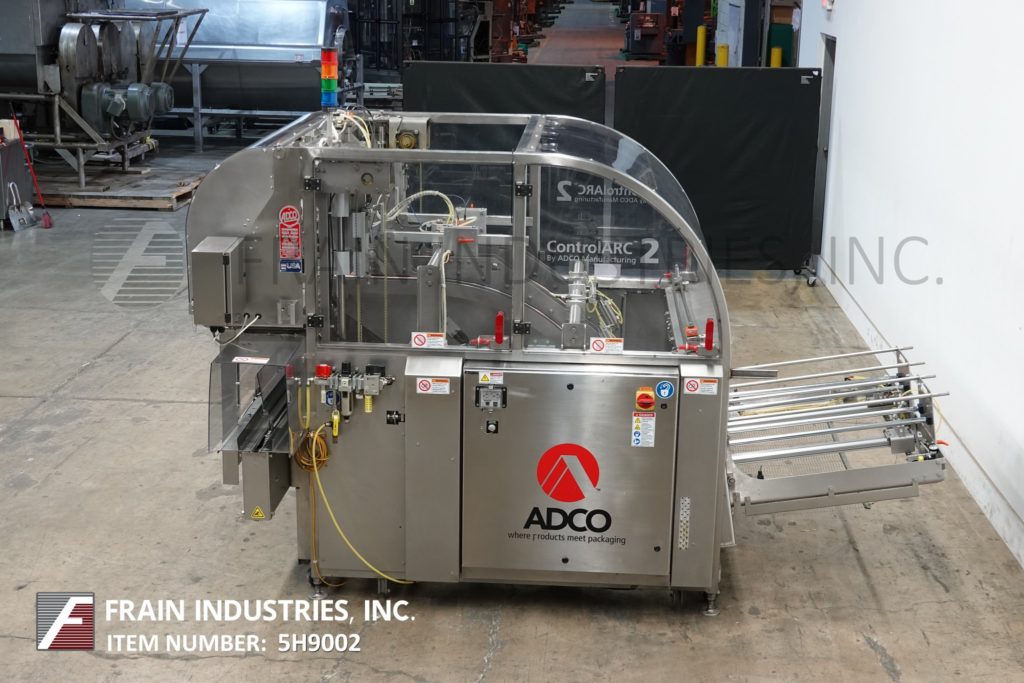

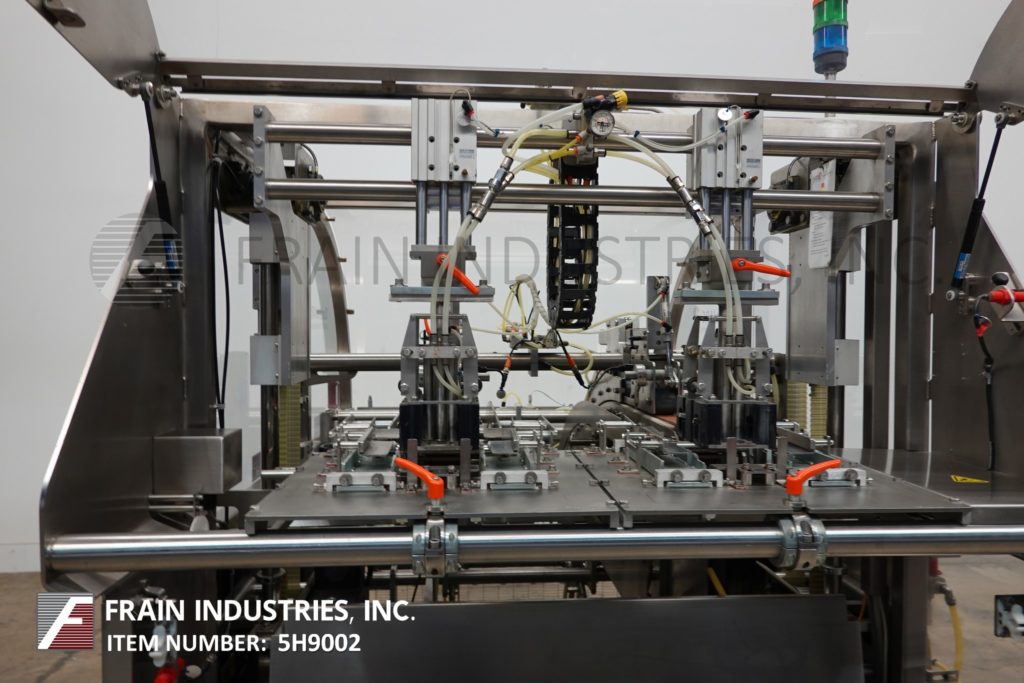

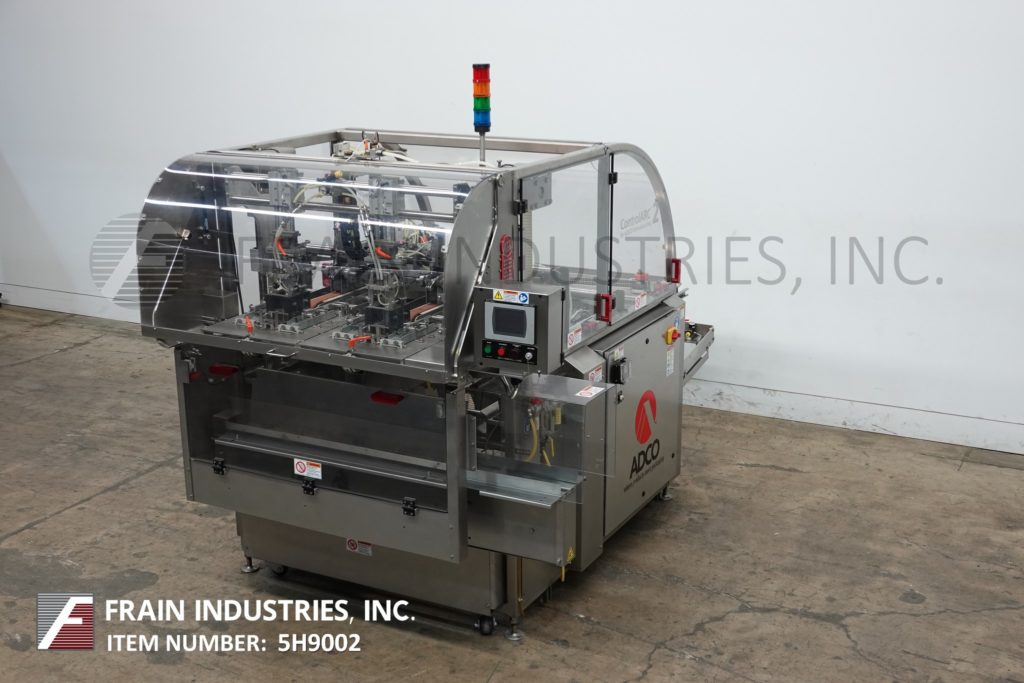

Urschel Laboratories Inc Cutter, Slicer Chopper/Processor CF1200-30-SS Urschel Laboratories Inc Cutter, Slicer Chopper/Processor CF1200-30-SS Adco Manufacturing Inc Case Set-Up, Tray Tray Tuck CF1200-30-SS

  • Manufacturer: Adco
  • Model Number: CF1200-30-SS
  • Frain Number: 5H9002

S/S dicer uniformly dices, strip cuts, and slices a wide variety of products at high production capacities and accepts products up to 10" in any dimension. Types of cuts slices: flat & crinkle slices: 1/16 to 1" Strip cuts: flat and crinkle minimum / maximum flat strips 1/8 x 1/8" to 1 x 1" x length of product. Crinkle strips 9/32 x 9/32" length of product.
Circular knife cuts: 1/8 to 3"
Crosscut knife cuts: 1/8 to 1-1/2"
Crosscut knife crinkle cuts: 9/32 to 5/8"
Change parts required to accommodate size range.

OAD: 66"L x 55"W x 75"H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Tuck TL500P

  • Manufacturer: Delkor
  • Model Number: TL500P
  • Frain Number: R31771

Delkor Model TL500P, Flexpack, inline, stainless steel, top load, product loader with number of containers and flat blanks or trays per minute – depending on materials, application and product pack pattern. Flexible packer for nearly any product size and shape including multi-flavor and sleeved products and multi-head configurations. Equipped with 30" long flat pad magazine and has single head (3) suction cup, recipercating pic place, 92" long x 23" wide tray conveyor with filght bars set on 16" centers. 72" long x 36" wide flexlink with (4) lanes product conveyor, with dual (2) axis (12) suction cup each, pick and place product loading arms which picks from product conveyor to load the flat blank. Swing arm controller with start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty stainless steel frame with interlock safety guarding.

OAD: 400"L x 100"W x 128"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Glue ASU4WS

  • Manufacturer: Kliklock
  • Model Number: ASU4WS
  • Frain Number: R31971

Kliklock, Model ASU4WS, automatic, stainless steel, single head, tray forming hot melt glue sealing machine. Rated from 20 to 60 strokes per minute – depending on materials and application. Tray size range: 5" to 16" in Length; 4" to 10" in Width; 1" to 4" in Depth. Equipped with 18" long blank tray magazine, suction cup reciprocating pic n place, single head ram with Norden hot melt gue system, minor flap and major flap folding plows and hooded seal area with lift-up access door. Control panel has start / stop / e-stop push button controls. Mounted on heavy duty base frame.

OAD: 80"L x 60"W x 96"H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue TFM-1201

  • Manufacturer: Delkor
  • Model Number: TFM-1201
  • Frain Number: R31772

Delkor Model TFM-1201, automatic, single head, tray former. Rated up to 55 cycles per minute with number of trays – depending on materials, application and machine configuration. Tray size range: 38" maximum blank width and 30" blank length. Equipped with 40" long blank tray magazine, vacuum suction cup recipicating pick-in-place, single mechanical tray forming head, Nordson ProBlue hot melt glue system and hooded seal area with lexan lift-up interlock access safety door. Control panel has A/B controller and A/B touch pad controls, with start, stop cycle, reset, e-stop push buttons and statis light bar. Mounted on heavy duty frame.

OAD: 144" L x 75" H x 104" H

Get a Free Quote Call: 630-629-9900
