Tray Tuck Machines

Related Categories

Tray Tuck Equipment In Stock

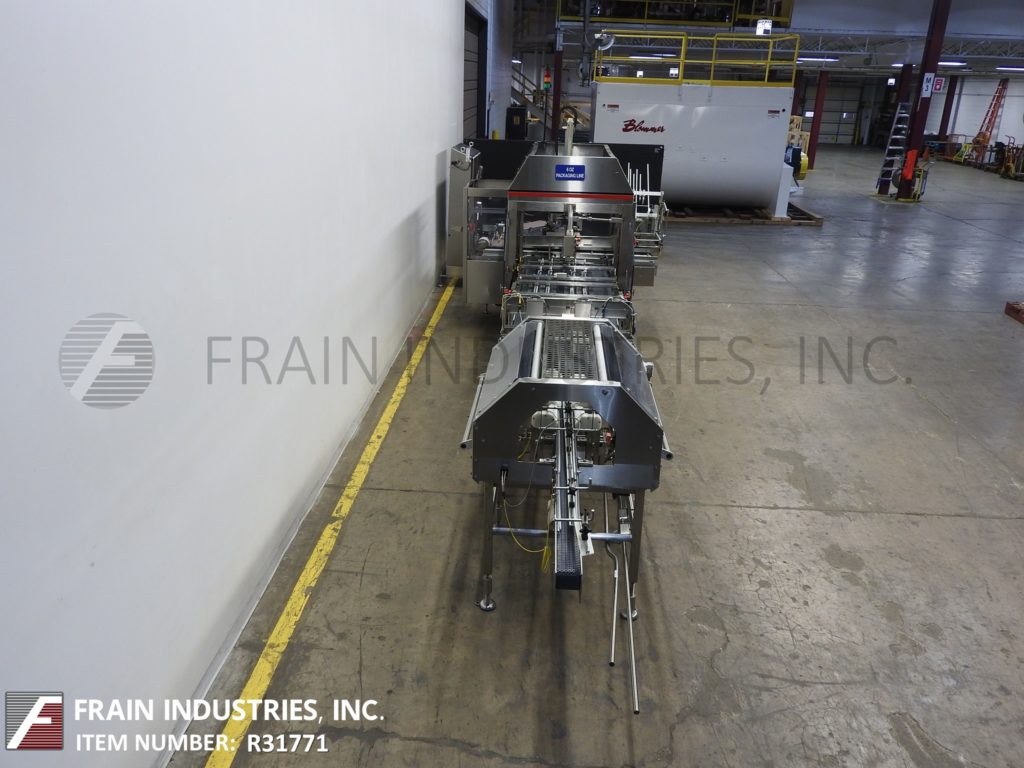

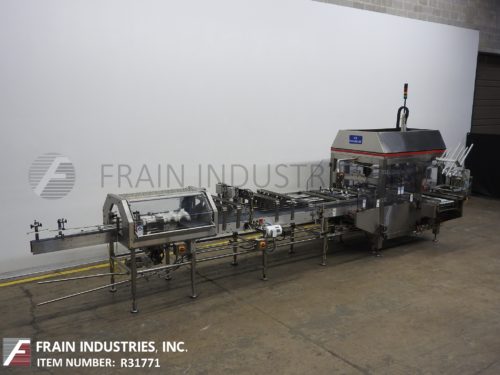

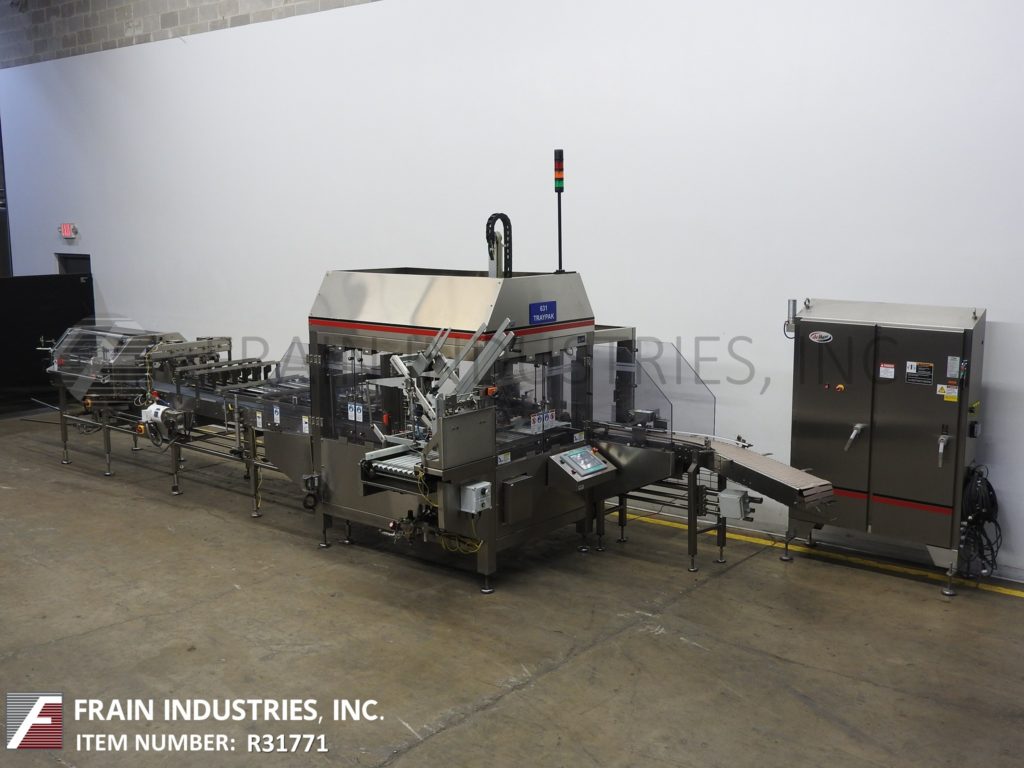

Delkor Case Set-Up, Tray Tray Tuck TL500P

  • Manufacturer: Delkor
  • Model Number: TL500P
  • Frain Number: R31771

Delkor Model TL500P, Flexpack, inline, stainless steel, top load, product loader with number of containers and flat blanks or trays per minute – depending on materials, application and product pack pattern. Flexible packer for nearly any product size and shape including multi-flavor and sleeved products and multi-head configurations. Equipped with 30" long flat pad magazine and has single head (3) suction cup, recipercating pic place, 92" long x 23" wide tray conveyor with filght bars set on 16" centers. 72" long x 36" wide flexlink with (4) lanes product conveyor, with dual (2) axis (12) suction cup each, pick and place product loading arms which picks from product conveyor to load the flat blank. Swing arm controller with start, stop, reset and e-stop push buttons with statis light bar. Mounted on heavy duty stainless steel frame with interlock safety guarding.

OAD: 400"L x 100"W x 128"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck SW4W

  • Manufacturer: Kliklock
  • Model Number: SW4W
  • Frain Number: 5H5694

Kliklok, Model SW4WS, automatic, single head tab lock tray former. Rated from 10 to 60 cycles per minute – depending on materials, application and machine configuration. Tray size range: 5" to 28" in Length; 4" to 12" in Width; 1" to 5½" in Height. Equipped with an 18" long powered blank tray magazine, (3) suction cup vacuum reciprocating pick-in-place, single mechanical tray forming head and hooded seal area with Lexan lift-up access safety door. Control panel with push button start / stop.

OAD: 75"L x 60"W x 82"H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck SW4W

  • Manufacturer: Kliklock
  • Model Number: SW4W
  • Frain Number: 5H5693

Kliklok, Model SW4WS, automatic, single head tab lock tray former. Rated from 10 to 60 cycles per minute – depending on materials, application and machine configuration. Tray size range: 5" to 28" in Length; 4" to 12" in Width; 1" to 5½" in Height. Equipped with an 18" long powered blank tray magazine, (3) suction cup vacuum reciprocating pick-in-place, single mechanical tray forming head and hooded seal area with Lexan lift-up access safety door. Control panel with push button start / stop.

OAD: 75"L x 60"W x 82"H

Get a Free Quote Call: 630-629-9900

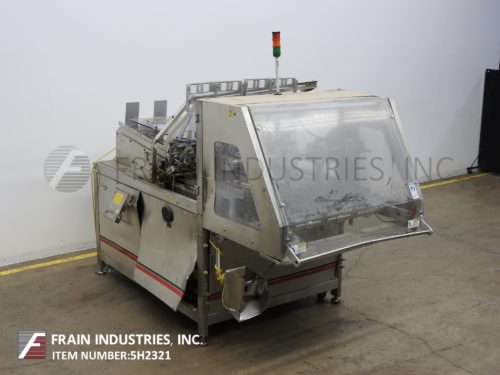

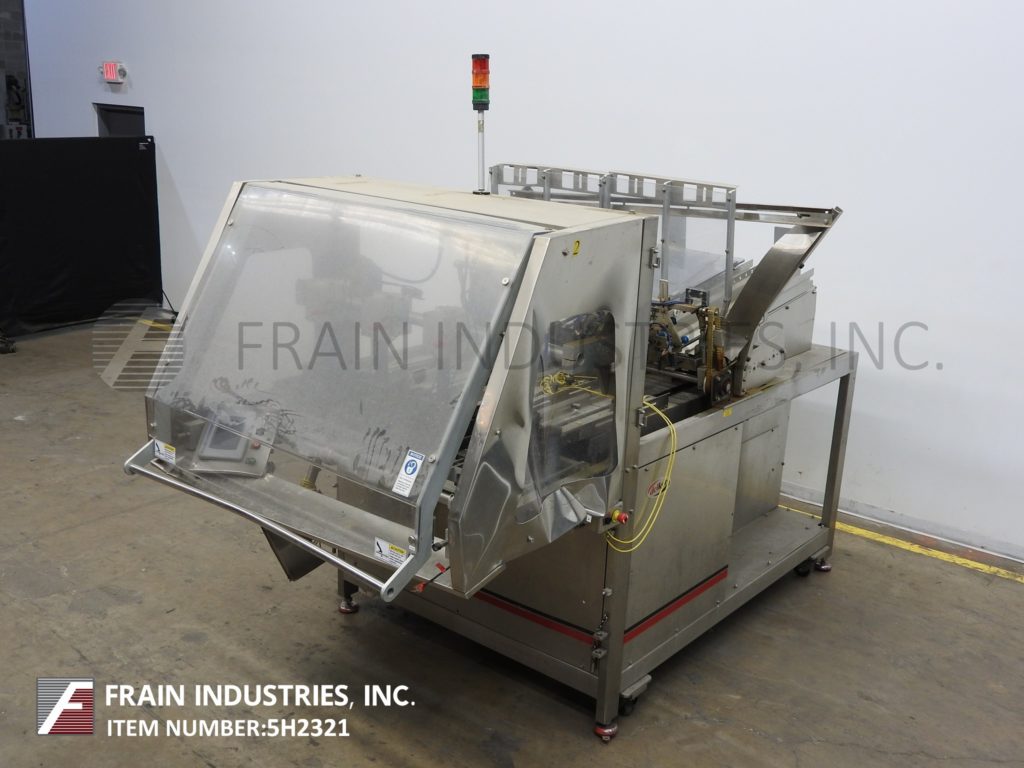

Delkor Case Set-Up, Tray Tray Tuck TF1504SS

  • Manufacturer: Delkor
  • Model Number: TF1504SS
  • Frain Number: 5H2321

Delkor, Model TF-1504SS, automatic, stainless steel, (4) head, tray former. Rated from 10 to 55 cycles per minute – depending on materials, application and machine configuration. Maximum Blank Size: 30" in Length; 50" in Width. Equipped with (4) 43" long powered blank tray magazines, (4) single suction cup vacuum recipicating pick-in-place, (4) mechanical tray forming heads and hooded seal area with lexan lift-up access safety door. Control panel with an A/B PLC, A/B PanelView Plus 700 touch screen display and push button start / stop controls. Mounted on stainless steel base frame with locking casters.

OAD: 135"L x 80"W x 90"H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Tuck 741

  • Manufacturer: Delkor
  • Model Number: 741
  • Frain Number: 5B0871

Delkor 741, Automatic, single head, tray former rated from 30 to 75 trays per minute – depending on materials and application. Blank Tray size: up to 48" in Length; up to 30" in Width. Equipped with a 48" long blank tray magazine, 2 head vacuum reciprocating pick and place, shuttle indexing system, ram plunger, tray forming station, Lexan safety guarding, and push button controls. Mounted on height adjustable legs.

OAD: 105" L x 57" W x 78" H

Get a Free Quote Call: 630-629-9900

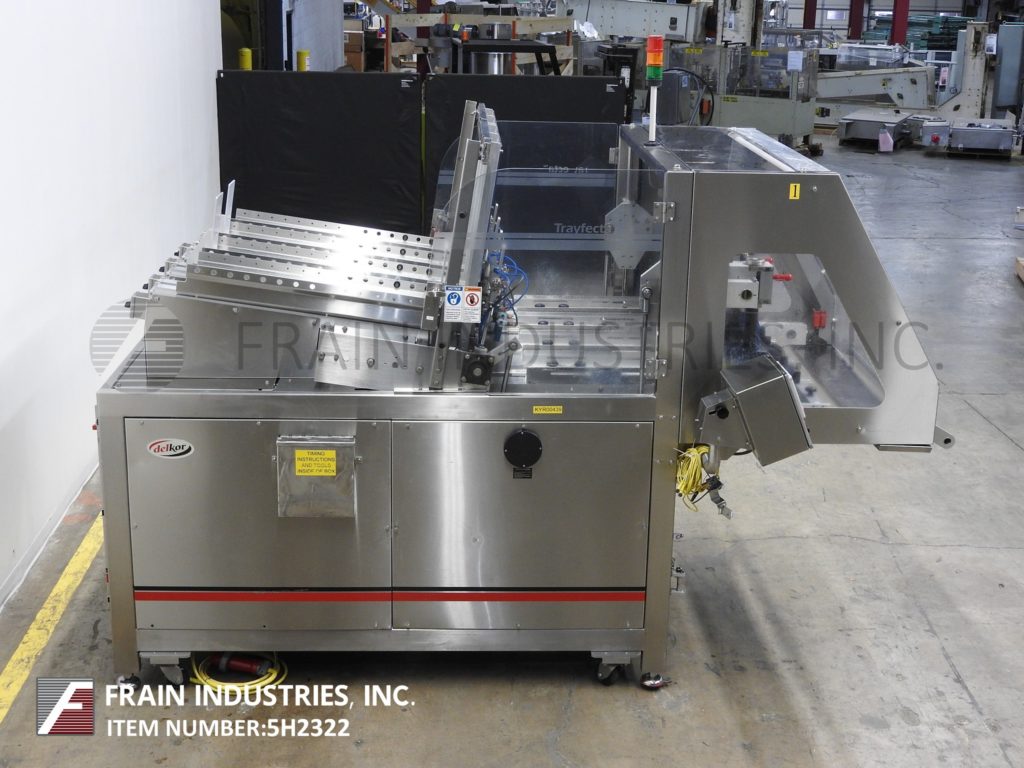

Delkor Case Set-Up, Tray Tray Tuck TF1504SS

  • Manufacturer: Delkor
  • Model Number: TF1504SS
  • Frain Number: 5H2322

Delkor, Model TF-1504SS, automatic, stainless steel, (4) head, tray former. Rated from 10 to 55 cycles per minute – depending on materials, application and machine configuration. Maximum Blank Size: 30" in Length; 50" in Width. Equipped with (4) 43" long powered blank tray magazines, (4) single suction cup vacuum recipicating pick-in-place, (4) mechanical tray forming heads and hooded seal area with lexan lift-up access safety door. Control panel with an A/B PLC, A/B PanelView Plus 700 touch screen display and push button start / stop controls. Mounted on stainless steel base frame with locking casters.

OAD: 135"L x 80"W x 90"H

Get a Free Quote Call: 630-629-9900

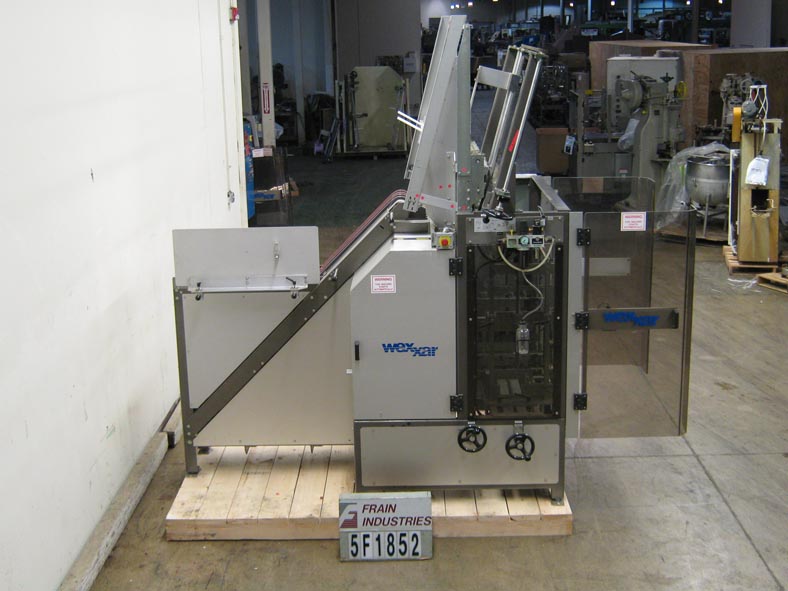

Wexxar Case Set-Up, Tray Tray Tuck ATL

  • Manufacturer: Wexxar
  • Model Number: ATL
  • Frain Number: 5F1852

Automatic, self locking tray. Tray size: 11" to 24" in Length; 8" to 20.5" in Width; 2" to 5" in Height. Equipped with extended frame tray magazine, top tray stop, two suction cup vacuum reciprocating pick and place, bottom tray stop, mandrel ram, minor flap folding plows, major flap plows, minor flap folders, A/B PLC, A/B Panel View, and interlock Lexan safety guarding. Additionally features servo drive and optional quick change adjustments. Speed dependant on materials, application and machine configuration.

OAD: 96" L x 72" W x 112" H

Get a Free Quote Call: 630-629-9900

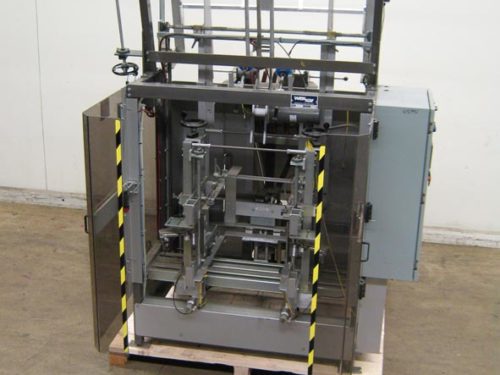

Wexxar Case Set-Up, Tray Tray Tuck ATL

  • Manufacturer: Wexxar
  • Model Number: ATL
  • Frain Number: 5F1851

Automatic, self locking tray. Tray size: 11" to 24" in Length; 8" to 20.5" in Width; 2" to 5" in Height. Equipped with extended frame tray magazine, top tray stop, two suction cup vacuum reciprocating pick and place, bottom tray stop, mandrel ram, minor flap folding plows, major flap plows, minor flap folders, A/B PLC, A/B Panel View, and interlock Lexan safety guarding. Additionally features servo drive and optional quick change adjustments. Speed dependant on materials, application and machine configuration.

OAD: 96" L x 72" W x 112" H

Get a Free Quote Call: 630-629-9900

Wexxar Case Set-Up, Tray Tray Tuck ATL

  • Manufacturer: Wexxar
  • Model Number: ATL
  • Frain Number: 5F1850

Automatic, self locking tray former. Tray size: 11" to 24" in Length; 8" to 20.5" in Width; 2" to 5" in Height. Equipped with extended frame tray magazine, top tray stop, two suction cup vacuum reciprocating pick and place, bottom tray stop, mandrel ram, minor flap folding plows, major flap plows, minor flap folders, A/B PLC, A/B Panel View, and interlock Lexan safety guarding. Additionally features servo drive and optional quick change adjustments. Speed dependant on materials, application and machine configuration.

OAD: 96" L x 72" W x 112" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Tuck 742

  • Manufacturer: Delkor
  • Model Number: 742
  • Frain Number: 5H1047

Delkor, Model 742, automatic, dual head, tray former. Rated from 60 to 150 trays per minute – depending on materials, application and machine configuration. Blank Tray size: up to 22" in Length; up to 30" in Width. Equipped with (2) 24" long blank tray magazines, dual (3) suction cup reciprocating pick and place, shuttle indexing system, ram plunger, tray forming station, Lexan safety guarding, and push button controls. Mounted on (4) leg base frame.

OAD: 105" L x 57" W x 78" H

Get a Free Quote Call: 630-629-9900

Kliklock Case Set-Up, Tray Tray Tuck GF

  • Manufacturer: Kliklock
  • Model Number: GF
  • Frain Number: 5H0209

Kliklock Model Genesis GF, automatic, stainless steel, dual head, tray former. Rated from 30 to 60 strokes per minute each head with number of trays – depending on materials and application. Tray size range: 5" to 16¾" in Length; 4" to 10" in Width; 7/8" to 4" in Depth with proper change parts. Equipped with dual 48" long x 11½" wide (4) eagle belt automatic blank tray magazines, suction cup reciprocating pic n place, dual head ram with minor flap and major flap folding plows, Lexon hooded seal area with lift-up access door, 64" long lugged chain tray transfer conveyor set on 21" centers thru machine and 336" long stainless steel tray transfer conveyors from the machine. Control panel has jog, manual, run, forward, reverse, vacuum feed, carton per minute switches and start, jog, stop and e-stop push button controls. Mounted on heavy duty stainless steel base frame with casters and height adjustable legs.

OAD: 400" L x 80" W x 90" H

Get a Free Quote Call: 630-629-9900

Doboy Case Set-Up, Tray Tray Tuck 7510

  • Manufacturer: Doboy
  • Model Number: 7510
  • Frain Number: 5H0080

Doboy, Model 7510, automatic, single head, tuck tray former. Rated from 10 to 50 trays per minute – depending on materials, application and machine configuration. Tray size range: 4" to 24" in Length; 3" to 17" in Width; 1" to 6" in Height. Equipped with 35" long adjustable blank tray magazine, (2) suction cup recipicating pick-in-place, single arm tray shuttle and single ram arm tray forming head, hooded seal area with lexan lift-up access door, 15" wide x 110" long Intralox belt take away conveyor, fixed arm touch pad controls and statis light bar. Mounted on base frame with height adjustable legs.

OAD: 214"L x 58"W x 94"H (With Conveyor)
114"L x 58"W x 94"H (W/O Conveyor)

Get a Free Quote Call: 630-629-9900
