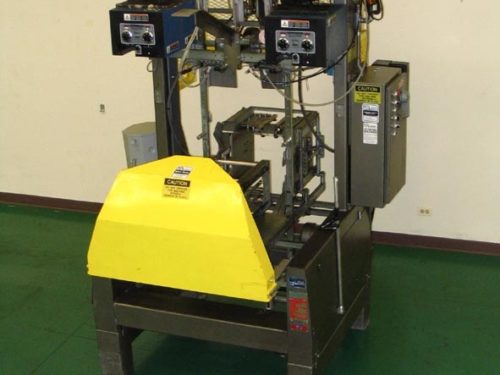

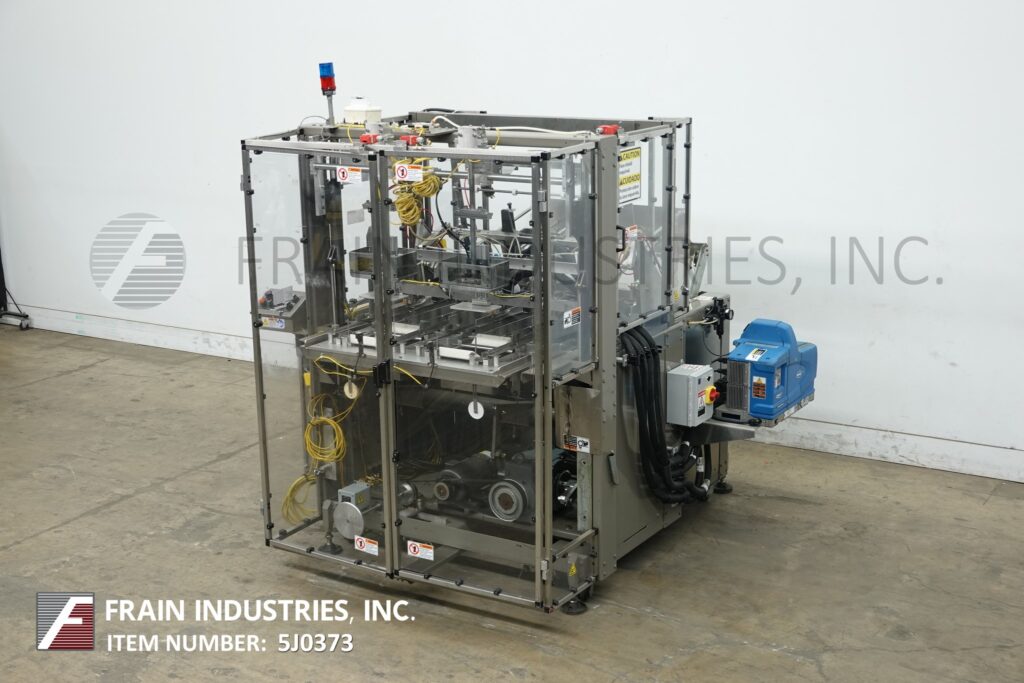

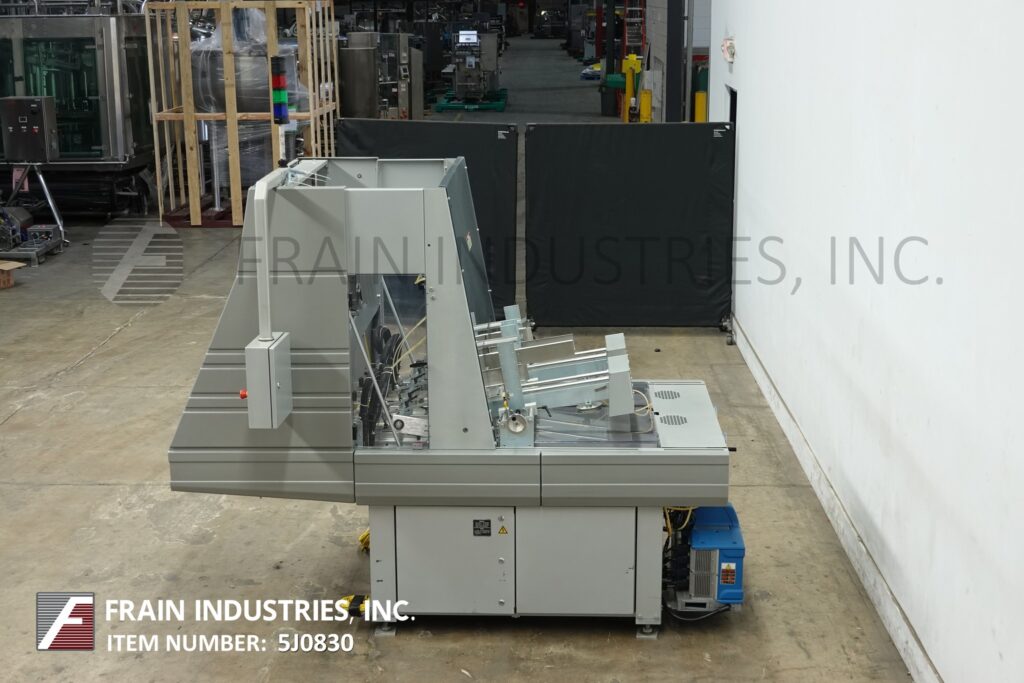

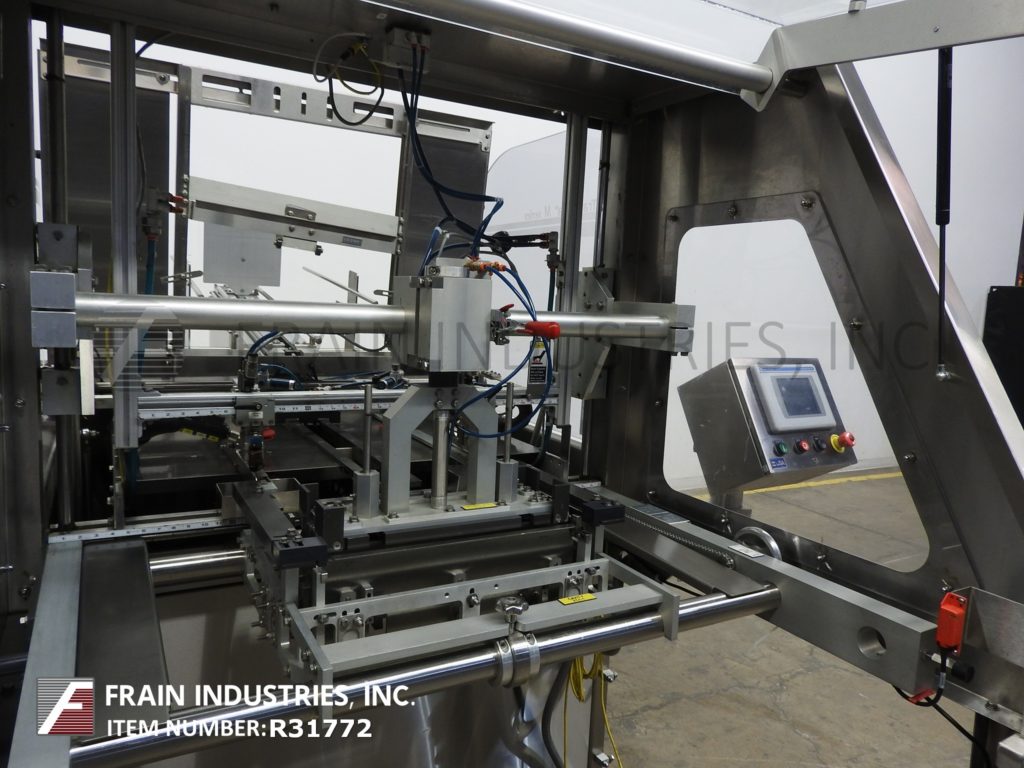

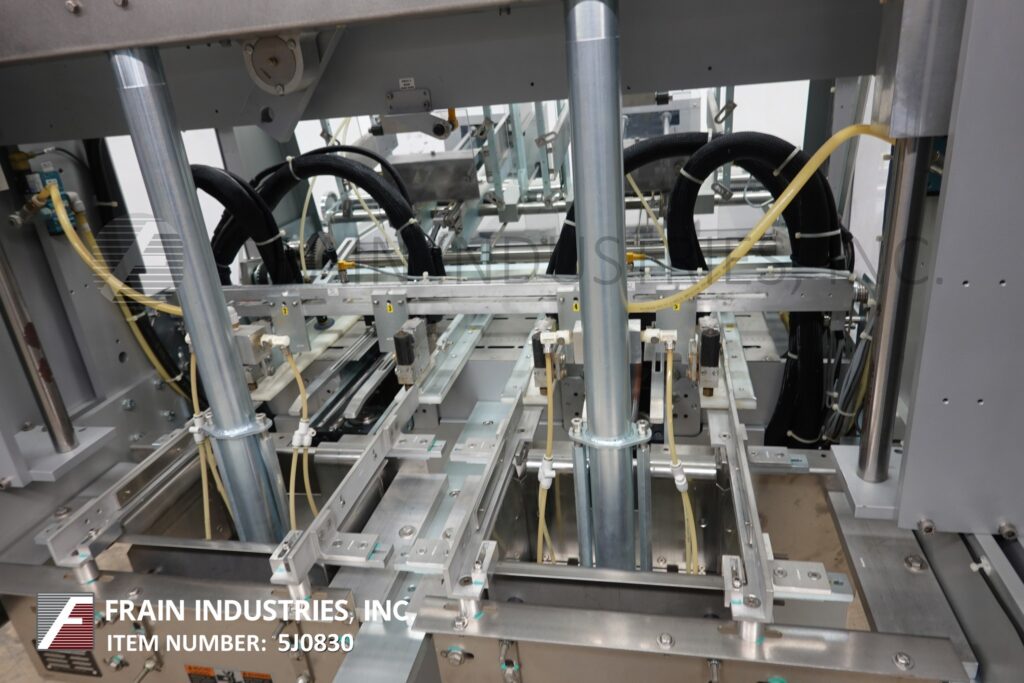

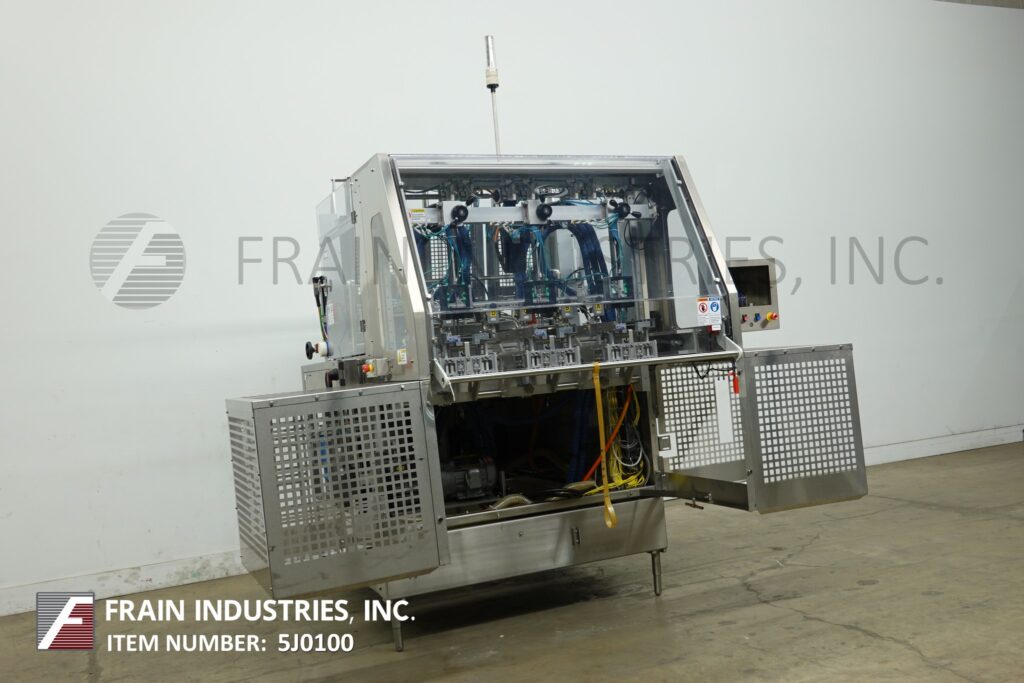

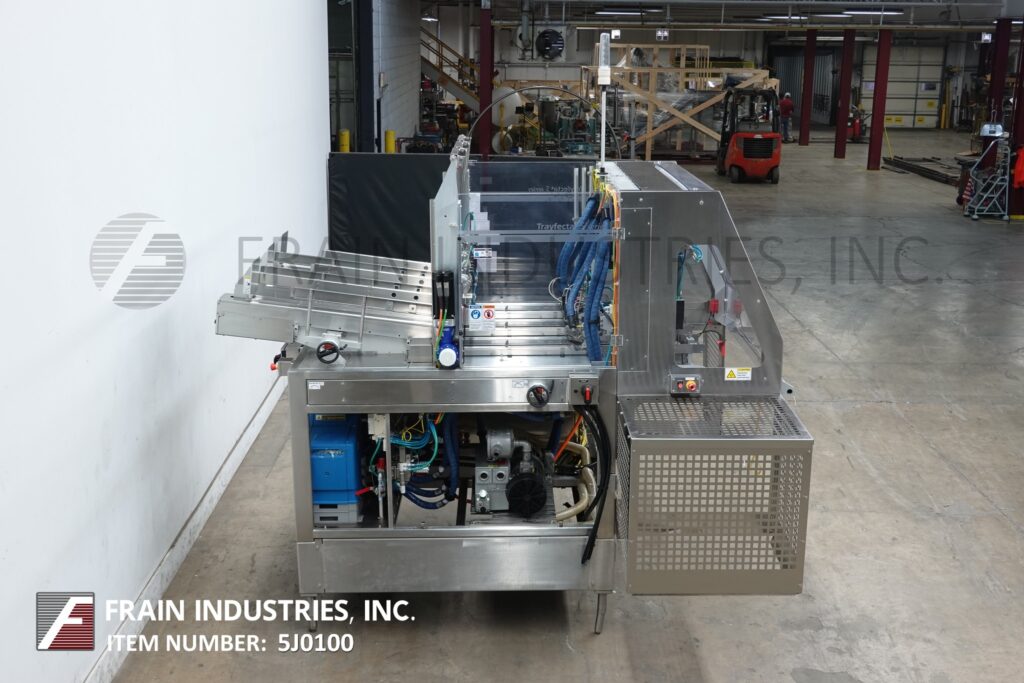

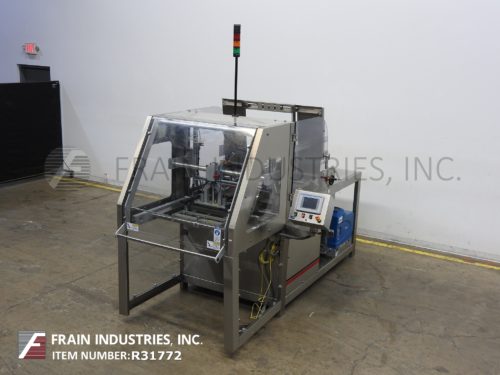

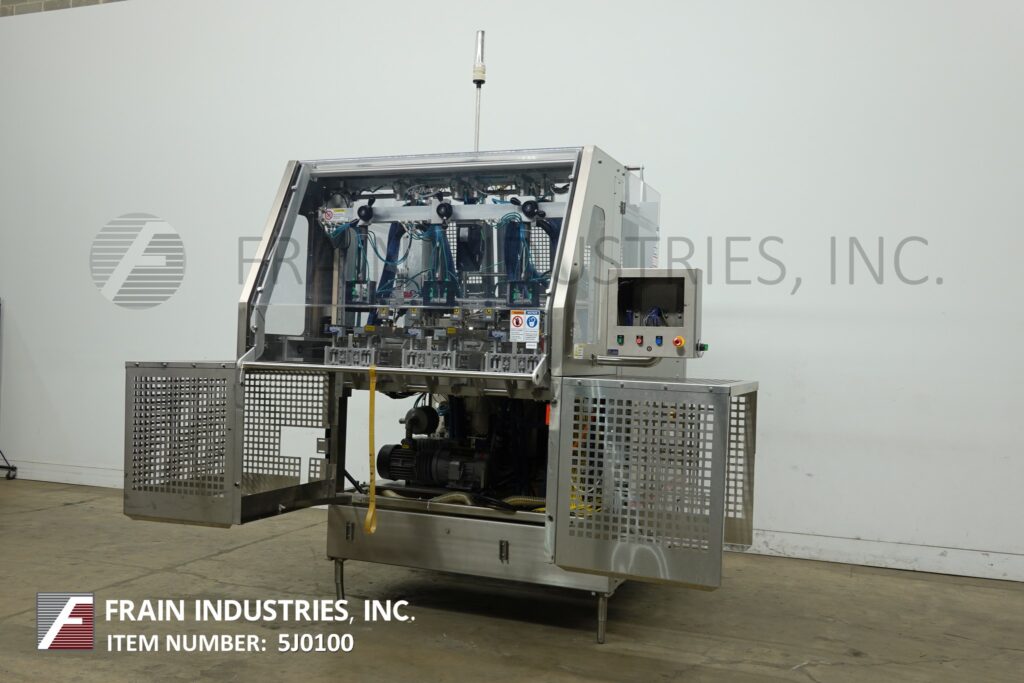

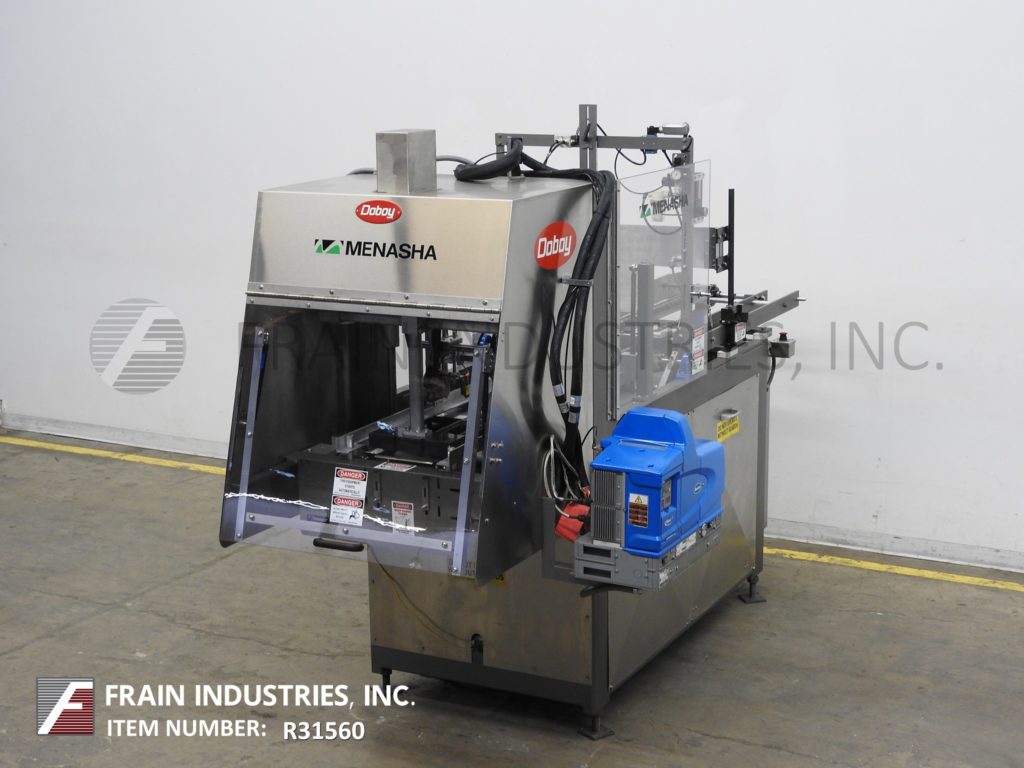

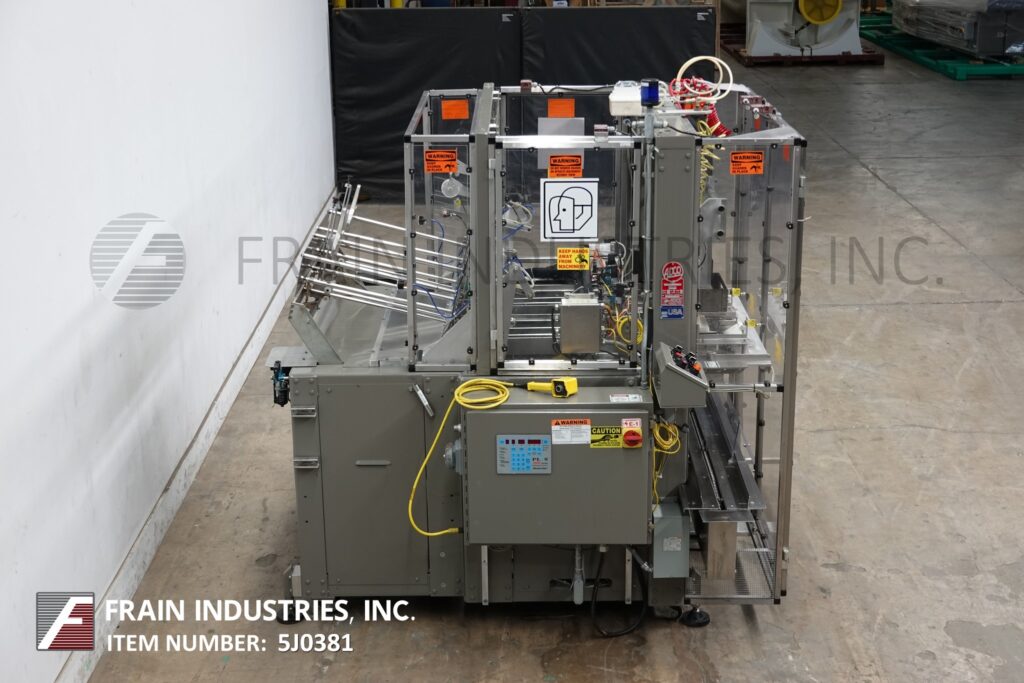

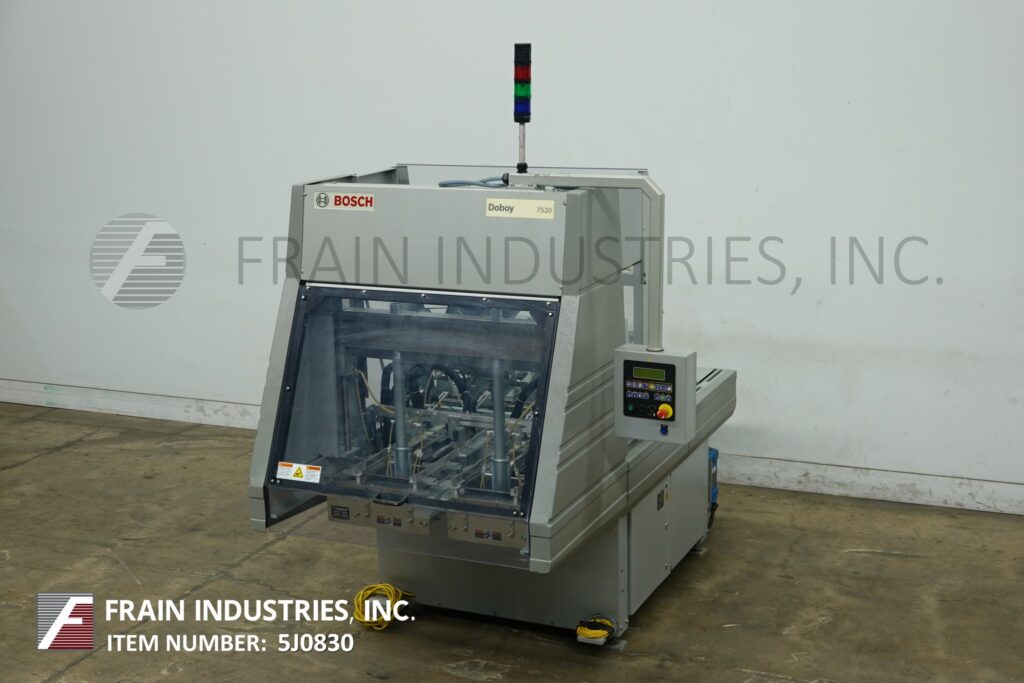

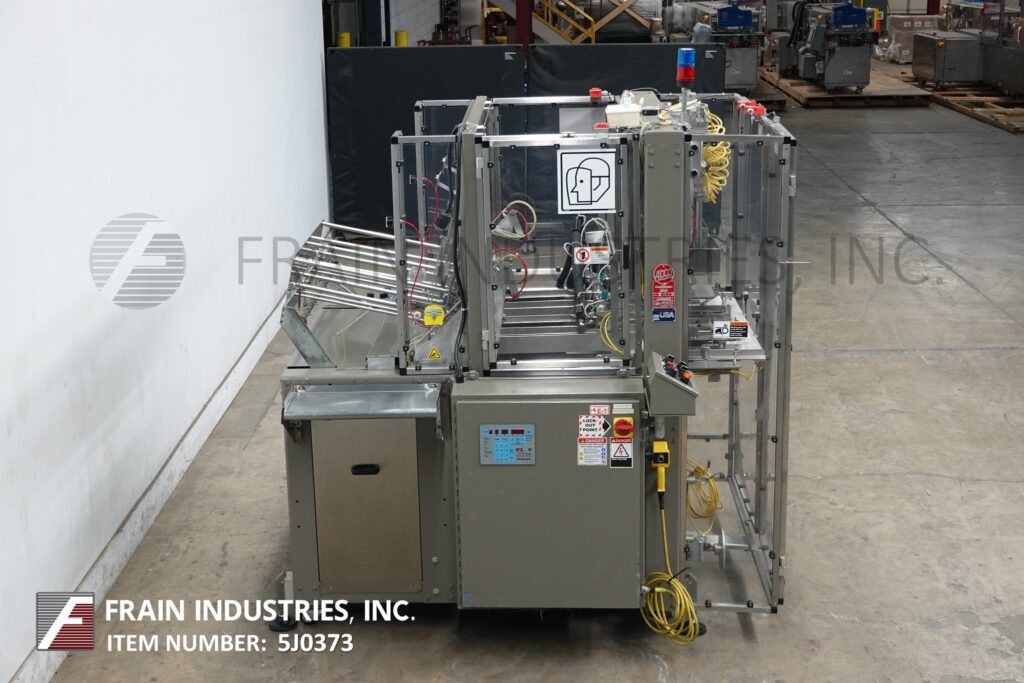

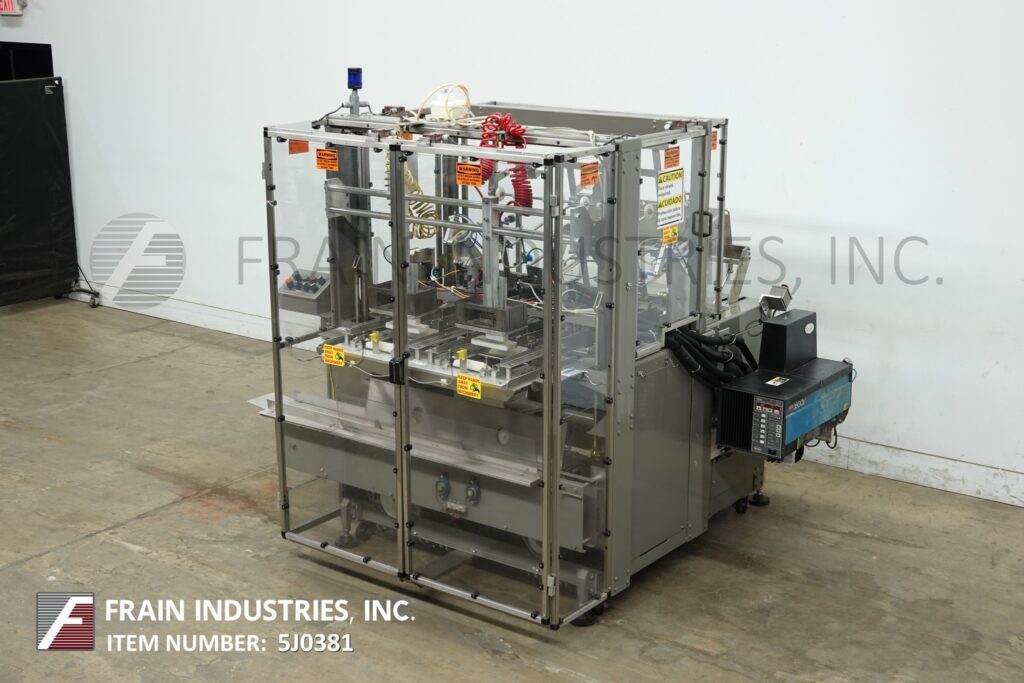

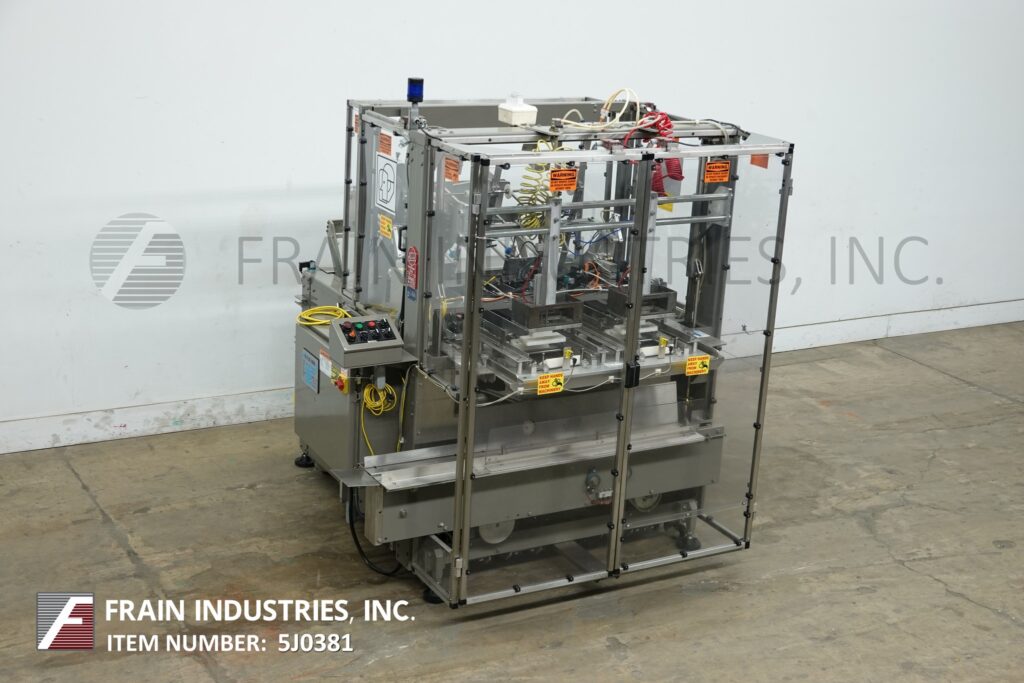

Case set-up tray glue machines, or glue tray formers are designed to form trays from flat pre-scored containerboard blanks and to use glue to seal the flaps of the tray. During the process of forming a tray in a tray former, glue is applied to the flaps of the tray. As the tray is formed through the operations of the tray former, the glue is compressed into other portions of the trays to allow the glue to set, and form the tray. Glue tray formers can make a number of different tray designs.

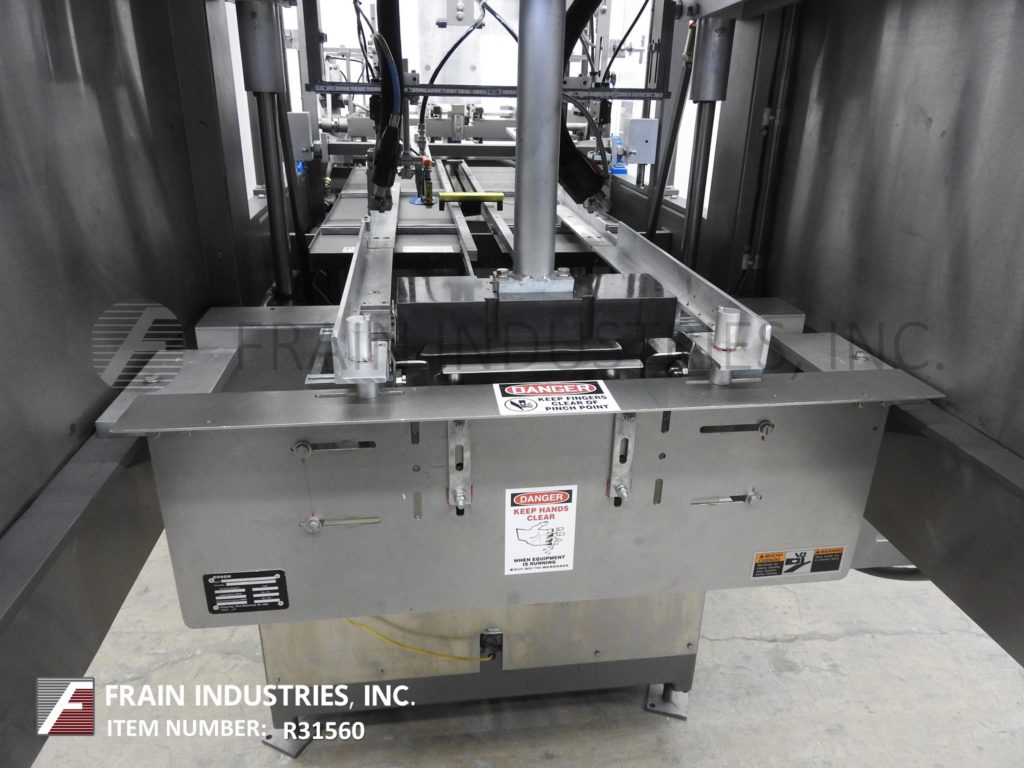

The most common tray type formed by glue tray formers are known as standard or common trays. A common tray is usually formed by a male forming head pushing a tray blank though female tray tooling. As the tray blank passes through the female tooling, glue is applied to the tray flaps and the flaps are folded and compressed against other portions of the tray. The tray remains in the female tooling for one machine cycle to allow the glue to set.

Hooded trays can also be made by glue tray formers. Hooded trays are also known as hooded cartons. A glue tray former forms a hooded tray by placing a tray blank between male and female tray forming tooling. Hooded trays or hooded cartons have a solid formed bottom that resembles a tray that is sealed with either glue or tuck flaps. The hooded tray also has a top flap to close the top of the tray. The top flap or hood flap has a smaller flap which can be glue sealed to the outside of the bottom form of the hooded tray or tucked inside the front of the bottom form. As the male tooling pushes the blank through the female tooling, the base of the hooded tray is formed. Glue is applied to the hooded tray base flaps prior to pushing the blank through the tooling and blank passing through the tooling causes the glued flaps to be closed. The hooded tray will remain in the female tooling for one cycle of the glue tray former to allow the glue to adhere the flaps together properly. For hooded trays, additional processing is required to close and seal the hooded top flap of the hooded tray after the tray is loaded. (See Cartoner Semi / Triseal for more information.)

Contact Us

Related Categories

Tray Glue Equipment In Stock

Woodman Case Set-Up, Tray Tray Glue ECT625HS

  • Manufacturer: Woodman
  • Model Number: ECT625HS
  • Frain Number: R30680

Woodman, Model ECT625-HS, automatic, intermittent motion, single head tray former. Rated from 10 to 75 trays per minute – depending on materials, application and machine configuration. Tray size range: 4" to 17¾" in length; 2¾" to 12" in Width; 1½" to 5" in Depth. Equipped with 28” long blank tray magazine, (4) station rotary vacuum pick and place forming system, Nordson hot melt glue system and 12" wide x 60" long Dorner discharge conveyor. Control panel with AB controller with AB touch screen HMI and push button start / stop. interlock safety guarding and ststis light bar. Mounted on multi height adjustable leg base frame.

OAD: 105"L x 74"W x 90"H

Get a Free Quote Call: 630-629-9900

Hartness Case Set-Up, Tray Tray Glue TF50

  • Manufacturer: Hartness
  • Model Number: TF50
  • Frain Number: 5F4161

Hartness Model TF50, automatic, hot glue, tray former rated from 5 to 20 trays per minute – depending on materials and application. Knock Down Tray Size: up to 24" in Length; up to 18" in Width. Equipped with a 48" deep tray magazine, three tray lift cylinders, two suction cup reciprocating vacuum pick and place, pneumatic ram, 36" long transfer section, hot melt glue system with four glue guns, ram forming mandrel, adjustable plows, compression discharge section, A/B PLC, Push button control panel with visual display, and Lexan safety guarding. Mounted on height adjustable legs.

OAD: 84" L x 48" W x 88" H

Get a Free Quote Call: 630-629-9900

Hartness Case Set-Up, Tray Tray Glue TF50

  • Manufacturer: Hartness
  • Model Number: TF50
  • Frain Number: 5F4160

Hartness Model TF50, hot glue, tray former rated from 5 to 20 trays per minute – depending on materials and application. Knock Down Tray Size: up to 24" in Length; up to 18" in Width. Equipped with a 48" deep tray magazine, three tray lift cylinders, two suction cup reciprocating vacuum pick and place, pneumatic ram, 36" long transfer section, hot melt glue system with four glue guns, ram forming mandrel, adjustable plows, compression discharge section, A/B PLC, Push button control panel with visual display, and Lexan safety guarding. Mounted on height adjustable legs.

OAD: 84" L x 48" W x 88" H

Get a Free Quote Call: 630-629-9900

SWF Case Set-Up, Tray Tray Glue 1T6/6TH CORNER

  • Manufacturer: SWF
  • Model Number: 1T6/6TH CORNER
  • Frain Number: 5F0940

SWF Model 1T6, automatic 6th corner tray former, rated up to 58 trays per minute – depending on materials and application. Tray size range: 7" to 44" in Length; 8-1/8" to 26" in Width; 1" to 12" in Height. flat blank size: 48" long x 43" wide. Equipped with blank tray magazine, recipicating pick- n – place, dual friction feed wheels, diving four corner tray forming head and 6th corner forming section with 48" long 2 chain lugged feed conveoyor. Features: PLC controller, vacuum pump, hot melt glue system with pattern controller and grid style safety guarding.

OAD: 128" L x 78" W x 83" H Togeather
70" L x 78" W x 83" H Tray Former
58" L x 54" W x 30" H 6th Corner Former

Get a Free Quote Call: 630-629-9900

SWF Case Set-Up, Tray Tray Glue 1T4

  • Manufacturer: SWF
  • Model Number: 1T4
  • Frain Number: 5E4550

SWF Model 1T4, automatic, tray former, H/M glue, capable of speeds 10 to 40 trays @ min depending on application. Tray size range of: 7" – 34" L x 8-1/2" – 22" W x 1" -12" H, and a knockdown size range: 10-1/2" – 37-7/8" L x, 12" – 36"W, has a 60" L blank case magazine, with 6 suction cup recipicating vacuum pick- n – place, dual friction blank feed wheels, Nordson 2 gun H/M glue system with Eclipse Pattern Controller, vacuum pump, status light bar, and grid style safety guarding.

OAD: 89" L x 70" W x 103" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue 751

  • Manufacturer: Delkor
  • Model Number: 751
  • Frain Number: 5E3641

Automatic, single head, tray former, capable of speeds up to 75 tpm depending on application. Tray size range of: 12" – 36" L x 6" – 26" W x 1/2" – 5" H, and can handle flat blanks from 6" – 24" W x 15" – 30" H. Has a powered blank tray magazine, with (2) suction cup, vacuum, recipicating pick-in-place, single mechanical tray forming head, Nordson Model V, (2) gun H/M glue system, control panel, has on / off switch, push button jog, reverse, controls, with e-stop, and hooded seal area, with a lexan lift-up access door. Speed dependant on materials, application and machine configuration.

OAD: 113" L x 80" W x 94" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue 751

  • Manufacturer: Delkor
  • Model Number: 751
  • Frain Number: 5E3640

Automatic, single head, tray former, capable of speeds up to 75 tpm depending on application. Tray size range of: 12" – 36" L x 6" – 26" W x 1/2" – 5" H, and can handle flat blanks from 6" – 24" W x 15" – 30" H. Has a powered blank tray magazine, with (2) suction cup, vacuum, recipicating pick-in-place, single mechanical tray forming head, Nordson (2) gun H/M glue system, control panel, has on / off switch, push button jog, reverse, controls, with e-stop, and hooded seal area, with a lexan lift-up access door.

OAD: 113" L x 80" W x 94" H

Get a Free Quote Call: 630-629-9900

Adco Case Set-Up, Tray Tray Glue CTF-470V

  • Manufacturer: Adco
  • Model Number: CTF-470V
  • Frain Number: R28726

Adco Model CTF-470V, automatic, stainless steel, single head, hot melt glue, tray former, rated from 10 to 50 cycles per minute – depending on materials and application. Tray size range: 8-1/4" to 25-3/4" in Length; 7" to 18" in Width; 1-1/2" to 8" in Height. Flat blank size range: 16-1/4" to 36" in Length; 15" to 26" in Width. Equipped with 108" long (2) chain, and belt automatic blank tray magazine, (4) suction cup reciprocating vacuum pic-n-place, dual belt blank tray assist, adjustable stroke single arm forming mandrel, Nordson ProBlue hot melt glue unit, Seko gauges, servo VFD drives, ethernet capable and vacuum system. Control panel has A/B PLC, with A/B panel view touch pad controller and start, reset, stop, e-stop push button controls, (4) color statis light and interlock safety guarding. Mounted on stainless steel base frame with (6) height adjustable leveling legs.

OAD: 153" L x 64" W x 102" H

Get a Free Quote Call: 630-629-9900

Adco Case Set-Up, Tray Tray Glue CTF-470V

  • Manufacturer: Adco
  • Model Number: CTF-470V
  • Frain Number: R28860

Adco Model CTF-470V, compact, automatic, stainless steel, single head, hot melt glue, tray former, rated from 10 to 50 cycles per minute with number of tray – depending on materials and application. Tray size range: 8-1/4" to 25-3/4" in Length; 7" to 18" in Width; 1-1/2" to 8" in Height. Flat blank size range: 16-1/4" to 36" in Length; 15" to 26" in Width. Equipped with 60" long (2) chain, automatic blank tray magazine, reciprocating (4) suction cup vacuum pic-n-place, dual belt blank tray assist, single arm forming mandrel, with adjustable stroke, Nordson ProBlue hot melt glue unit and vacuum systems. Control panel has A/B PLC, with A/B touch pad controller and panel view with start, reset, stop, e-stop push button controls, (4) color statis light and interlock safety doors. Mounted on stainless steel base frame with locking casters and (4) height adjustable leveling legs.

OAD: 100" L x 60" W x 93" H

Get a Free Quote Call: 630-629-9900

SWF Case Set-Up, Tray Tray Glue BF400V

  • Manufacturer: SWF
  • Model Number: BF400V
  • Frain Number: 5H1771

SWF, Model BF400V, automatic, 3-piece bliss case former and hot melt glue sealer. Rated from 12 to 35 cases per minute – depending on material, application and machine configuration. Bliss case size range: 9¼" to 32½" in Length; 9" to 18" in Width; 4" to 16" in Height. Equipped with 24" long top blank magazine and (2) 48" long side blank magazines, (6) suction cup vacuum pic n place, single friction feed wheel, Nordson hot melt glue unit with pattern control and vacuum system. Control panel has A/B controller with Panel View 300 touch pad display, run / jog, manual / auto and vacuum on / off switches, start / e-stop buttons and cage style safety guarding. Mounted on heavy duty base frame.

OAD: 75"L x 105"W x 116"H

*Sixth Corner Attachment Available For Additional Cost.

Get a Free Quote Call: 630-629-9900

Southern Packaging Case Set-Up, Tray Tray Glue TE 700 VF S

Southern Packaging Model TE700VFS, stainless steel, intermittent motion, tray former capable of speeds from 4 to 42 trays per minute – depending on materials and application. Minimum / Maximum tray size: 15" to 42" in Length; 12" to 38" in Width; 2" to 6" in Depth. Equipped with 37-1/2" Long x 37-1/2" Wide flat blank magazine with (4) suction cup recipcating pic-n-place and multi wheel feeding system, diving (4) corner 20" wide x 23-1/2" single air ram tray forming head, 70" Long (2) chain lugged transfer conveyor set on 25" centers Nordson (4) gun H/M glue system, with compression section. Control panel has A/B controller, with on / off, jog, run, glue, vacuum, ram head and,e-stop, controls, with interlocking safety guarding. Mounted on heavy duty base frame.

OAD: 160" L x 70" W x 86" H

Get a Free Quote Call: 630-629-9900

Delkor Case Set-Up, Tray Tray Glue 752

  • Manufacturer: Delkor
  • Model Number: 752
  • Frain Number: 5B9692

Delkor 752, Automatic, dual head, tray former rated from 60 to 150 trays per minute – depending on materials and application. Blank Tray size: up to 22" in Length; up to 30" in Width. Equipped with two 24" long blank tray magazine, two 2 head vacuum reciprocating pick and places, two shuttle indexing systems, two ram plungers, two tray forming stations, Nordson hot melt glue system, Lexan safety guarding, and push button controls. Mounted on height adjustable legs.

OAD: 106"L x 63"W x 81"H

Get a Free Quote Call: 630-629-9900
