Case set-up tray glue machines, or glue tray formers are designed to form trays from flat pre-scored containerboard blanks and to use glue to seal the flaps of the tray. During the process of forming a tray in a tray former, glue is applied to the flaps of the tray. As the tray is formed through the operations of the tray former, the glue is compressed into other portions of the trays to allow the glue to set, and form the tray. Glue tray formers can make a number of different tray designs.

The most common tray type formed by glue tray formers are known as standard or common trays. A common tray is usually formed by a male forming head pushing a tray blank though female tray tooling. As the tray blank passes through the female tooling, glue is applied to the tray flaps and the flaps are folded and compressed against other portions of the tray. The tray remains in the female tooling for one machine cycle to allow the glue to set.

Hooded trays can also be made by glue tray formers. Hooded trays are also known as hooded cartons. A glue tray former forms a hooded tray by placing a tray blank between male and female tray forming tooling. Hooded trays or hooded cartons have a solid formed bottom that resembles a tray that is sealed with either glue or tuck flaps. The hooded tray also has a top flap to close the top of the tray. The top flap or hood flap has a smaller flap which can be glue sealed to the outside of the bottom form of the hooded tray or tucked inside the front of the bottom form. As the male tooling pushes the blank through the female tooling, the base of the hooded tray is formed. Glue is applied to the hooded tray base flaps prior to pushing the blank through the tooling and blank passing through the tooling causes the glued flaps to be closed. The hooded tray will remain in the female tooling for one cycle of the glue tray former to allow the glue to adhere the flaps together properly. For hooded trays, additional processing is required to close and seal the hooded top flap of the hooded tray after the tray is loaded. (See Cartoner Semi / Triseal for more information.)

Contact Us

Related Categories

Tray Glue Equipment In Stock

MGS Case Set-Up, Tray Tray Glue CFG100

  • Manufacturer: MGS
  • Model Number: CFG100
  • Frain Number: 5D7541

Fully automatic, all stainless steel, hot melt glue, tray/carton former capable of speeds from 10 to 40 cpm (depending on size, shape and materials). Has tray/cartons size range of: (6" – 16 1/2"L) x (3 1/2" – 17""W) x (3/4" – 3 1/2" D), blank size of (5" -18 1/2"L) x (7 1/2" – 18"W). Change parts required for size range. 26"L Blank magazine with gravity pusher plate, 4-cup dual arm reciprocating mechanical pick-n-place, pneumatic tray forming head, low-force roller forming cavity, Nordson glue system, E-stop, status indicator lights, quick change forming head tooling, low blank sensor, barrier guarding with interlocks, 70" long x 12" wide discharge conveyor.

OAD: 80"L x 59"W x 76"H

Get a Free Quote Call: 630-629-9900

Econocorp Case Set-Up, Tray Tray Glue 5777

  • Manufacturer: Econocorp
  • Model Number: 5777
  • Frain Number: 5G9842

Econocorp, Model 5777, automatic, single head hot melt glue, tray former. Rated from 5 to 20 trays per minute – depending on materials, application and machine configuration. Tray size range: 8" to 15" in Length; 6" to 12" in Width; 1" to 5" in Height. Equipped with blank tray magazine, (4) suction cup, vacuum, recipicating pick-in-place, single pneumatic tray forming ram head and Nordson hot melt glue system. Control panel has push button start / stop / jog / reset, on / off switch and manual / auto switch. Mounted on (4) leg base frame.

OAD: 80"L x 67"W x 104"H

Get a Free Quote Call: 630-629-9900

Doboy Case Set-Up, Tray Tray Glue 751 B11

  • Manufacturer: Doboy
  • Model Number: 751 B11
  • Frain Number: 5H0449

Doboy, Model 751, automatic, single head, tray former. Tray size range: 4" to 40" in Length; 3" to 17" in Width; 1" to 6" in Height. Equipped with 36" long powered blank tray magazine, (3) suction cup vacuum reciprocating pick-in-place, single mechanical tray forming head, Nordson (2) gun hot melt glue system and hooded seal area with Lexan lift-up access safety door. Control panel with AB PLC, touch pad controller, manual / auto switch, vacuum on / off switch, push button forward / stop and E-stop. Mounted on heavy duty base frame. Speed dependant on materials, application and machine configuration.

OAD: 120"L x 85"W x 90"H

Get a Free Quote Call: 630-629-9900

Douglas Machine Inc Case Set-Up, Tray Tray Glue FLIGHTED TRAY FORMER

Douglas, Model Flighted Case Former, automatic, intermittent motion, case former and hot melt glue sealer. Rated from 5 to 30 cases per minute – depending on materials, application and machine configuration. Case size range: 5" to 13" in Length; 12" to 18" in Width; 4" to 8" in Height. Equipped with (4) chain lugged system set on 18" centers with 3" wide x 4" high lugs, 45" long powered blank case magazine, reciprocating (4) suction cup pick and place, flap plows and closers, Nordson hot melt glue system, side compression discharge. Control panel has A/B PLC with A/B PanelView touch screen controller and interlocking safety guarding. Mounted on heavy duty base frame.

OAD: 196" L x 80" W x 81" H

Get a Free Quote Call: 630-629-9900

Wepackit Machinery Case Set-Up, Tray Tray Glue 300TF

Wepackit Model TF300, automatic, single head, tray former, rated from 5 to 30 trays per minute – depending on materials, application and machine configuration. Size range (Blank tray): 8" to 20" in Length; 8" to 20" in Width. Equipped with 24" long x 24" wide blank tray magazine, (4) suction cup vacuum recipicating pick-in-place, single mechanical tray forming head, Nordson (2) gun hot melt glue system, lexan sliding safety doors start / stop and e-stop controls. Mounted on heavy duty base frame with casters.

OAD: 87" L x 57" W x 79" H

Get a Free Quote Call: 630-629-9900

Cama Group USA Case Set-Up, Tray Tray Glue IF297

Cama, Model IF297, stainless steel, hooded tray former, robotic loader and tri-sealer, with number of trays and product per minute – depending on materials, application, pack pattern and robotic stroke. Product and case size range per application Equipped with blank tray magazine, (4) suction cup pic n place, single ram tray forming head, with hot melt glue system, 150" long lugged tray conveyor set on 14" centers, 84" long product conveyor with (8) 6" long x 3-1/2" wide x 8" deep fixed product pockets, single head, 2-axis robotic product pic n place loading arm, 90" long transfer conveyor thru the hot melt tri-sealing glue system. Control panel has A/B controller with Panelview and touch screen interface, Seko gauges and interlock micro switch safety guarding. Mounted on (12) leg height adjustable base frame.

OAD: 337" L x 96" W x 110" H

Get a Free Quote Call: 630-629-9900

Adco Case Set-Up, Tray Tray Glue AFCX307EC

  • Manufacturer: Adco
  • Model Number: AFCX307EC
  • Frain Number: 5G7020

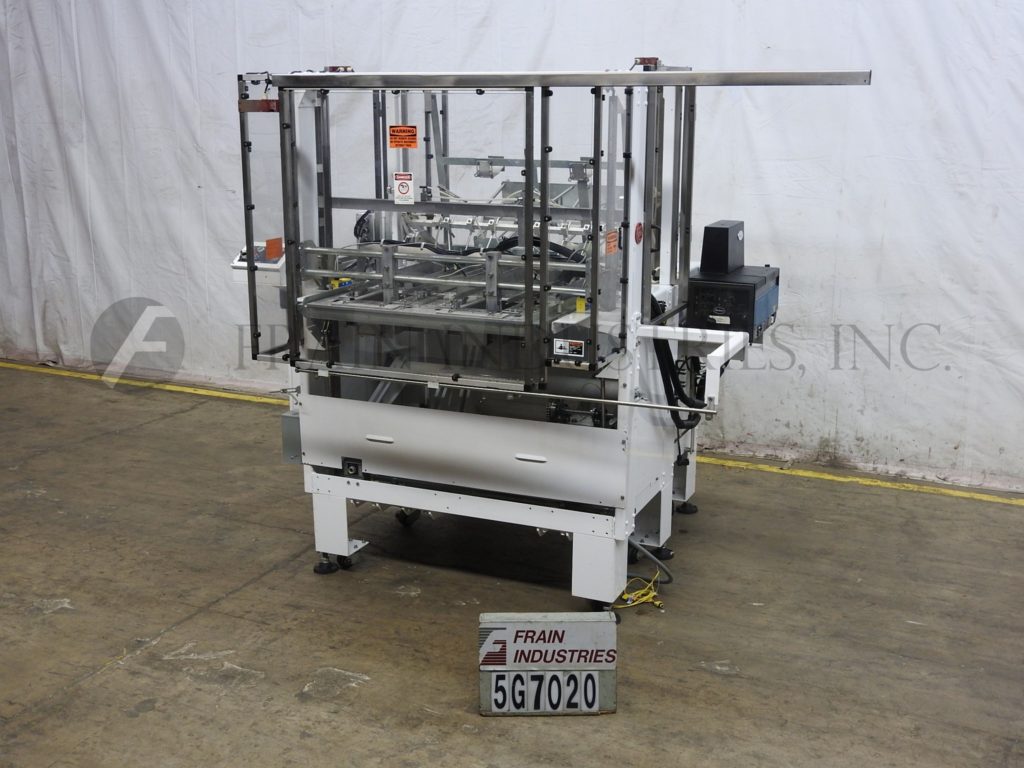

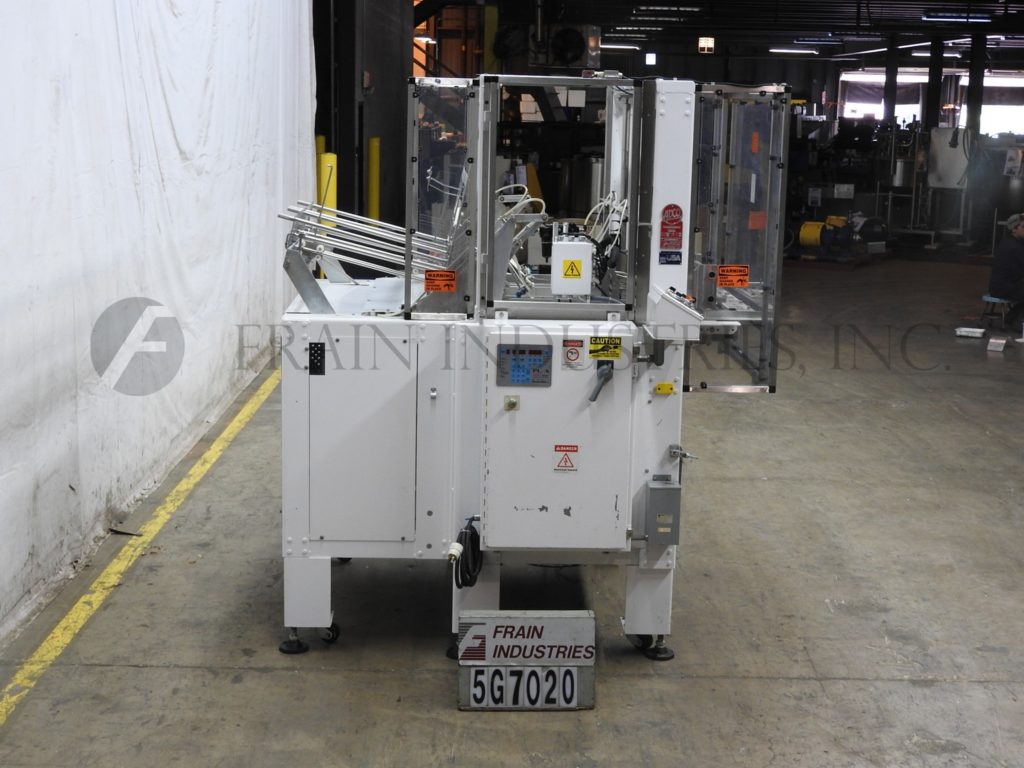

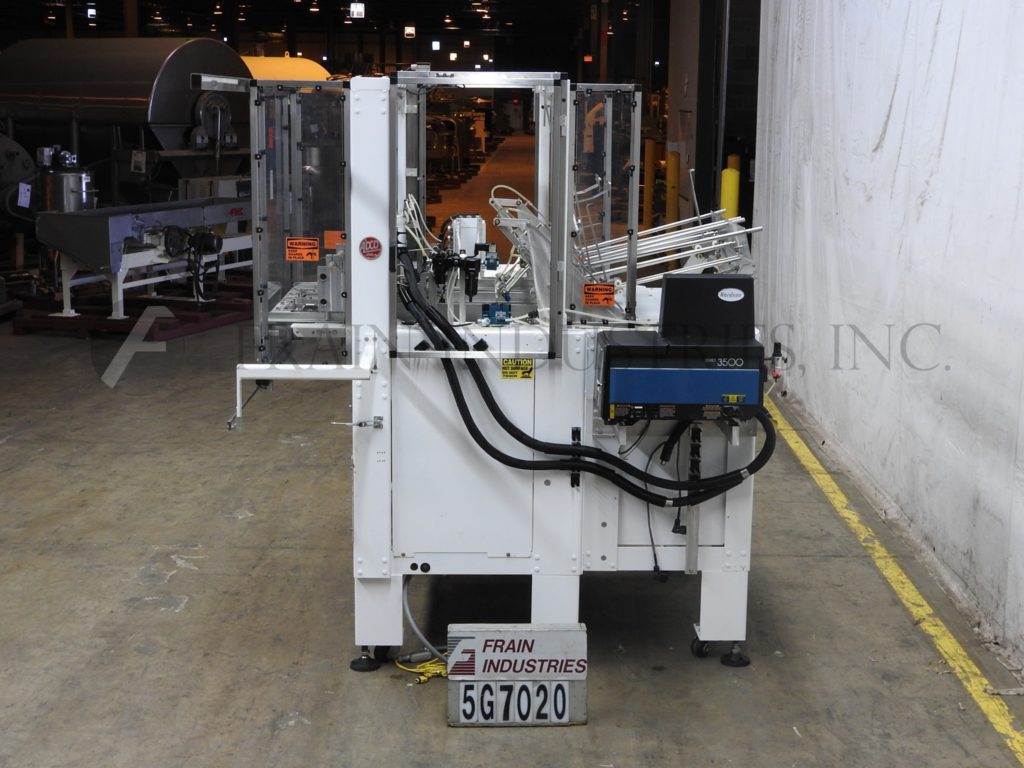

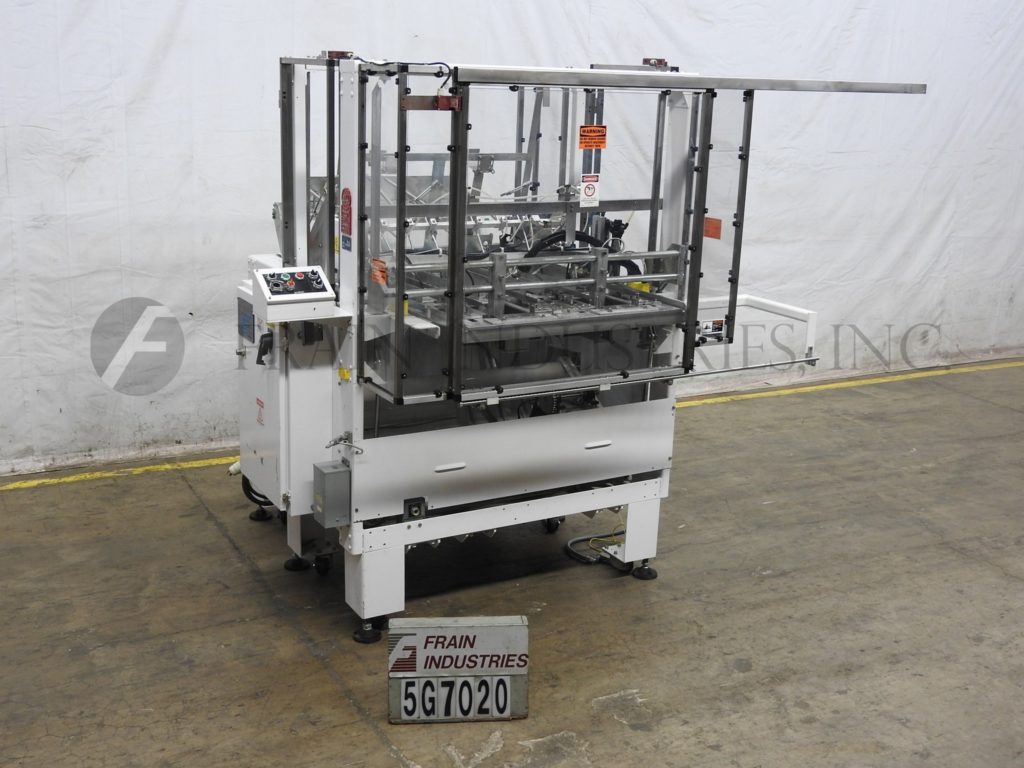

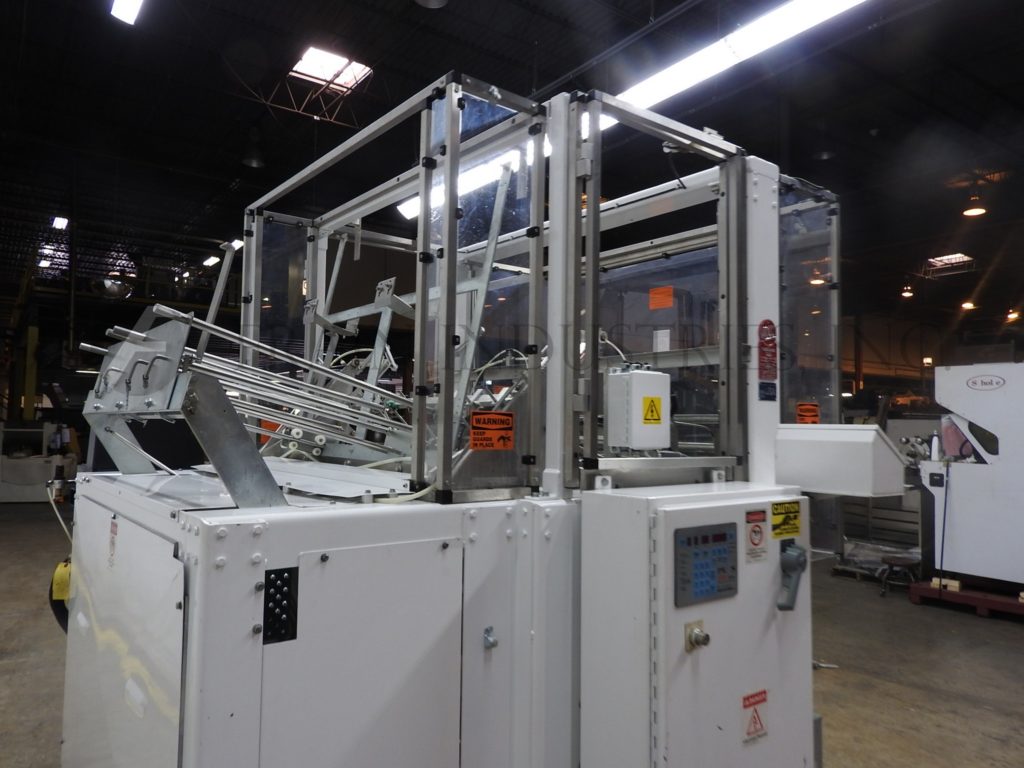

Adco, Model AFCX-30-7-EC, automatic, dual head top load tray former with hot melt glue sealer. Rated from 5 to 30 cycles per minute each head – depending on materials and application. Tray size range: 3" to 17" in Length; 3" to 16" in Width: ¾" to 4½" in Height – depending on blank format. Capable of handling flat blank sizes up to 20" in Length and 18" in Width. Equipped with dual 23" long blank tray magazine, dual vacuum suction cup recipicating pick-in-place’s, dual mechanical tray forming heads, no tray / no form photo eyes and Nordson hot melt glue system with interlock safety guarding. Control panel switch controls for carton pick, glue guns, jog / run and speed. Push button start, stop and e-stop. Mounted on heavy duty base frame with leveling legs.
