Feldmeier Tank SS JKT 500 GALLON

  Back to All Equipment

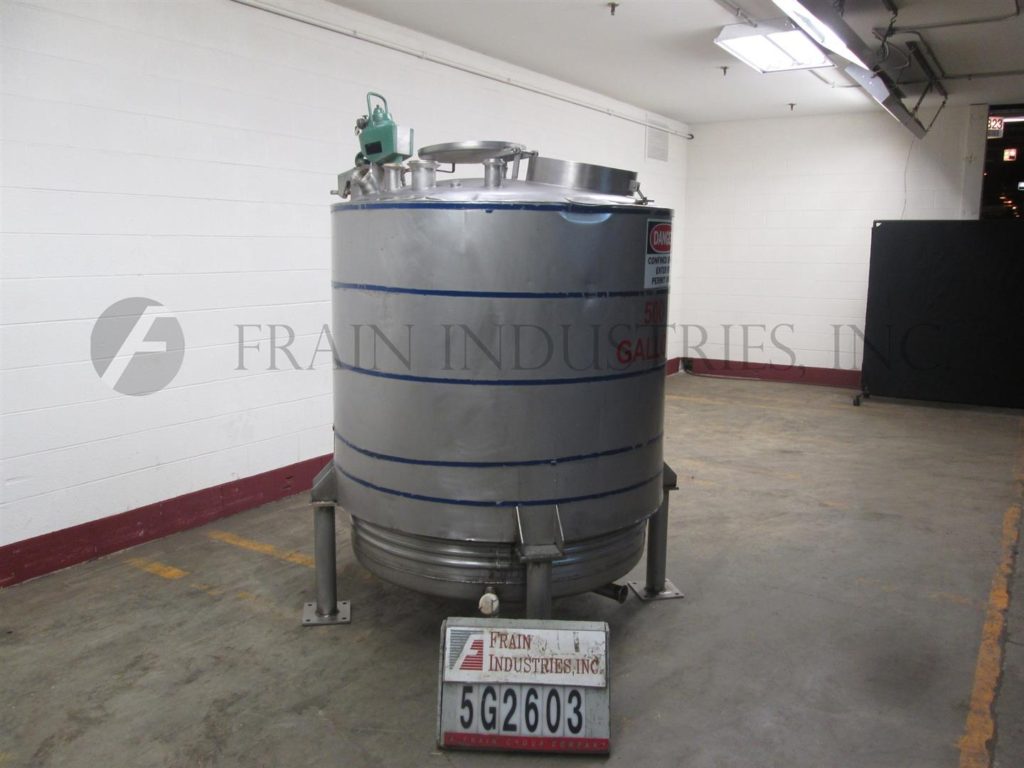

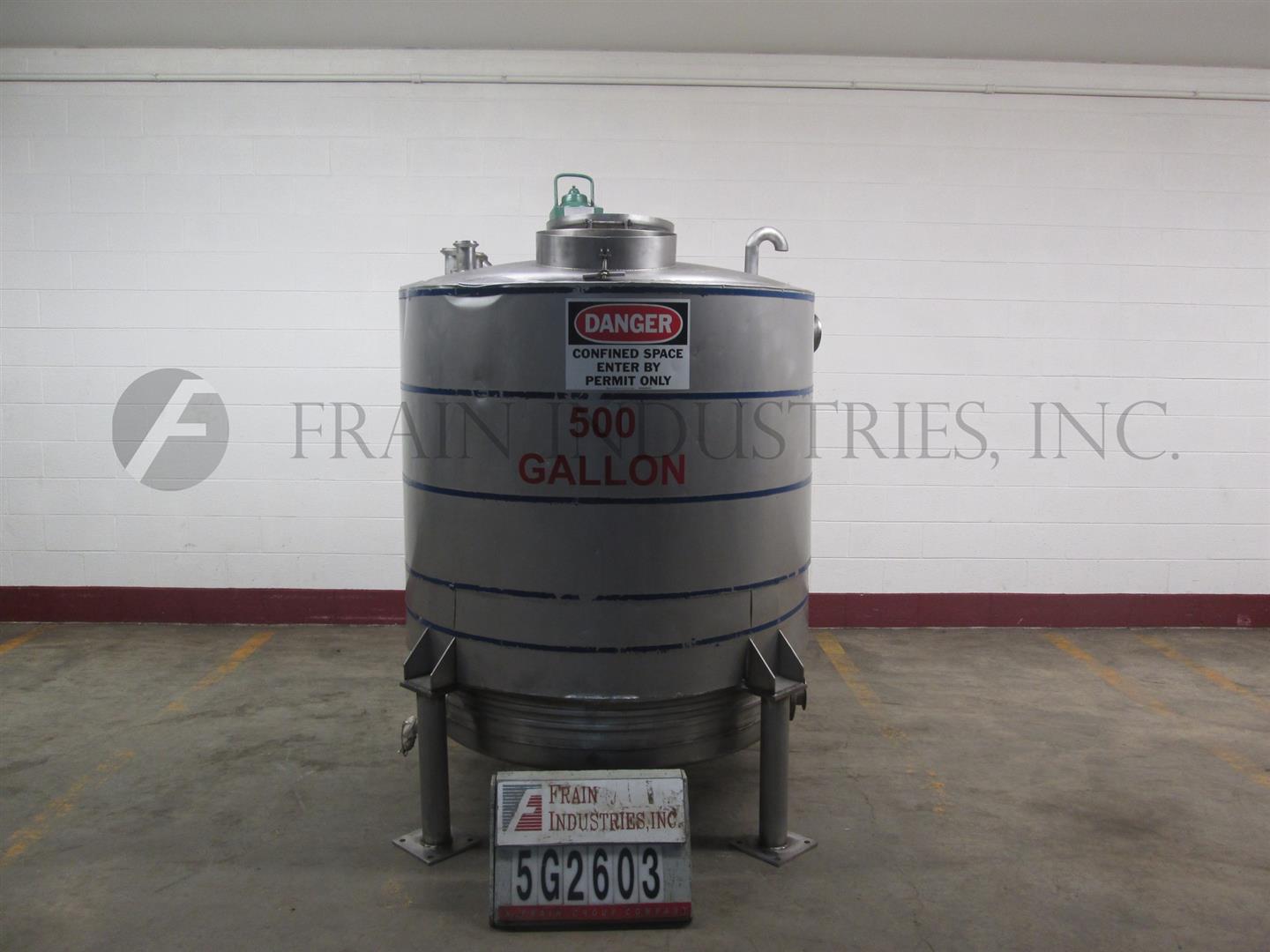

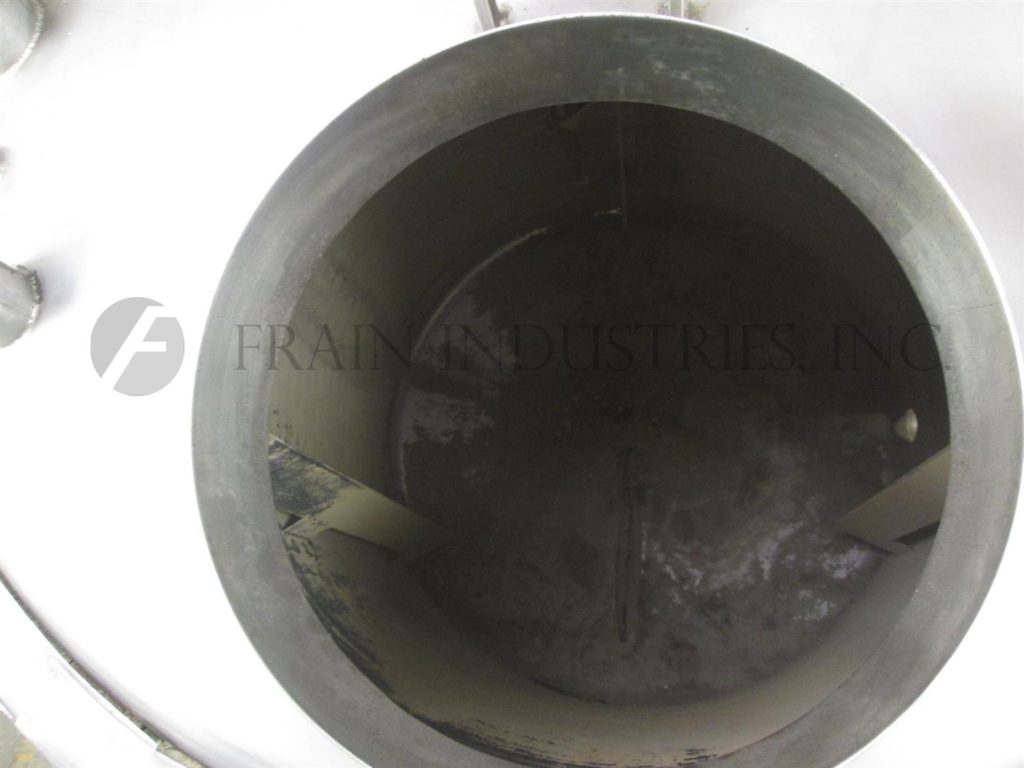

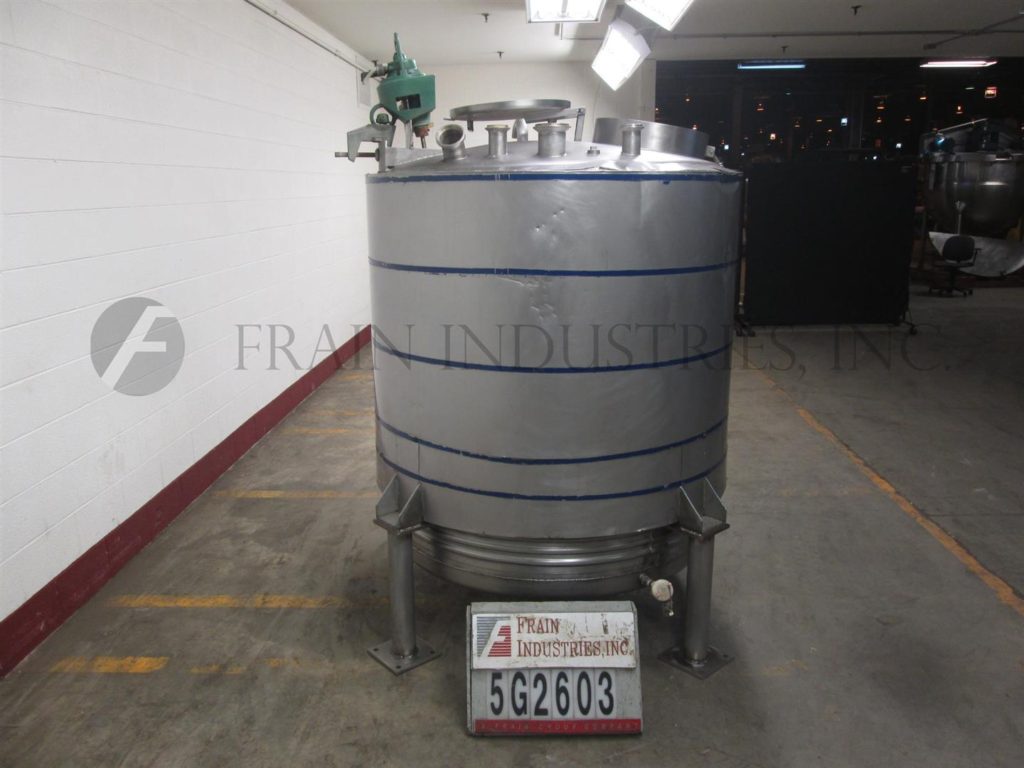

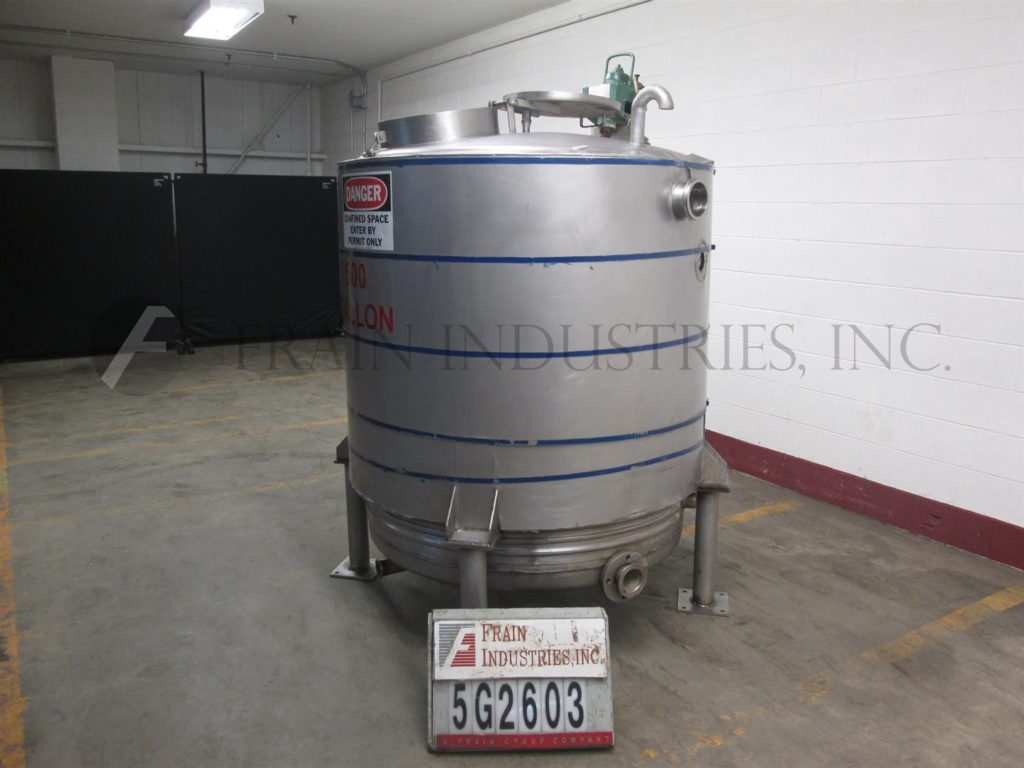

Feldmeier, 500 gallon, 316 stainless steel, low pressure jacketed tank. 51" diameter x 60" straight wall. Side mounted prop style agitator is pneumatically powered. Low pressure jacket has (2) 1.5" ID inlet/outlet connections. Vessel has a dome top with (1) 17" manway, (1) 3.5"ID, (1) 3" ID, (2) 2.5" ID, (1) 1.75" ID and (1) CIP spray nozzle. The sidewall has (1) 4.5" ID and (1) 7.5" diameter four-bolt pattern flange fittings with 3.25" ID. Dish bottom has (1) 2.5" ID side discharge with 18" ground clerance. Mounted on (4) stainless steel legs.

OAD: 70" L x 70" W x 82" H
