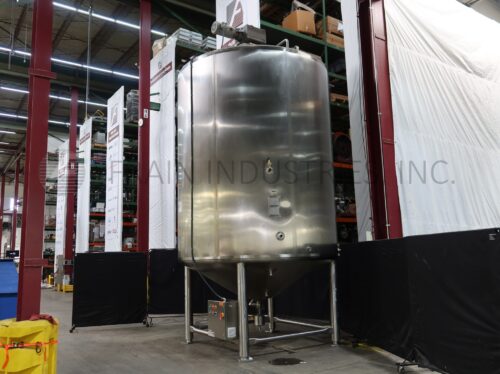

Photo of Feldmeier Tank Processors 7500JKT

Feldmeier Tank Processors 7500JKT

  Back to All Equipment

Feldmeier, 7500 gallon capacity, stainless steel jacketed and insulated process tank. 304 stainless steel contact parts and 304 stainless steel jacket and exterior parts. Vessel dimensions: 120" diameter with 144" straight wall. Equipped with dome top, 18" diameter bolt down man way, top mounted 10 Hp side and bottom scrape surface agitation, baffle, (2) CIP spray balls supplied by 2"OD / 1½"ID Tri-clamp fittings and thermowell. Dish bottom has 3½" OD / 3" ID center bottom pneumatic valve discharge with 30" ground clearence. Control panel with push button start / stop and variable speed control. Mounted on (4) legs with foot pads.

Nat’l Brd: 8616
MAWP: 100 PSI @ 350°F (Jacket)
MDMT: -20°F @ 100 PSI (Jacket)

MAWP: 10 PSI @ 165°F (Vessel)
MDMT: -20°F @ 10 PSI (Vessel)

Top Ports:
(1) 6" ID sanitary clamp covered vent
(1) 4¾"OD / 4"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp

Jacket Ports:
(4) 1½" NPT

OAD: 130" L x 130" W x 262" H
