Feldmeier Tank SS Single Wall 1200 GAL

  Back to All Equipment

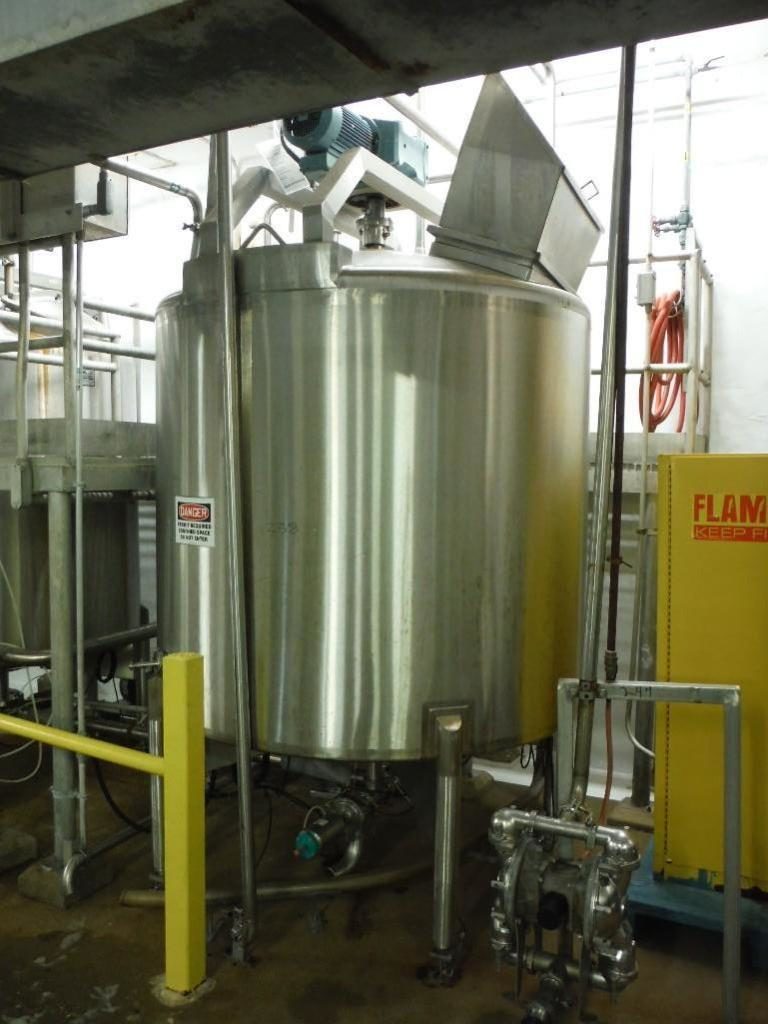

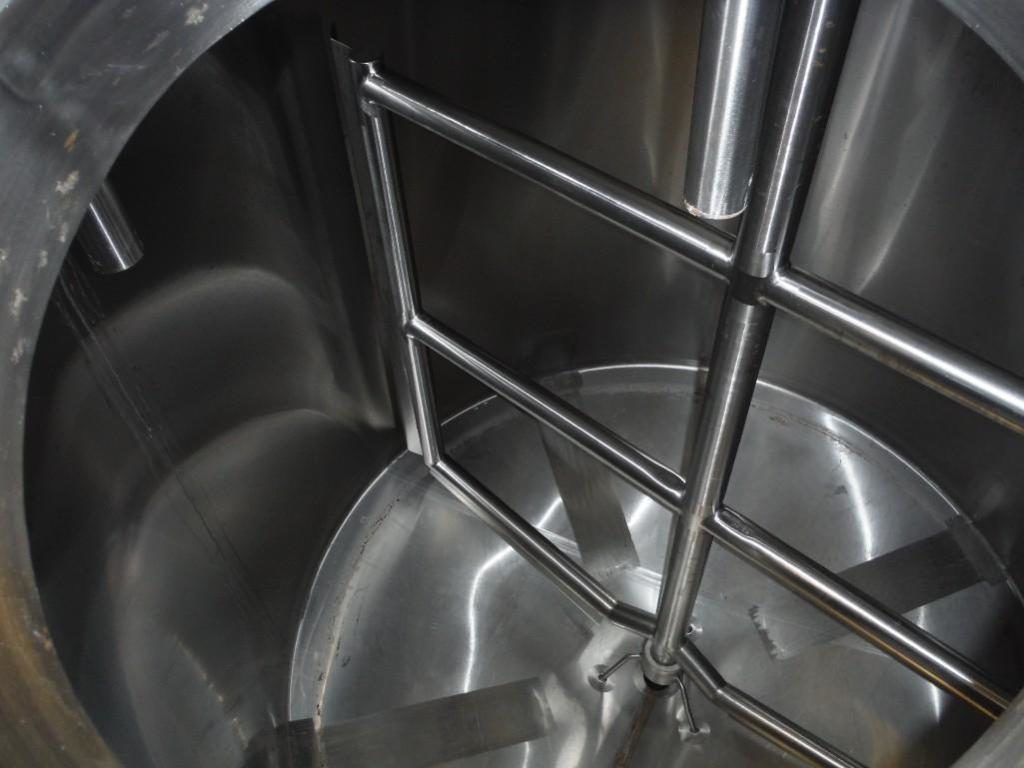

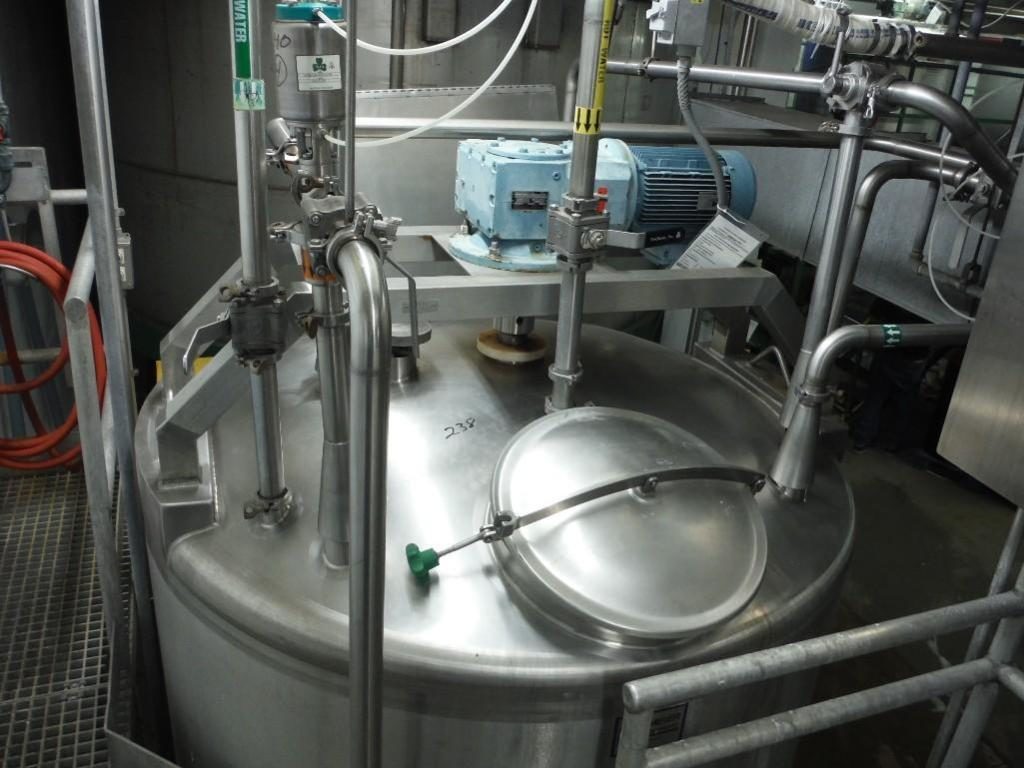

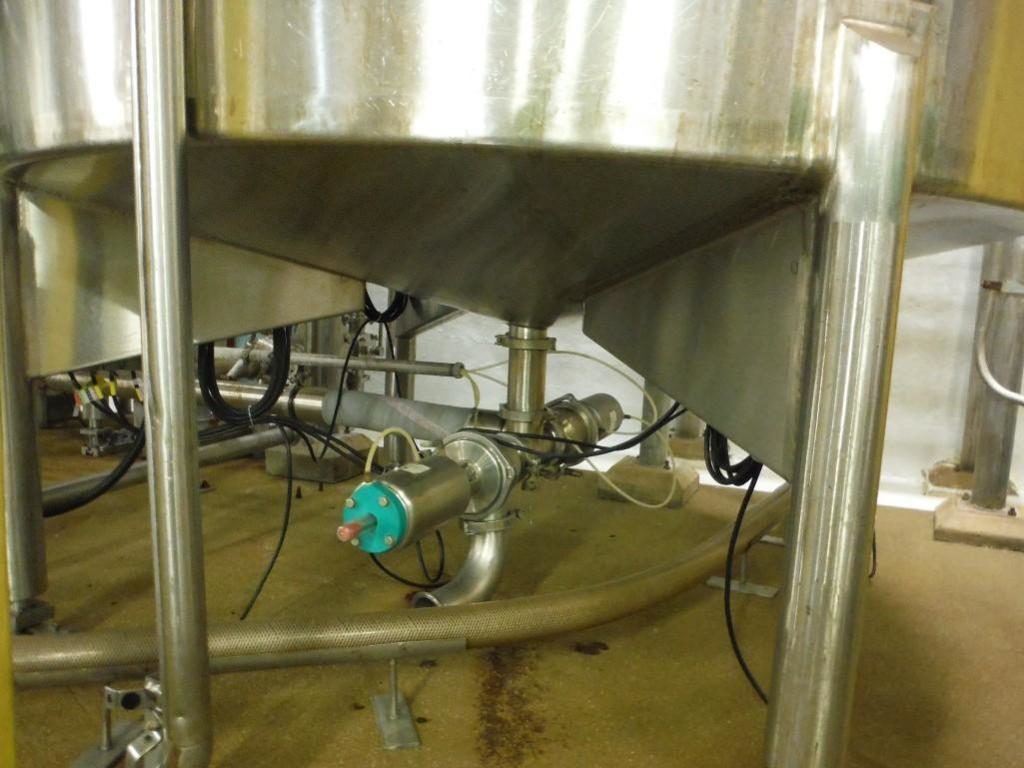

Feldmeier, 1,200 gallon capacity, 304 stainless steel mixing tank. Vessel dimensions: 72" diameter x 64" straight wall with dish style bottom. Equipped with a 20" diameter lift up and clamp down man way and 24" x 16" open man way. 7½ Hp bridge mounted sweep agitator. Unit mounted on (4) tube legs with a 3¾" OD / 3" ID Tri-clamp style bottom discharge with 16" ground clearance.

Top Ports:
(1) 4" diameter open vent
(2) 3" diameter open vents
(2) 3¾"OD / 3"ID Tri-clamp
(2) 2½"OD / 2"ID Tri-clamp

Side Ports:
(1) 3¾"OD / 3"ID Tri-clamp

OAD: 76"L x 76"W x 127"H
