Hughes Blanchers Rotary D0042326D

  Back to All Equipment
  • Manufacturer: Hughes
  • Model: D0042326D
  • Frain Number: 5D8077
  • Category: Blancher
  • Subcategory: Rotary
  • Condition: Used, in excellent condition
  • Availability: In Stock

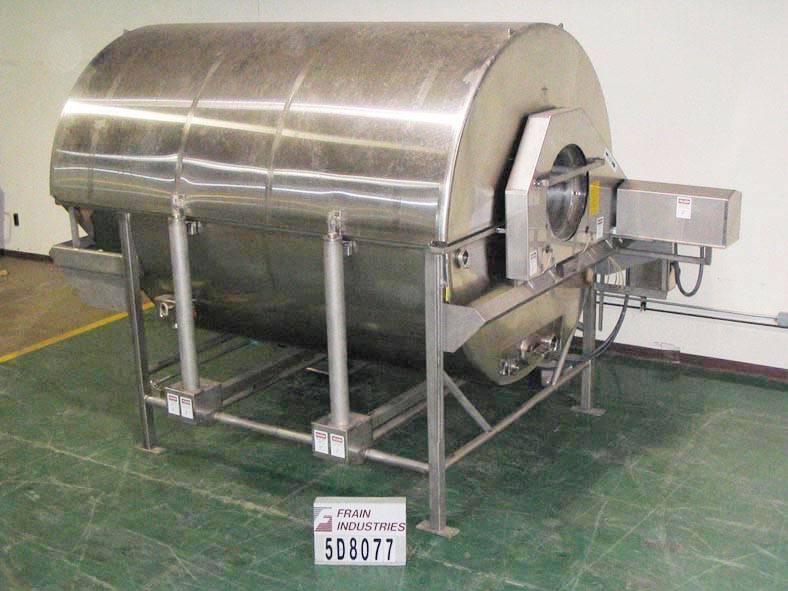

Hughes Model 60" diameter x 96" long, 316 stainless steel, heat and hold drum, rated from 0 to 7,350 lbs per hour – depending on materials and application. Temperatures to 212° F water with capacities to 305 gallons, has maximum pressure of 125 psi. Equipped with 20" diameter end ports, steam heated hot water immersion, with 2-1/2" tri-clamps, centrifugal pump and vertical lift hood, 30" long x 12" wide end bottom discharge port, 20 hp motor drive and is mounted on stainless steel frame. Designed as a coating drum they sprayed an acid and oil onto the pasta that came from the blancher. Last doing pasta at 6,750 lbs per hour.

OAD: 181" L x 108" W x 120" H
