Jaygo Mixer Paste Vertical DISHO V170/500

  Back to All Equipment

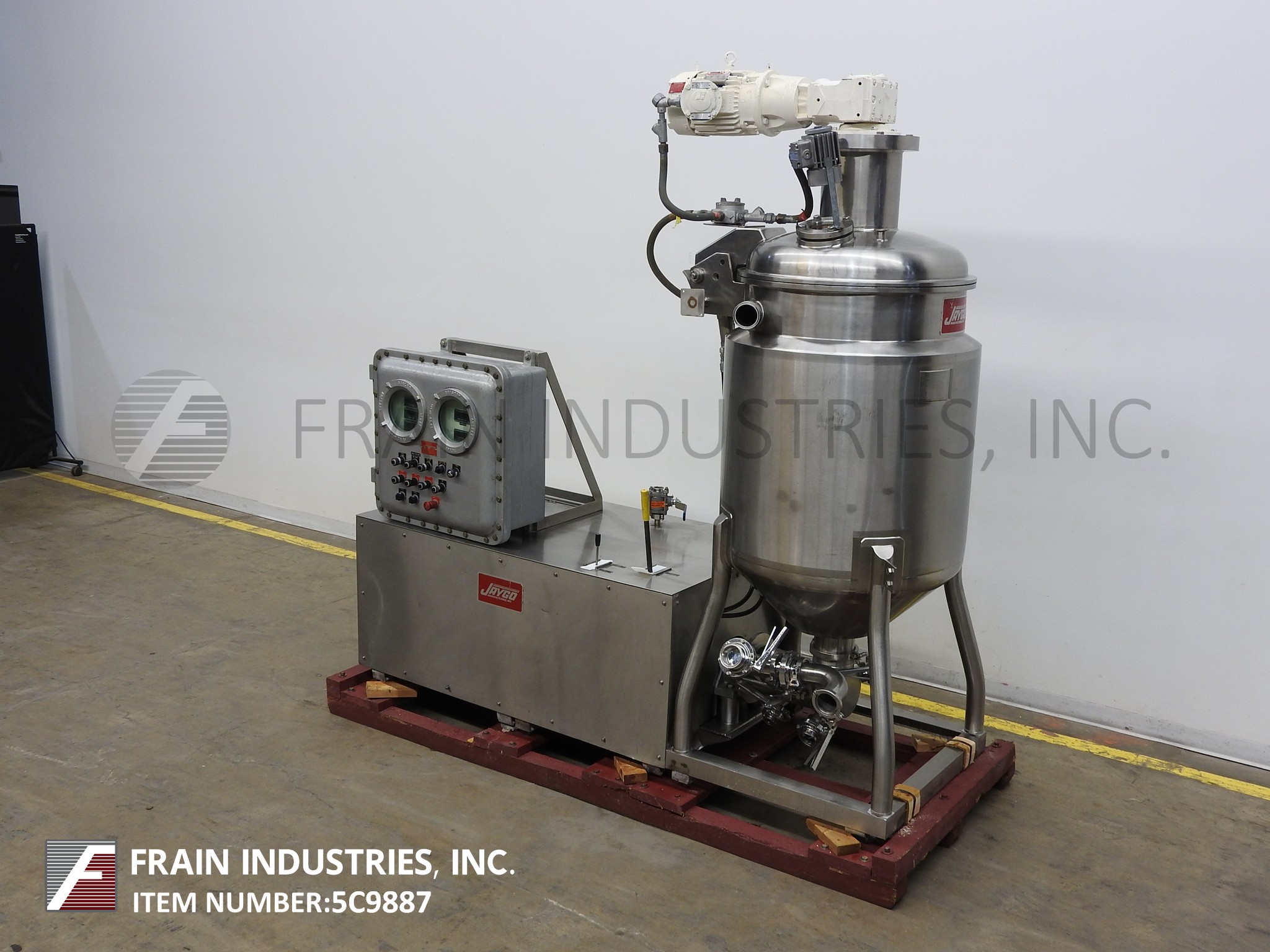

Jaygo Model DISHO, 400 liter, 100 gallon, stainless steel, vacuum, homogenizing and dispersion system for low or high viscosity liquids used in the food, pharmaceutical and cosmetic Industries, with amount of product per hour – depending on materials and application. The shell and top / bottom heads are 7 gauge, 316 stainless steel construction and the side and bottom jackets are 12 guage, 304 stainless steel construction. Equipped with 32" OD x 37-3/4" long jacketed straight wall mixing vessel has hydraulic flip-top cover with 4" OD lighted sight glass port and top mounted 3 Hp variable speed motor drive with christmas tree type agitation and has both side and bottom scrapers. Full side and bottom jacket rated to MAWP of 100 Psi @ 338 Deg F, and MDMT of -20 Deg F @ 100 Psi. with (2) 1", 1-1/2" and 2" OD threaded jacket ports and has vacuum rating of 29.92. Cone Bottom with DISHO high speed multiple chamber homogenizing mill with 50 Hp motor drive. Control panel has agitation, vacuum pump, sight glass light, speed on / off and engine power and stop controls. Mounted on stainless steel skid.

OAD: 104" L x 38" W x 110" H
