Tank SS JKT 120 GAL

  Back to All Equipment

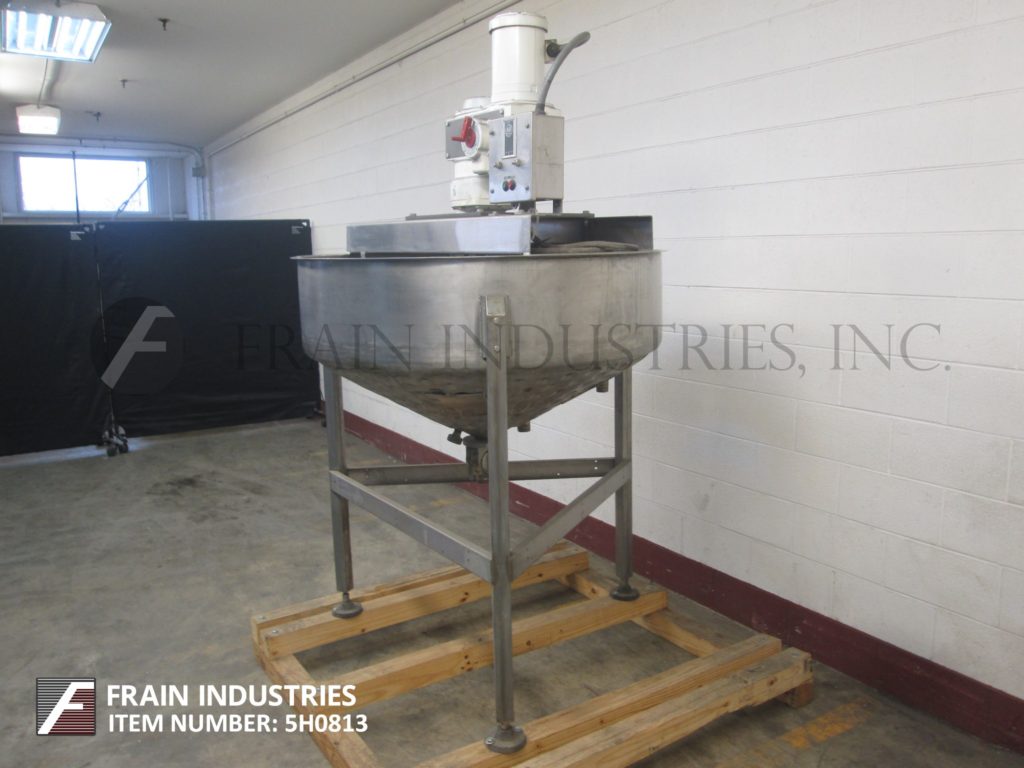

120 gallon capacity, 304 stainless steel, low pressure jacketed cooker cooler. Vessel dimensions: 48" diameter x 24" deep with a 12" straight wall and cone bottom. Equipped with ¾ Hp bridge mounted scrape agitator and 2½" OD / 1¾" ID seated bevel style bottom discharge with flow valve and 24" ground clearance. Control box with push button start / stop. Mounted on (3) legs.

Jacket Ports:
(2) 1½" NPT

OAD: 52"L x 52"W x 85"H
