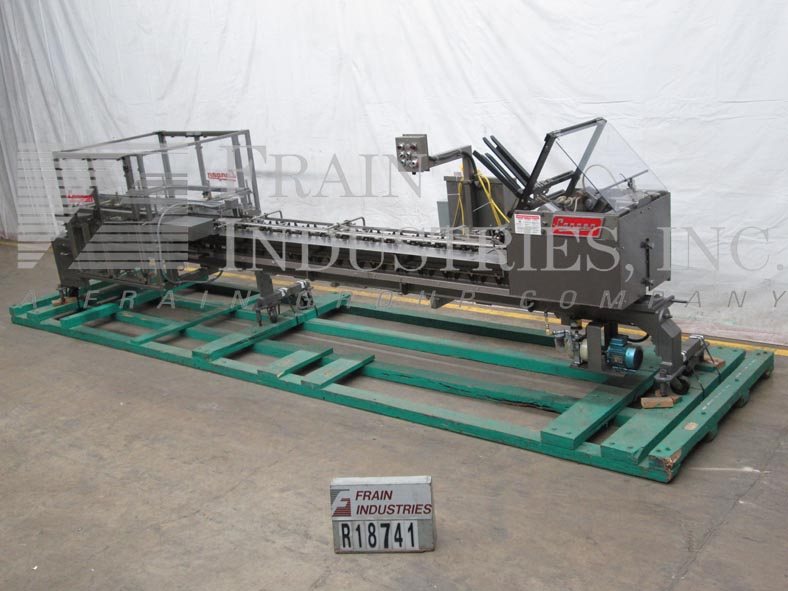

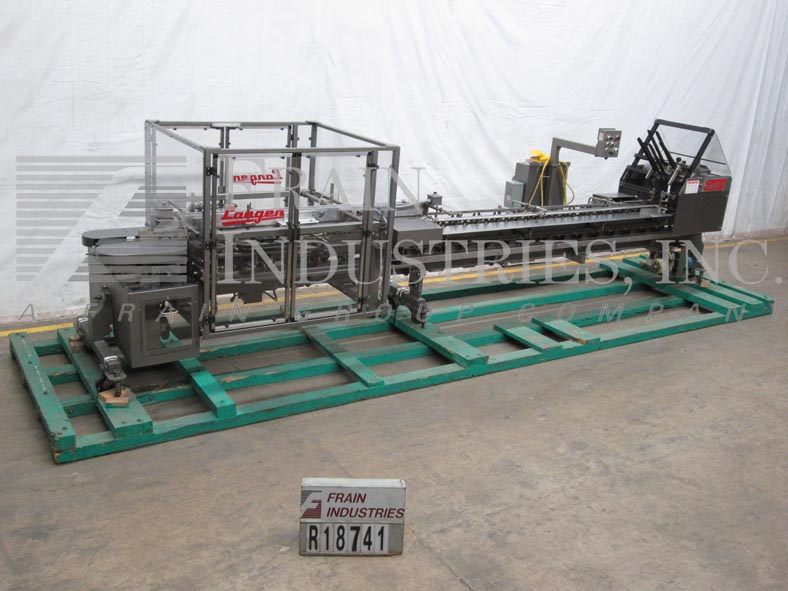

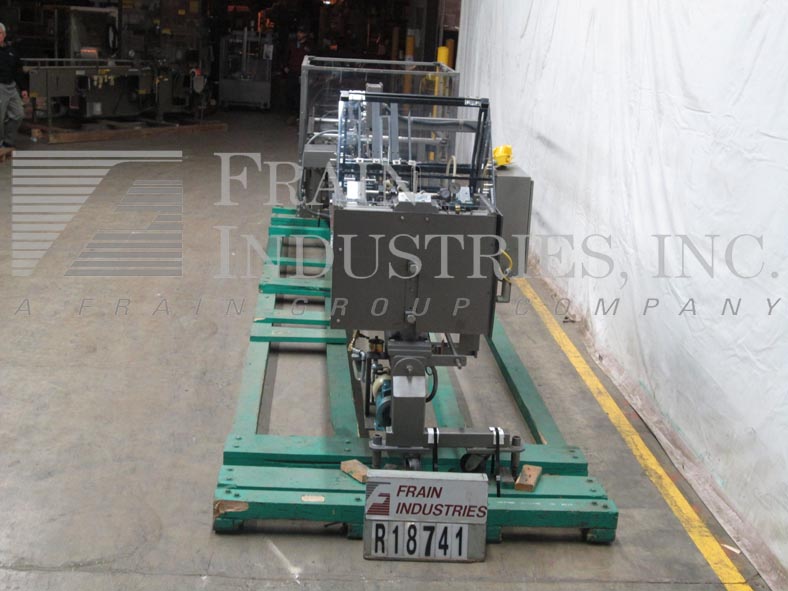

Photo of Langen Cartoner Semi Horiz. Glue (Semi) B1M

Langen Cartoner Semi Horiz. Glue (Semi) B1M

  Back to All Equipment

Langen Model B1M, semi automatic, horizontal, continuous motion tuck style cartoner rated from 40 to 120 cpm – depending on materials, application and machine configuration. Carton size range: 3.75" x 14" D, W 0.5" x 3" W, and 1.75" x 7" L. Equipped with 9" centers and Four chain unit equipped w/two head rotary feeder. 9′ Long load area and remote jog. Mounted on a tilt frame that allows load area to be adjusted up to 30 degree to ease loading procedures. Top carton squaring rails.
OAD: 264" x 48 x 70

Emboss coder available for additional cost.
