Lee Tank Processors 400LDBT

  Back to All Equipment

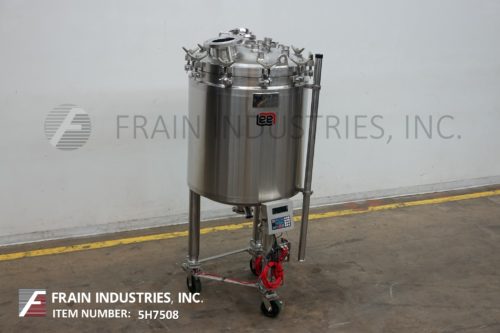

Lee, 400 Liter capacity, 316 stainless steel, insulated vacuum and internal pressure reaction tank. Vessel dimensions: 30" diameter x 44" deep with a 38" straight wall. Equipped with thermowell and 2½"OD / 2"ID Tri-Clamp style discharge with 28" ground clearance. Mounted on (4) stainless steel legs with load cells.

Top Ports:
(1) 11"OD / 6"ID Flange
(3) 3½"OD / 3"ID Tri-Clamp
(4) 2½"OD / 2"ID Tri-Clamp
(5) 2"OD / 1½"ID Tri-Clamp

Nat’l Brd: 10847
MAWP: 45 PSI @ 350°F (Vessel)
MDMT: -20°F @ 45 PSI (Vessel)

OAD: 40"L x 38"W x 82"H
