Liquid Packaging Solutions Filler Liquid Grav/Press 306-150MOD1

  Back to All Equipment

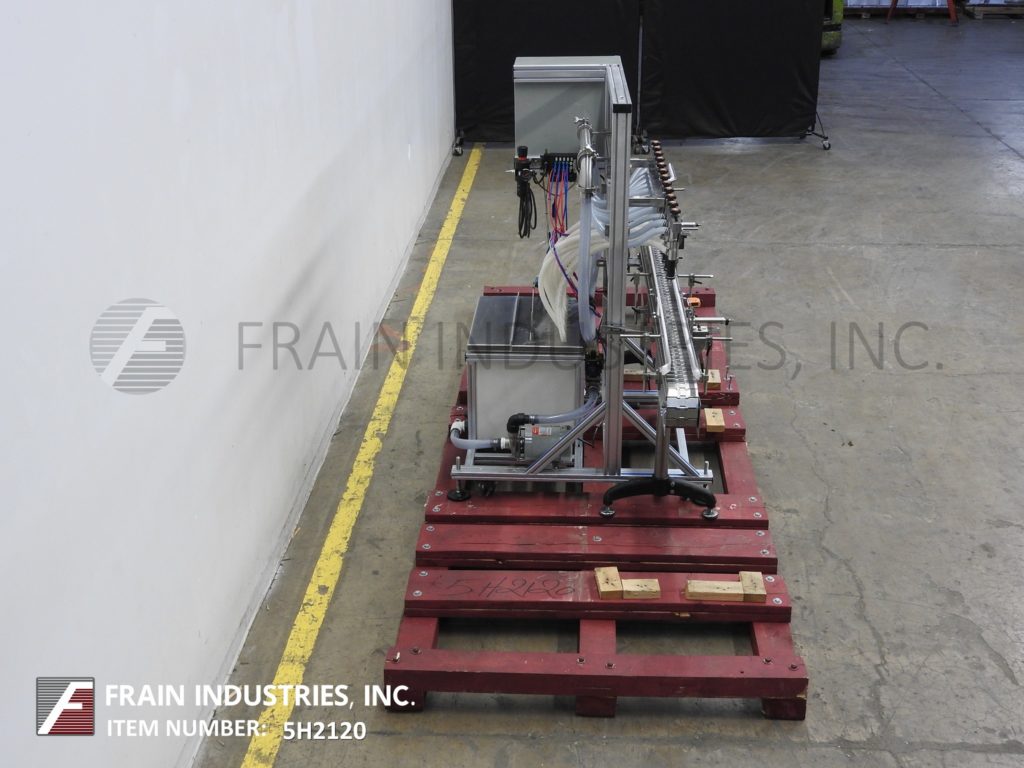

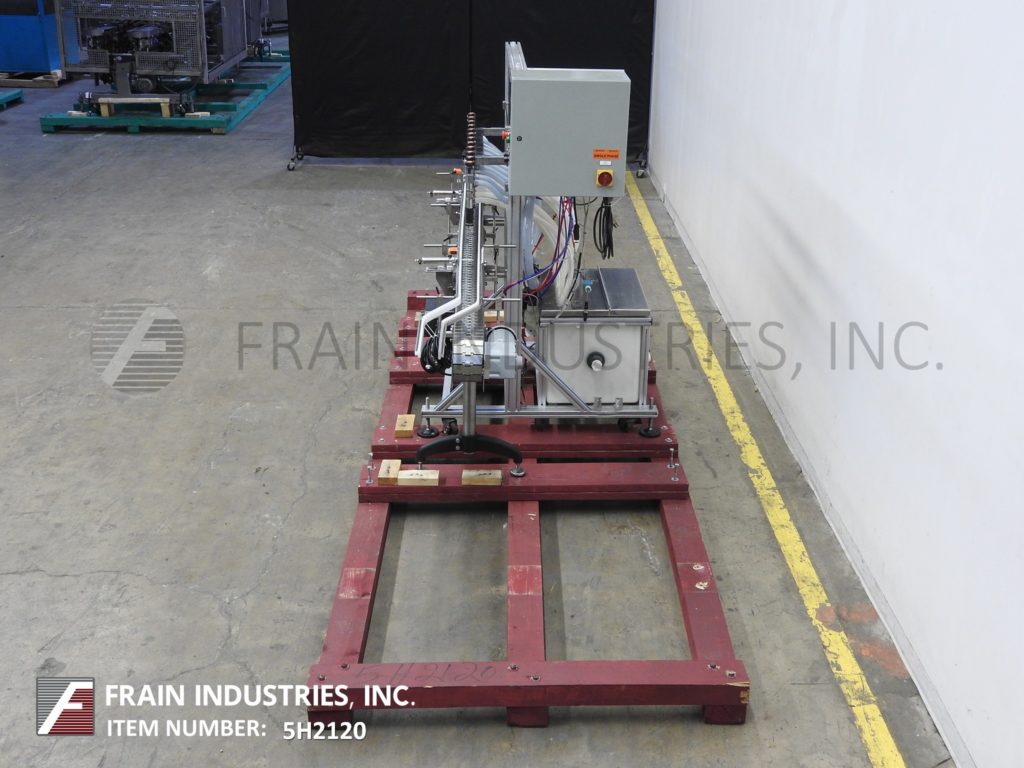

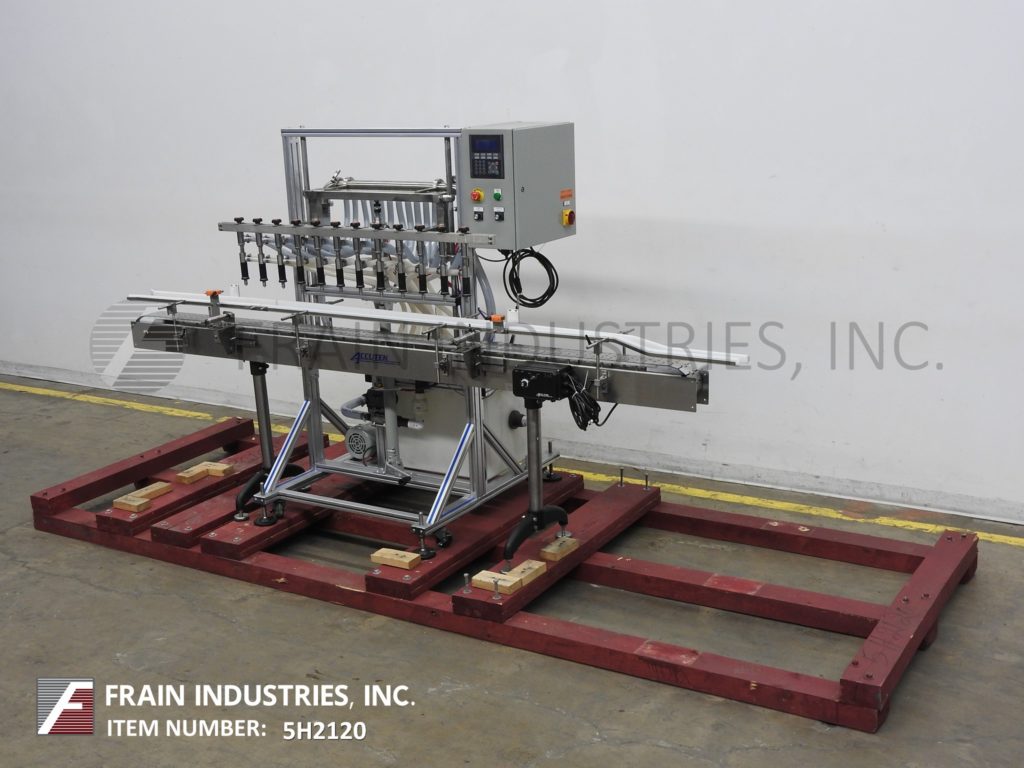

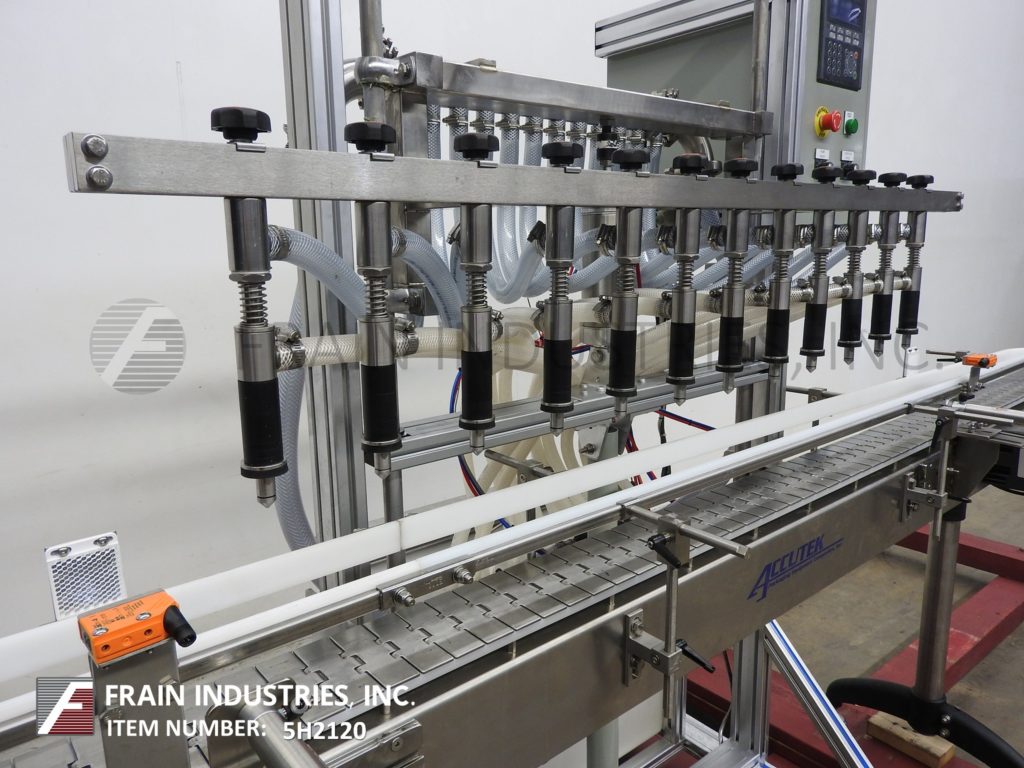

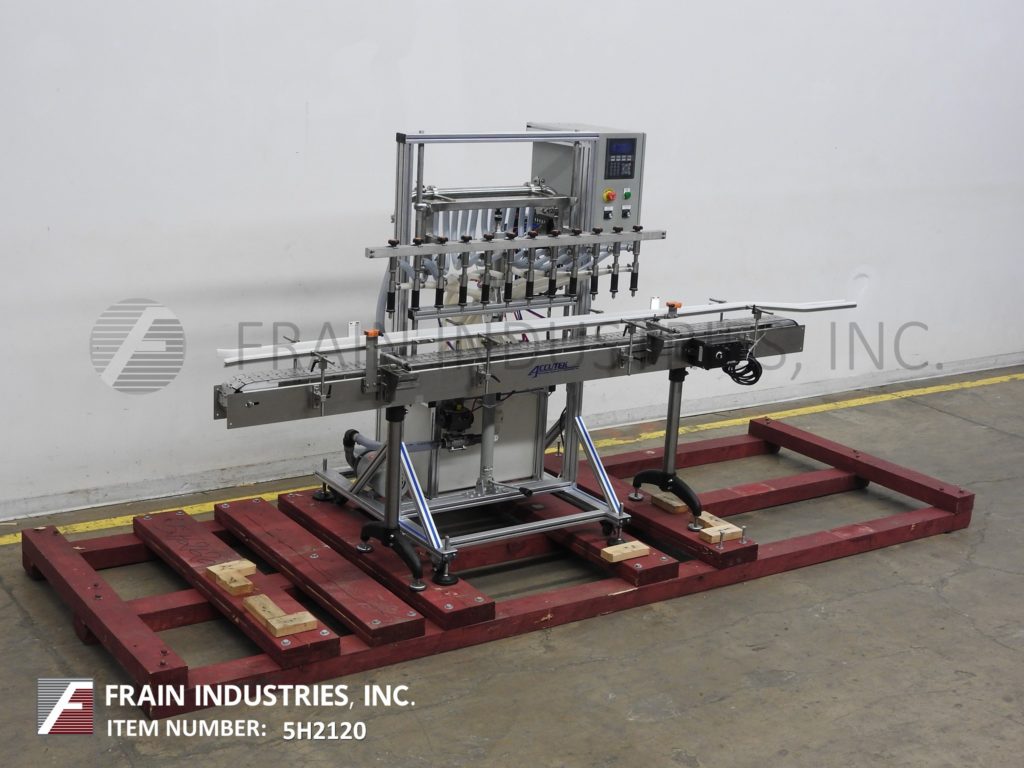

Equipment Express Model, 306-150M0D, 14 head, stainless steel, automatic, inline left to right overflow filler with number of containers per minute – depending on materials and application. Equipped with 144" long x 4" wide flexlink table top vari-speed container conveyor with adjustrable guide rails, pneumatic indexing and 16" OD disc accumulator. 84" long slide bar currently has 14 diving fill heads with 5/8" OD nozzles and set on 3" centers with 30" long x 24" wide x 20" high plastic product hopper and feed pump. Control panel has PLC with touch screen controller and read out, filler and conveyor speed control dials, filler and pump close, open, out and bypass switches with e-stop. Mounted on stainless steel base frame with casters and height adjustable leveling legs.

OAD: 144" L x 57" W x 72" H
