Southern Packaging Case Set-Up, Tray Tray Glue TE 700 VF S

  Back to All Equipment

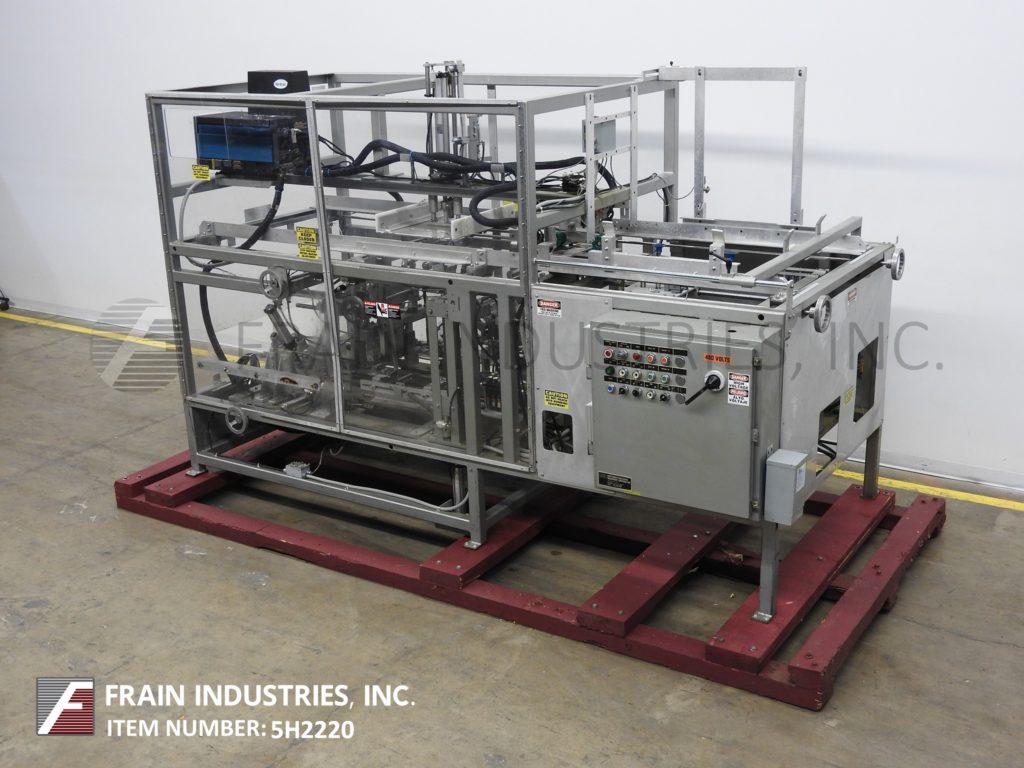

Southern Packaging Model TE700VFS, stainless steel, intermittent motion, tray former capable of speeds from 4 to 42 trays per minute – depending on materials and application. Minimum / Maximum tray size: 15" to 42" in Length; 12" to 38" in Width; 2" to 6" in Depth. Equipped with 37-1/2" Long x 37-1/2" Wide flat blank magazine with (4) suction cup recipcating pic-n-place and multi wheel feeding system, diving (4) corner 20" wide x 23-1/2" single air ram tray forming head, 70" Long (2) chain lugged transfer conveyor set on 25" centers Nordson (4) gun H/M glue system, with compression section. Control panel has A/B controller, with on / off, jog, run, glue, vacuum, ram head and,e-stop, controls, with interlocking safety guarding. Mounted on heavy duty base frame.

OAD: 160" L x 70" W x 86" H
