Raque Complete Line Food 4500

  Back to All Equipment
  • Manufacturer: Raque
  • Model: 4500
  • Frain Number: 5H0458
  • Category: Complete Line
  • Subcategory: Food
  • Condition: Used, in excellent condition
  • Availability: In Stock

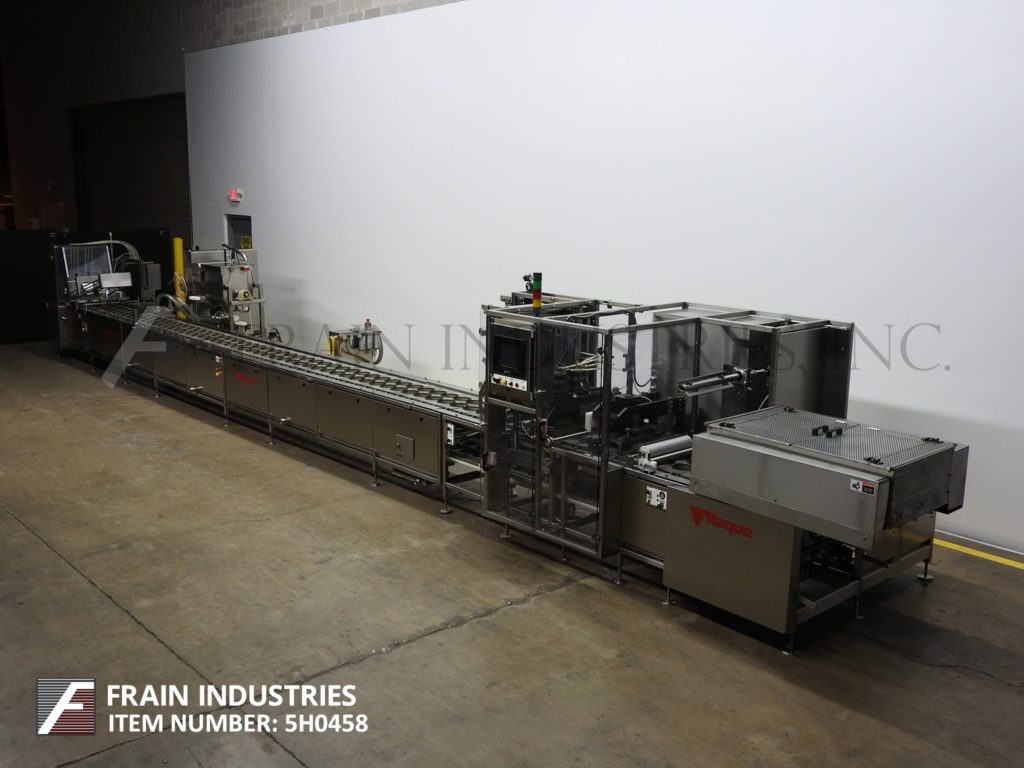

Raque Model 4500 series, complete, stainless steel, tray denesting, filling, roll stock and heat sealing line with number trays per minute – depending on materials, application and line configeration. Line consists of: Raque Model 4504 tray denester with dual 36" long x 6" OD empty tray roller magazines, (2) head reciprocating pick-n-place, 120" long x 32" wide dual lane tray conveyor with fixed 6" OD pockets set on 8" centers, to 156" long x 32" wide dual lane feed conveyor to Raque Model 1284-12-1, dual head piston filler with 19" long x 18" wide x 20" deep stainless steel product hopper with fill range per application and proper change parts, currently set with dual 6" long x 2-1/2" ID pistons set on 8" centers with Model 1148-45-1liquid depositor product feed pump. Filled trays, then conveyed by 118" long x 32" wide dual lane transfer conveyor to Raque Model 4503-1 dual lane, roll stock, heat sealer and die cutter with 108" long x 32" wide dual lane in feed conveyor with dual 6" OD fixed pockets, dual film mandrels with 19" long film roll on 4" core and 9" long x 6" wide pnuematic pressure, heat sealer and die cut-off each lane, film rewind and 48" long x 32" discharge conveyor. Control panels have CPU controllers with touch screen controls and start, stop, e-stop push button and statis light bar. Mounted on stainless steel base frames with height adjustable legs and interlock safety guarding.

OAD: 552" L x 84" W x 80" H
