Filler Cup Inline. An inline cup filler fills and seals cups using straight line tooling to index cups. The machine de-nests cups, indexes the cups below the filler where the cups are filled, indexes the cups below the sealing head where the cups are sealed, and indexes the cups to the discharge station where the cups are discharged. Multiple lanes of cups to be processed simultaneously by this type of machine (depending on original machine configuration) allowing for greater machine output. Machine can be outfitted with either pre-cut or roll stock film seals, overlid applicator, and different filling heads for different types of products.
Oystar Model Dual 10 pocket, 2 x 10 configuration automatic, inline, stainless steel, 3A sanitary design, cup filler and sealer rated up to 700 containers per minute – depending on materials, application and container being run. Fill range: 0.5 to 16.9 onces, container size range 67.4 mm to 70mm OD and 55.2mm to 77.5mm in Height (with proper change parts). Has 9" index and denests, fills, and foil heat seals the containers. Equipped with dual (10) lane cup denester, 55" long x 5-1/4" wide (10) pocket cup carrier with 3-1/4" ID pockets set on 5" centers and has dual (10) head piston filling banks, with 1-1/4" OD positive cut off filling nozzles and (4) jacketed product hoppers (2) for each bank of filling heads, with product temperatures from 35°F to 45°F, reciprocating pre-cut, foil lid pic-n-place (10) lane heat sealing station and container discharge section. Control panel has A/B controller. Mounted on heavy duty stainless steel frame with interlock safety door guarding.
OAD: 366" L x 90" W x 92" H

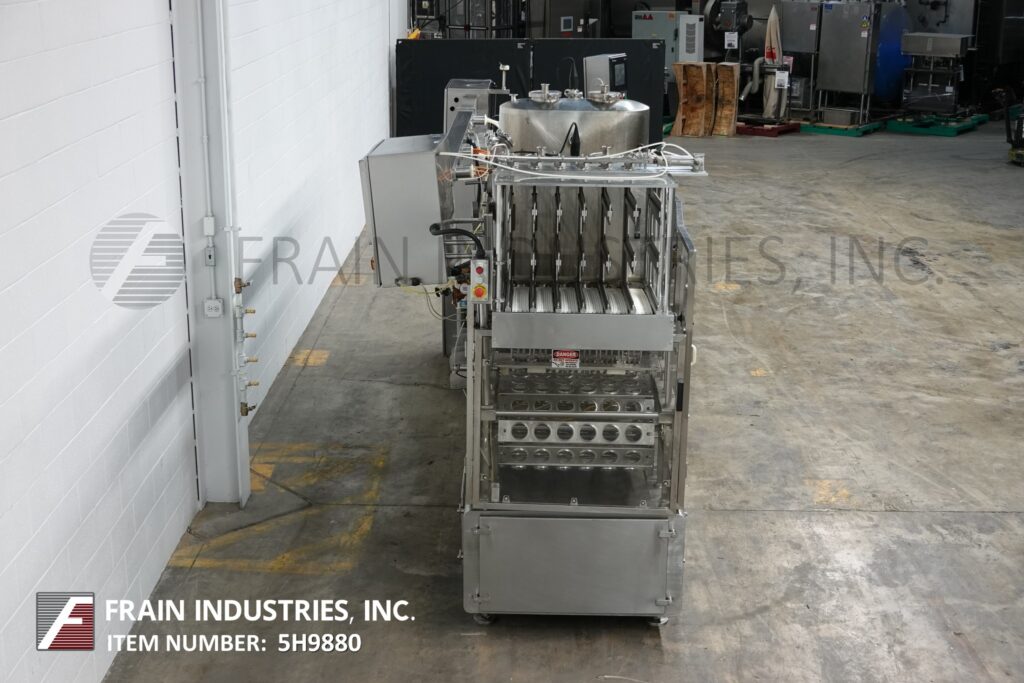

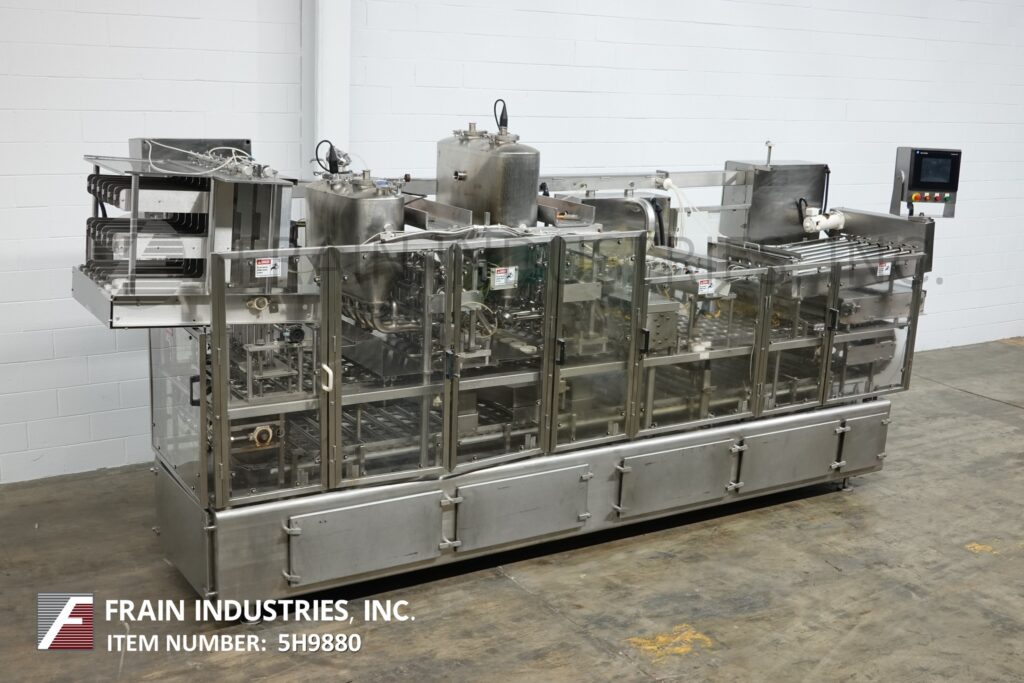

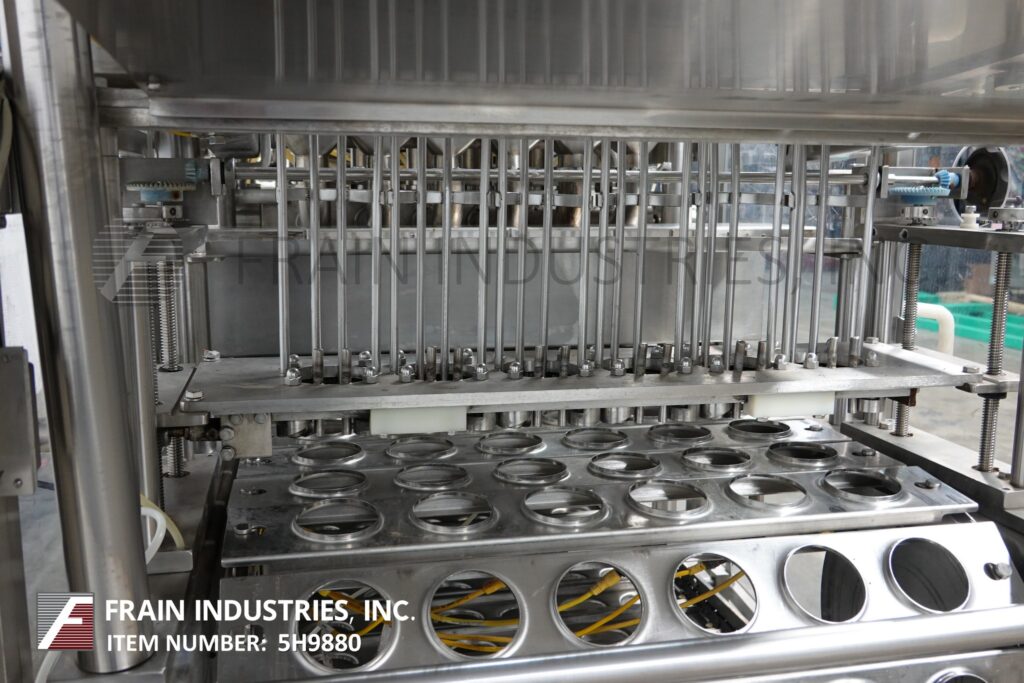

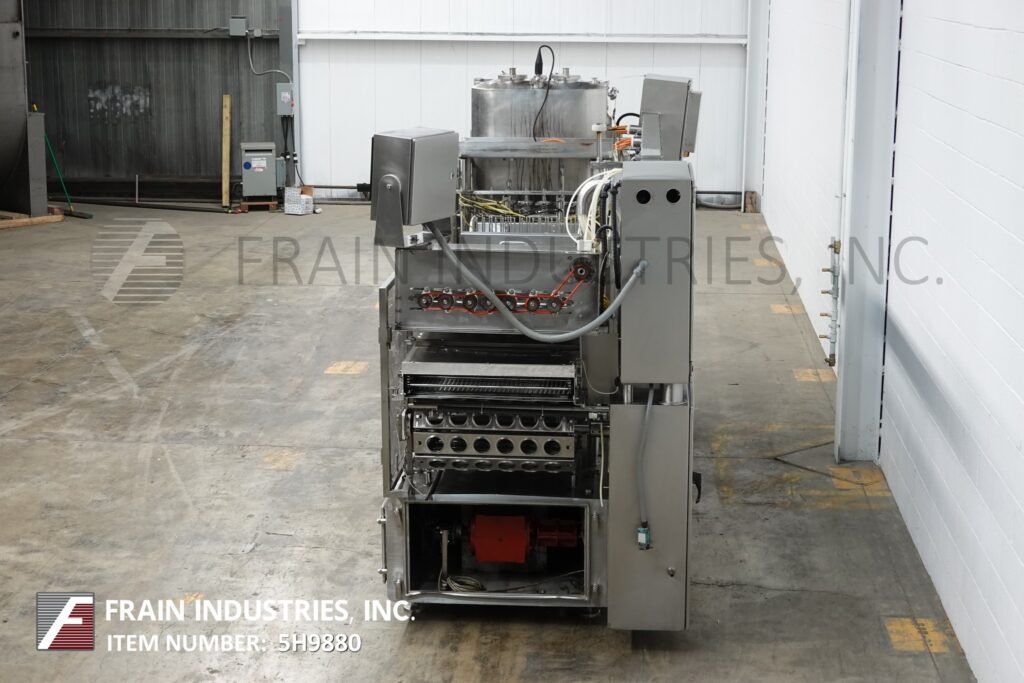

Osgood, Model 6400, (6) lane, inline, stainless steel, single index, FOB, (fruit on bottom) tamper evident cup filler, heat sealer and over lid applicator rated from 24 to 240 cups per minute – depending on materials, application and machine configuration. All stainless steel construction. Equipped with (6) lane pick and place cup denster, (2) 24" x 24" stainless steel product hoppers, with dual (6) servo driven pistons one for the FOB (fruit on bottom) and the other for the product (yogart) with 3/4" OD positive cut off nozzels up to (3) flavor capacity. 24" long x 4" wide cup carriers with (6) 3" ID cup pockets set on 5" centers, roll stock film and heat sealing stations with knife cut off assemblies and 45" long (6) lane powered roller, lid magazine and snap on over lid application section. Control panel has touch screen HMI controls with start, stop, e-stop push button and statis light. Mounted on heavy duty stainless steel frame with safety door guarding. Change parts required to accommodate different size range.
OAD: 326" L x 70" W x 88" H
Osgood, Model 3600-E, 3 lane, in line, stainless steel, cup filler, heat sealer and over lid applicator rated from 30 to 120 cups per minute – depending on materials, application and machine configuration. Currently set for (3) up pattern with 4-1/4" OD cup pockets set on 5½” centers. Equipped with (3) lane cup denster, stainless steel product hopper, (3) servo driven piston filler with 4" ID x 6½" long pistons with positive cut off nozzels, roll stock film and heat sealing stations with knife assemblies, 48" long (3) lane powered roller lid magazine and snap on over lid section. Control panel has A/B CPU controller with touch screen HMI controls with start, stop, e-stop push button and statis light. Mounted on heavy duty stainless steel frame. Change parts required to accommodate size range.
OAD: 175"L x 45"W x 75"H
Holmatic Model OF-2340, Automatic, 4-up, inline cup filler, roll stock film, die cutter, heat sealer and over lidder rated 10 to 40 indexes per minute with number of cups – depending on materials, application and machines configuration. All stainless steel and anodized aluminum construction. Cup size: up to 5" in Diameter; and 6-1/4" in Height. Fill size: up to 41oz + / – 0.5%, both with proper change parts. Equipped with (4) lane 32" long automatic belt fed empty cup magazines and denesters, cup conveyor has 22-1/2" long plates with (4) across 4-1/2" ID cup pockets set on 6" centers, (4) 7" long x 2" OD pistons with rotary valves and 1-1/2" OD positive shut off nozzles, 23" long roll stock film rollers with (4) die cutters, heat sealers and cup over lid magazines, with spinning roller over lid applicator. Control panel has A/B controller with A/B Panelview and (4) heat sealer controllers, with system reset, cycle, e-stop push button controls and statis light bar. Mounted on stainless steel frame with interlocking cage style safety guarding and leveling legs..
OAD: 192" L x 72" W x 107" H

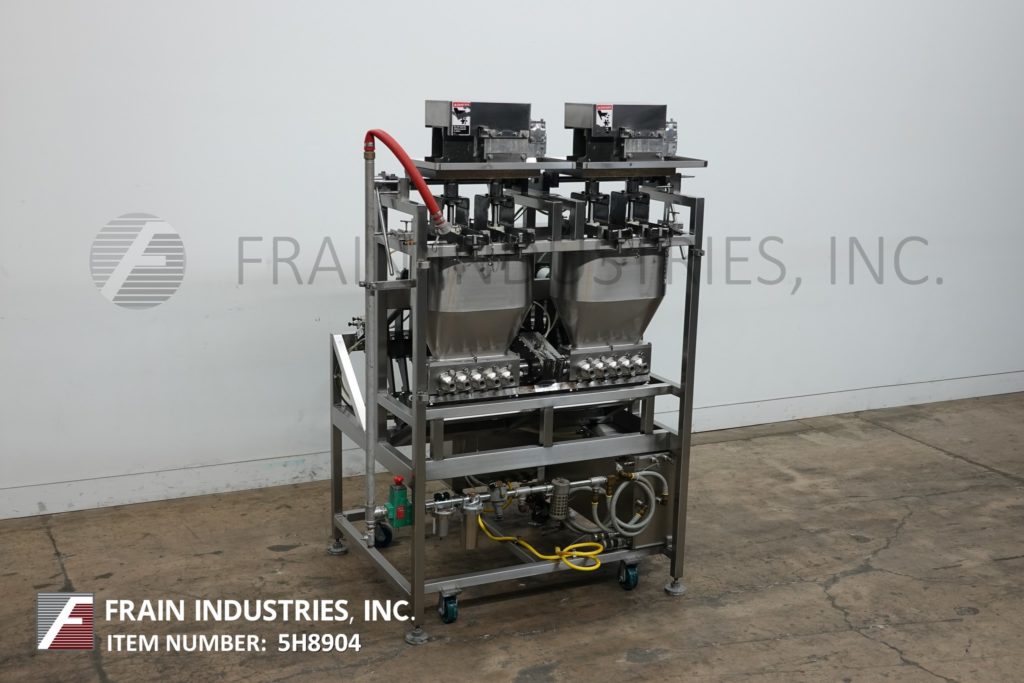

Raque Model PF-2.5-10, Automatic, stainless steel, 10 head, inline, piston filler rated from 6 to 60 cycles per minute with number of containers – depending on materials and application. Fill range: 0.1 oz to 2.5oz. Equipped with (10) 2½oz pistons, dual 24"L x 18"W x 20"D agitated product hoppers with 2"OD / ¾" ID Tri-Clamp product ports. Control panel has AB controller with touch screen HMI. Mounted on stainless steel heavy duty frame.
OAD: 70"L x 65"W x 102"H
Holmatic Model PR4, Automatic, 4-up, cup filler, die cutter, heat sealer and over lidder rated from 20 to 160 cups per minute – depending on materials and application. Stainless steel and hard anodized aluminum construction. Cup size: up to 4½" in Diameter; and 6" in Height. Fill size: up to 41oz both with proper change parts. Equipped with (4) cup magazines with spiral cup denesters, product hopper and feeders, cup conveyor currently set with (4) across 3¼" OD cup pockets set on 6" centers, (4) pistons with rotary valves and ¾" OD positive shut off nozzles, roll stock film with die cutters, heat sealers and cup over lid magazines, with reciprocating vacuum pick n place and spinning roller over lidder. Control panel has A/B PLC, controller with A/B Panelview and conveyor, cup dispenser, heat, filler, overcapper and cap station cycle stop controls with (4) heat sealer controllers and e-stop. Mounted heavy duty frame stainless steel frame with interlocking Lexan safety guarding.
OAD: 167" L x 62" W x 109" H

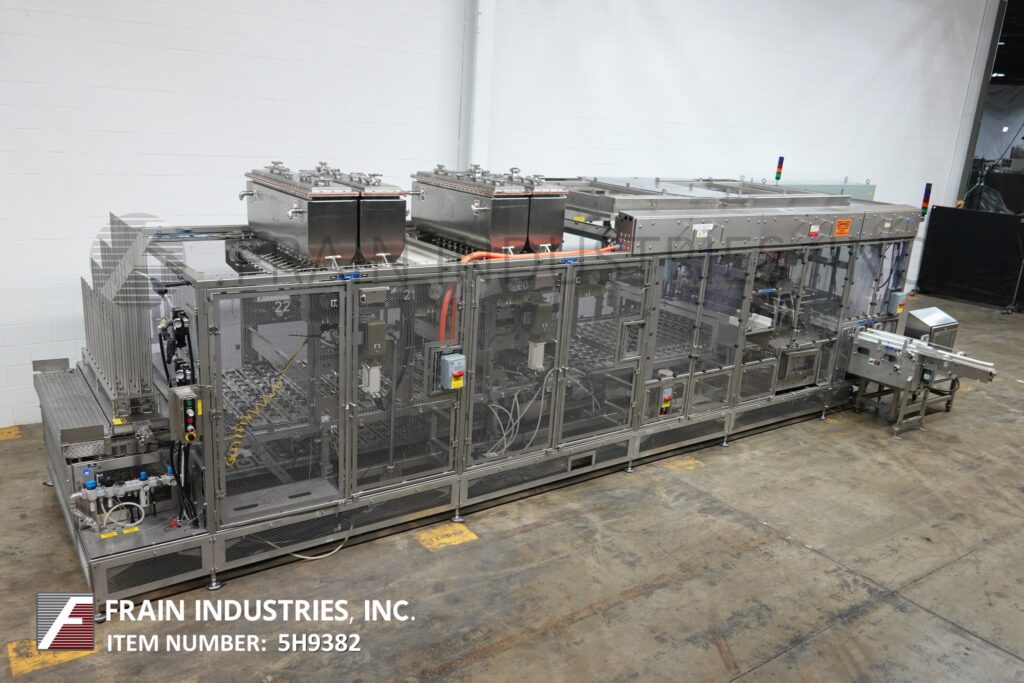

Osgood Syntegon, Model BEF-2X6800-S, Automatic, inline, 6 lane, 12 head, stainless steel, pre-made RTE (ready to eat) food tray filler, roll stock film applicator, heat sealer and cut-off station with number of trays per minute – depending on materials, application and machines configuration. Designed for a wide range of both dairy and food products from liquid, to viscous to pumpable into pre-made containers (with proper change parts). Equipped with 428" long tray conveyor and has 7" long x 47-1/4" wide carrier plates with (6) across 4-1/2" x 6" oval tray pockets set on 7" centers, (12) 48" long empty tray magazines, with denesters, (2) 50" long x 20" wide x 16" deep stainless steel agitated product hoppers and (2) sets of (6) filling heads set on 7" centers, no container / no fill, roll stock film applicator and heat sealer with (12) serrated blade cut-off station and automatic film rewind. Remote control panel has A/B controller with start, stop, reset and e-stops push buttons. Mounted on a heavy duty stainless steel frame with cage style safety door guarding and meets 3A sanitary standards.
OAD: 428" L x 80" W x 112" H
Hinds Bock Model SC-1330, automatic, inline stainless steel, empty cup denester, filler and lidder. Rated from 5 to 60 cups per minute – depending on materials, application and size fill. Equipped with 64" long x 6" wide plastic Delrin conveyor thru filling section and 72" long x 6" wide flexlink conveyor thru lidding section with 32" infeed / discharge heights. 40" long empty cup magazine with spinning rod cup denester and low stack alarm, places cups on conveyor to Bimba cup indexing for filling (choice of filler per application) then to lid applicator with 48" long automatic roller lid magazine and compression section, with no container, no fill, no lid system. Control panel has PLC controller and A/B Panel View touch pad controls with cycle start, stop, reset and e-stop push buttons. Mounted on (6) leg frame with locking casters.
OAD: 176" L x 32" W x 73" H
Orics Ind Model 2 lane, inline, stainless steel, cup / tray denster, filler, roll stock film, heat sealer and over lidder, with number of trays / cups per minute – depending on materials, application and machine configuration. Container size and fill volume per application (with proper change parts). Equipped with 150" long cup / tray conveyor has 17" long x 7-1/2" wide carrier plates with dual 4" long x 3-1/2" wide rectangle tray pockets, (2) 36" long tray de-nest magazines, filling section (type filler is per application). automatic film roll stock feeder and rewinder with dual die cut heat sealing stations and dual lid magazines with applicators. Control panel has A/B controller with A/B panel swing arm controls and panelview has (2) heater temperature controllers, machine on / off and e-stop push buttons. Mounted on stainless steel frame with leveling legs.
OAD: 156" L x 48" W x 72" H
Modern Packaging, Model SL1X4, automatic, inline, stainless steel, 4 lane, cup filler and die cut heat sealer. Rated from 40 to 120 containers per minute – depending on materials, application and machine configuration. Equipped 1×4 plates set on 4½" centers, cup / tray de-nest station, (2) filling stations, no container / no fill, die cut film seal. Control panel has an AB controller with touch screen HMI, digital temperature controllers and on/off switches for each station. Mounted on stainless steel base frame with safety guarding.
OAD: 145"L x 60"W x 88"H
Modern Packaging, Model SL 1X4, automatic, inline, stainless steel, 4 lane, cup filler, roll stock heat sealer and overlidder. Rated from 40 to 120 containers per minute – depending on materials, application and machine configuration. Equipped 1×4 plates set on 6" centers, cup / tray de-nest station, piston filling station, roll stock film seal and over lidder. Control panel has an AB controller with touch screen HMI, digital temperature controllers and on/off switches for each station. Mounted on stainless steel base frame with safety guarding.
OAD: 135"L x 60"W x 96"H
Holmatic Model PR-3S, 3 lane, inline, stainless steel, cup filler, roll stock film sealer rated from 30 to 120 cups per minute – depending on materials, application and machine configuration. Sanitary stainless steel and hard anodized aluminum construction. Container size range: 5" to 7" in Diameter; up to 7.3" in Height. Fill volume up to 90oz each head. Change parts required to accommodate different sizes. Equipped with 180" long cup conveyor has 8-3/4" long x 24" wide carrier plates currently set with (3) 4-1/4" OD cup pockets set on 9" centers, cup de-nest station, 30" long x 17" wide x 24" deep, stainless steel, jacketed, agitated product hopper, (3) head piston filler, with (3) 15" long x 2-1/4" ID pistons, and 2-1/4" OD nozzles (change part per application) no container / no fill, automatic film roll stock feeder and rewinder with die cut heat sealing stations. Control panel has A/B PLC controller with A/B onboard panelview and operator read out (3) heat seal, start, stop, e-stop controls. Mounted on stainless steel frame with cage style safety guarding. Mounted on stainless steel frame with cage style safety guarding. Recommended for wipedown environments, applications range from hard candy to dry soup and snack foods to pet treats.
OAD: 193" L x 92" W x 91" H
