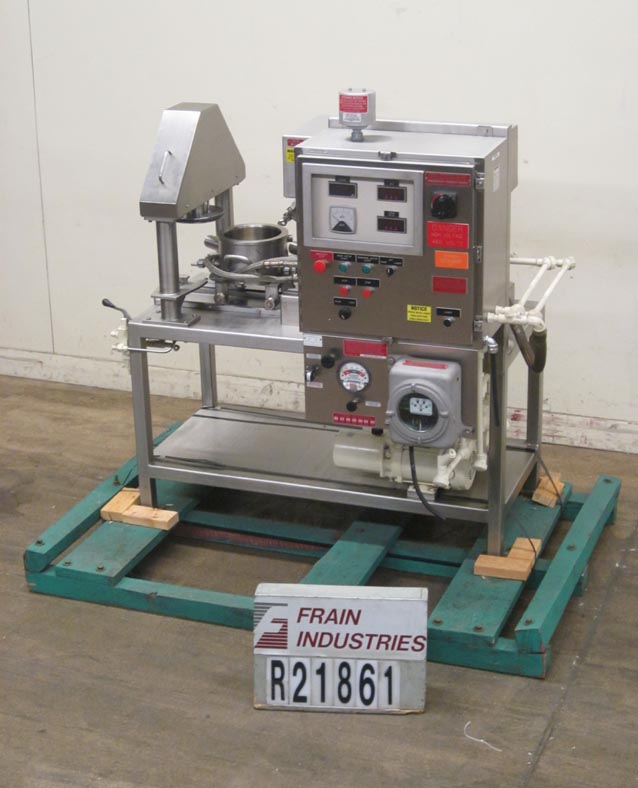

Ross Mixer Paste Vertical DSLDM1

  Back to All Equipment

1 gallon, double planetary mixer with working capacity of 3/4 gallons (3 liters) & full holding capacity of 1 gallon (3.8 liters). All wetted parts are hastelloy C with #4 finish and external parts 316 S/S. Can with temperature probe, jacket rated at 100 psi designed for full vacuum with three 3" diameter combination light sight port and charge ports and quick release sanitary clamps and electric inter-lock mounted on railing system to move bowls in & out to hydraulic press, hydraulic head and pressure gauge, vertical lift with stirrers & shafts (quick disconnect pins on stirrer shafts diagonally positioned to aid in product movement and circulation). 1 1/4" cove-plug side bottom discharge. All digital control panel equipped with ABB variable speed drive w/digital frequency display, mix motor rpm, temp sensor, dual speed slow & fast, and torque meter. UL tagged. Unit mounted on S/S base.

OAD:66"L x 44"W x 62"H
