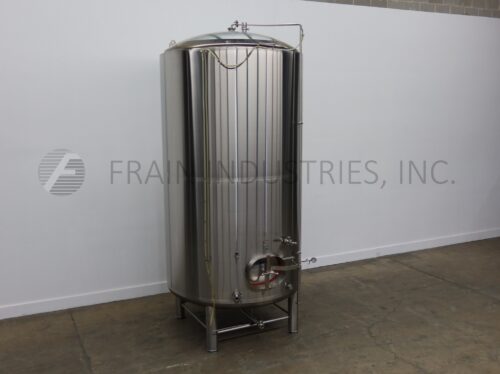

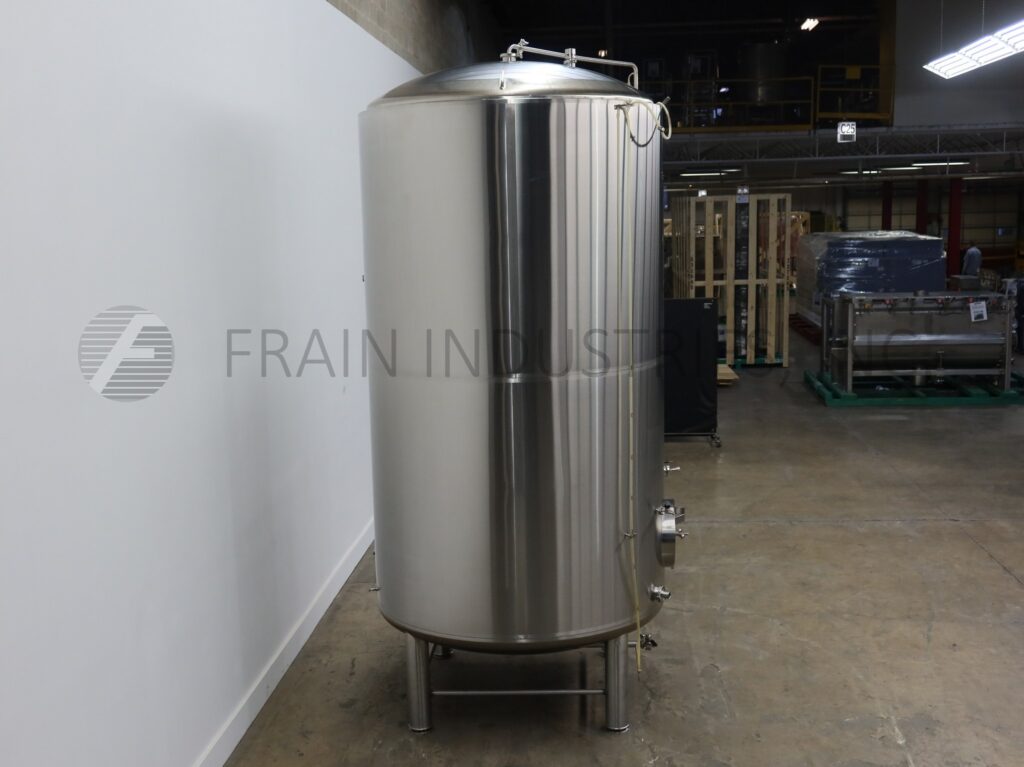

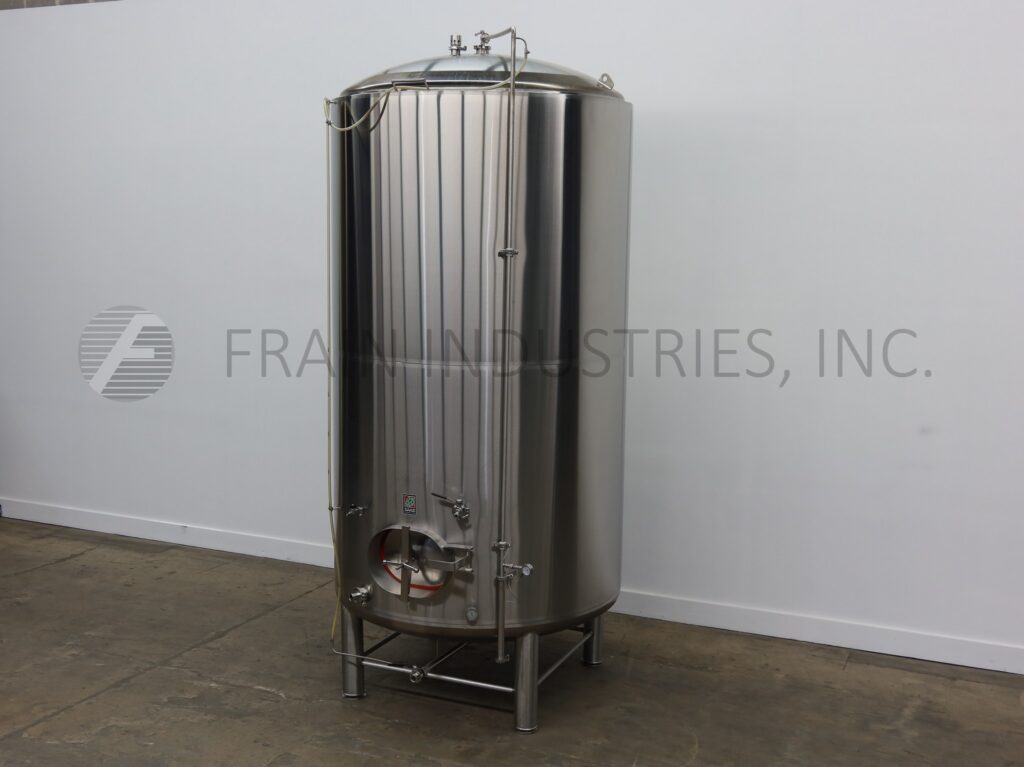

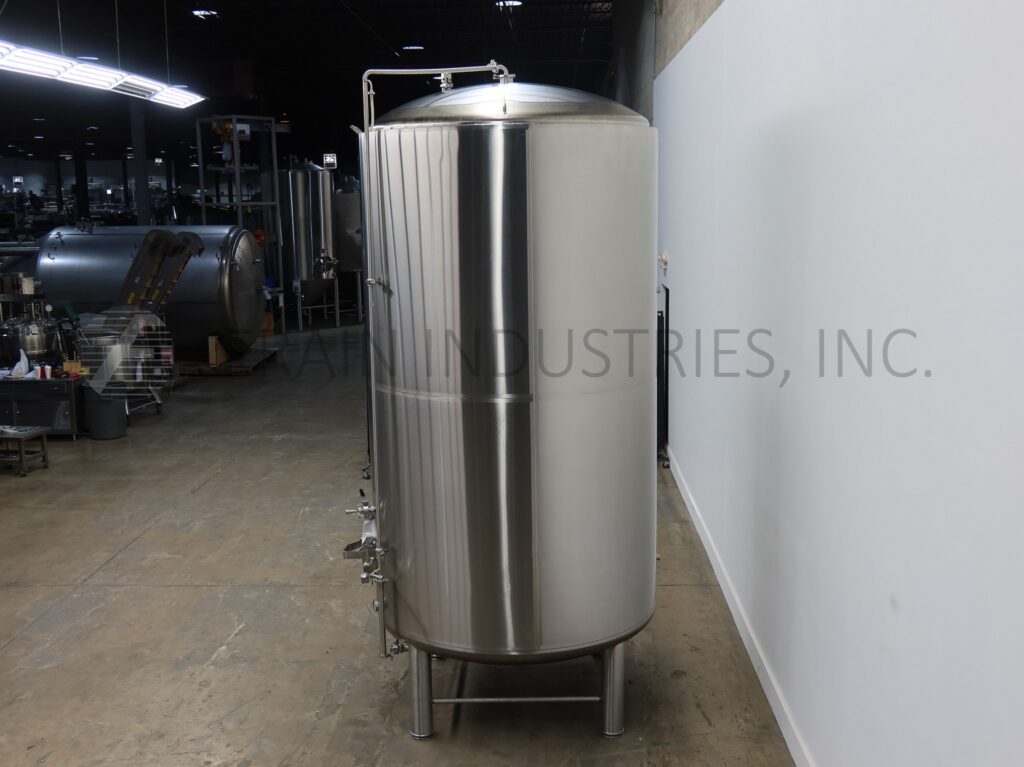

Tank SS JKT 2000 GALLON
Back to All EquipmentSaaz, 2000 gallon, 304 stainless steel, low pressure jacketed and insulated tank. Vessel Dimensions: 70" diameter x 120" straight wall with a dish bottom. Equipped with 15½" x 20½" side manway with bolt down cover, (2) thermowells, CIP spray ball supplied by a 2"OD / 1"ID Tri-Clamp fitting, top pressure releif valve and 2"OD / 1½"ID Tri-clamp style bottom fittings with 11" ground clearance.
Side Access:
(1) 3½"OD / 3 "ID Tri-Clamp
(2) 2"OD / 1½"ID Tri-Clamp
(1) 1"OD / ½"ID Tri-Clamp
Jacket Access:
(2) 1" NPT
OAD: 82"L x 74"W x 162"H
