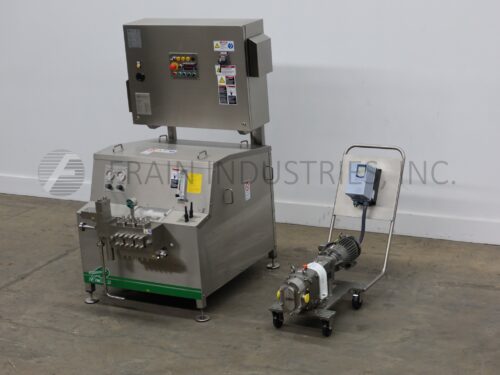

Photo of Tetra Pack Homogenizer 2 Stage TAS15/70BAR

Tetra Pack Homogenizer 2 Stage TAS15/70BAR

  Back to All Equipment
  • Manufacturer: Tetra Pack
  • Model: TAS15/70BAR
  • Frain Number: 5H3605
  • Category: Homogenizer
  • Subcategory: 2 Stage
  • Condition: Used, in excellent condition
  • Availability: In Stock

Alfa Laval Model TAS15, stainless steel (2) stage, homogenizer. Rated output up to 40 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 70 bar or 1015 psi. Equipped with (3) ball valve cylinders with valve housing and plungers (2) stage valve and stage hydraulic homogenizing valve actuator assembly. 2-1/2" OD / 2" ID sanitary Tri-clamp charge port and 2" OD / 1-1/2" ID sanitary Tri-clamp style discharge port. Start, stop and e-stop push button controls with pressure gauge up to 400 bar or 6000psi. Mounted on stainless steel cabinet style base frame.

OAD: 48" L x 36" W x 43" H
