Frain Industries can help you with your 2 stage homogenizer project no matter how big or small your homogenizing needs. 2 Stage homogenizer equipment and machines have more intense mixing and dispersion capability and are used to form better emulsion or to develop flavors. Top manufacturers are APV and Gaulin.

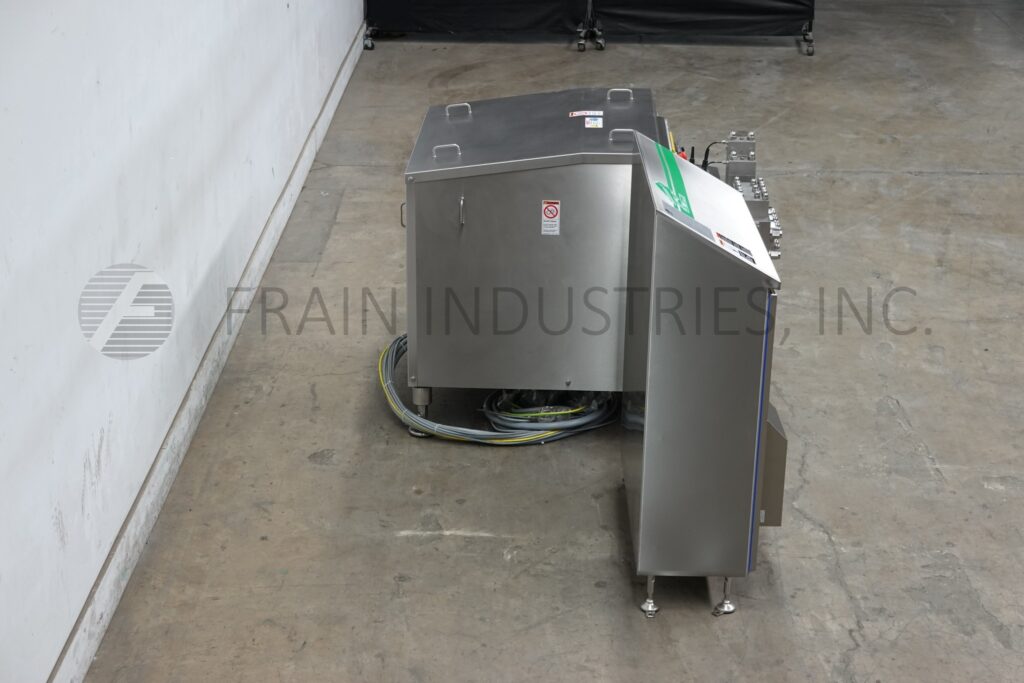

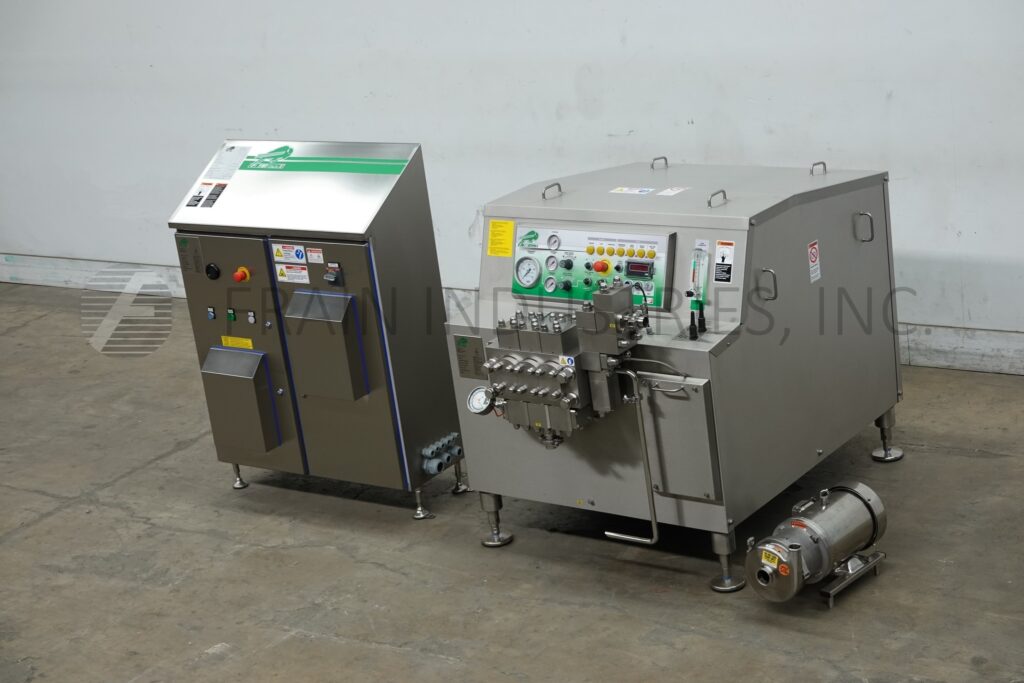

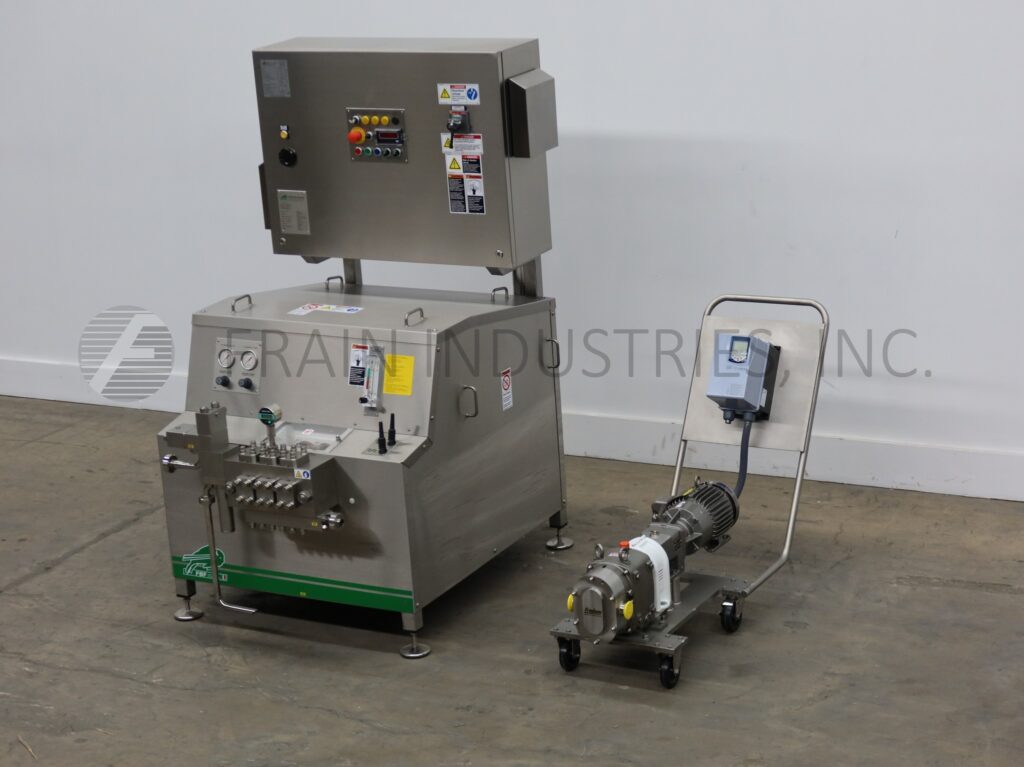

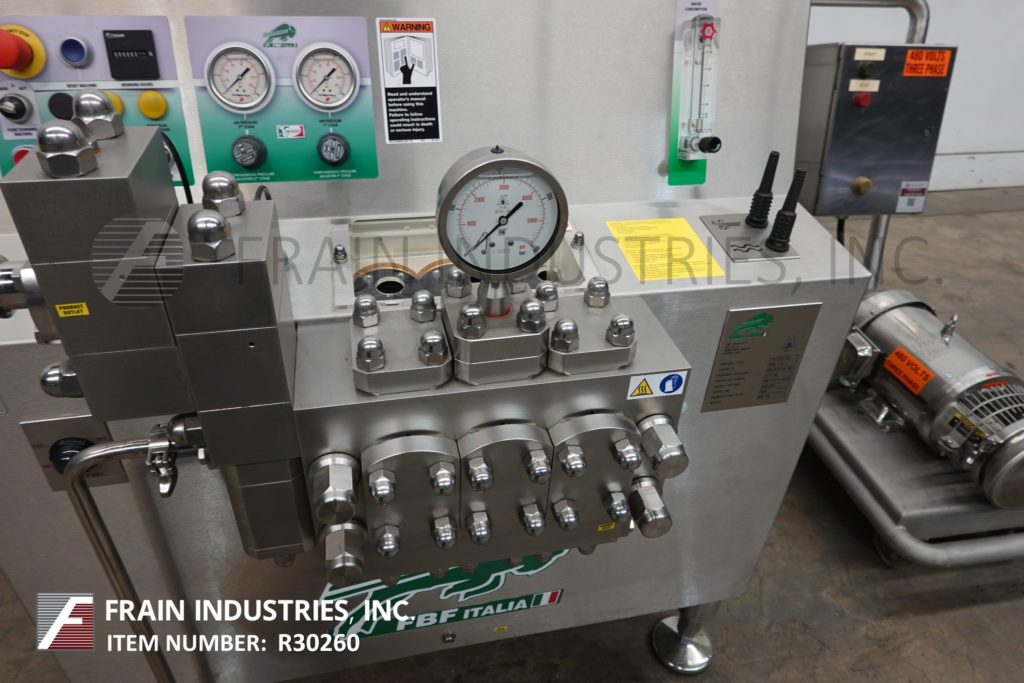

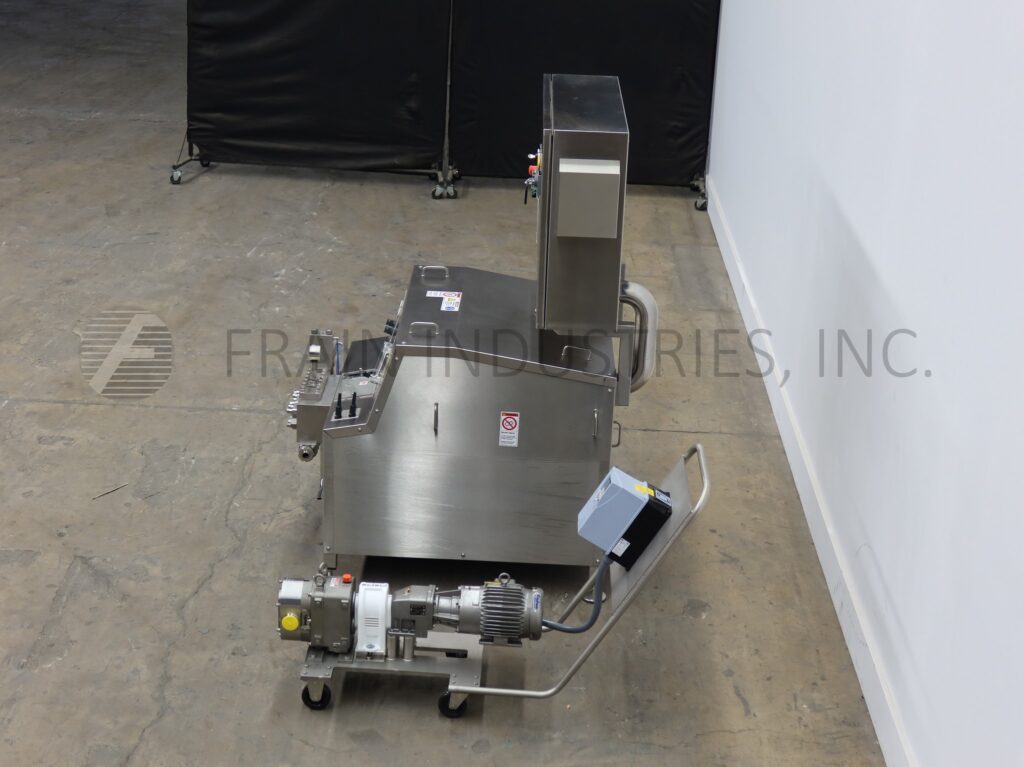

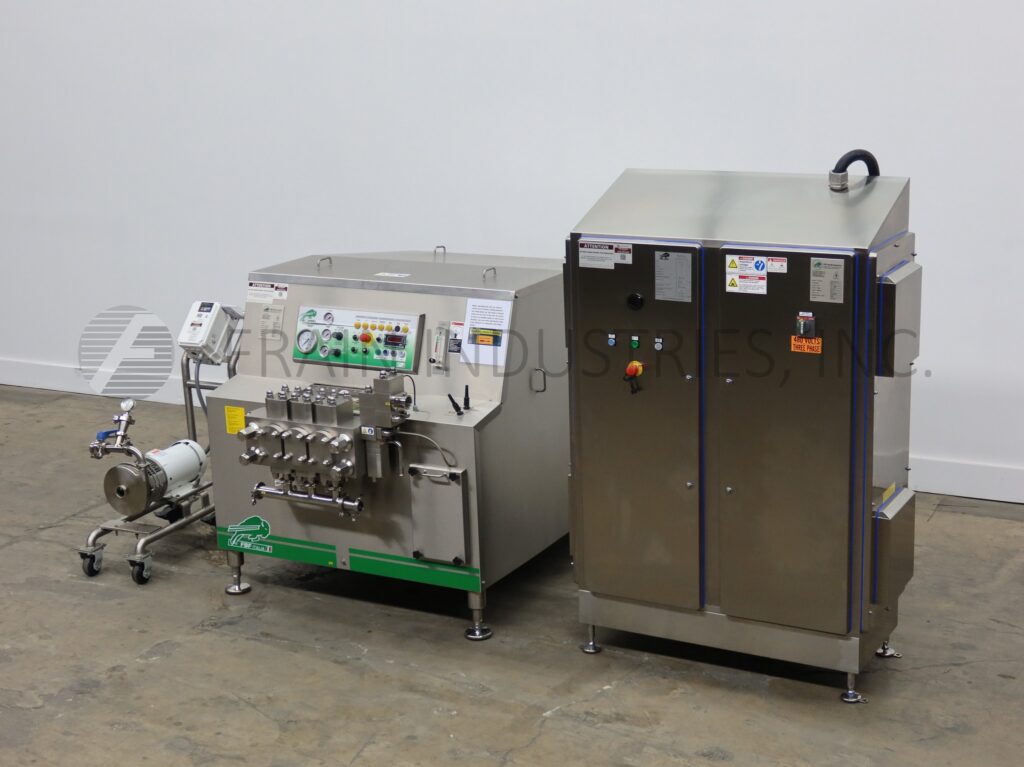

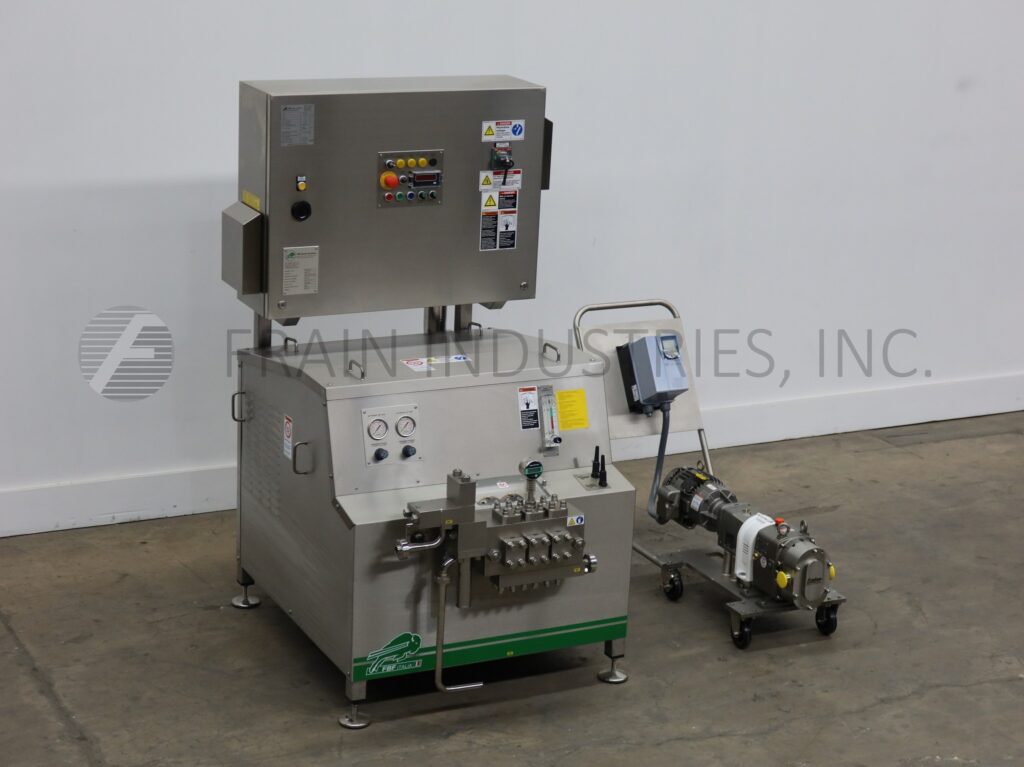

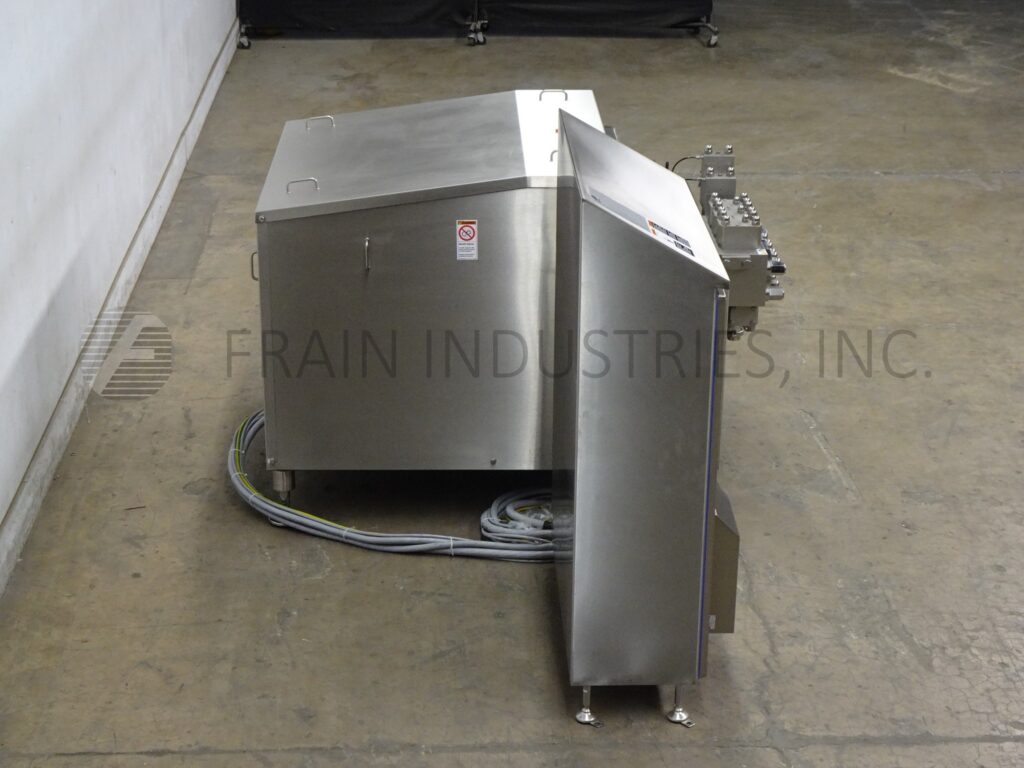

FBF Italia, Model FBF5030, (2) stage, variable speed homogenizer with rated output capacities from 225 to 925 gph – depending on materials, application and machine configuration. Maximum operating pressure up to 3,625 psi. Equipped with semi-spherical style supply and suction valves. Pneumatic homogenizing valve actuator assembly with 2" OD / 1½" ID Tri-Clamp style charge port, 2" OD / 1½" ID Tri-Clamp style discharge port and pressure gage up to 6,000 psi. Mounted on (4) leg heavy duty base frame.
OAD: 61"L x 48"W x 50"H – Homogenizer 40"L x 20"W x 56"H – Control Cabinet

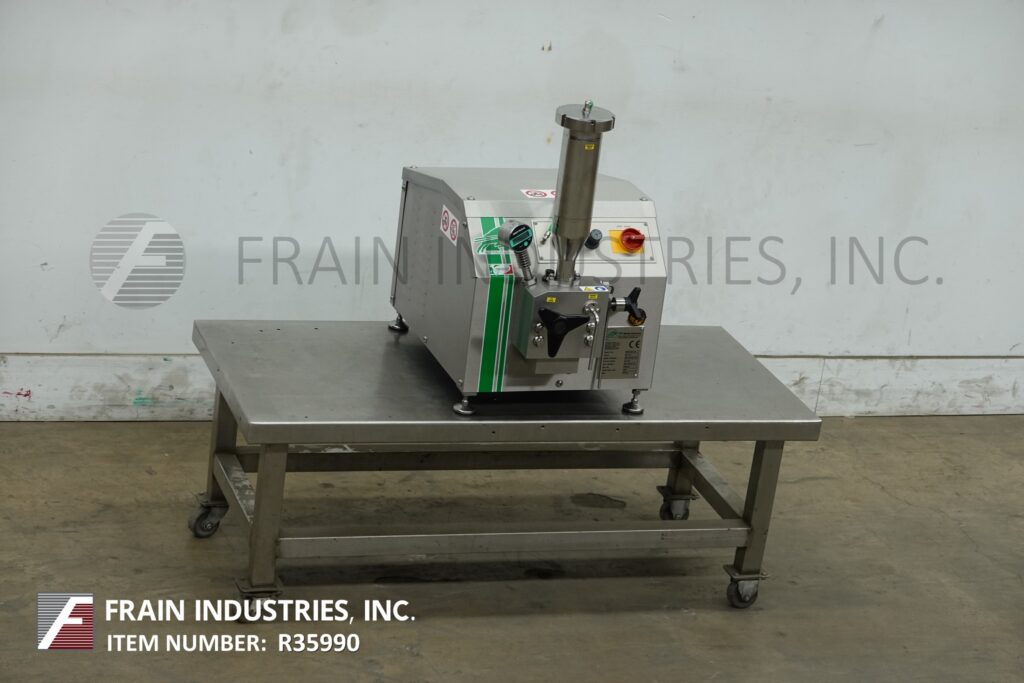

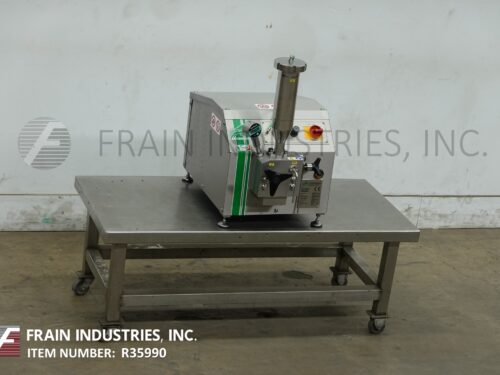

FBF Italia, Model 2.50 Lab, two stage, homogenizer. Rated output capacity of 50 liters per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 8700 psi. Equipped with manual homogenizing valve actuator assembly with 3¼" diameter x 12" deep pressurized hopper, ¼" OD discharge port and digital pressure gage.
OAD: 32"L x 18"W x 30"H

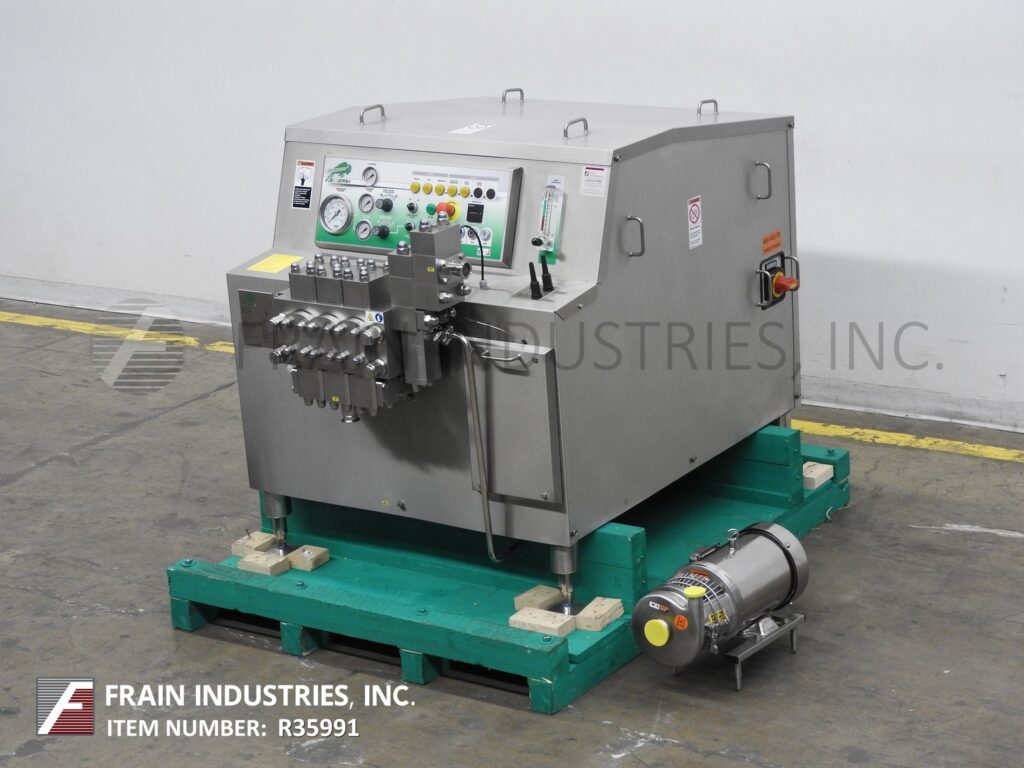

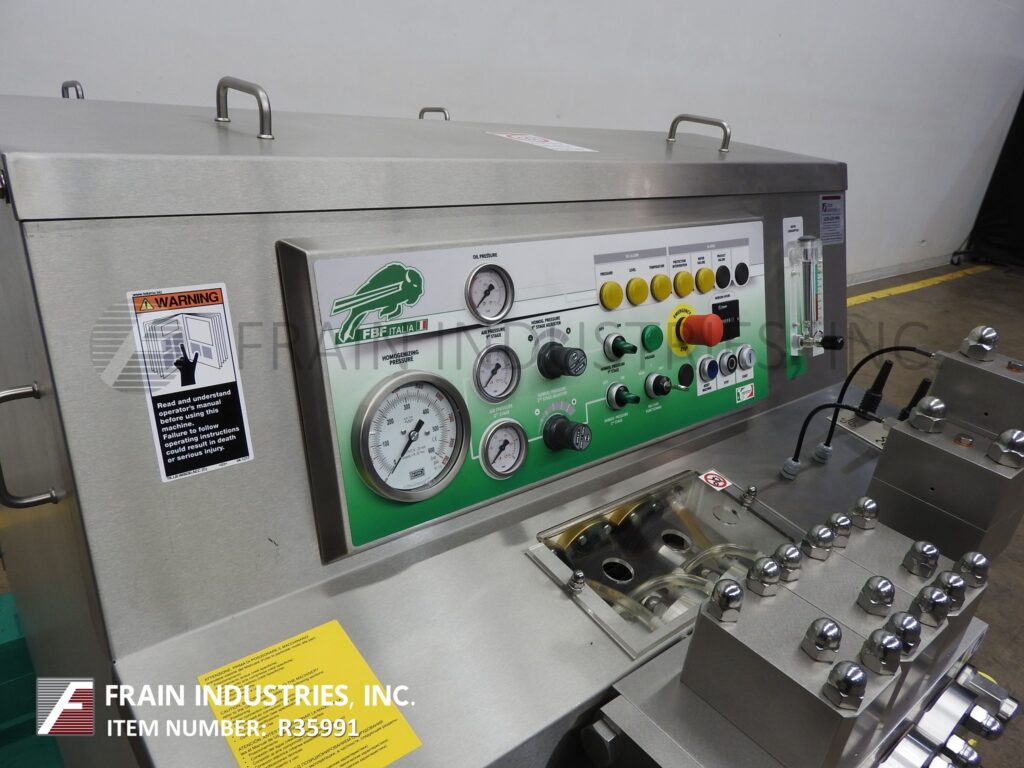

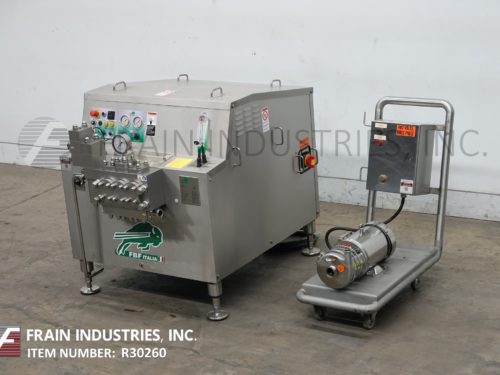

FBF Italia, Model FBF4022/3A, two stage, homogenizer with rated output capacity of 792 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 2,886 psi. Equipped with semi-spherical style supply and suction valves. Pneumatic homogenizing valve actuator assembly with 2½" OD / 1½" ID Tri-Clamp style charge port, 2½" OD / 1½" ID Tri-Clamp style discharge port and pressure gage up to 6,000 psi. Mounted on (4) leg heavy duty base frame.
OAD: 55"L x 48"W x 50"H

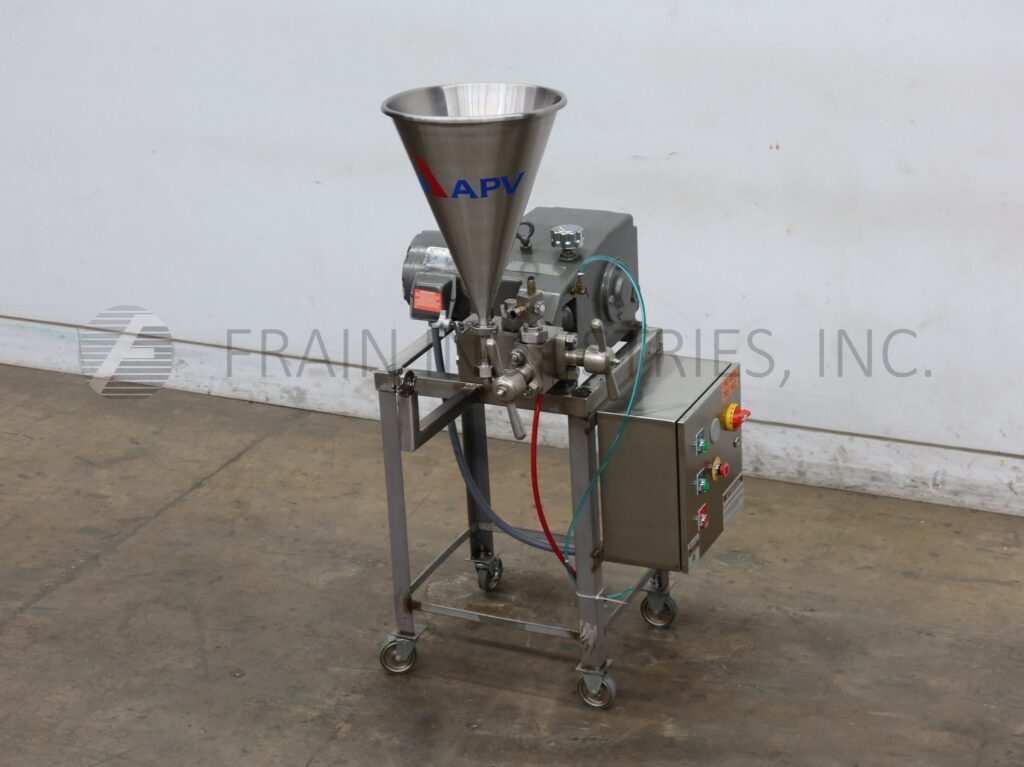

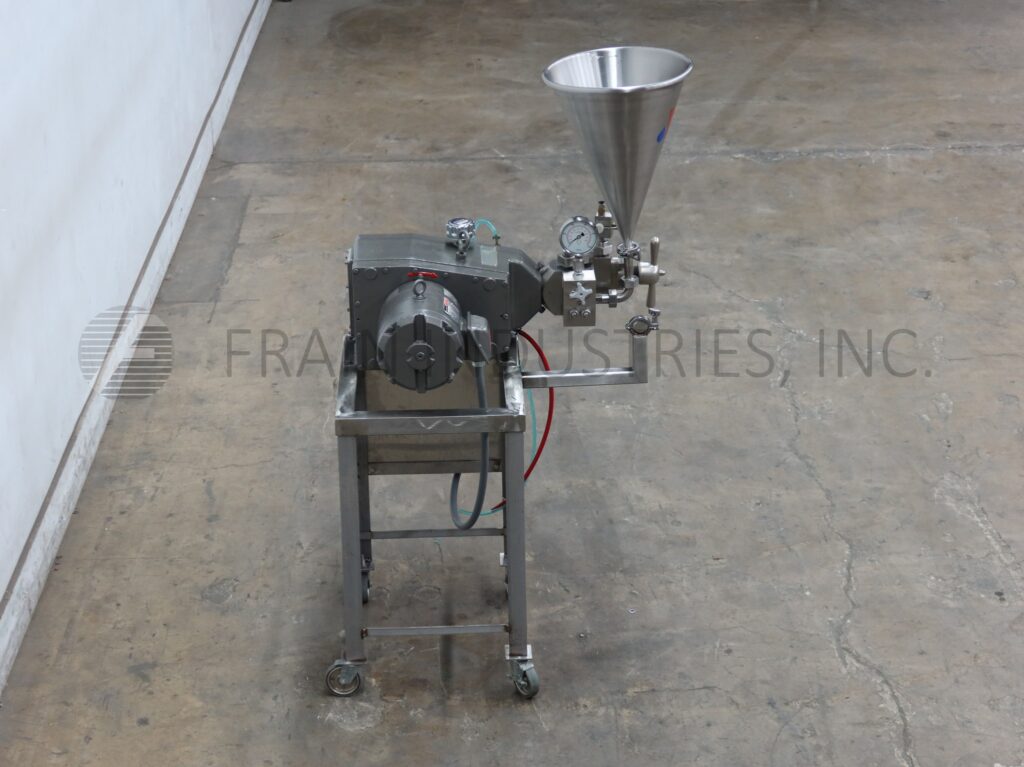

APV, Model LAB 1000, two stage, homogenizer. Rated output capacity of 6 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 12,000 psi. Equipped with poppet cylinders and CD valve seat, manual homogenizing valve actuator assembly with a 5" diameter x 9" deep hopper infeed, ¼" ID discharge and digital pressure gage.
OAD: 34"L x 21"W x 27"H

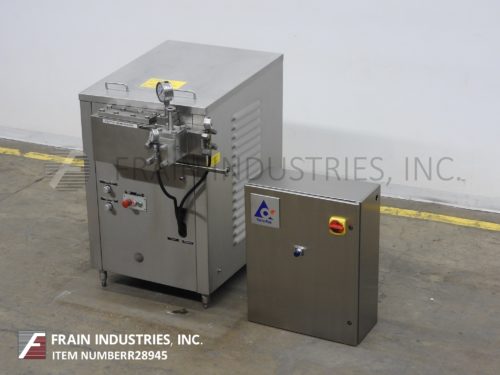

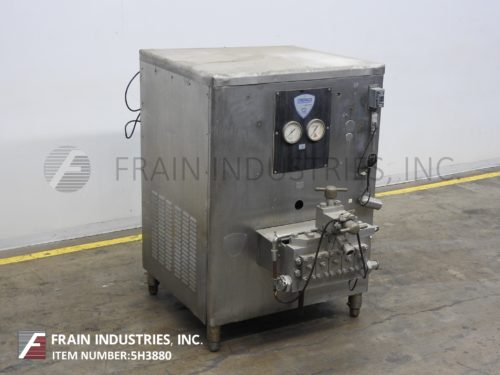

Alfa Laval Model TAS15, stainless steel (2) stage, homogenizer. Rated output up to 40 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 70 bar or 1015 psi. Equipped with (3) ball valve cylinders with valve housing and plungers (2) stage valve and stage hydraulic homogenizing valve actuator assembly. 2-1/2" OD / 2" ID sanitary Tri-clamp charge port and 2" OD / 1-1/2" ID sanitary Tri-clamp style discharge port. Start, stop and e-stop push button controls with pressure gauge up to 400 bar or 6000psi. Mounted on stainless steel cabinet style base frame.
OAD: 48" L x 36" W x 43" H

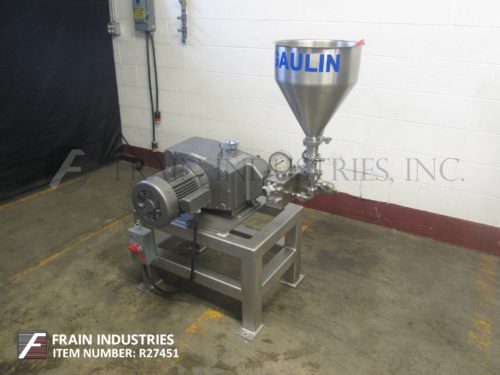

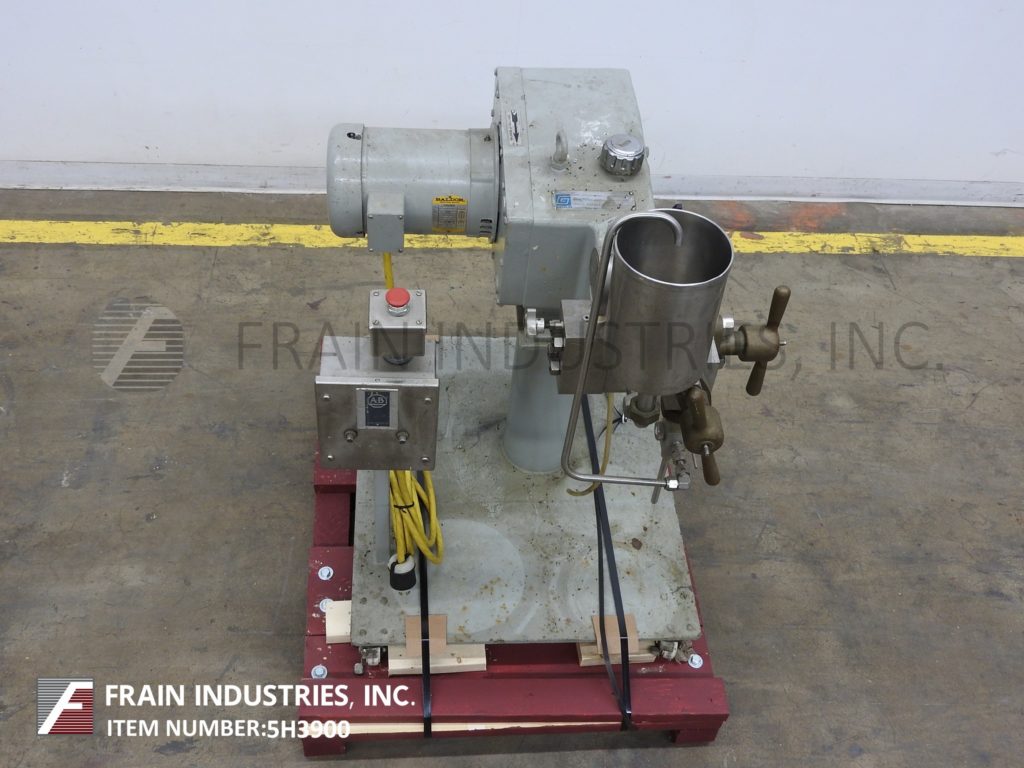

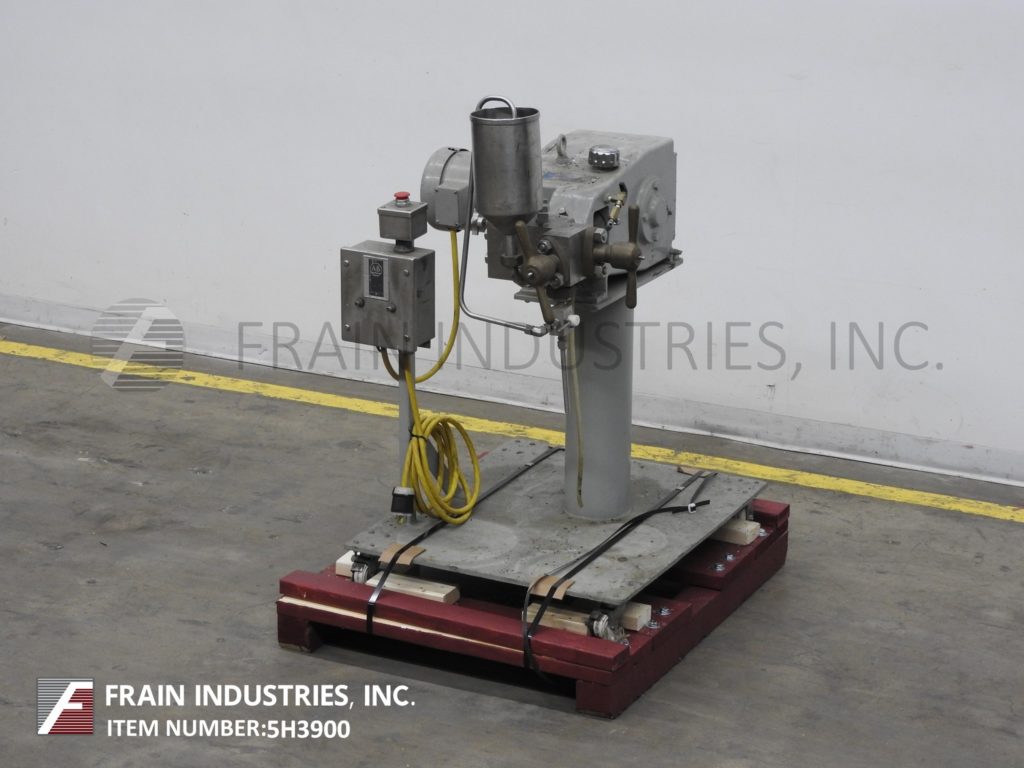

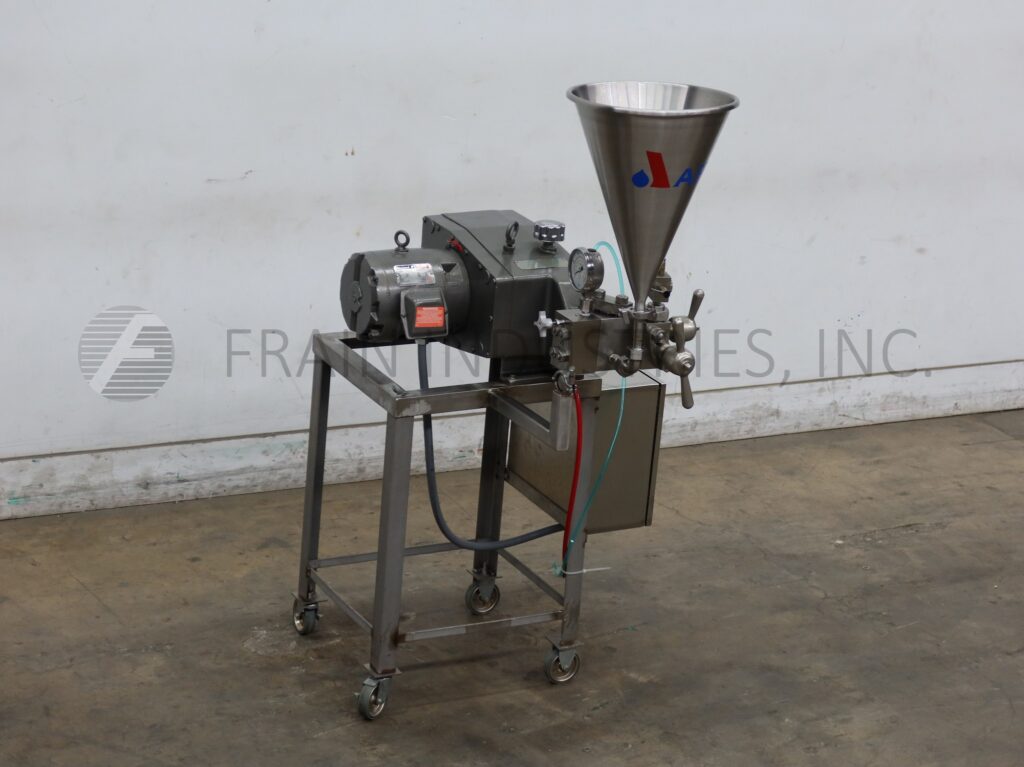

Gaulin / APV, Model 15MR 8TBA, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8000 psi. Equipped with ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 6" diameter x 9" deep hopper infeed, three way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Standard valve seat is used for most emulsion and dispersion applications.
OAD: 44"L x 30"W x 50"H

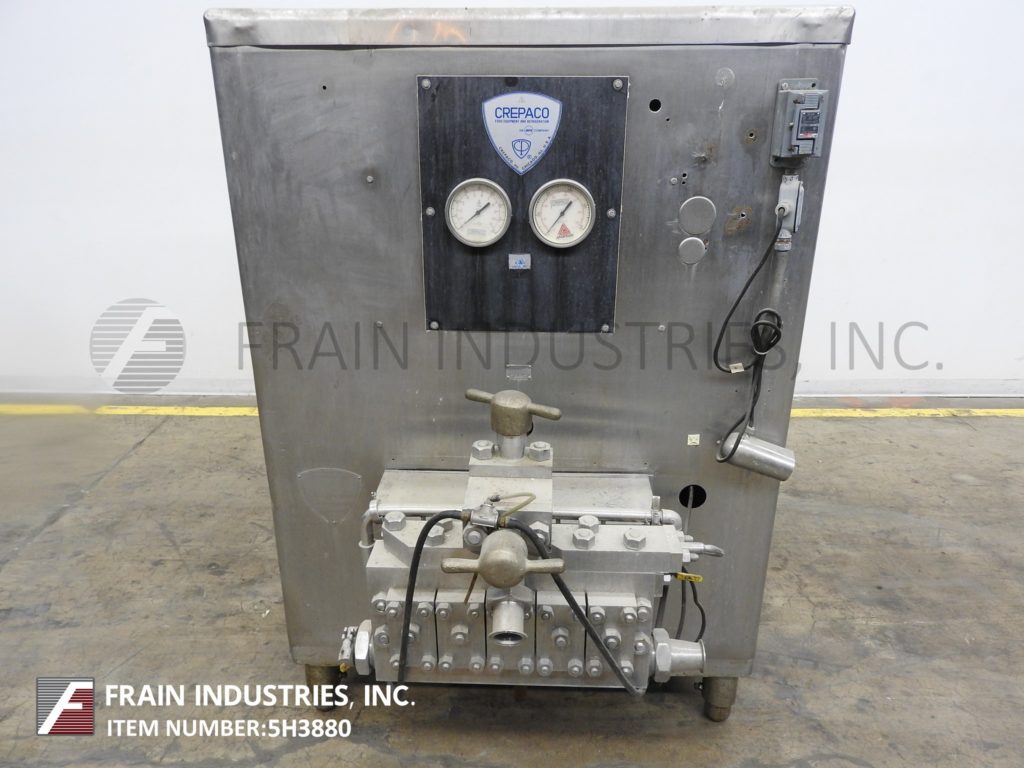

APV Crepaco Multi-Flo, Model 5DL425, two stage, stainless steel, homogenizer rated at 2,500 gallons per hour – depending on material, application and machine configuration. Maximum operating pressure:1,800 psi. Two stage unit equipped with (5) stellite seat ball valves. 2-1/2"OD / 1-3/4"ID Seated bevel sanitary charge port and discharge port.
OAD: 70" L x 48" W x 69" H
APV Model G110T-75P, stainless steel, (2) stage, (3) plunger homogenizer with working capacities to 14,000 litres or 3,696 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 210 bar or 2,000 psi. Equipped with (3) poppet, aseptic design, mechanical hydraulic plunger valves, (2) stage valve and hydraulic homogenizing actuator assemblies, low-noise insulation and high pressure outlet connections with pressure relief valve and maximum temperature of 105 Deg C or 221 Deg F. Stainless steel control panel has 1st and 2nd stage pressure gauges, start, stop oil pump and e-stop controls with all internal indicators placed behind the side window pane. Mounted on heavy duty stainless steel base frame with concrete sub-frame for noise reduction, vibration dampering and better stability and height adjustable legs.
OAD: 100" L x 64" W x 58" H

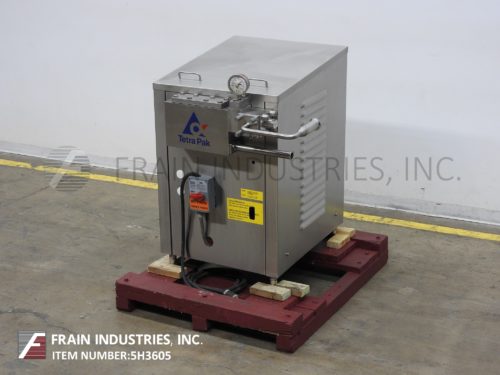

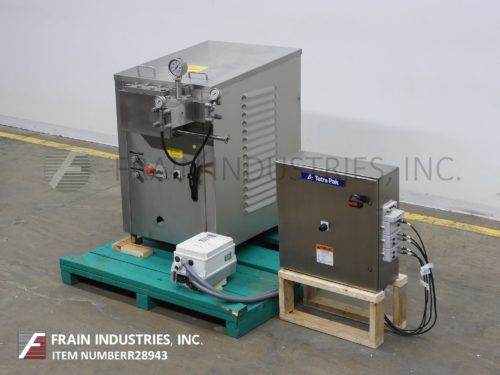

Tetra, Model TAS15, two stage, stainless steel homogenizer. Rated output capacity of 40 gallons per hour – depending on materials, application and machine configuration. Maximum operating pressure up to 4,500 psi . Equipped with hydraulic homogenizing valve actuator assembly with a 2" OD / ¾" ID Tri-clamp style charge port and discharge port. Variable Speed.
OAD: 50"L x 38"W x 51"H
APV, Model APV24-3B, two stage, stainless steel homogenizer. Rated maximum 50 to 725 gallons per hour – depending on materials and application. Maximum operating pressure up to 3,000 psi. Equipped with ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with 2½"OD / 1¼"ID Tri-Clamp style charge / discharge ports and pressure gauge up to 6,000 psi. start, stop and e-stop push button controls. Mounted on (4) legs stainless steel frame.
OAD: 62"L x 51"W x 57"H

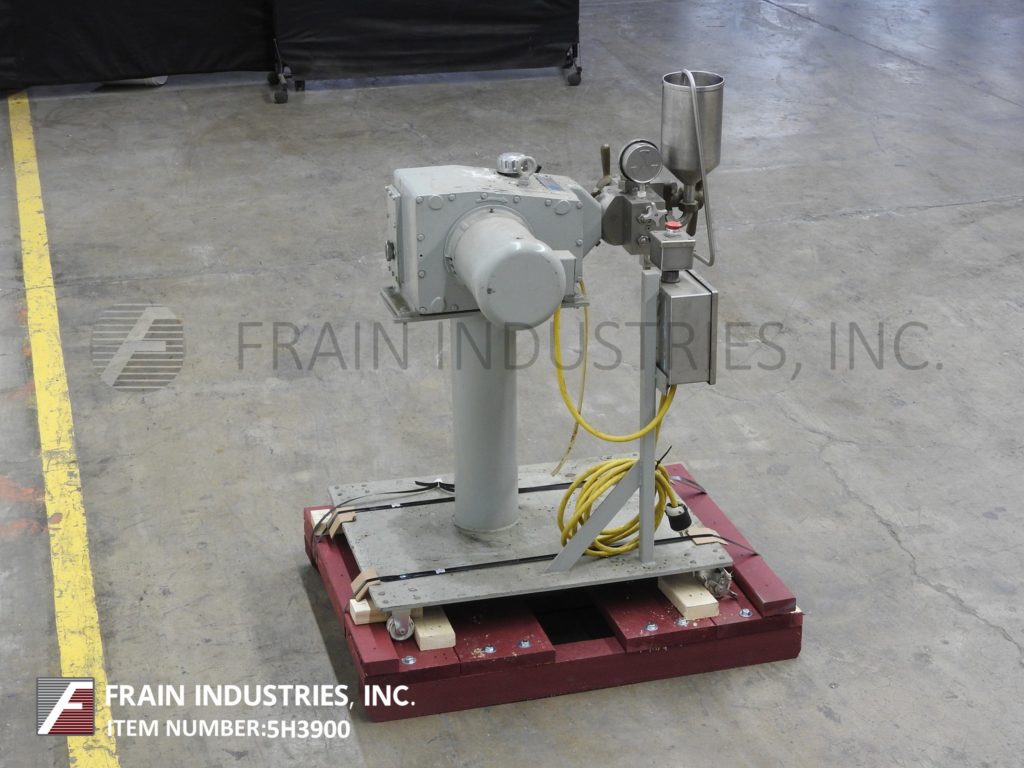

APV, Model 15M 8TBA, two stage, homogenizer. Rated output capacity of 15 gallons per hour – depending on materials and application. Maximum operating pressure up to 8000 psi. Equipped with ball valve cylinders and standard style valve seat, manual homogenizing valve actuator assembly with a 14" diameter x 16" deep hopper infeed, three way valve discharge and pressure gage up to 15,000 psi. Ball valve head is ideally suited for high-viscosity or abrasive products like, peanut butter, evaporated milk, wax emulsions and lubricants. Standard valve seat is used for most emulsion and dispersion applications.
OAD: 40"L x 28"W x 54"H
