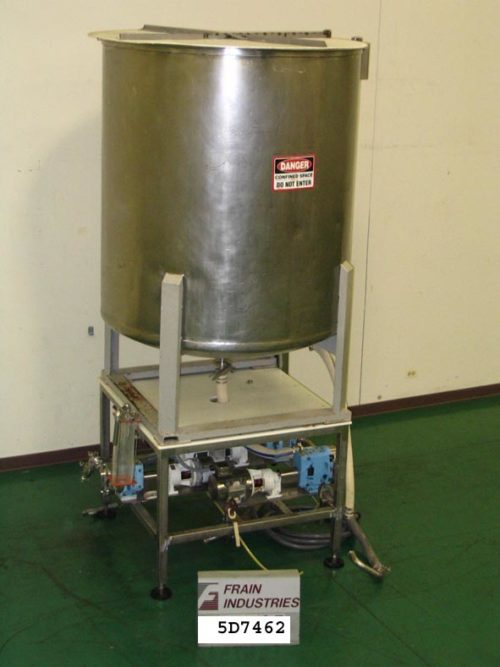

Waukesha Tank SS Single Wall 500 GAL

• Manufacturer: Waukesha
• Model: 500 GAL
• Category: Stainless Steel Tank
• Subcategory: Stainless Steel Single Wall

Waukesha, Supply tank and pump system consisting of a 500 gallon S/S tank and (3) Waukesha pumps (2) model 30 pumps and (1) model 15 pump). Tank is 43" ID x 46" straight wall, ½ HP Lightnin mixer (54"L x 1" dia) shaft and 3" dia. impeller. 2½" ID triclover center bottom discharge with 14" floor clearance. mounted on a (48"L x 48"W x 50"H) platform on casters for mobility. Model 30 pumps are 316 S/S positive displacement pumps capable of up to 30 GPM. Equipped with 3/4 HP Baldor motor, 2" OD triclover inlet/outlets, and twin wing rotors, and O-Ring seals. Model 015 pump is 316 S/S positive displacement pump capable of up to 15 GPM. Equipped with ½ HP Baldor motor, 1" OD triclover inlet/outets, twin wing rotors, and O-Ring seals. Pumps mounted on a S/S frame. System ideally suited as supply tank to a time/pressure filler.

OAD: 92"(L) x 48"(W) x 92"(H)
