Cutter Slicer Slicer is a classification of cutting equipment in either a batch or a continuous process for the portion cutting of a variety of food products. Cutter, slicer, slicer is the operation whereby products are sliced to specific thickness shapes or sizes.
These can either plain or crinkle cut or other variation of a slice through a product. The operation is simply a means of feeding materials into equipment where they are sliced to required size for further processing.
Urschel Model Sprint 2, Stainless steel dicer, that uniformly dices, strip cuts and slices a wide variety of products at high production capacities with product per minute and hour – depending on materials, application and machine configuration. Capable of handling product sizes up to 6½" in any dimension. Circular knife cuts: 1/8 to 3" (3.2 to 76.2 mm), Crosscut knife cuts: 3/32 to 1" (2.4 to 25.4 mm), Crosscut knife crinkle cuts: 9/32 to 9/16" (7.1 to 14.3 mm). Equipped with 26" deep x 18" x 17" rectangular hopper, 14" diameter x 7" wide product chamber, circular and cross cut knives, 1½HP drive and has 10" wide x 24" long discharge conveyor with 33" ground clearance. Change parts required per application.
OAD: 72" L x 62" W x 62" H

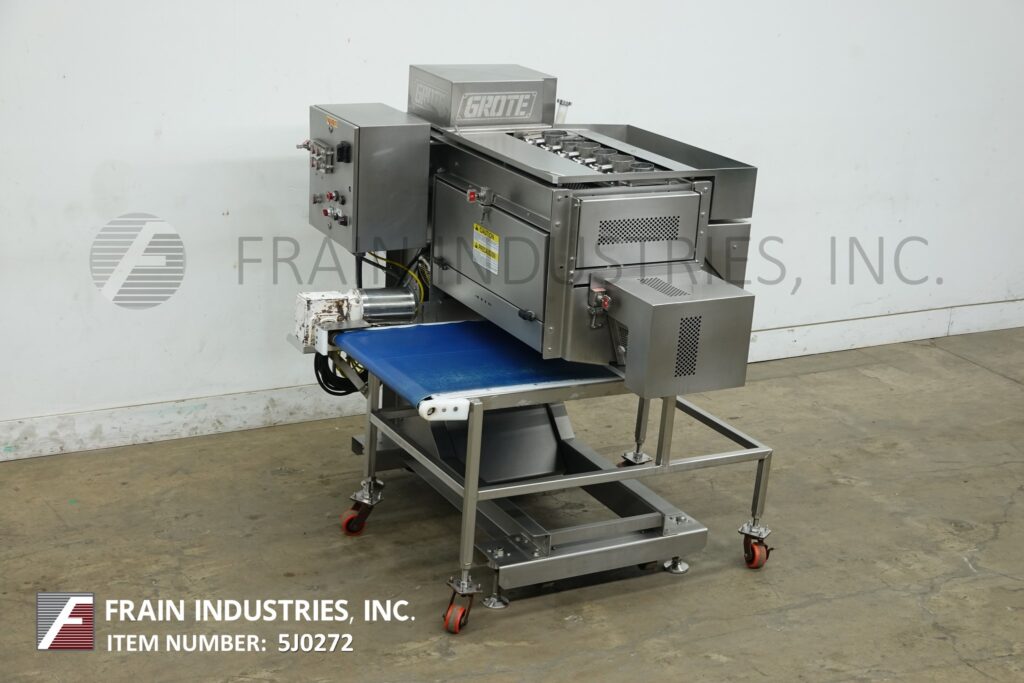

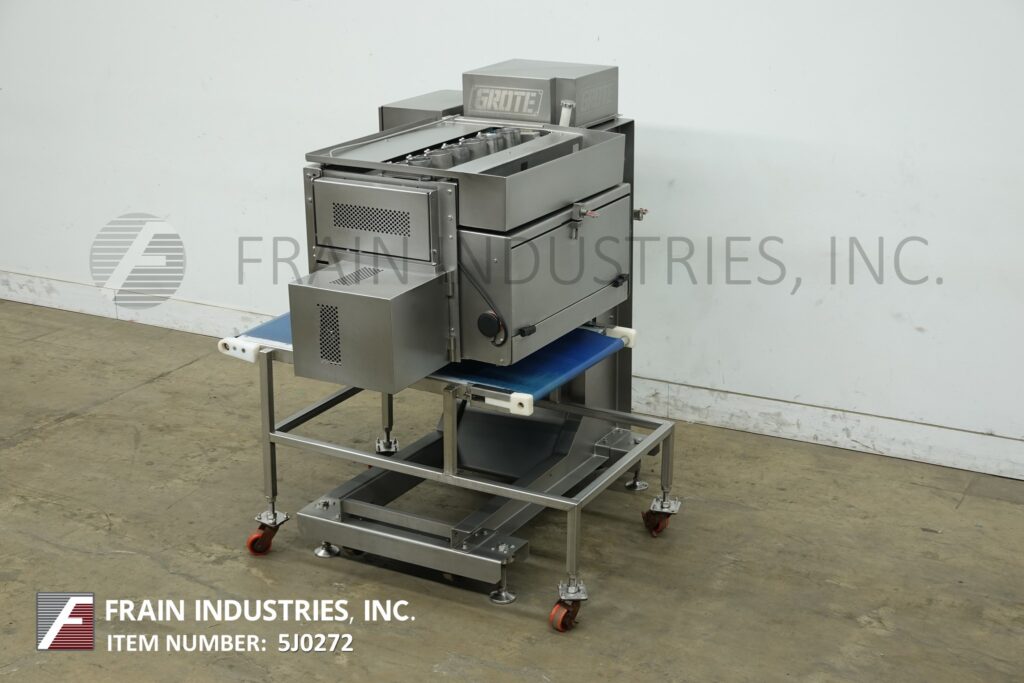

Grote Model HB2 single lane, stainless steel, product bisector, cuts bread products horizontally into halves up to 60 pieces per minute – depending on materials and application. Product cutting zone is 4.94" in Width x .5 to 3.25" in Height and can cut in temperatures as low as 20°F (-6°C) depending on product and has an enclosure rating of IP65. Equipped with single 12" wide x 84" long product in feed, thru the AccuBand Â® disposable band cutting blade and discharge conveyor, with top product pressure hold down belt and hand crank adjustable for a variety of different cut heights of bread products, with flip-up interlock safety guard covers. Control panel has machine on / off and able, conveyor speed and guarding release latch controls with e-stops. Mounted on stainelss steel frame with casters and leving legs.
OAD: 94" L x 48" W x 60" H
Urschel Model G, Stainless steel USDA, dicer, slicer and cutter used for a variety of food products with volumes per hour – depending on materials and application. Utilizes slice, crosscut, and circular knifes with size ranges: 1/8" to 5/8" Slice Thickness, 9/32" to 3" Crosscut, 1/8" and up to 3" Circular. Continuous motion for uninterupted production and accept products up to 5-1/2" in any dimension. Product is fed thru hopper into a rotating impellor to the blades. Equipped with stainless steel feed hopper, discharge chute and lift off safety guarding start and stop push buttons controls. Mounted on stainless steel frame with casters. Change parts required for different size changes.
OAD: 60"L x 45"W x 48"H

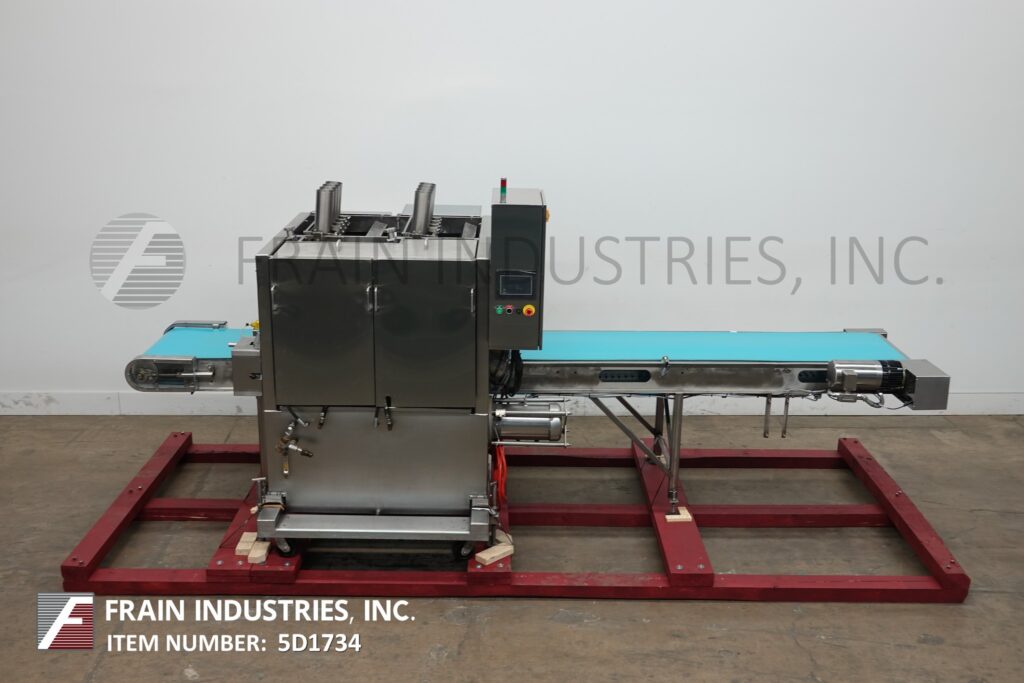

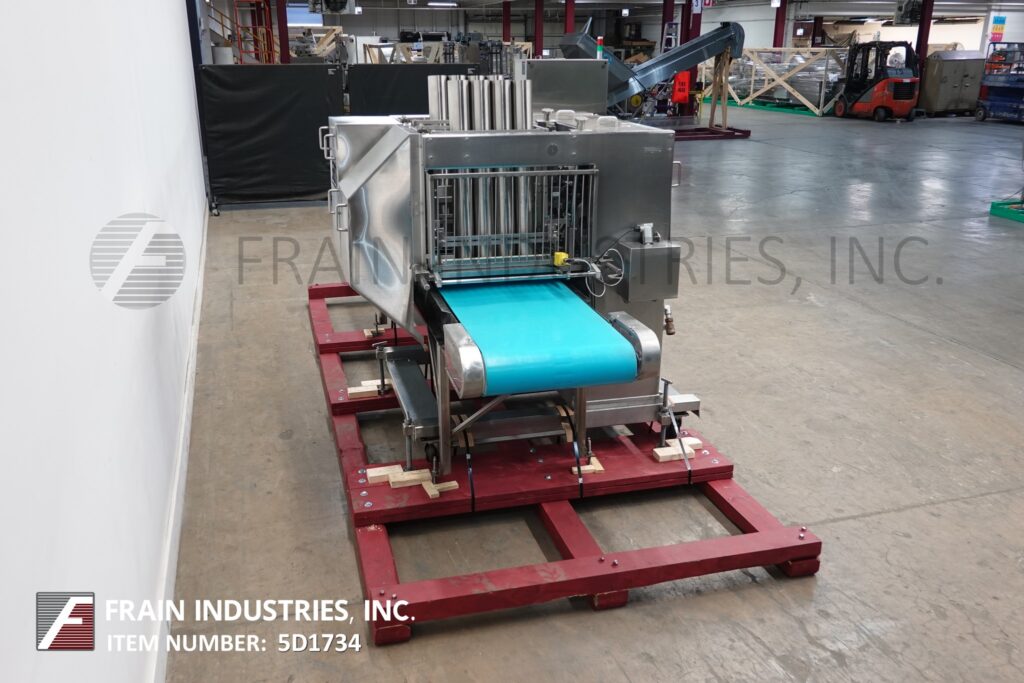

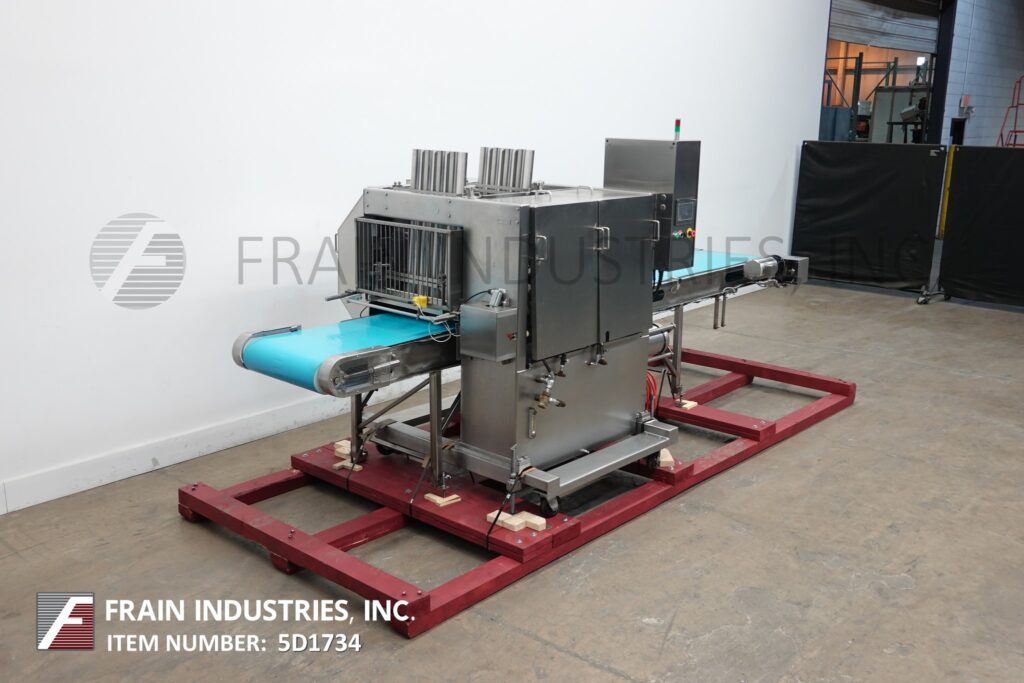

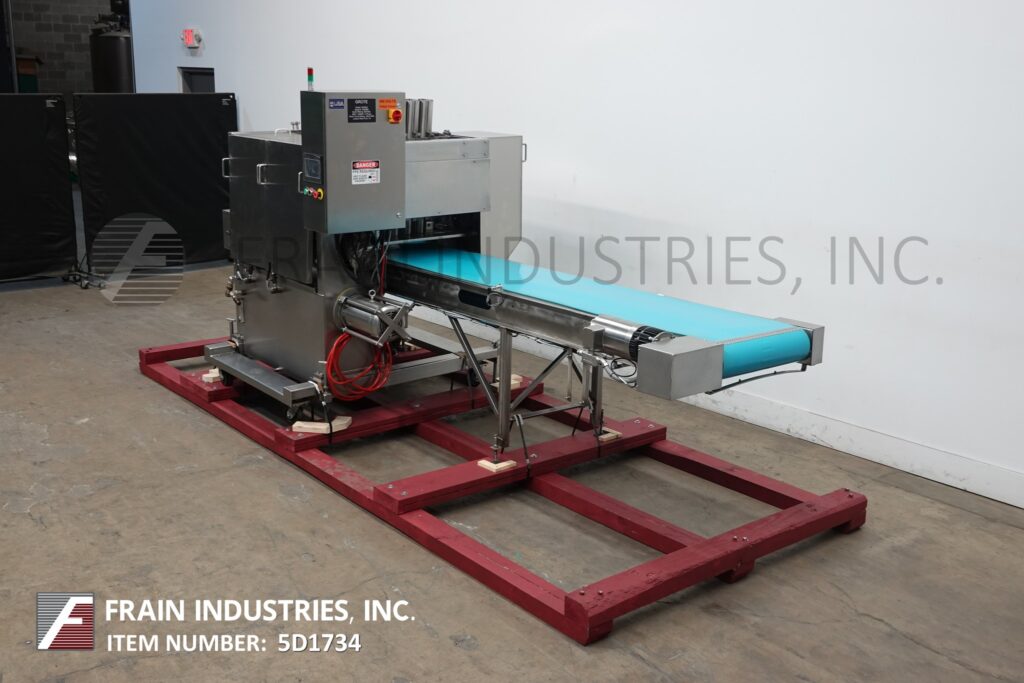

Grote, Model FPS-1000, High speed, stainless steel, sanitary design, (6) cavity bulk product slicer. Rated up to 120 strokes per minute with number of product – depending on materials and application. Product size up to 5" in Diameter. Slice thickness down to .125" and capable of handling wide range of produce from delicate tomatoes to rigid onions without damage or cracking. Equipped with 54" long x 30" wide product conveyor, and has (6) 24" long x 3¼" ID pivot style bulk product holders and feeders that can be loaded continuously while machine is in operation. 30" slicing zone with 30" long disposable Accuband cutting band blade running continously between pullys and able to slice thru entire logs including the butt ends with hydraulic drive system. Control panel has A/B PLC, with start / stop and e-stop, with hyrdraulic pump control and slicer on / off switch with conveyor speed control dial. Mounted on stainless steel frame with casters, leveling legs and safety guarding.
Cantilevered design integrates seamlessly to your further processing systems such as dehydrating or cooking
OAD: 72" L x 60" W x 72" H

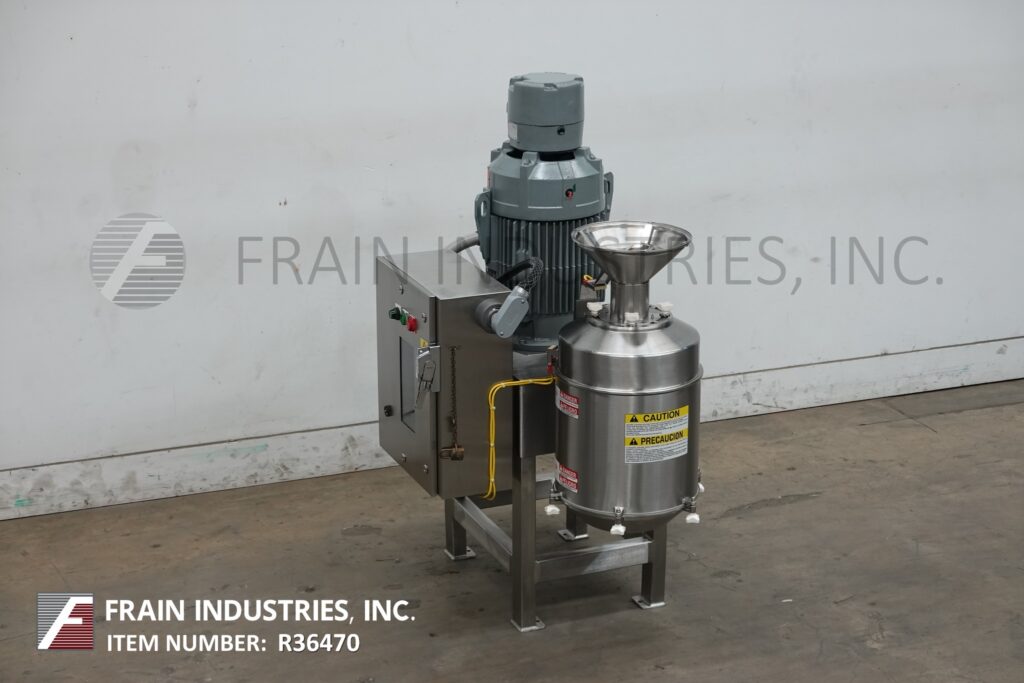

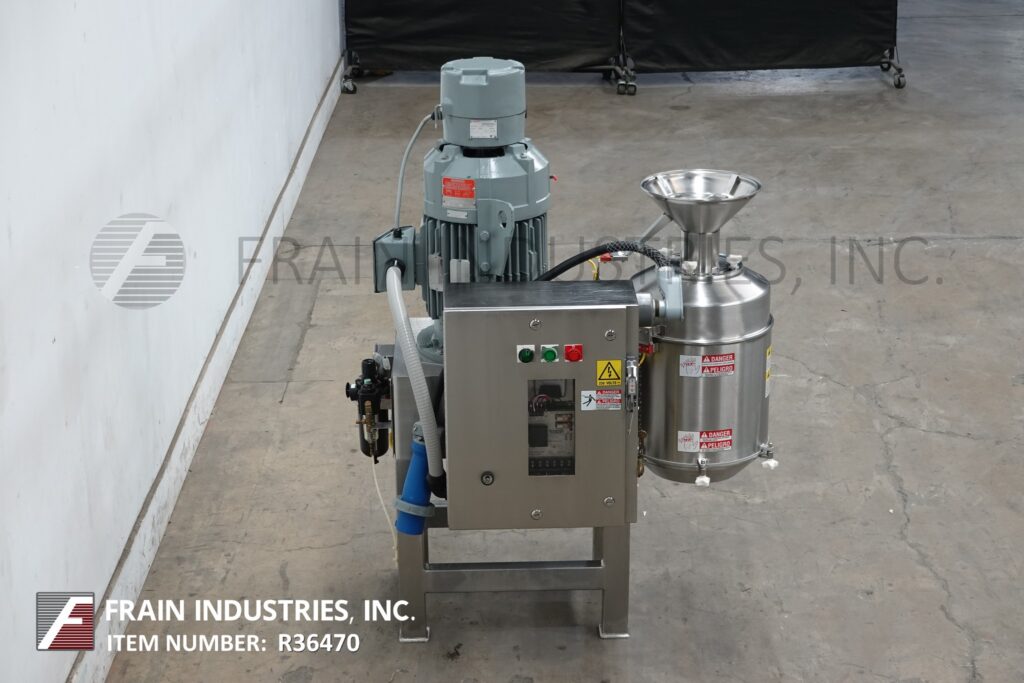

Urschel, Model 1700 Comitrol, stainless steel, reduction mill for free flowing dry and semi-dry product with number of pounds of product per hour – depending on materials and application. Equipped with 14" ID x 7" Deep product hopper with 4½" diameter feed throat, 6" diameter x 1" deep milling chamber with (9) blade high-speed rotating impeller and cutting head with vertical blades, 11" diameter product discharge with 17" floor clearance. Powered by a 30 Hp motor drive. Control panel has push botton start / stop controls. Mounted on stainless steel base frame with casters. Operations include communiting, granulating, milling, slicing, liquifying, dispersing, and pureeing. Change parts required per application.
OAD: 50"L x 34"W x 68"H
Urschel TranSlicer 2500. Equipped with 64" long v-belt product in feed, 25" OD cutting wheel. Sanitary, stainless-steel design. Accepts in feed of compressible food products up to 8" OD, or firm products up to 6-3/4" and has a 15" x 21" product discharge chute with 30" floor clearance. Control panel has start, stop, e-stop controls. Mounted on (4) leg stand with casters.OAD: 144" L x 60" W x 65" H
OAD: 144" L x 60" W x 65" H

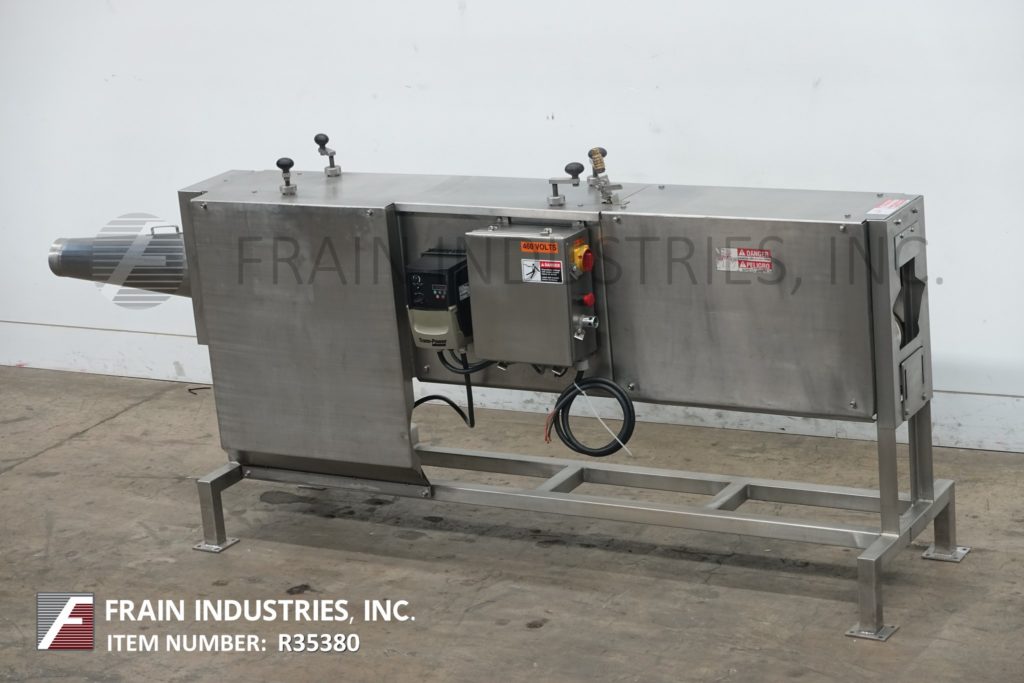

Urschel, Model OV, automatic stainless steel USDA slicer for uniform crosscut slicing of elongated food products with pounds of product per hour – depending on materials and application. Equipped with 48" long v-belt in feed, 2½" wide product hold down belt and 7" OD discharge with 31" ground clearance. Will accommodate products up to 2¾" OD and capable of flat or crinkle slices and will produce flat slices from 1/16" to 1¾" thick. Change parts are required to accommodate size / cut range. Mounted on (4) stainless steel height adjustable legs.
OAD: 72" L x 30" W x 62" H
Urschel, Model VSC, Automatic slicer for uniform segment, slab and strip cuts, with pounds of product per hour – depending on materials, application, machine configuration and type cut. Accepts product up to 4" in diameter. Equipped with 5" wide top and bottom product conveyor belts with 4½" diameter product cutting / discharge port. Control panel has start, stop, e-stop push buttons and vari speed contoller. Mounted on stainless steel base frame with interlock safety doors.
Segment cut types: 3, 4, 5, 6, 7, 8, 10 or 12. Rectangular strips: 7.1mm x 10.3mm to 8.7mm x 11.9mm. Square strips: 4.0mm x 7.5mm to 14.2mm x 25mm.
OAD: 120"L x 30"W x 48"H
Urschel Model M, stainless steel, belt fed, dicer, shredder and strip cutter designed for meat products and is capable of production rates from 500 to 4,500 lbs per hour – depending on materials and application. Capable of strip cuts from 3/16" to 3" and cross cuts from 1/8" to 4". Equipped with 32" x 9" load area on feed belt and adjustable feed roll allowing for positive product feed at all thicknesses from 3/8" to 1". Mounted on a stainless steel frame with casters. Change parts needed for different configurations and size range changes.
OAD: 120"L x 35"W x 50"H
Johnson Industries Model 9600, Stainless steel, commercial cheese shredder, used for high-volume shredding and allows you to process up to 40 lb (20 kg) blocks of cheese for size reduction prior to grating at rates up to 10,000 lbs of product per hour – depending on materials, application and operator dexterity. Equipped with 24" long x 8" wide x 12" high dual product chambers with slide open safety covers and (2) pneumatic product pushers, 33" OD and (4) blade cross cut shredding disc with size reduction disc (change part per application} and safety cover. Control panel has A/B panelview controller with auto, hand, off and control power, on / off switches with e-stop. Mounted on stainless steel height adjustable frame with casters.
OAD: 128" L x 40" W x 60" H

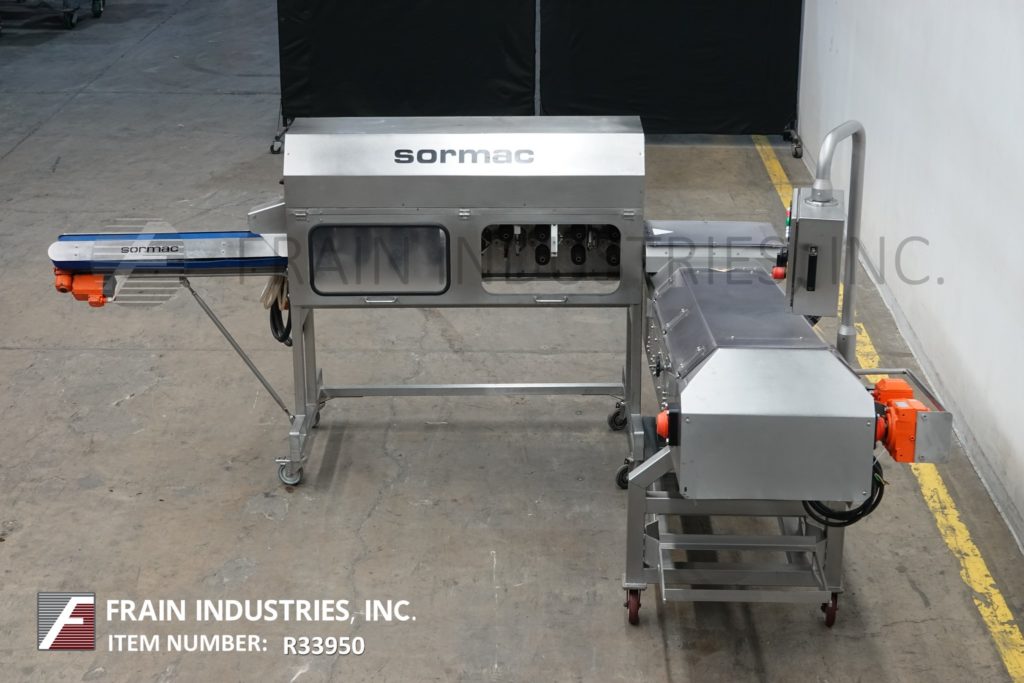

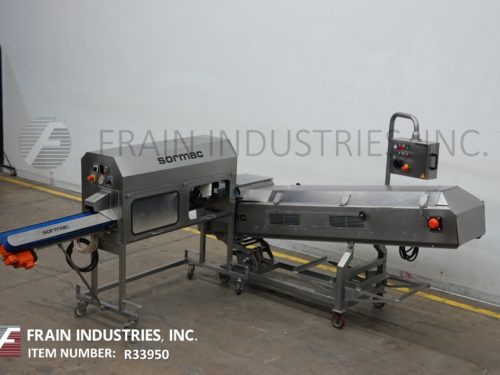

Sormac, peeler, topper and segmentor system rated from 75 to 85 pieces per minute – depending on materials, application, machine configuration and operator dexterity. Equipped with Model KP-60 peeler with 40" long V-belt in feed and (8) sets of pressure rollers and peeling plates. Peeler discharges into Model WOS-1A topper / segmentor has 16" wide x 96" long conveyor with flights set on 4" centers, topper / tailer alignment belts, positioning system and static mounted knives. Swing arm controller with push button start / stop, on / off switches and pressure roller adjustment dial. Mounted on stainless steel frames with casters.
OAD: 96"L x 30"W x 56"H (peeler) 108"L x 35"W x 70"H (segmentor) 131"L x 108"W x 70"H (total)
Urschel, Model CCD, stainless steel, slicer, strip cutter, shredder and crinkle cutter used for a variety of different food products with production and volumes rates per hour – depending on materials, application and machine configuration. Flat Slices: 0.8mm to 12.7mm, Standard Crinkle: 3-1/3 to 5.7 waves per inch Depth of Crinkle: 2.0mm to 2.1mm, Thickness: .040mm to .285mm, V-Slices 4.7 to 8 waves per inch Depth of Crinkle: (4.7) 2.1mm, Thickness: 1.0mm to 2.5mm. Depth of Crinkle (8)1.3mm, Thickness: 1.0mm to 2.5mm. Also does Oval, Crescent Shreds and strip cuts (all with proper change parts). Equipped with centrifugal type slicer utilizes rotating impeller to force the product to the side walls and thru (8) individual inter-changeable cutting heads that enable the processor to change the type of cuts in minutes and has inexpensive to replace, specially designed throw away knives. Accept products up to 3-1/2" in any dimension. Stainless steel feed hopper, discharge chute and start / stop push buttons controls. Mounted on stainless steel frame with locking casters.
OAD: 55"L x 35"W x 106"H
