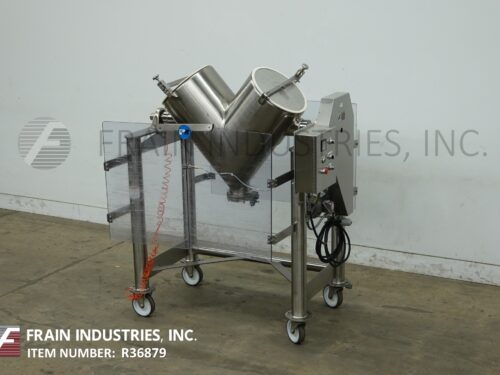

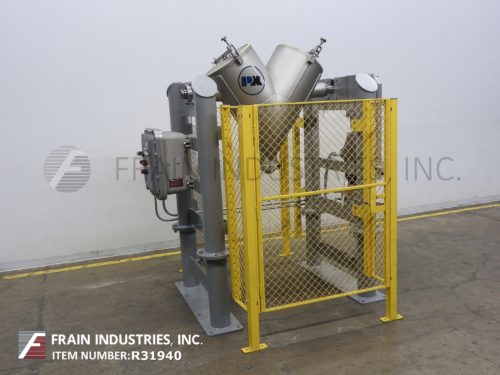

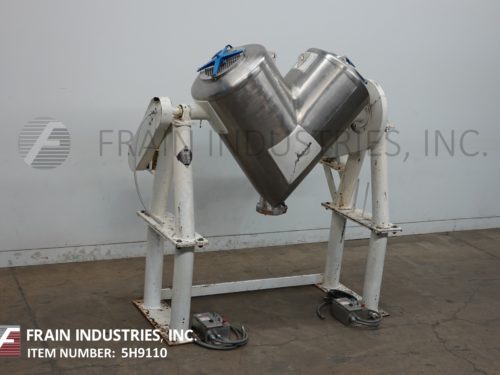

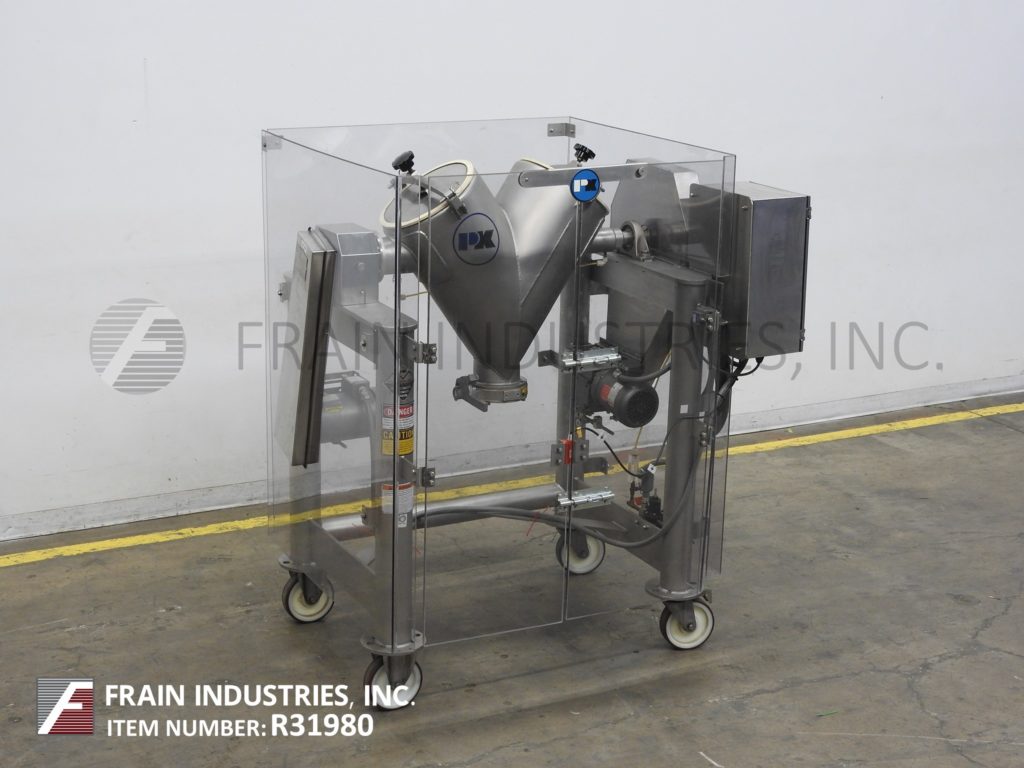

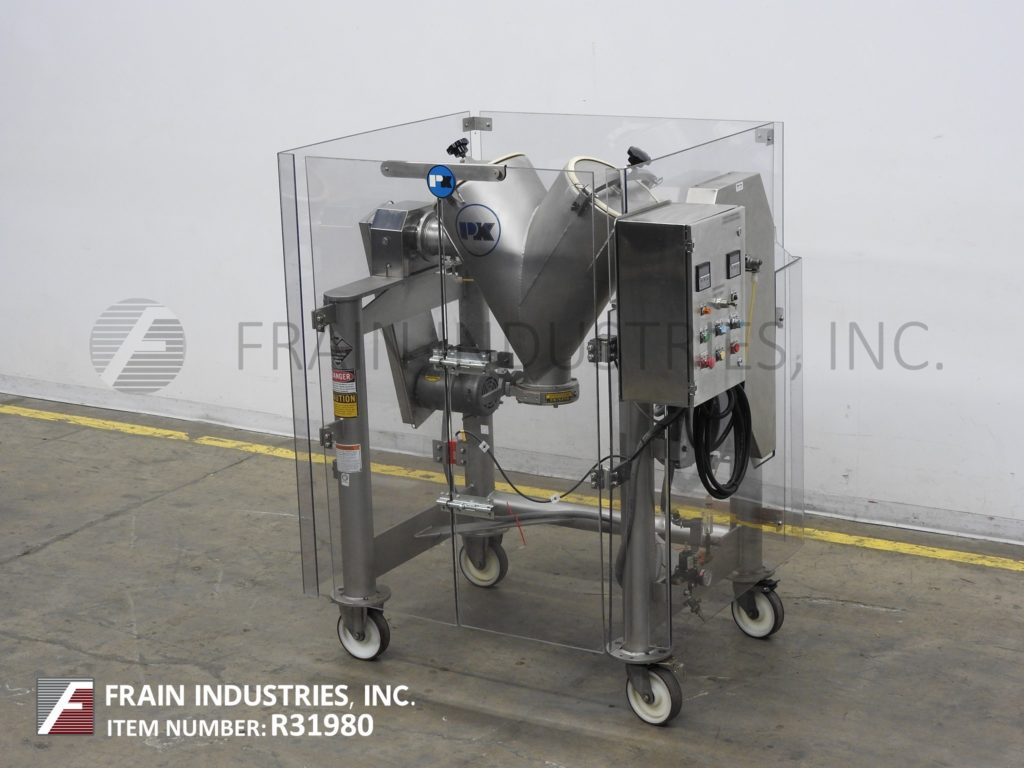

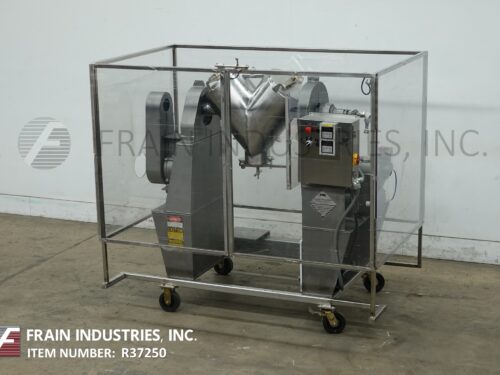

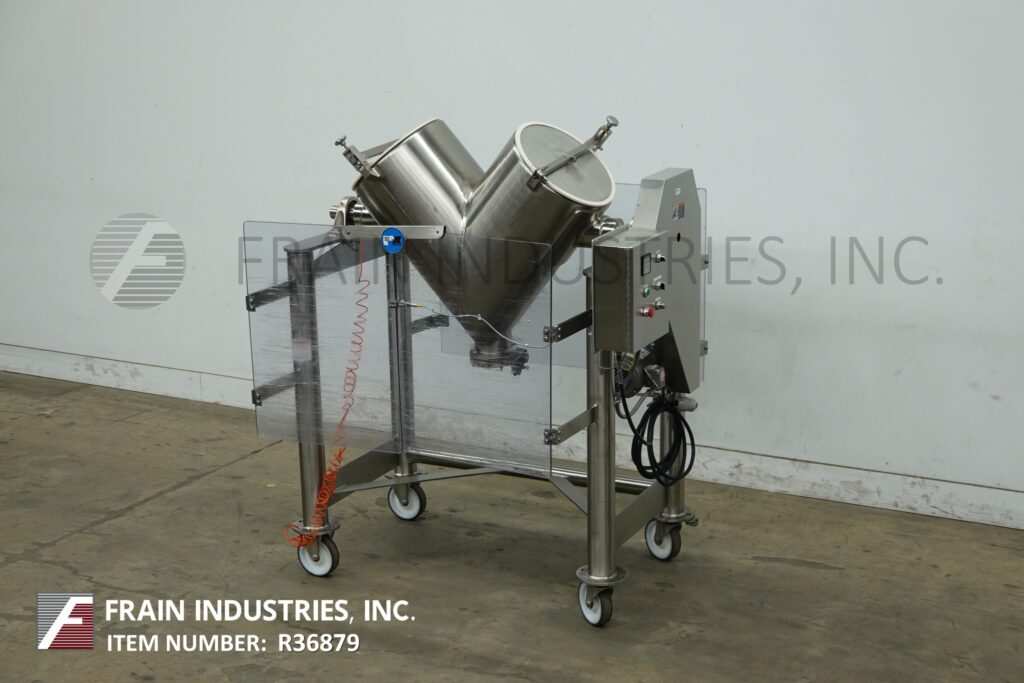

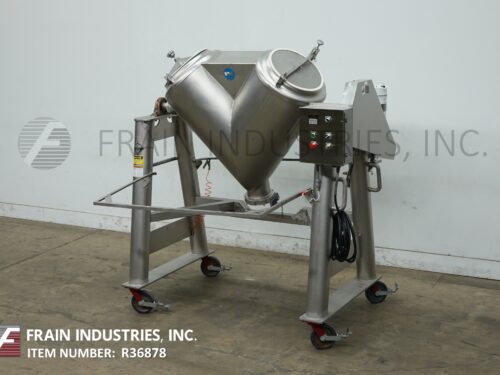

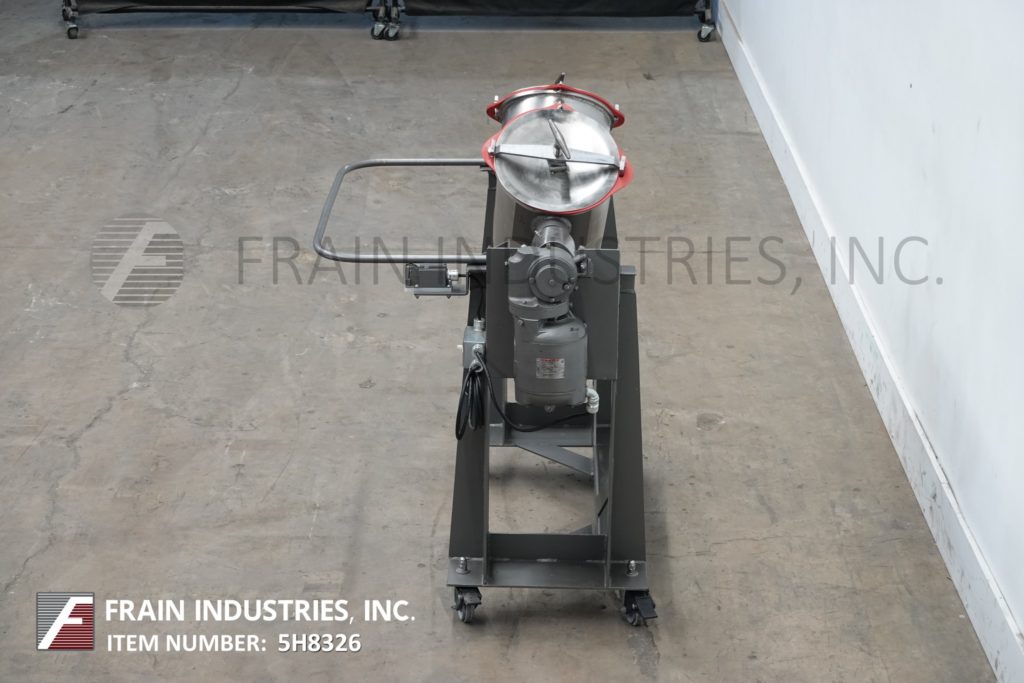

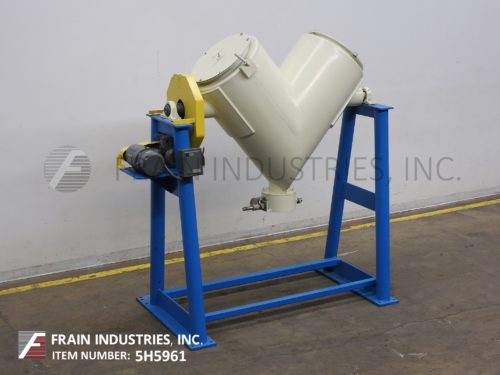

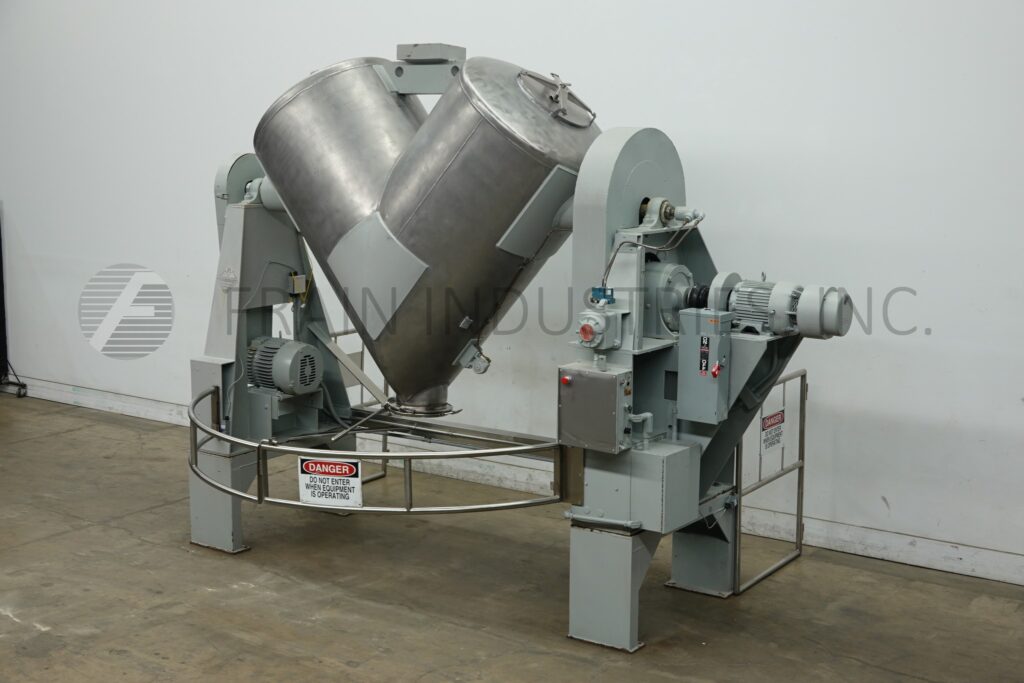

Twin Shell Machines

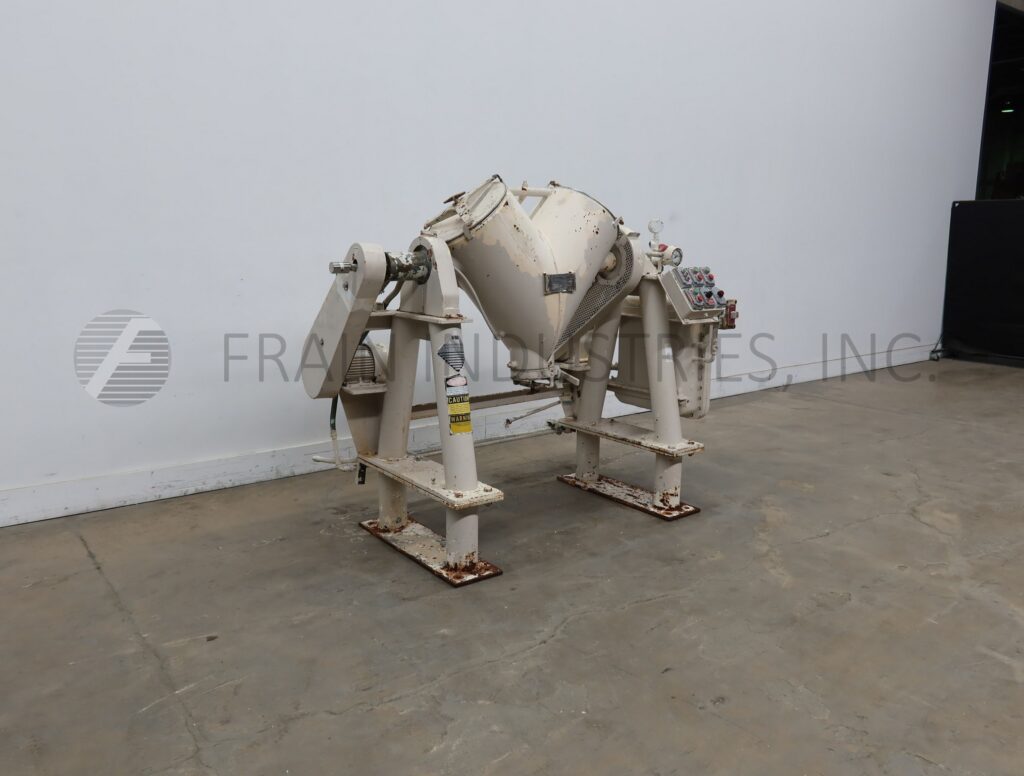

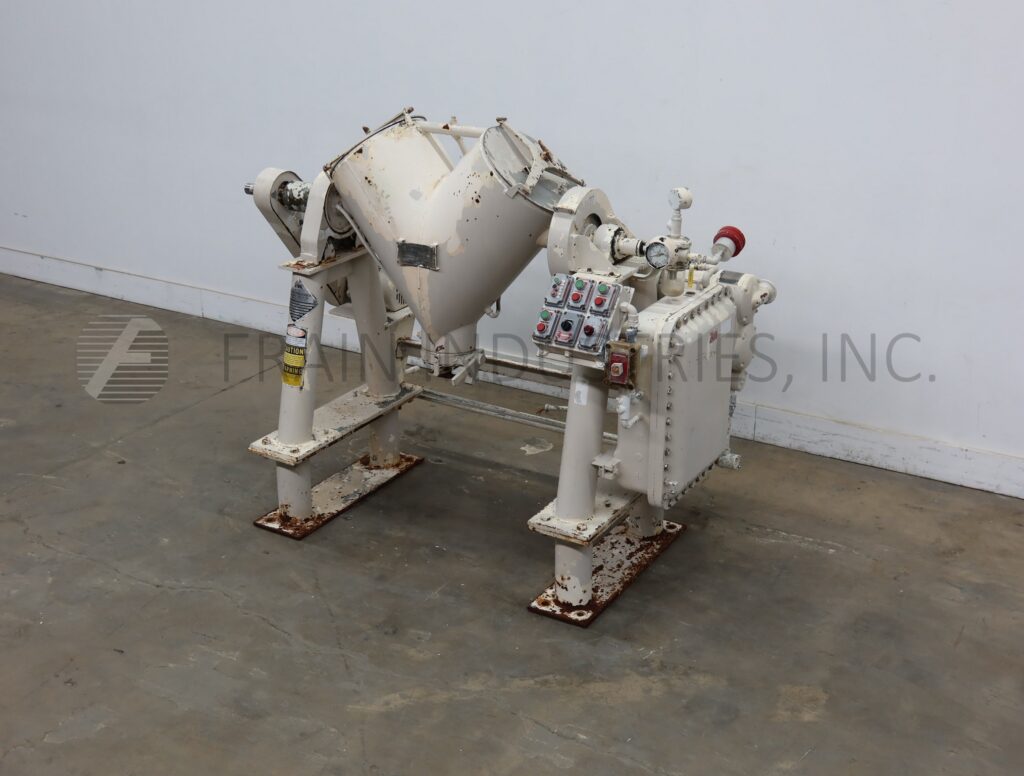

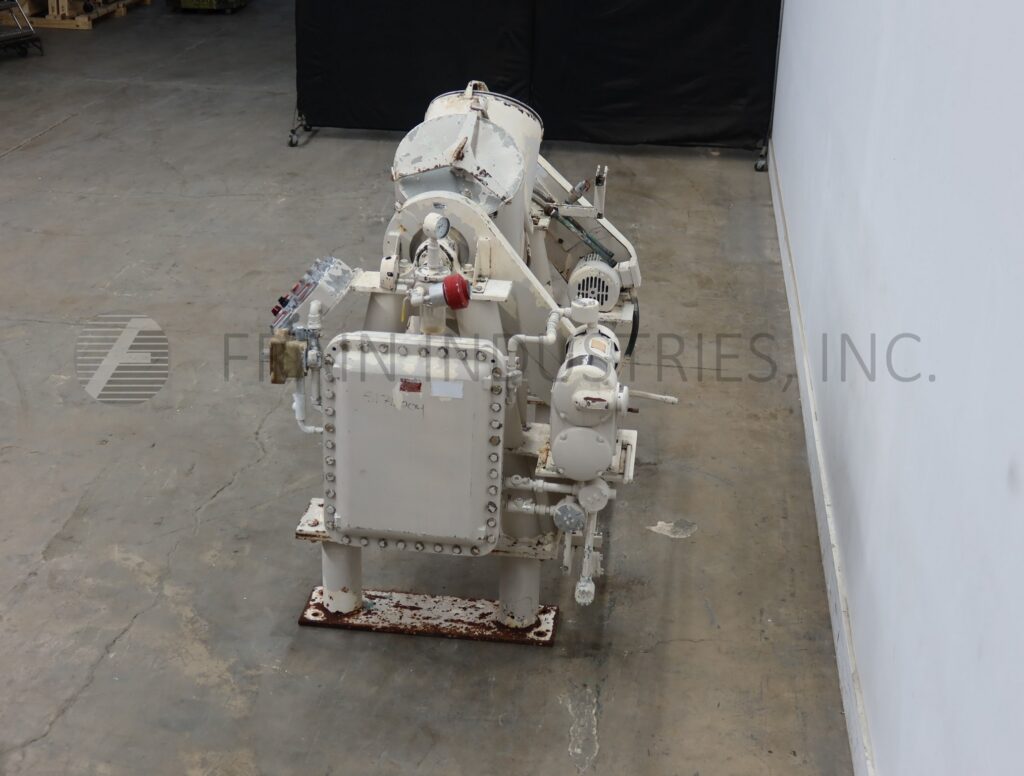

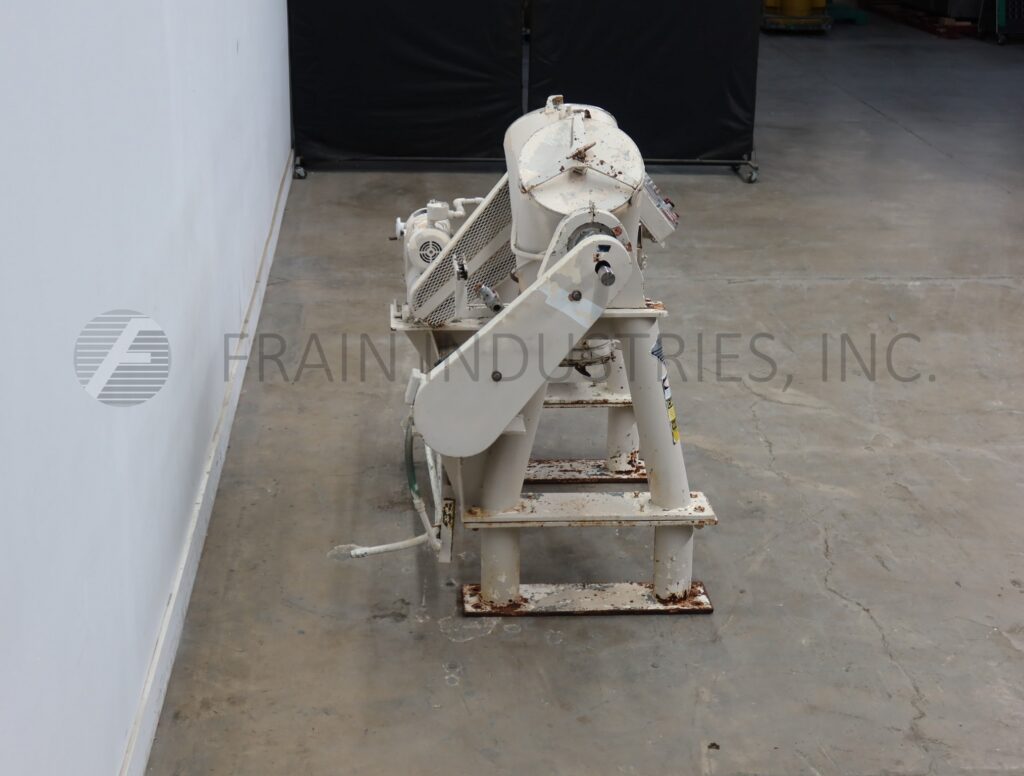

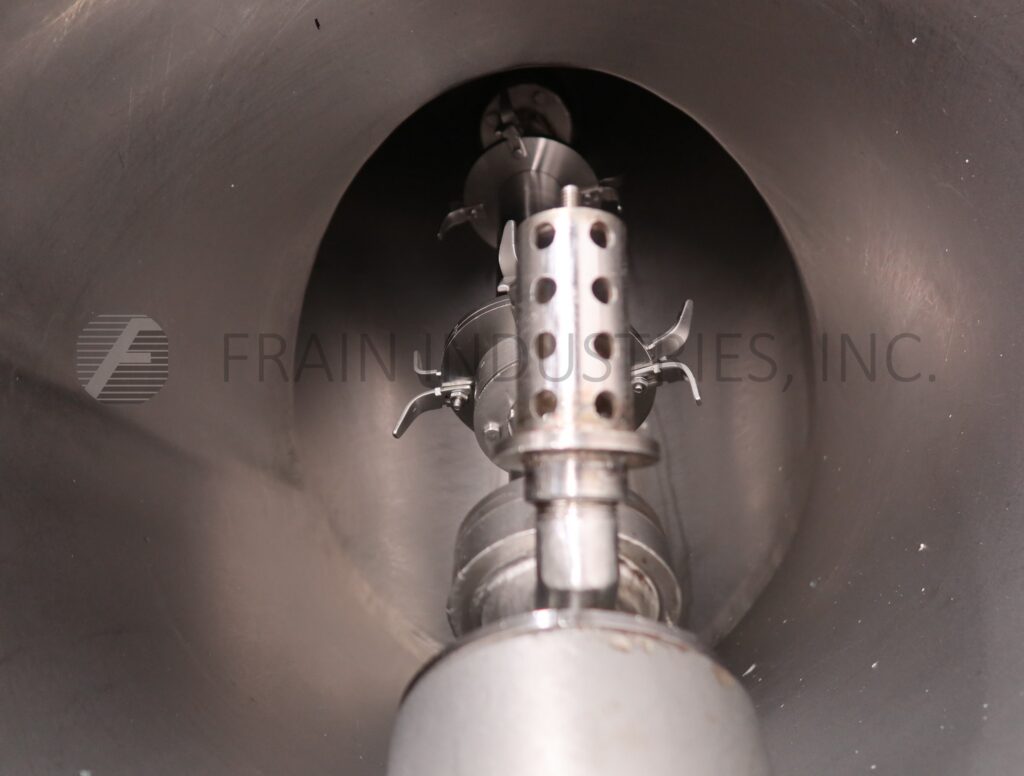

Patterson Kelley Mixer Powder Twin Shell 3 FT³

• Manufacturer: Patterson Kelley
• Model Number: 3 FT³
• Frain Number: 5J5790

Patterson Kelley, model 3 ft³, 304 stainless steel, jacketed, vacuum, twin shell mixer. Rated up to 100 lb/ft³. Equipped with (2) 16" boltdown manways, (2) 27" long side V-walls, (2) 12" long inner V-walls, (2) 16" diameter mixing chambers, 6" butterfly valve discharge with 27" ground clearance, liquid/solids bar powered by a 2 hp drive, shell rotation powered by a ¾ hp drive with variable speed gearbox. Requires 81" ceiling clearance with a 27" swing radius / 54" swing diameter and 54" high swing axis.

Jacket ports:
(2) 1" NP

Nat’l Brd: 51987

MAWP(vessel): Full Vac PSI @ 250°F
MAWP (Jacket): 30 PSI @ 250°F

OAD: 84" L x 48" W x 70" H

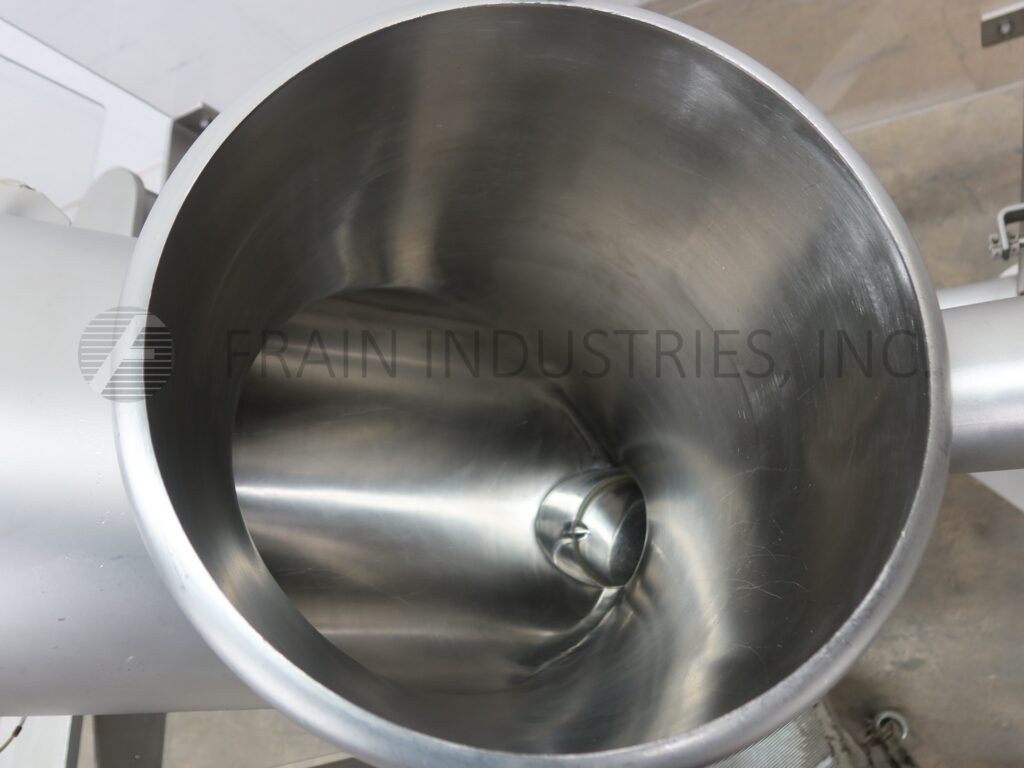

Patterson Kelley Mixer Powder Twin Shell 2 FT³

• Manufacturer: Patterson Kelley
• Model Number: 2 FT³
• Frain Number: 5J6054

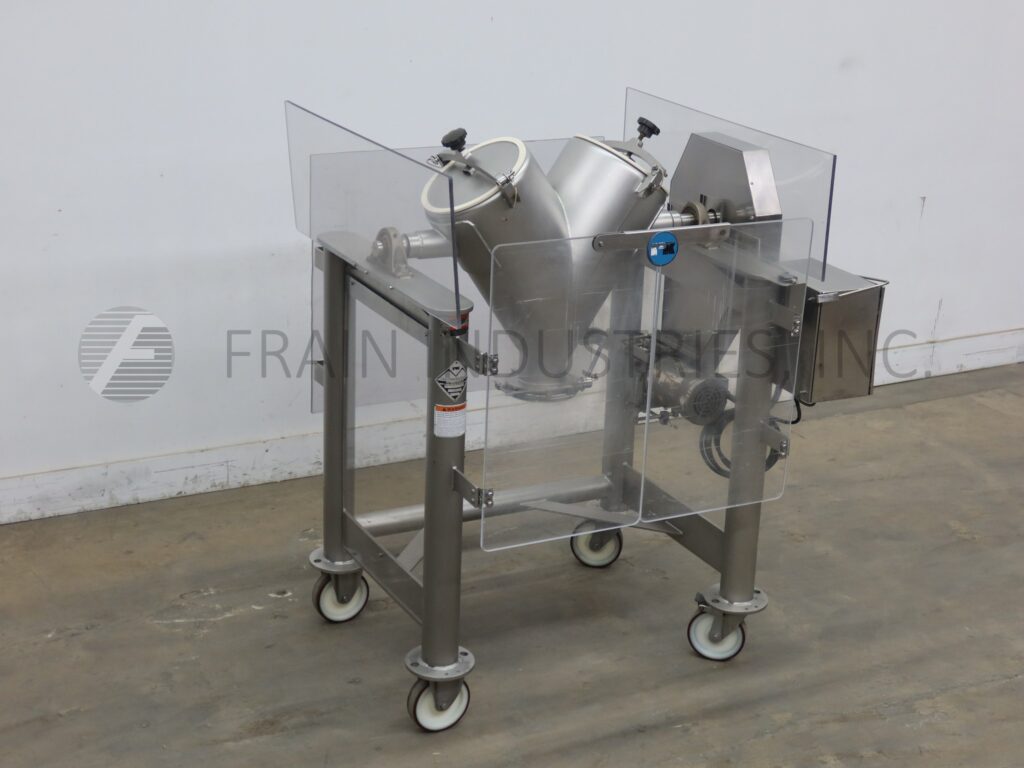

Patterson Kelly, 2 ft³, 316 stainless steel, twin shell mixer. Rated to 365 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 12" ID product ports with bolt down covers, (2) 23" long side V-Walls and (2) 7" long inner V-Walls, shell powered by a 1 Hp drive, 6"ID butterly valve discharge with 36" ground clearance. Requires 80" ceiling clearance with 22" swing radius / 44" swing diameter. Has push button start / stop controls and digital timers. Mounted on (4) stainless steel frame with casters and safety guarding.

OAD: 64"L x 45"W x 72"H

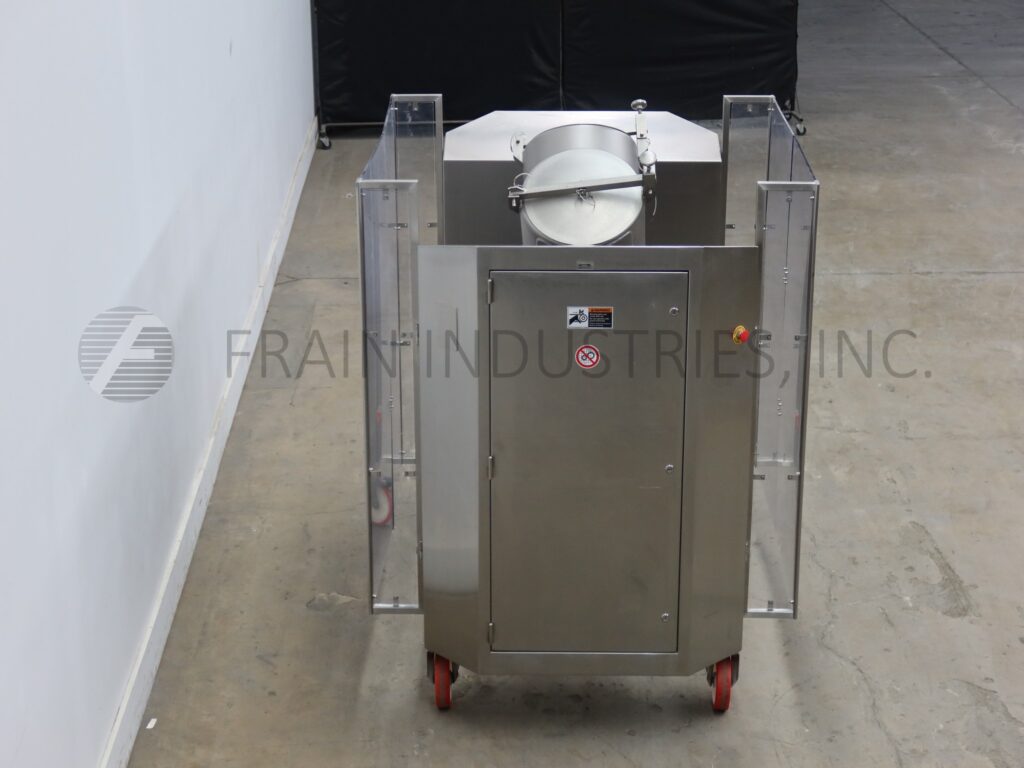

Patterson Kelley Mixer Powder Twin Shell 3 FT³

• Manufacturer: Patterson Kelley
• Model Number: 3 FT³
• Frain Number: 5J5130

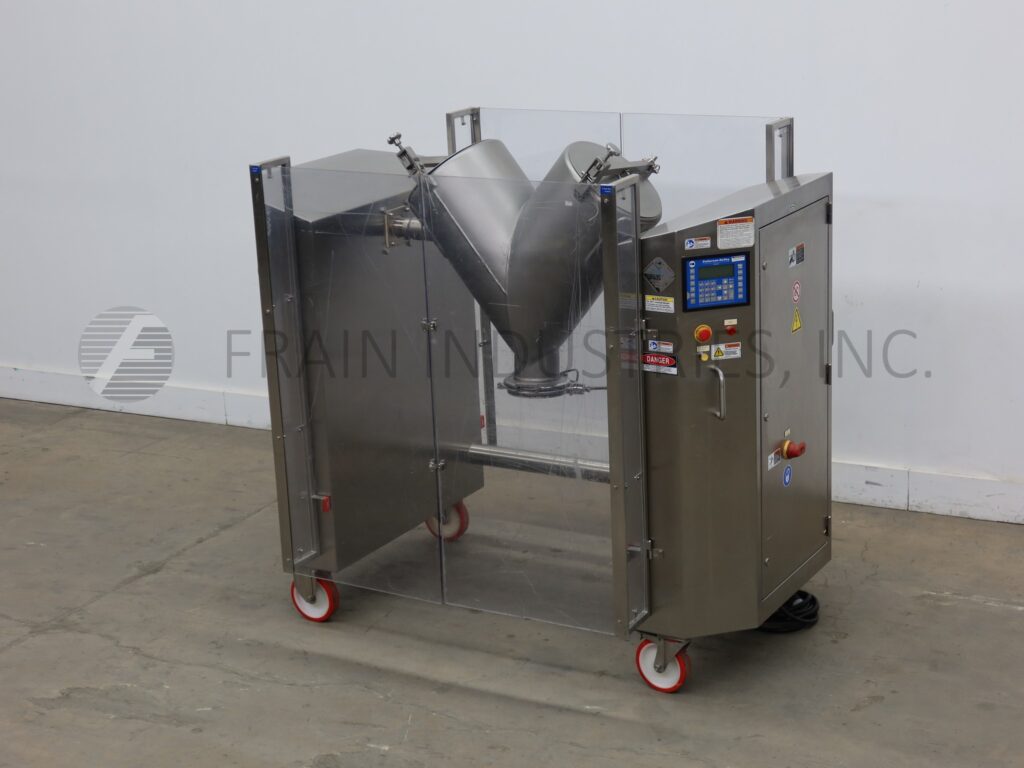

Patterson Kelly, 3 ft³, 316 stainless steel, twin shell mixer. Rated to 62 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 15" ID product ports with bolt down covers, (2) 25" long side V-Walls and (2) 11" long inner V-Walls, shell powered by a 2Hp drive and has 6"ID butterly valve discharge with 34" ground clearance. Requires 81" ceiling clearance with 24" swing radius / 48" swing diameter. Control panel with touch pad HMI.

OAD: 82"L x 58"W x 73"H

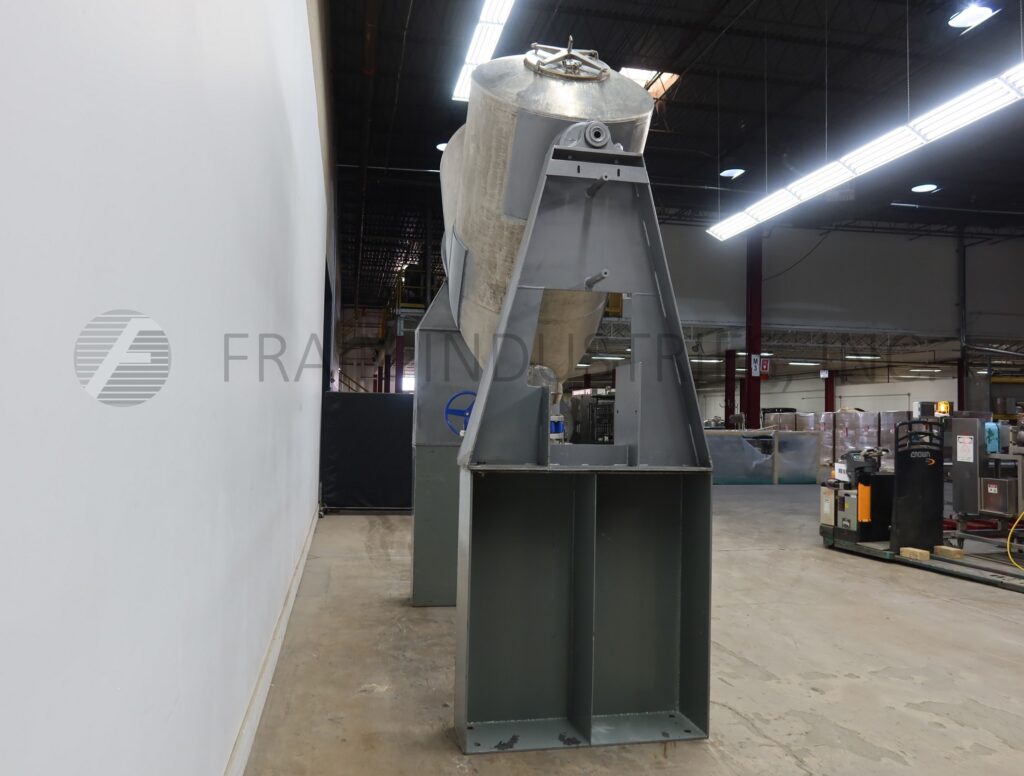

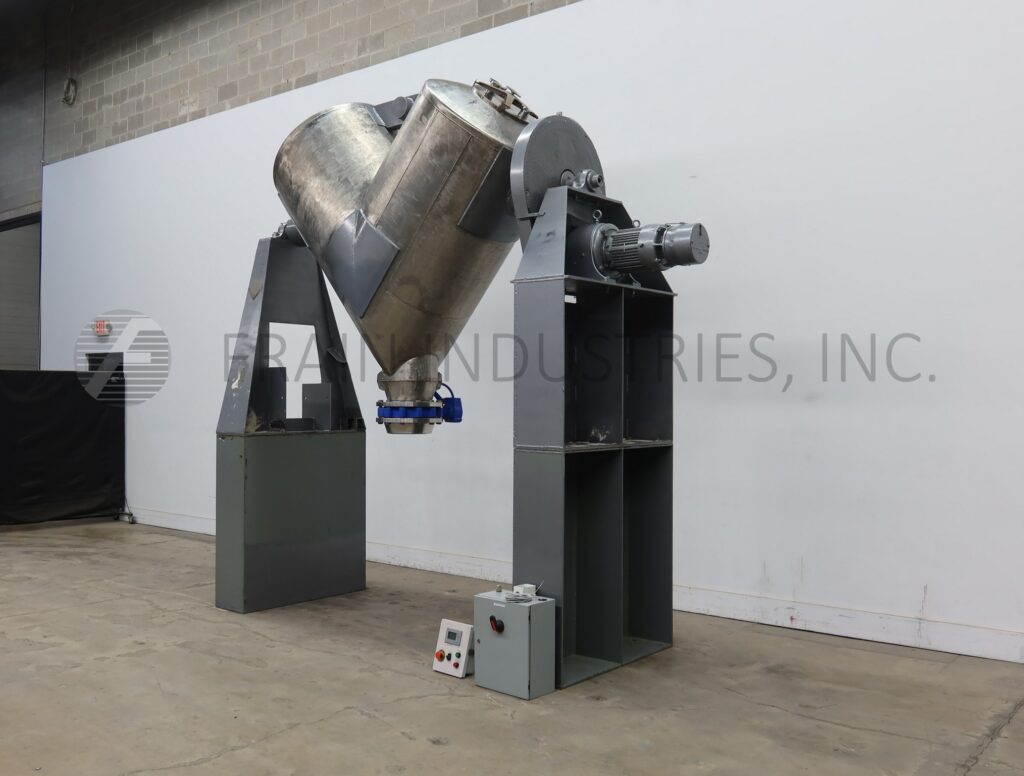

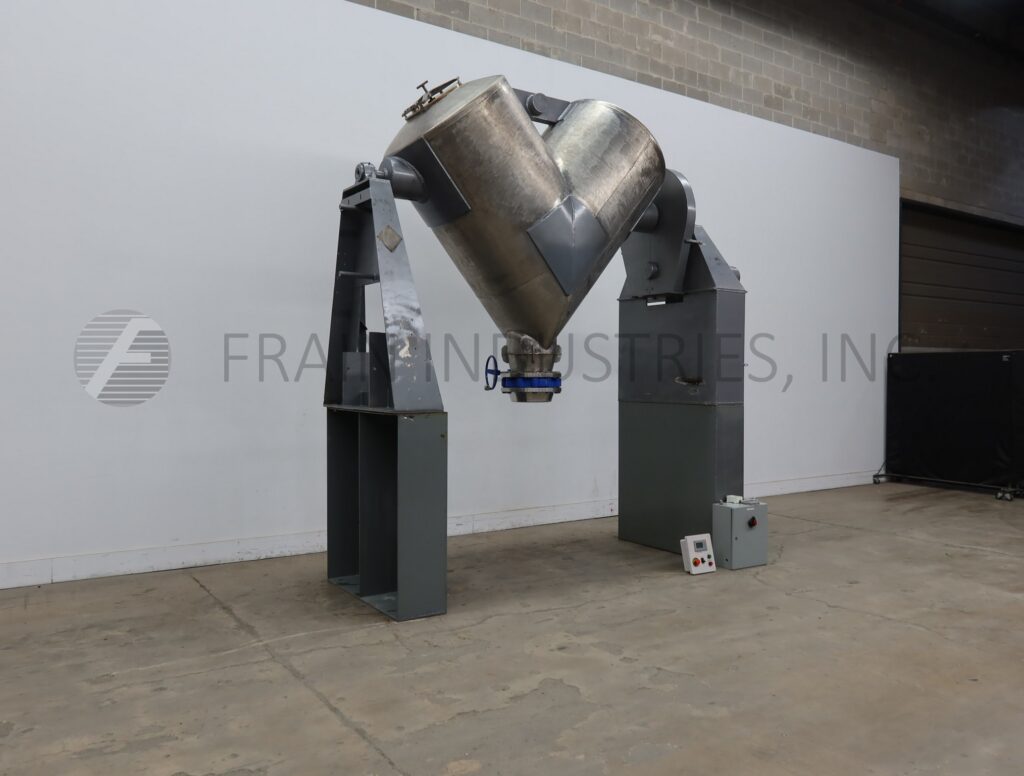

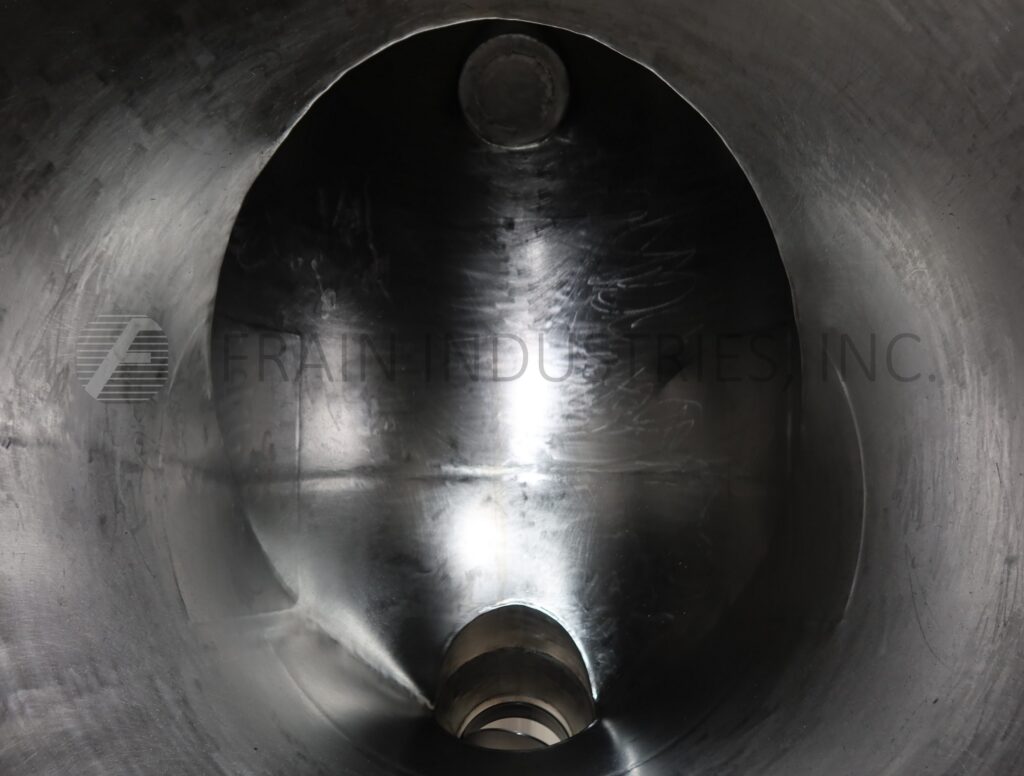

Patterson Kelley Mixer Powder Twin Shell 50 FT³

• Manufacturer: Patterson Kelley
• Model Number: 50 FT³
• Frain Number: 5J5637

Patterson Kelley, Model 50 ft³, 304 stainless steel, twin shell mixer. Rated up to 55 lb/ft³. Equipped with (2) 17½" bolt down manways each with a 2½" Tri-clamp, (2) 62" long side V-walls and (2) 24" long inner V-walls with (2) 42" diameter chambers, 12" butterfly valve discharge with 53" ground clearance, shell rotation powered by a 5 hp drive. Requires 180" ceiling clearance with 63" swing radius / 126" swing diameter and 116" high swing axis. Mounted on painted base.

OAD: 157" L x 50" W x 152" H

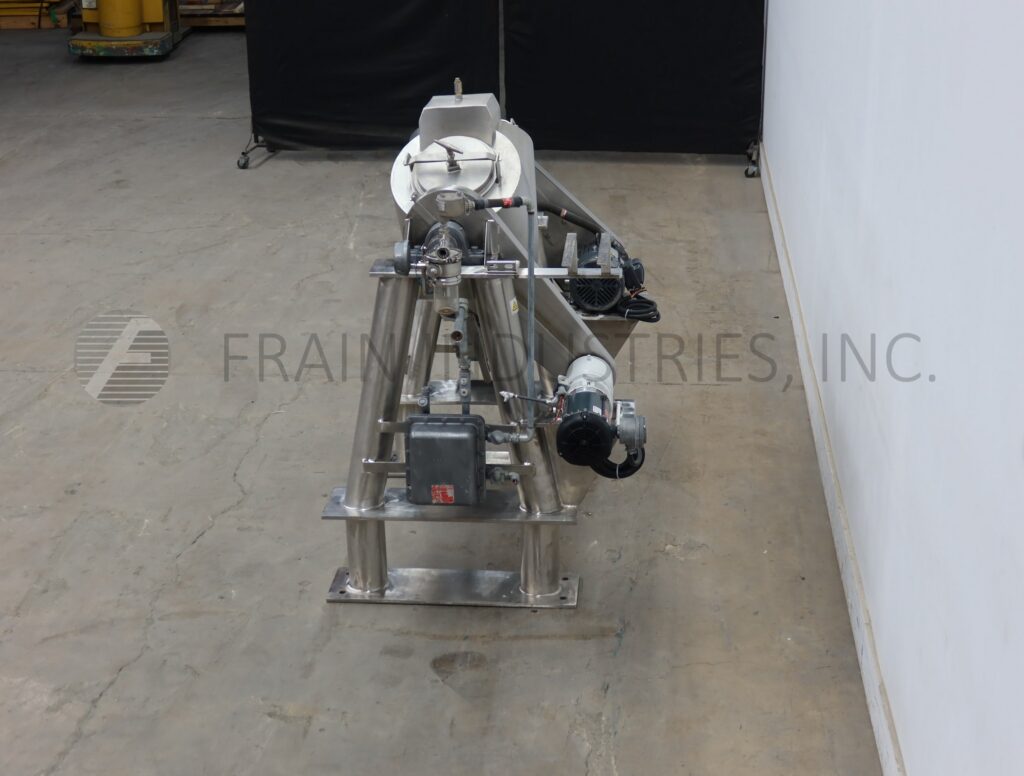

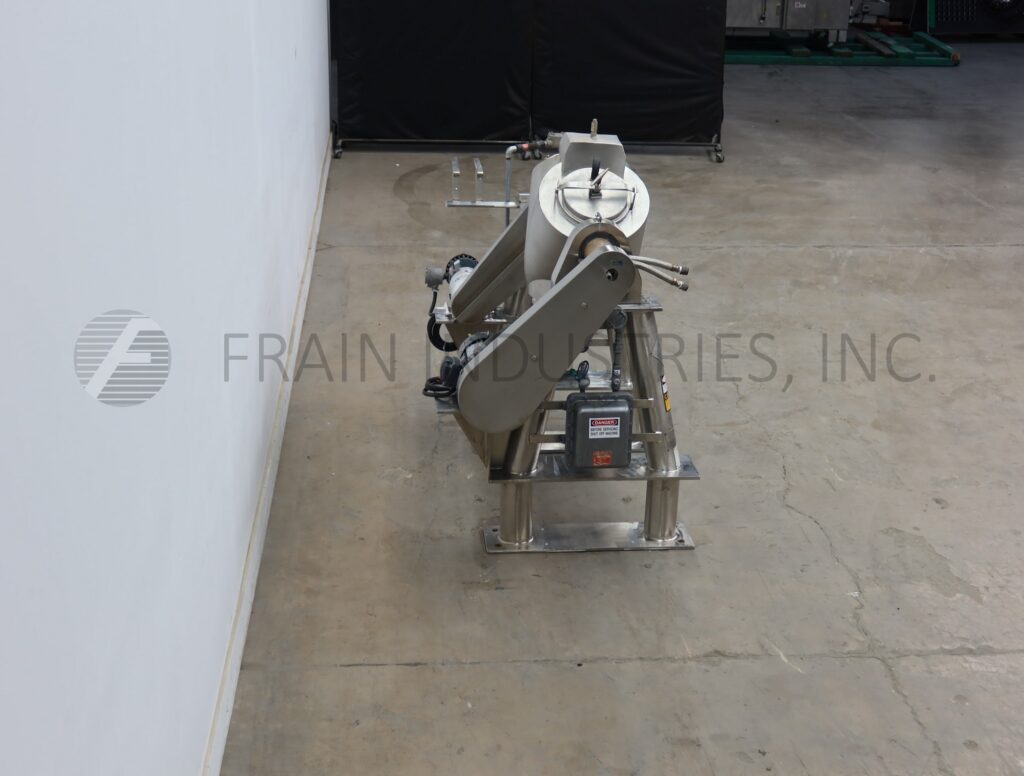

Patterson Kelley Mixer Powder Twin Shell 1 FT³

• Manufacturer: Patterson Kelley
• Model Number: 1 FT³
• Frain Number: 5J5635

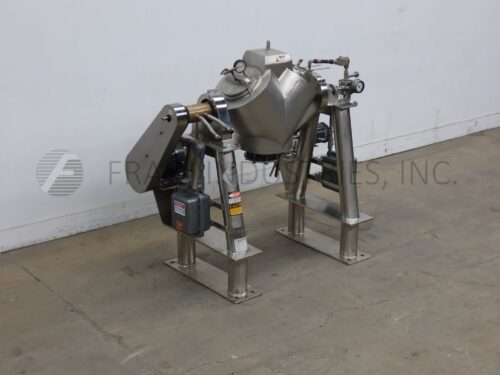

Patterson Kelley, model 1 ft³, 316 stainless steel, jacketed, vacuum, twin shell mixer/dryer. Rated up to 100 lb/ft³. Equipped with (2) 11" boltdown manways, (1) manway lid with vacuum gauge , (2) 17" long side V-walls, (2) 8" long inner V-walls, (2) 11" diameter mixing chambers, 6" butterfly valve discharge with 34" ground clearance, liquid/solids bar powered by a 5 hp drive, shell rotation powered by a ¾ hp drive. Requires 72" ceiling clearance with a 19" swing radius / 38" swing diameter and 51½" high swing axis.

Jacket ports:
(1) ¾" NPT
(2) 1" NP

Nat’l Brd: 63247

MAWP(vessel): Full Vac PSI @ 250°F
MDMT (vessel): 20°F @ F / V
MAWP (Jacket): 30 PSI @ 250°F
MDMT (Jacket): 20°F @ 30 PSI

OAD: 78" L x 45" W x 70" H

Patterson Kelley Mixer Powder Twin Shell 5FT³

• Manufacturer: Patterson Kelley
• Model Number: 5FT³
• Frain Number: 5J5400

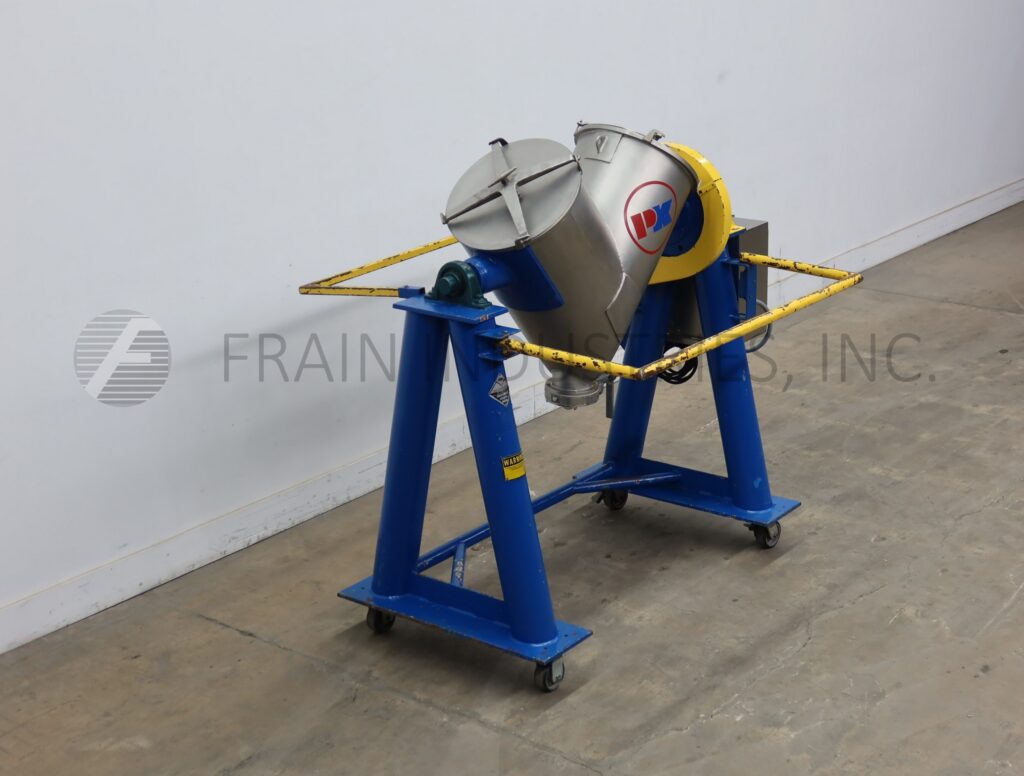

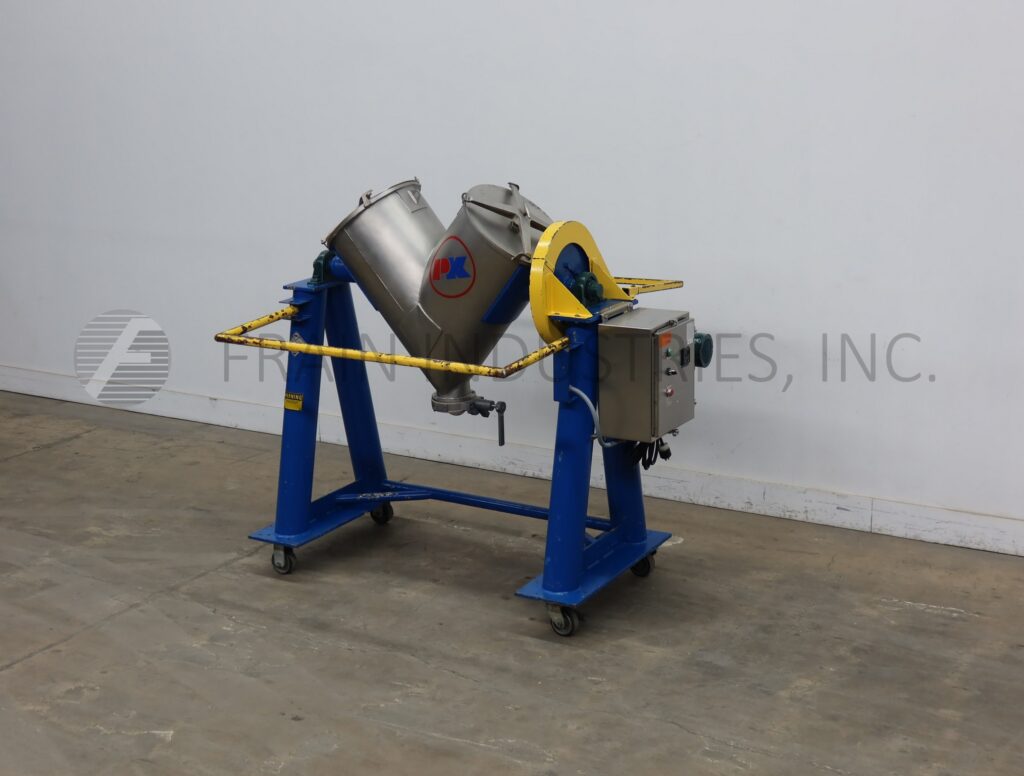

Patterson Kelly, 5 ft³, 304 stainless steel, twin shell powder mixer with number of lbs of product per hour – depending on materials, application and machine configuration. Bulk density rating: 90 lbs/ft³. Equipped with (2) 19" ID product ports with bolt down covers, 32" long side V-Walls and 14" long inner V-Walls with 19" diameter chambers. 6" ID butterfly discharge with 32" floor clearance. Mounted on painted "A" frame with a 25" swing radius / 50" swing diameter, 84" ceiling clearance.

OAD: 85" L x 46" W x 79" H

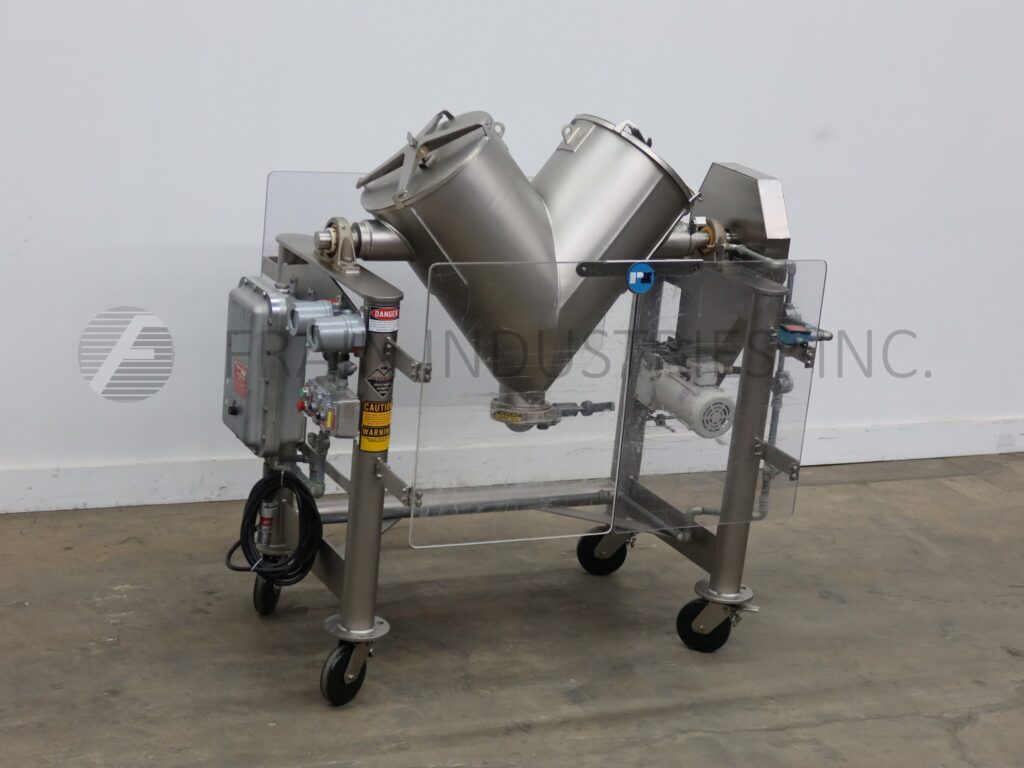

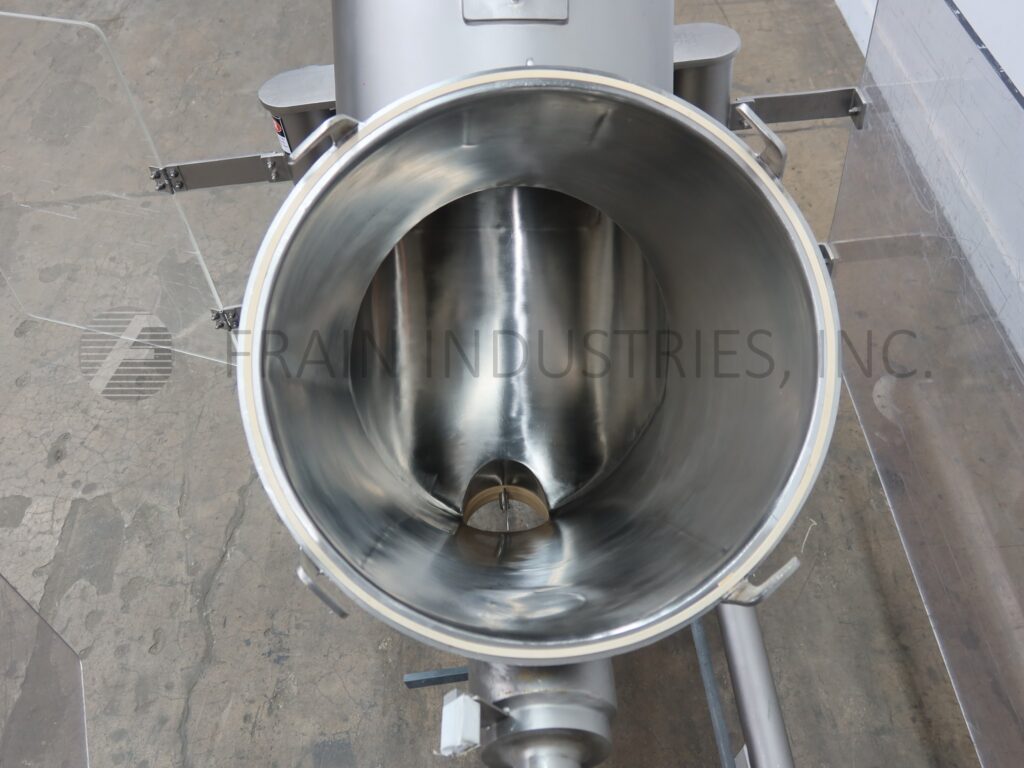

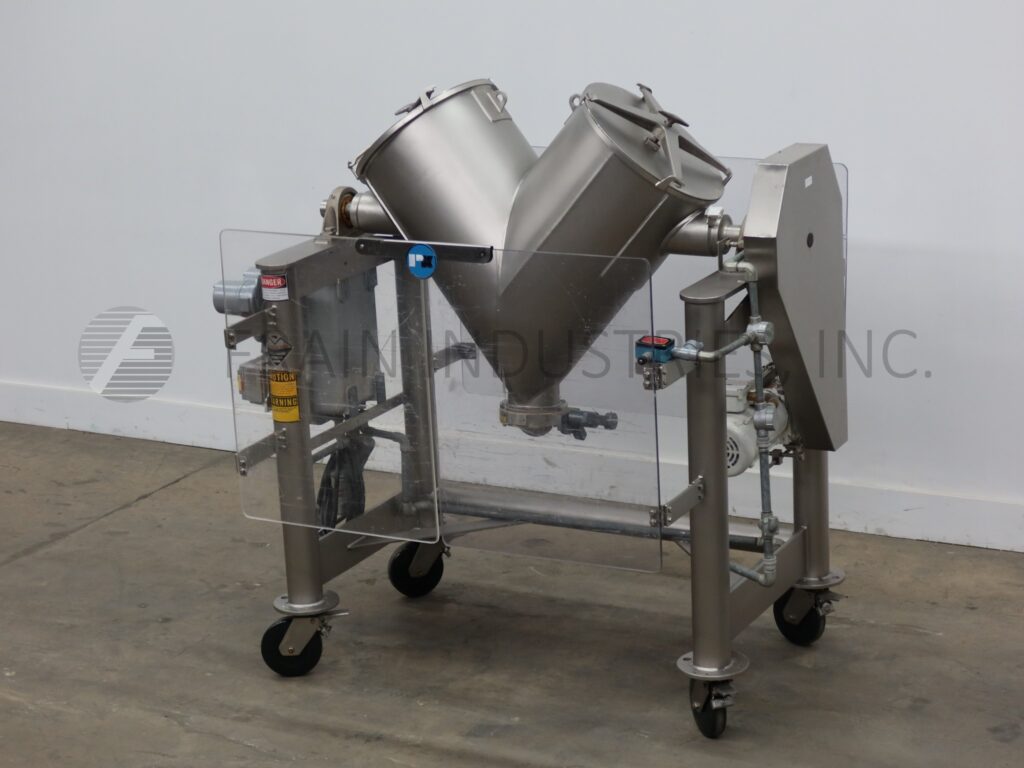

Patterson Kelley Mixer Powder Twin Shell 5CUFT

• Manufacturer: Patterson Kelley
• Model Number: 5CUFT
• Frain Number: 5J4470

Patterson Kelly, 5 ft³, 316 stainless steel, twin shell mixer. Rated up tp 106 lbs/ft³. Equipped with (2) 19" ID product ports with bolt down covers, (2) 32" long side V-Walls and (2) 13" long inner V-Walls, 6"ID butterly valve discharge with 33" ground clearance and shell powered by a 1 Hp drive. Requires 86" ceiling clearance with 28" swing radius / 56" swing diameter. Mounted on stainless steel A-Frame style base frame.

OAD: 76"L x 59"W x 76"H
.

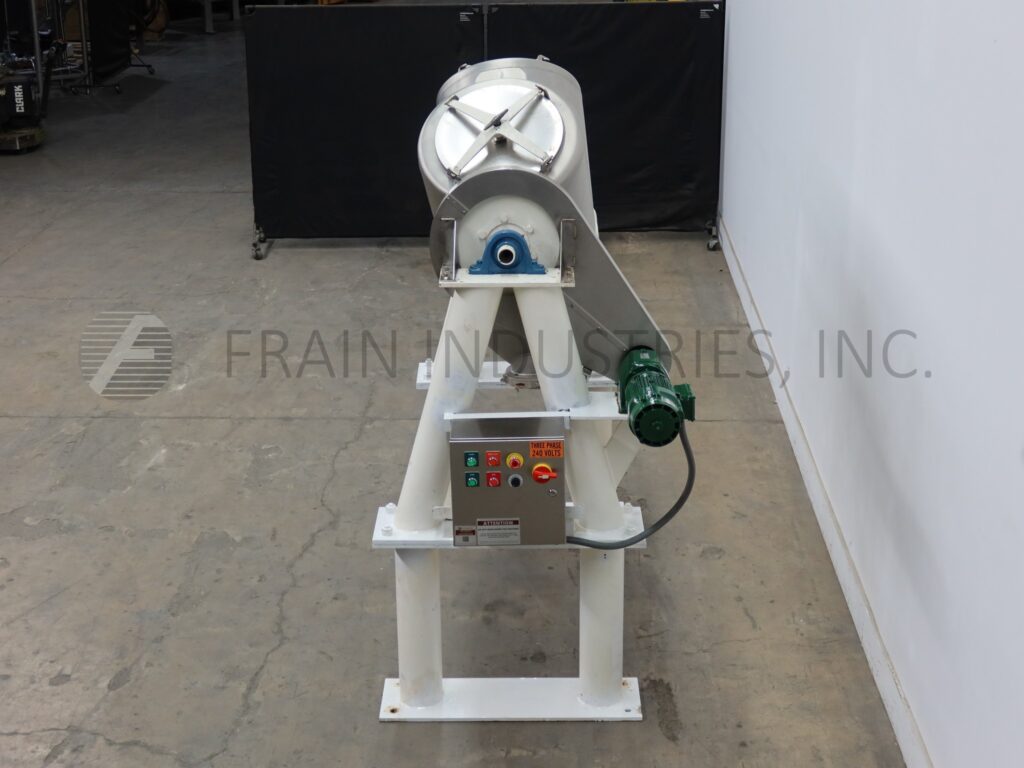

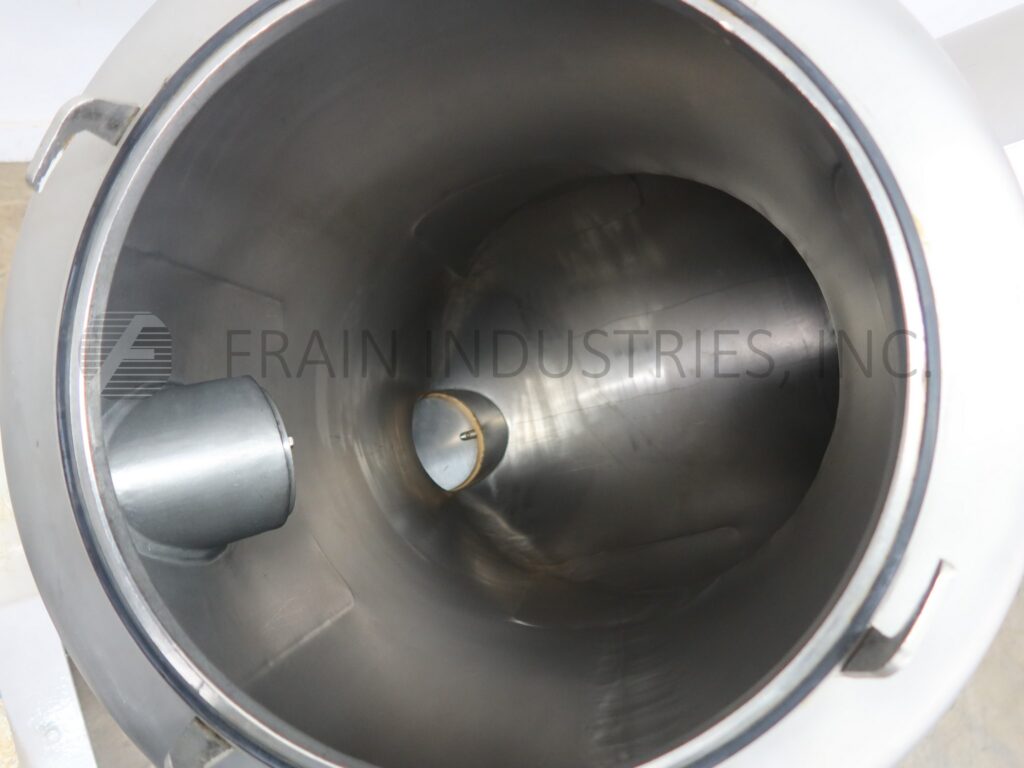

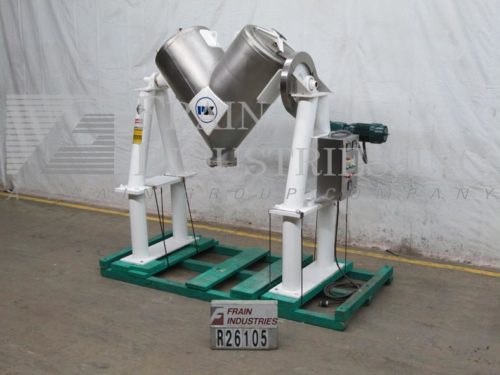

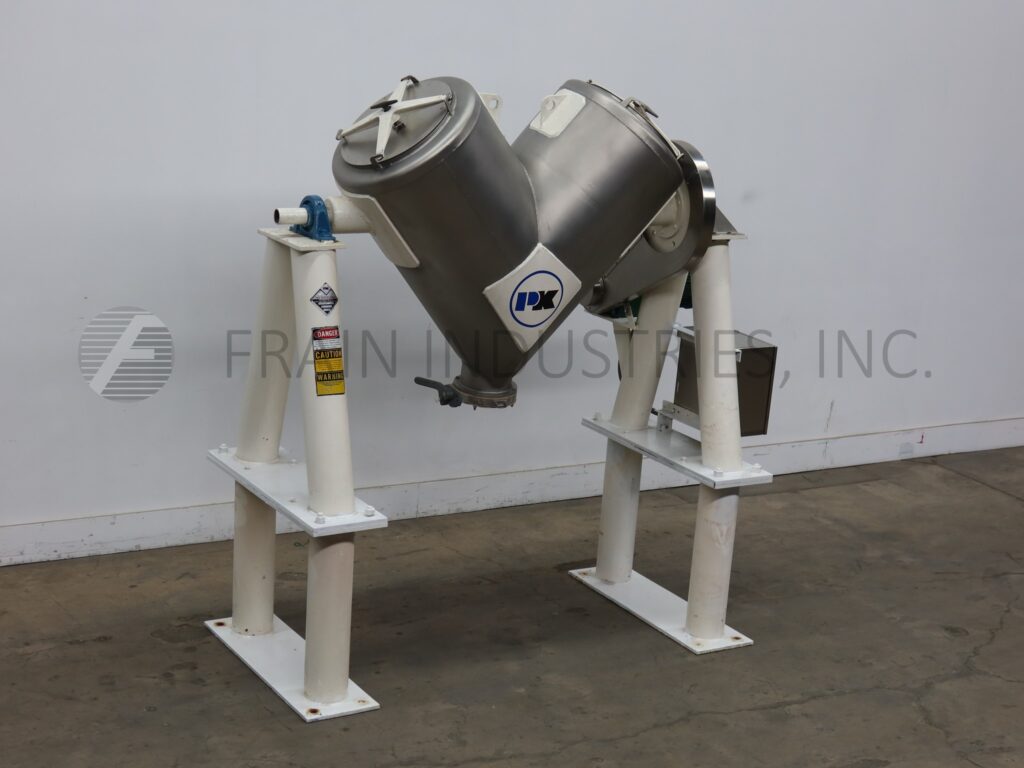

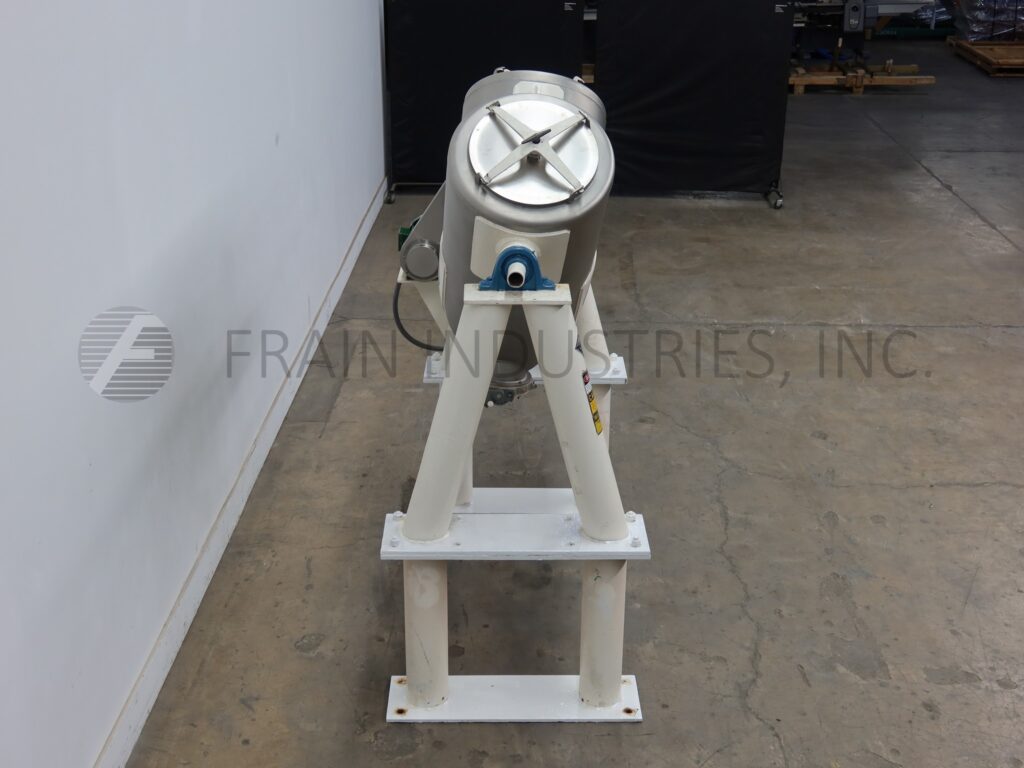

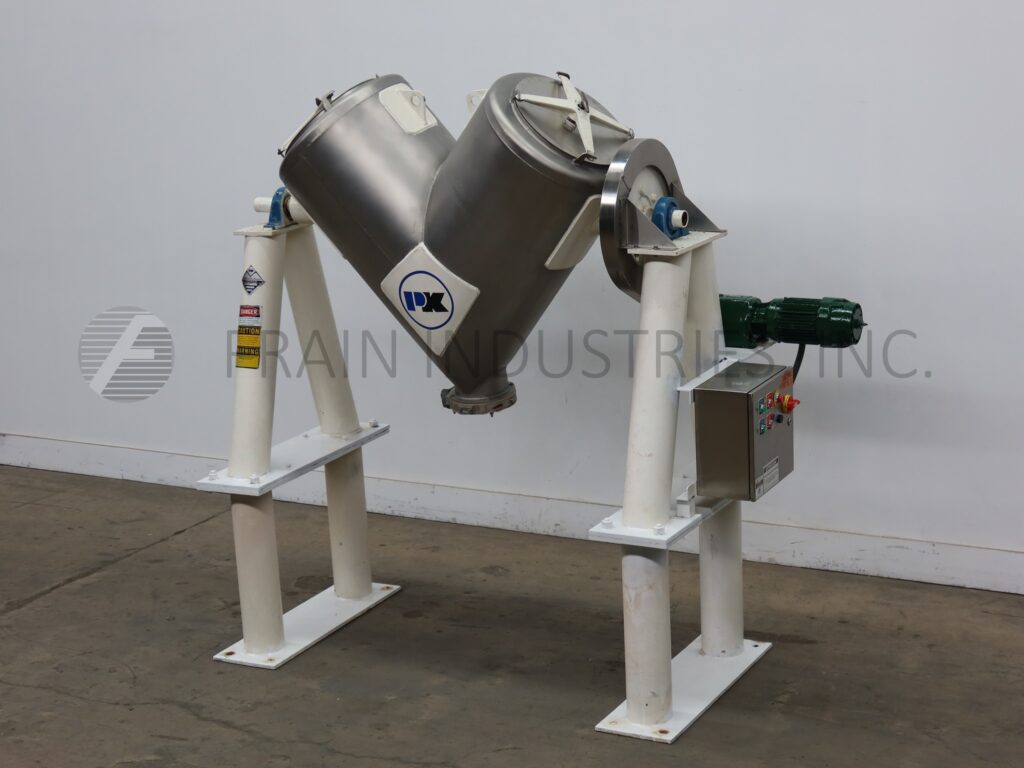

Patterson Mixer Powder Twin Shell 10 CU FT

• Manufacturer: Patterson
• Model Number: 10 CU FT
• Frain Number: R26105

Patterson Kelly, 10 ft³, stainless steel, twin shell powder mixer. Blender dimensions: 24" diameter x 36" straight wall. Bulk density rating: 90 lbs/ft³. Equipped with two 18" diameter inlets with bolt down covers, push button control panel, automatic motor break and an 8" diameter center bottom butterfly valve discharge with 39" of ground clearance. Mounted on a two leg frame with a 99" maximum swing height and a 36" swing radius / 72" swing diameter.

OAD: 100"L x 45"W x 95"H

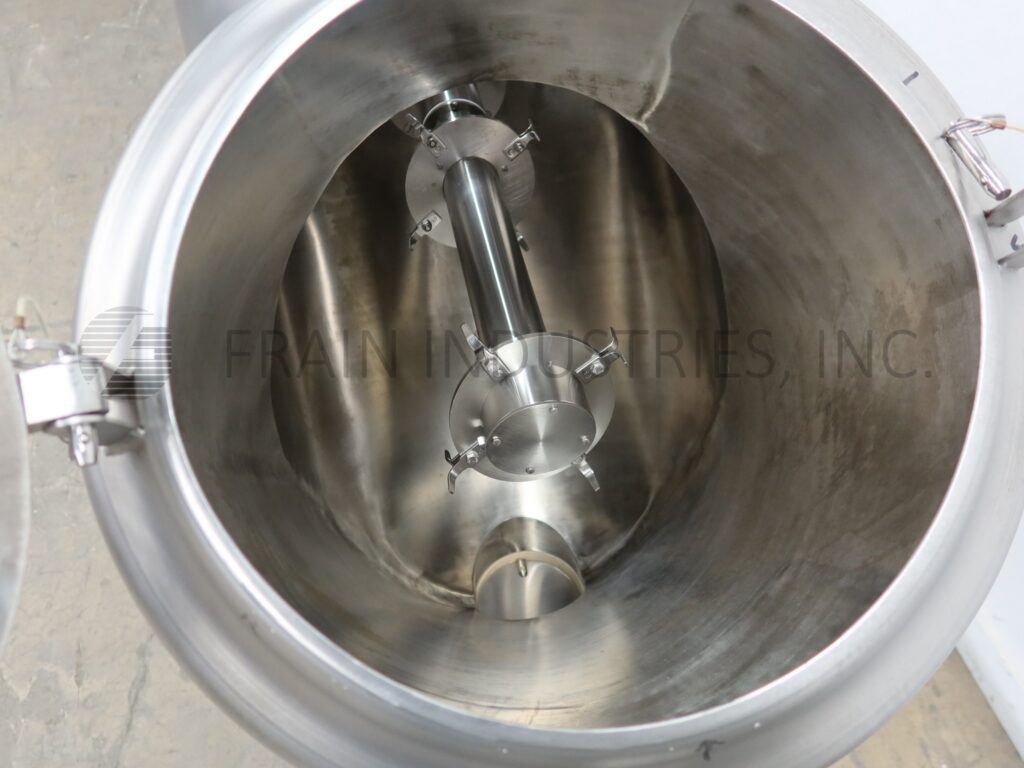

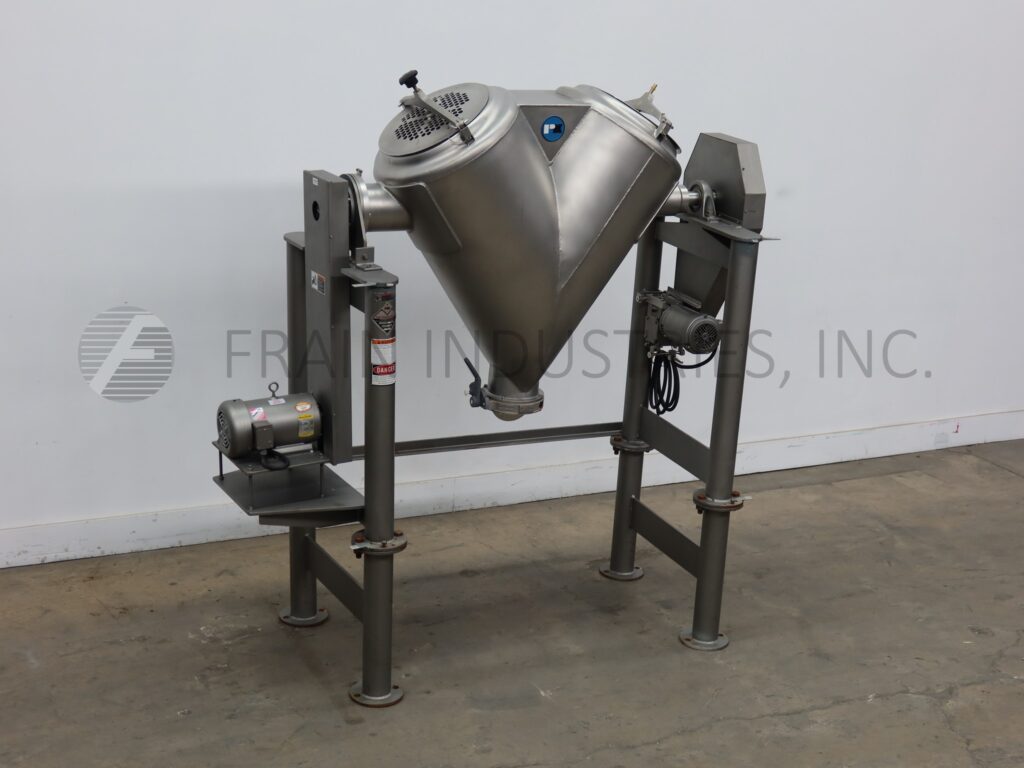

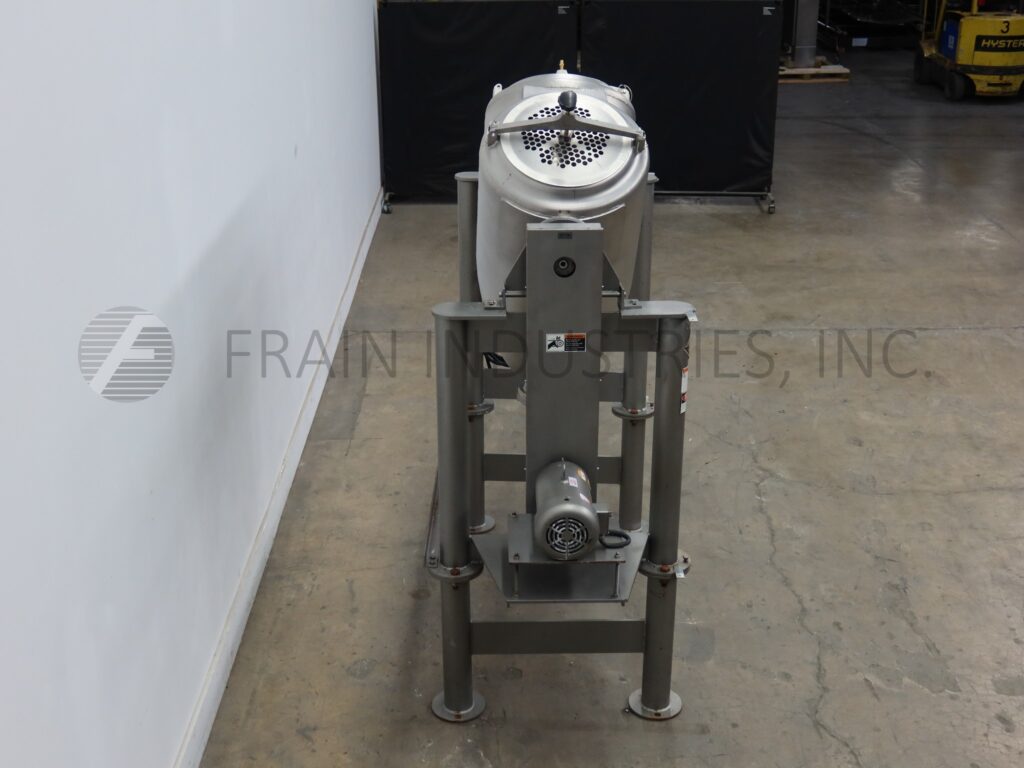

Patterson Kelley Mixer Powder Twin Shell 10FT³

• Manufacturer: Patterson Kelley
• Model Number: 10FT³
• Frain Number: R39886

Patterson Kelly, 10 ft³, 316 stainless steel, twin shell mixer. Rated to 62 lbs/ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 18" ID product ports with bolt down covers, (2) 38" long side V-Walls and (2) 10" long inner V-Walls, liquid solids bar and 8"ID butterly valve discharge with 40" ground clearance. Requires 110" ceiling clearance with 35" swing radius / 70" swing diameter. Liquid solids bar powered by a 5 HP drive and shell powered by a 1½ HP drive. Mounted on (4) stainless steel frame with casters and safety guarding.

OAD: 92"L x 41"W x 96"H

Patterson Kelley Mixer Powder Twin Shell 2 FT³

• Manufacturer: Patterson Kelley
• Model Number: 2 FT³
• Frain Number: R39991

Patterson Kelly, 2 ft³, 316 stainless steel, twin shell mixer. Rated to 62 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 12" ID product ports with bolt down covers, (2) 23" long side V-Walls and (2) 7" long inner V-Walls, shell powered by a 2 Hp drive, liquid solids bar capable powered by a 2 hp drive and has 6"ID butterly valve discharge with 35" ground clearance. Requires 114" ceiling clearance with 28" swing radius / 56" swing diameter. Has touch pad HMI.

OAD: 78"L x 57"W x 72"H

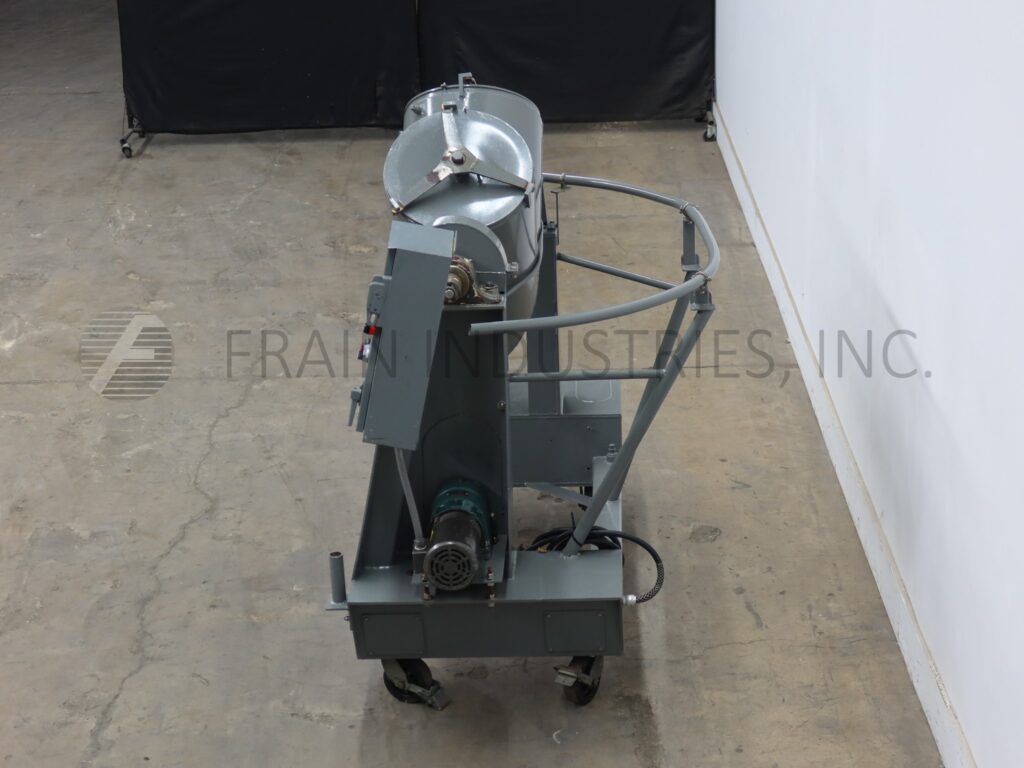

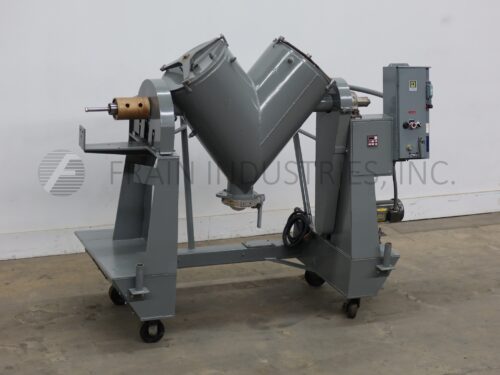

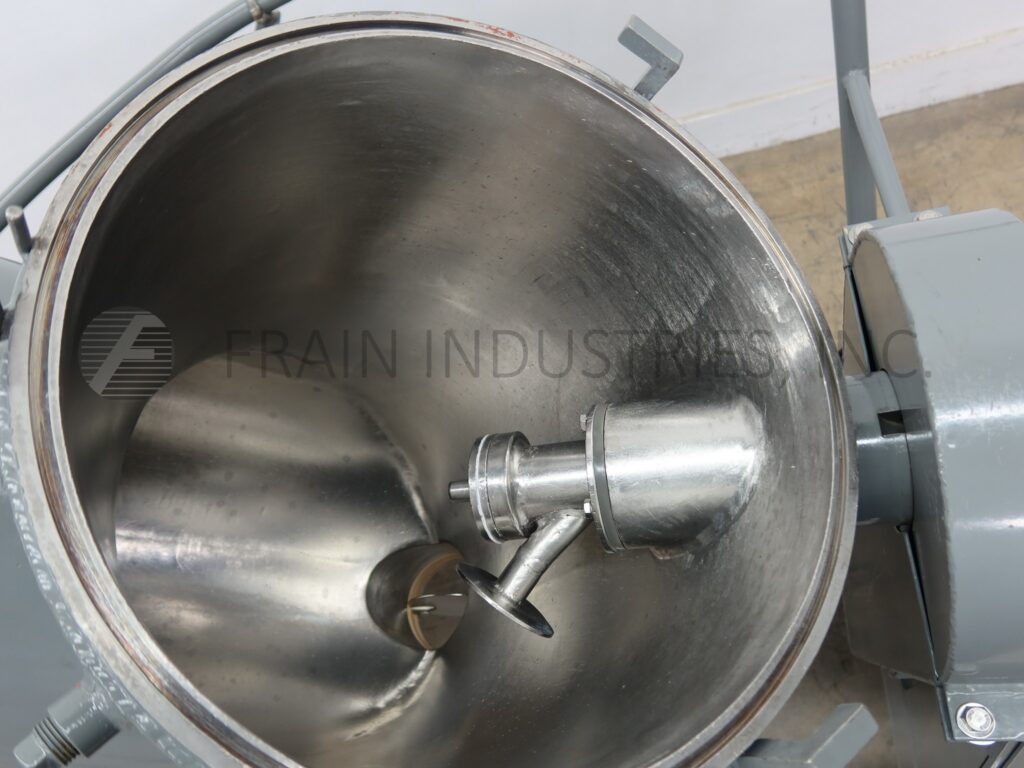

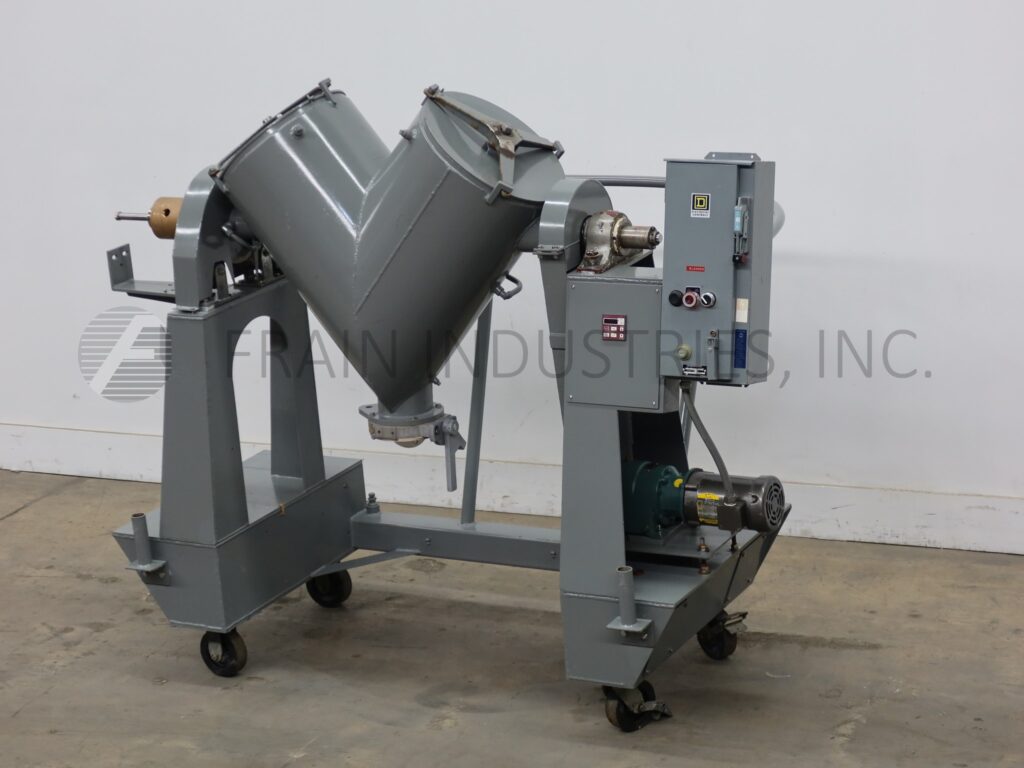

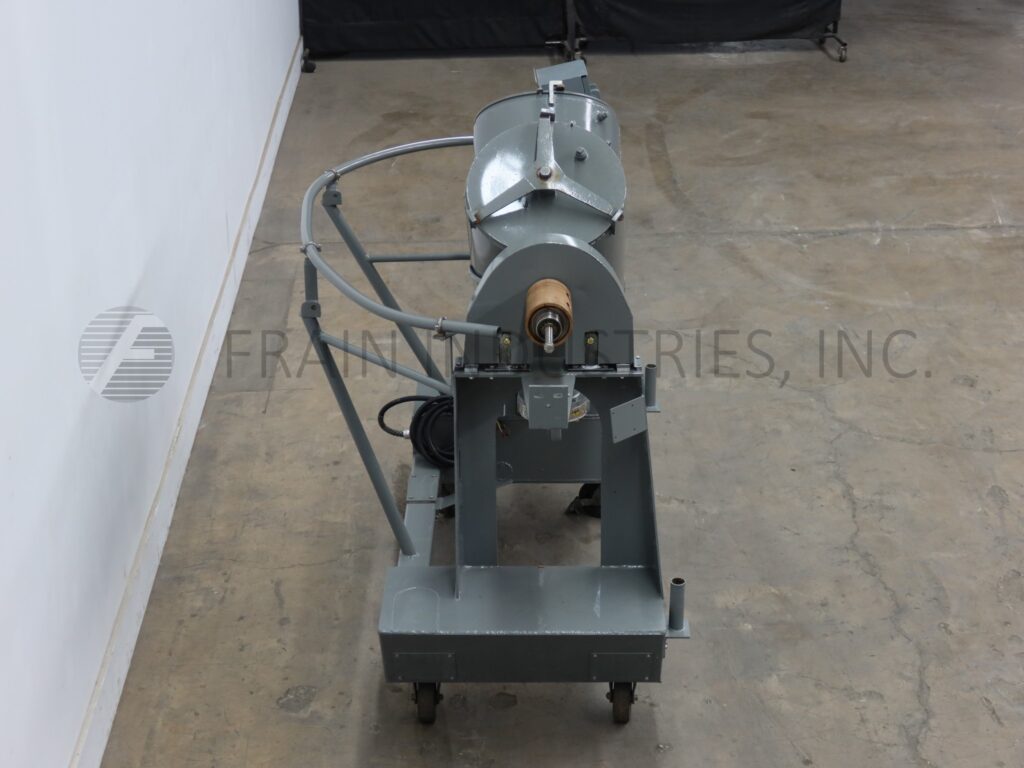

Patterson Kelley Mixer Powder Twin Shell 3 FT³

• Manufacturer: Patterson Kelley
• Model Number: 3 FT³
• Frain Number: 5J4720

Patterson Kelley, Model 3 ft³, 304 stainless steel low pressure jacketed twin shell mixer. Equipped with (2) 16" ID product ports, 26" long outer V-Walls and 12" long inner V-Walls and 6"ID discharge with 37" ground clearance. Shell powered by a ¾ Hp motor drive. Requires 81" ceiling clearance with a 27" swing radius / 54" swing diameter. Mounted on painted base frame.

Jacket Access: (2) ¾" NPT

OAD: 83"L x 48"W x 70"H

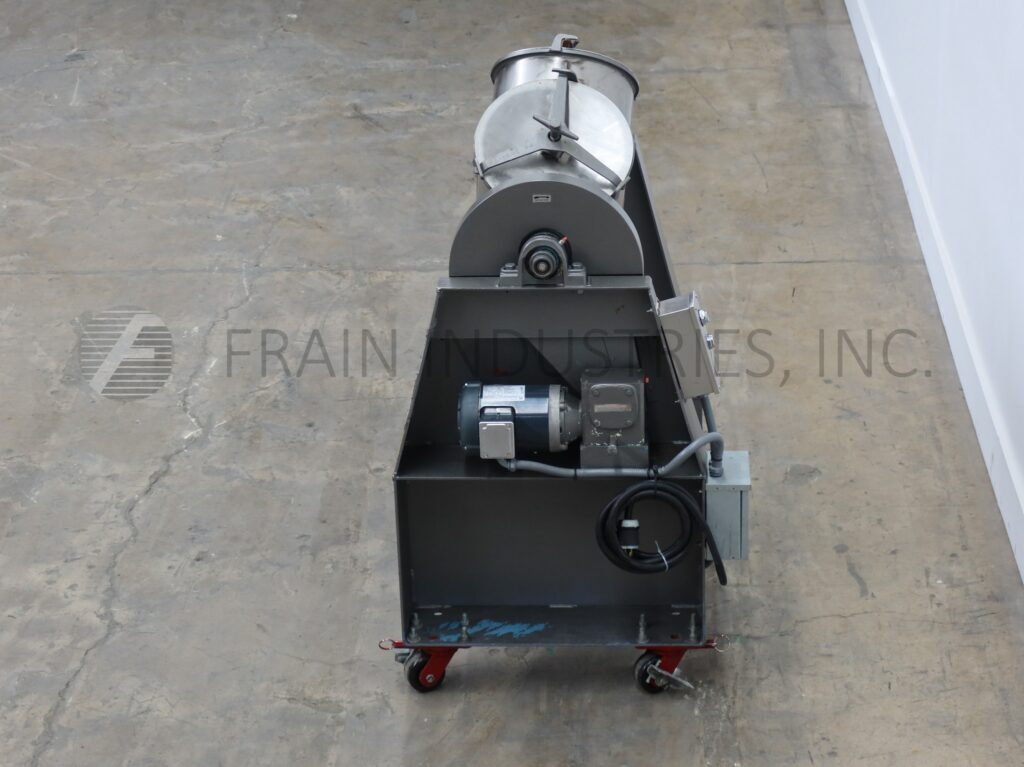

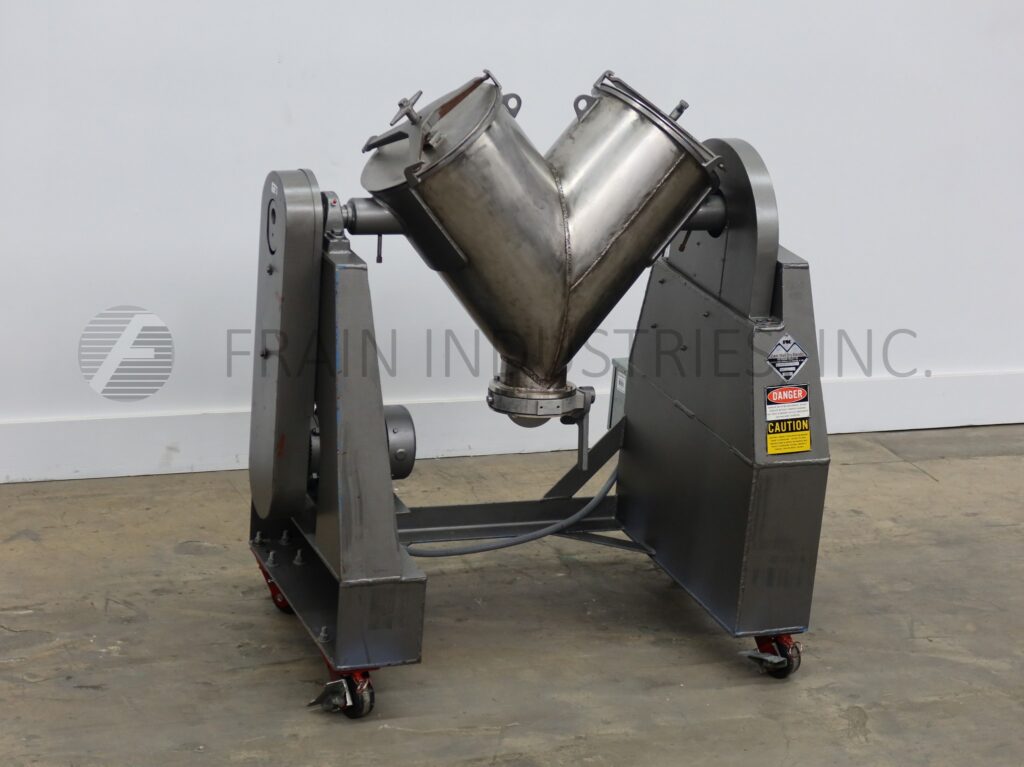

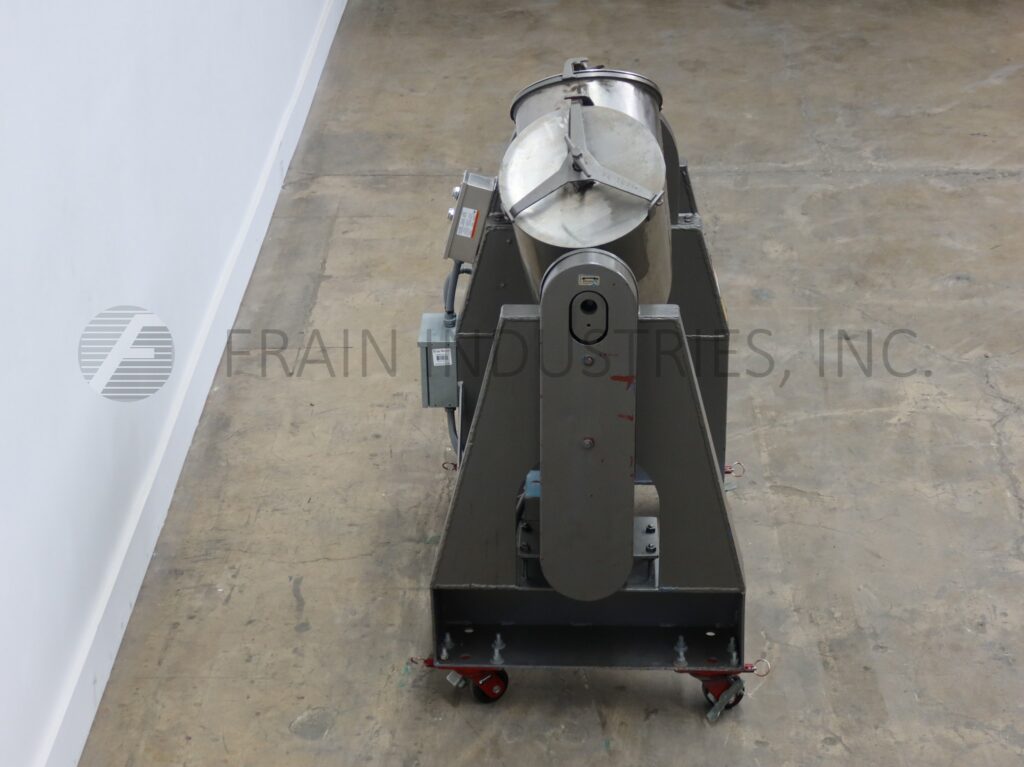

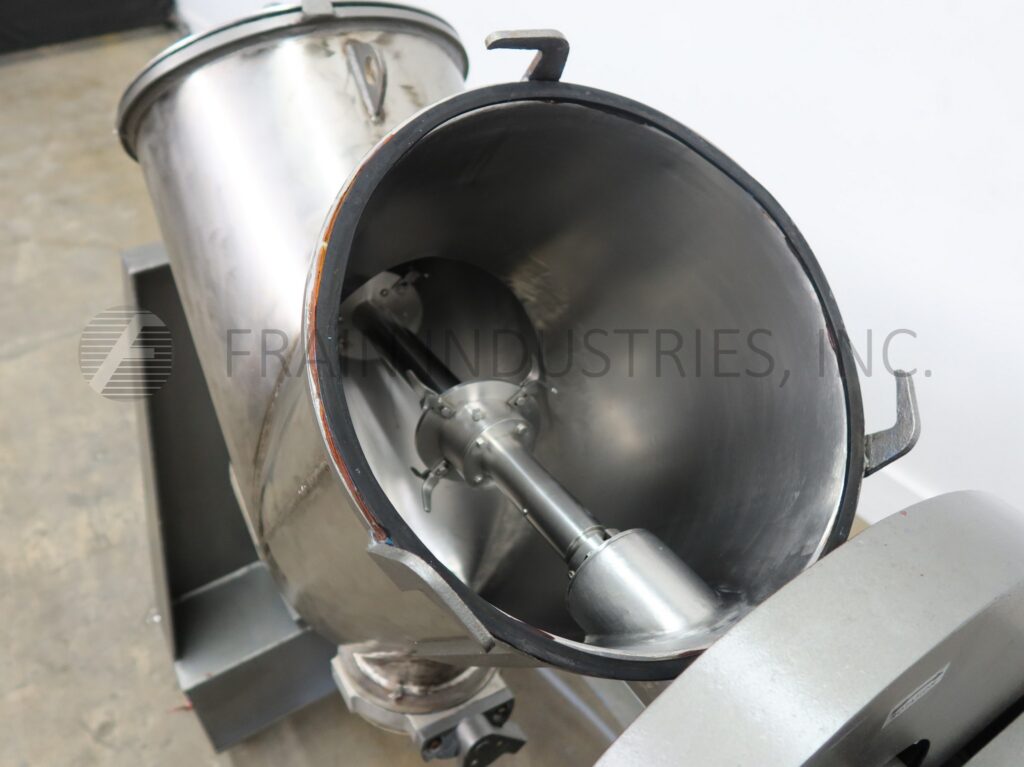

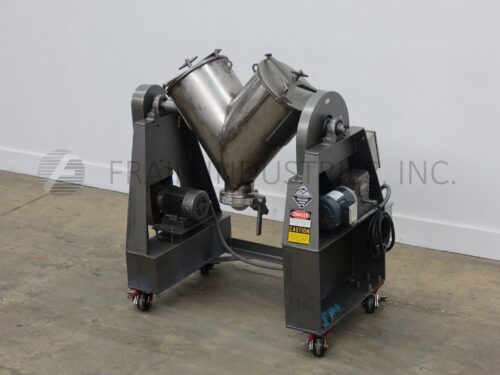

Patterson Kelley Mixer Powder Twin Shell 2 FT³

• Manufacturer: Patterson Kelley
• Model Number: 2 FT³
• Frain Number: 5J3361

Patterson Kelly, 2 ft³, 316 stainless steel, twin shell mixer rated to 60 lbs per ft³ with Ibs of product per hour – depending on materials and application. Equipped with (2) 14" ID product ports with bolt down covers, (2) 21" long side V-Walls and (2) 8" long inner V-Walls, shell powered by a ¾ hp drive, intensifier bar powered by 2 hp drive, butterly valve discharge with 23" ground clearance. Requires 67" ceiling clearance with 22" swing radius / 44" swing diameter. Has push button start / stop controls and digital timers. Mounted on (4) stainless steel leg frame.

OAD: 56"L x 35"W x 59"H
