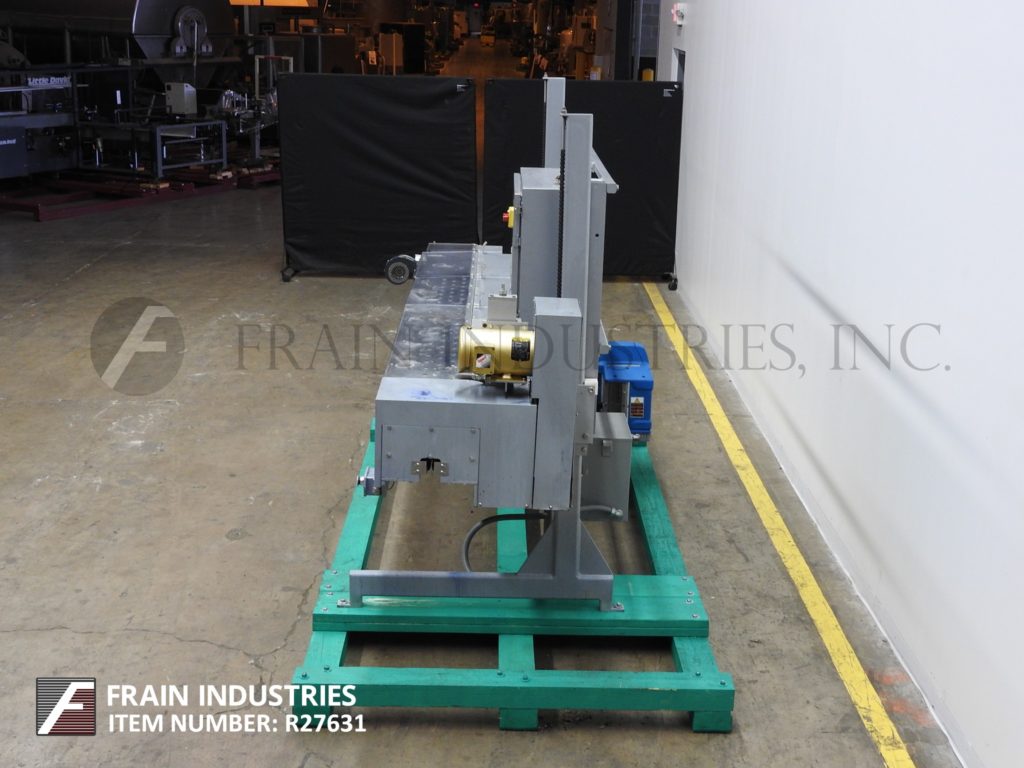

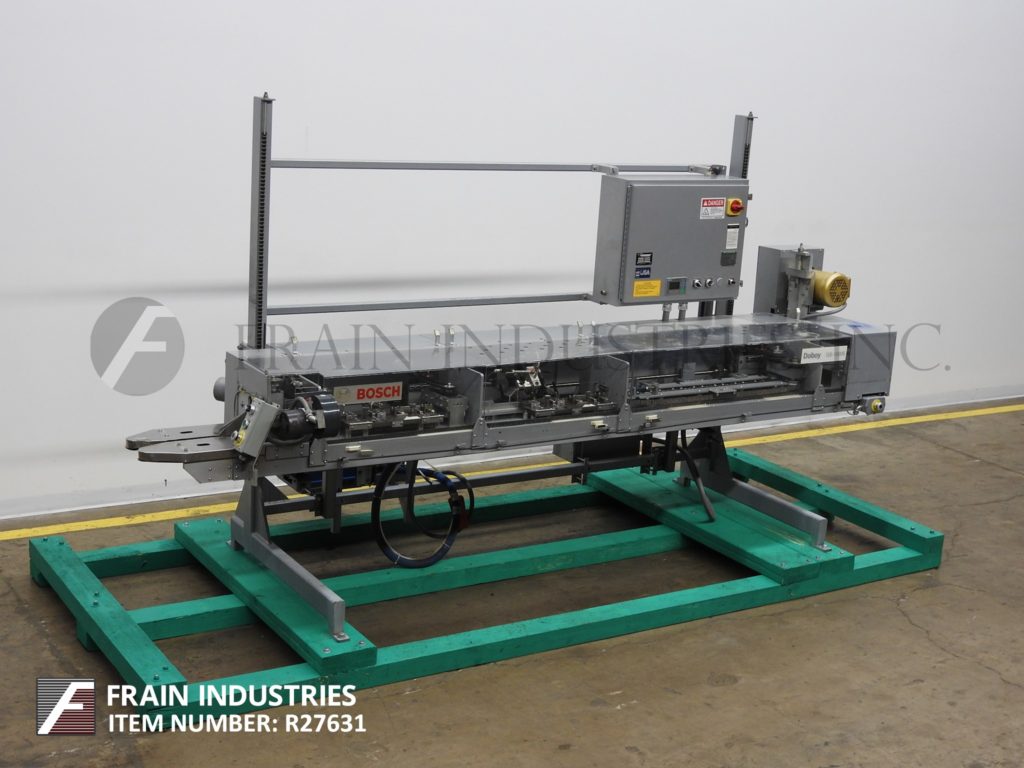

Bosch / Doboy, Model GS1000S, High speed, mount over conveyor, double fold, hot melt glue, bag sealer. Rated up to 100 feet per minute, with number of bags – depending on materials and application. Bag size: 3 to 20lbs. Bag Width: 3½" to 15". Equipped with 183" Long x 4½" Wide product conveyor, top bag carrier chain, single pair of heat seal bars to seal inner laminate layer, outer glue seal station with Nordson hot melt glue unit, (2) fold stations, rotary trimmer and compression section. Control panel has glue gun, glue heat and glue on / off switches, temperature and variable speed controls, run / jog, start and e-stop buttons with Lexan safety guarding. Mounted on (4) leg frame with locking casters.
OAD: 183" L x 50" W x 88"H

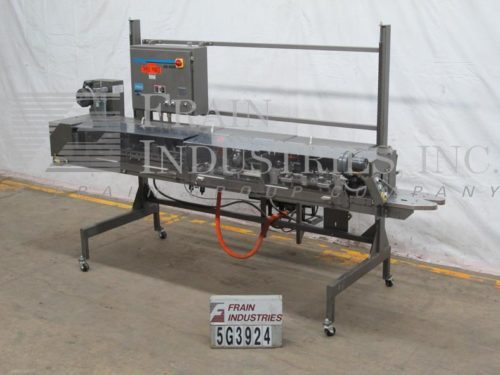

Doboy, Model GS1000S, high speed, mount over conveyor, double fold, hot melt, bag sealer. Rated from 0 to 100 feet per minute, with number of bags – depending on materials, application and machine configuration. Bag size range: 3lbs to 20lbs, Bag Width: 3½" to 15". Equipped with top bag carrier chain, rotary trimmer, (2) fold stations, outer glue seal station with Nordson hot melt glue applicator and 36" long compression section with hand crank height adjustable frame. Control panel has touch pad controls, glue gun and glue heat on / off switches and Lexan safety guarding. Mounted on (6) leg base frame with casters.
OAD: 151" L x 60" W x 87" H

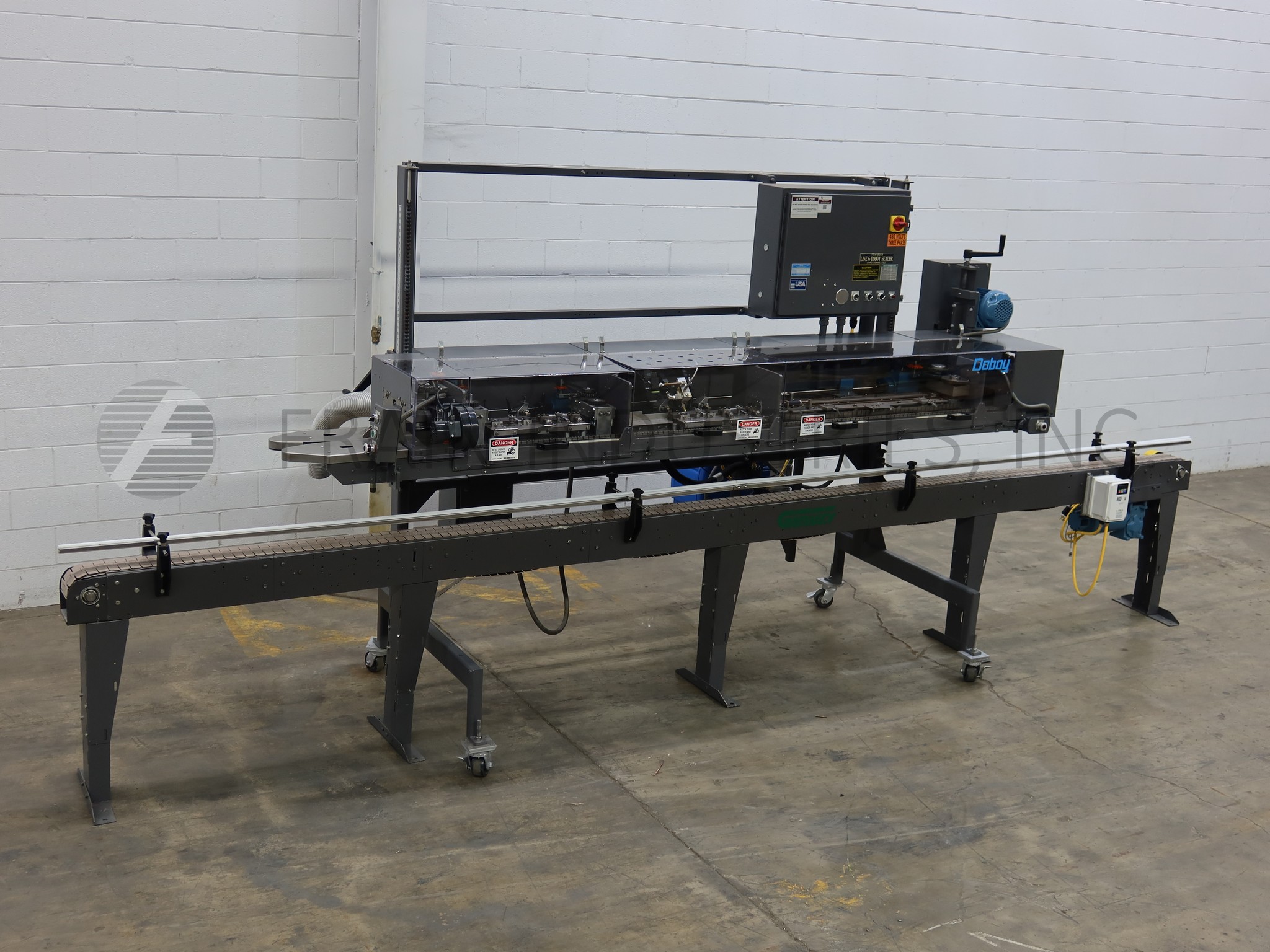

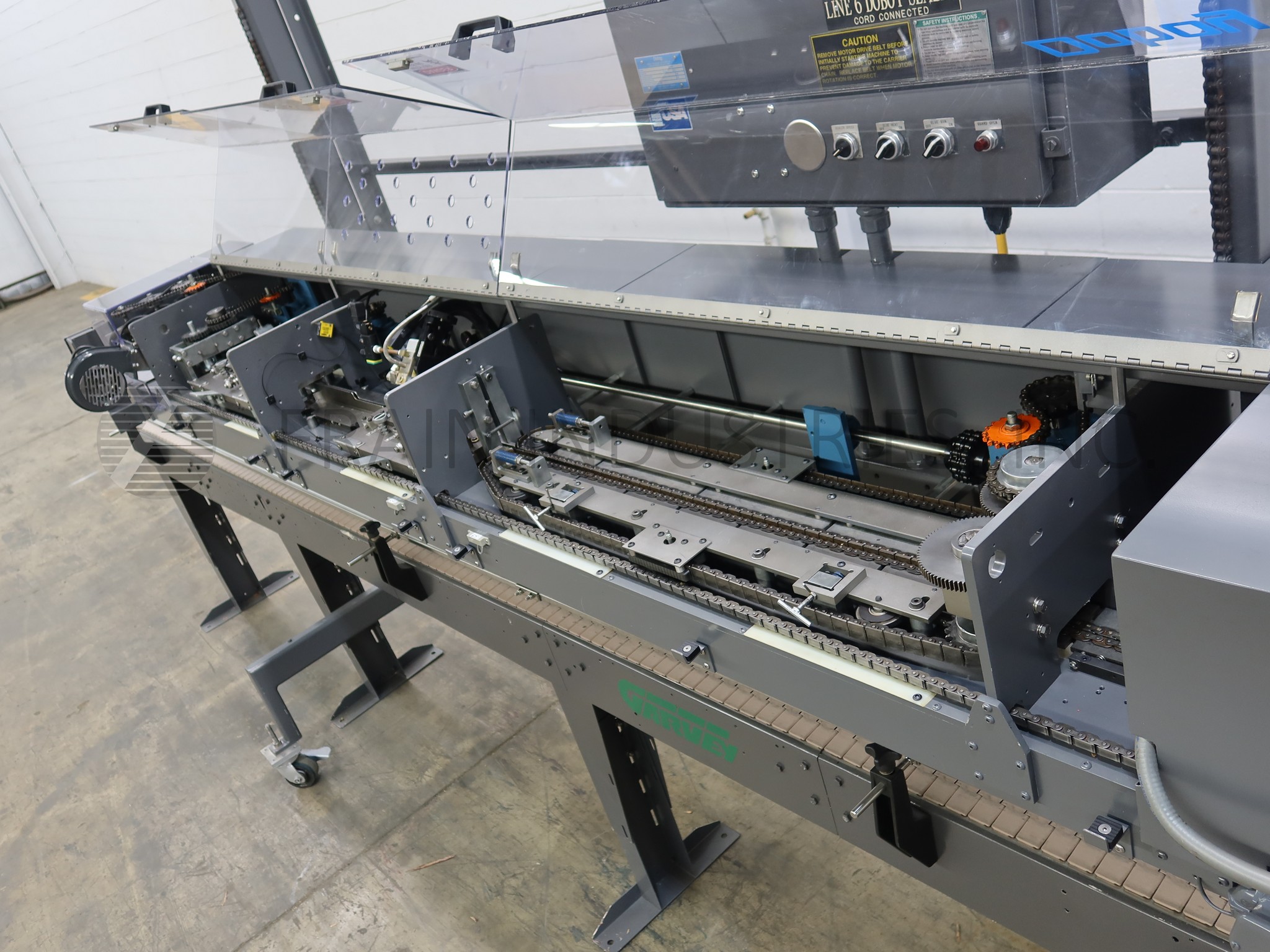

Doboy Model GS1000S, high speed, mount over conveyor, double fold, hot melt, bag sealer rated from 0 to 100 feet per minute, with number of bags – depending on materials and application. Bag size range: 3 lbs to 20 lbs, Bag Width: 3.5" to 15". Equipped with top bag carrier chain, outer glue seal station with hot melt glue applicator, (2) 3/4" folds and 42" compression section, rotary trimmer and hand crank height adjustable. Control panel with run / jog, glue gun, glue heat on / off switches, temperature controls with Lexan safety guarding. Mounted on (4) leg height adjustable frame.
OAD: 164" L x 64" W x 86" H
Doboy Model GS1000S, high speed, mount over conveyor, double fold, hot melt, bag sealer rated from 0 to 100 feet per minute, with number of bags – depending on materials and application. Bag size range: 3 lbs to 20 lbs, Bag Width: 3.5" to 15". Equipped with top bag carrier chain, outer glue seal station with hot melt glue applicator, (2) 3/4" folds and 42" compression section, rotary trimmer, hand crank height adjustable variable speed controls and Lexan guarding. Mounted on a height adjustable frame.
OAD: 183"L x 56"W x 86"H
